وحدة استشعار شدة الضوء OPT101 مع مضخم ضوئي مدمج، 2.7–36 فولت، مخرج تناظري in Kuwait وحدة استشعار شدة الضوء OPT101 مع مضخم ضوئي مدمج، 2.7–36 فولت، مخرج تناظري in Kuwait وحدة استشعار شدة الضوء OPT101 مع مضخم ضوئي مدمج، 2.7–36 فولت، مخرج تناظري in Kuwait وحدة استشعار شدة الضوء OPT101 مع مضخم ضوئي مدمج، 2.7–36 فولت، مخرج تناظري in Kuwait وحدة استشعار شدة الضوء OPT101 مع مضخم ضوئي مدمج، 2.7–36 فولت، مخرج تناظري in Kuwait وحدة استشعار شدة الضوء OPT101 مع مضخم ضوئي مدمج، 2.7–36 فولت، مخرج تناظري in Kuwait

وحدة استشعار شدة الضوء OPT101 مع مضخم ضوئي مدمج، 2.7–36 فولت، مخرج تناظري

KWD 6.500
ماركة
JESSINIE
وزن
50 g
– 1 +

مميزات خاصة

  • 【Integrated Photodiode And Amplifier Design】 OPT101 combines a photodiode and transimpedance amplifier on a single chip; outputs voltage directly proportional to light intensity; eliminates the need for external amplification; simplifies circuit design for straightforward ambient light measurement tasks
  • 【Wide 2.7 V To 36 V Supply Voltage Range】 Supports an exceptionally wide input voltage range from 2.7 V to 36 V DC; compatible with low‑voltage microcontrollers and higher‑voltage analog systems; increases flexibility across varied electronic design environments
  • 【Analog Voltage Output For Simple Signal Reading】 Provides continuous analog voltage output via OUT pin; enables direct connection to ADC inputs; supports real‑time light level monitoring; ideal for applications requiring smooth and immediate response to brightness changes
  • 【Visible Light Optimized Spectral Response】 Spectral response tailored to visible light wavelengths; improves relevance of measurements to human‑perceived brightness; supports consistent ambient light detection without complex digital processing
  • 【Fast Optical Response And Compact Module】 Fast response time captures rapid light changes accurately; compact PCB with VCC, GND, OUT, and REF pins simplifies wiring; fits space‑limited layouts; compatible with for Arduino and similar analog‑input controllers

وصف

Product Overview

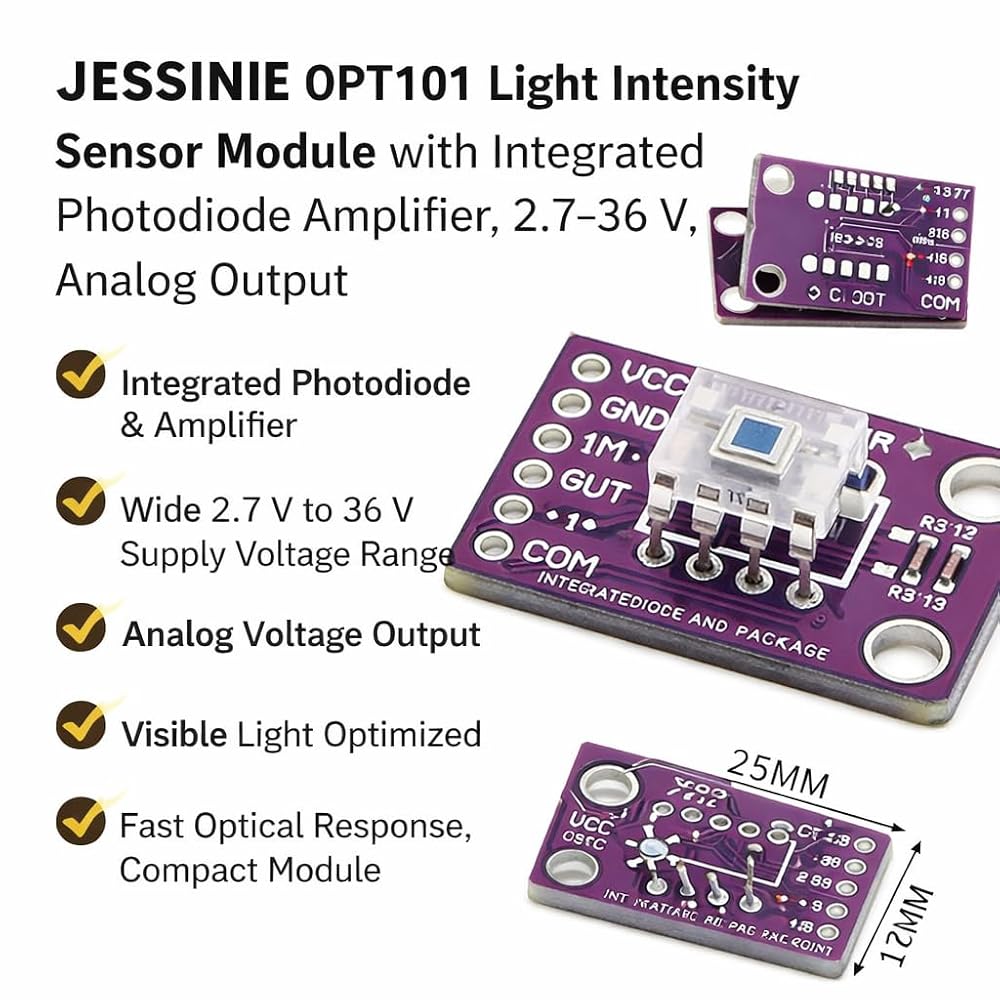

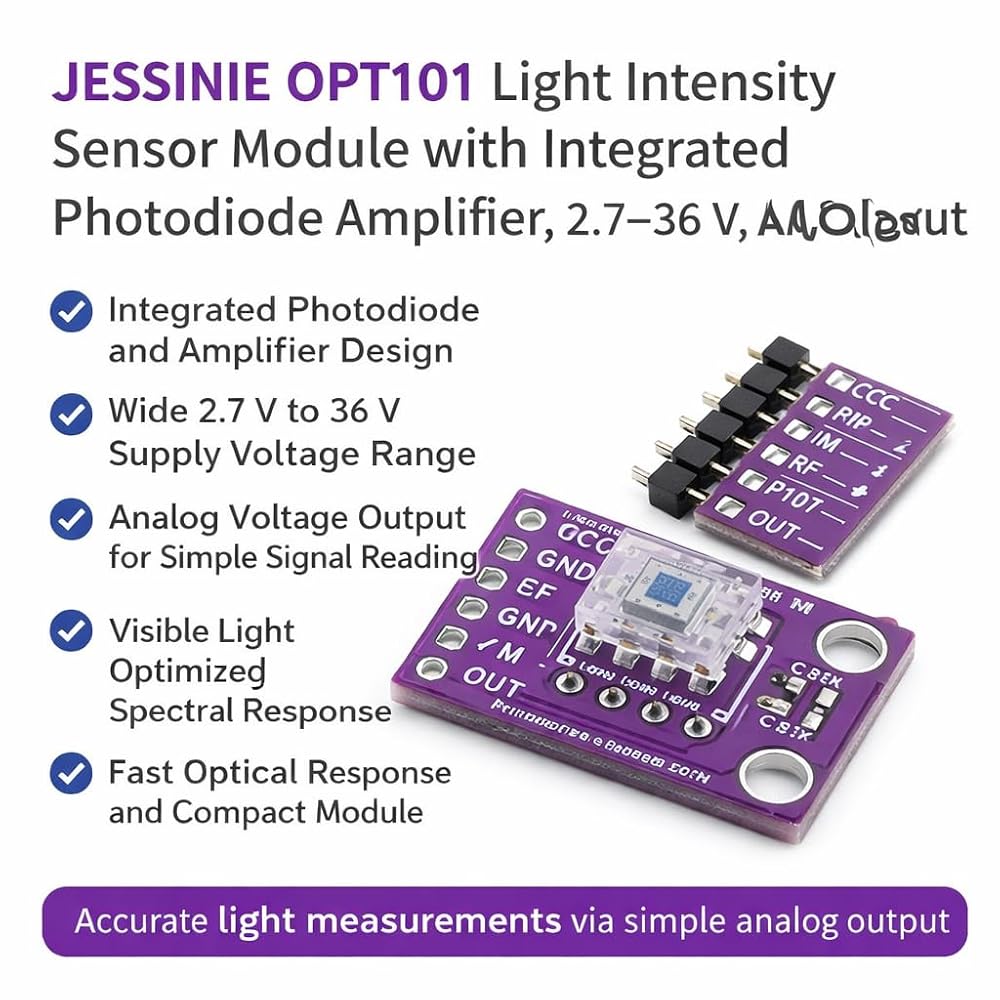

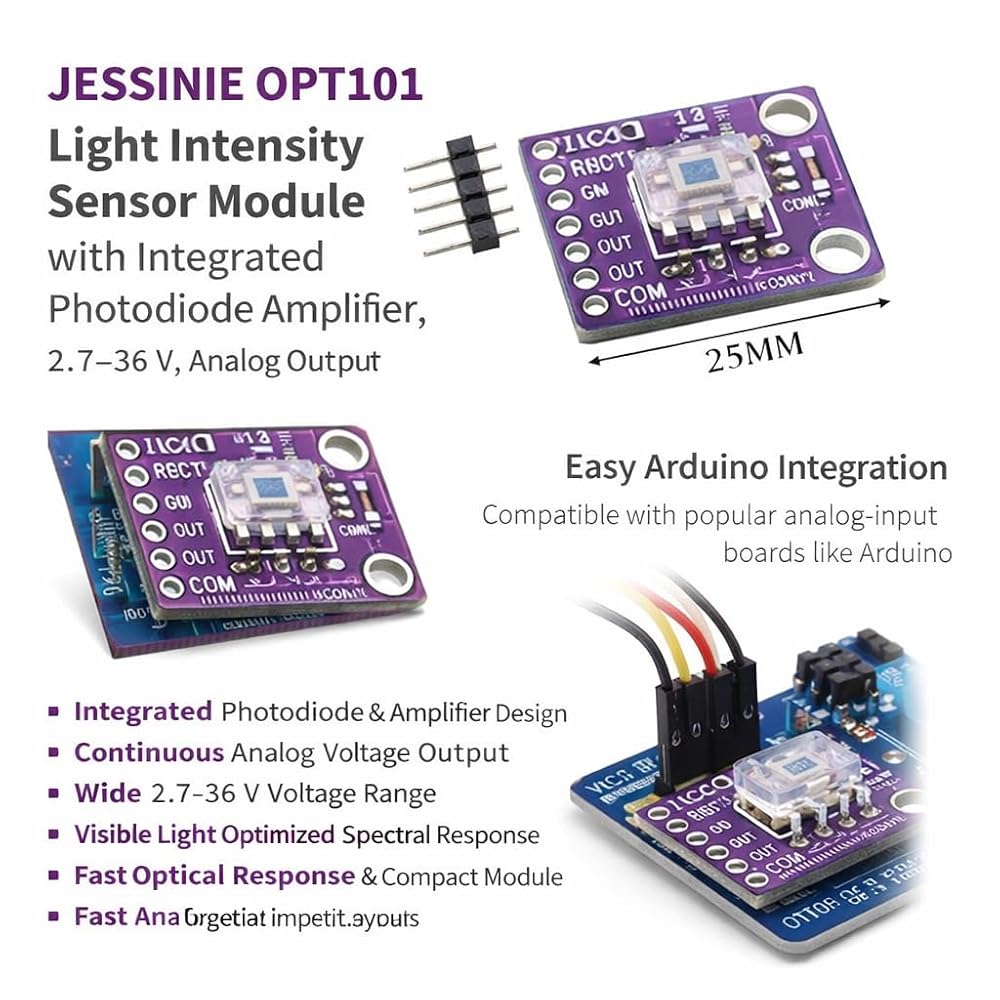

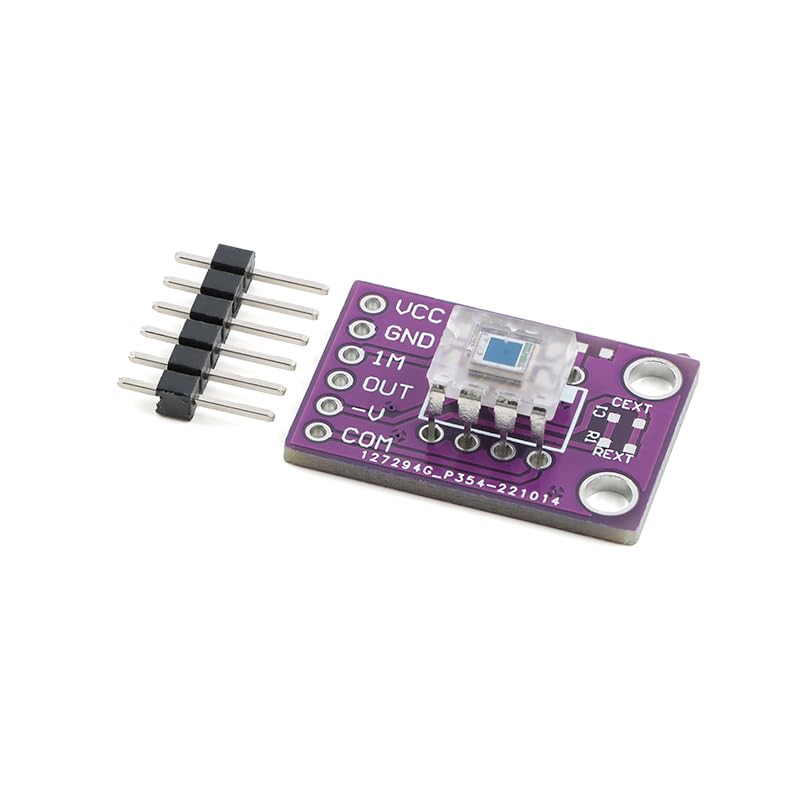

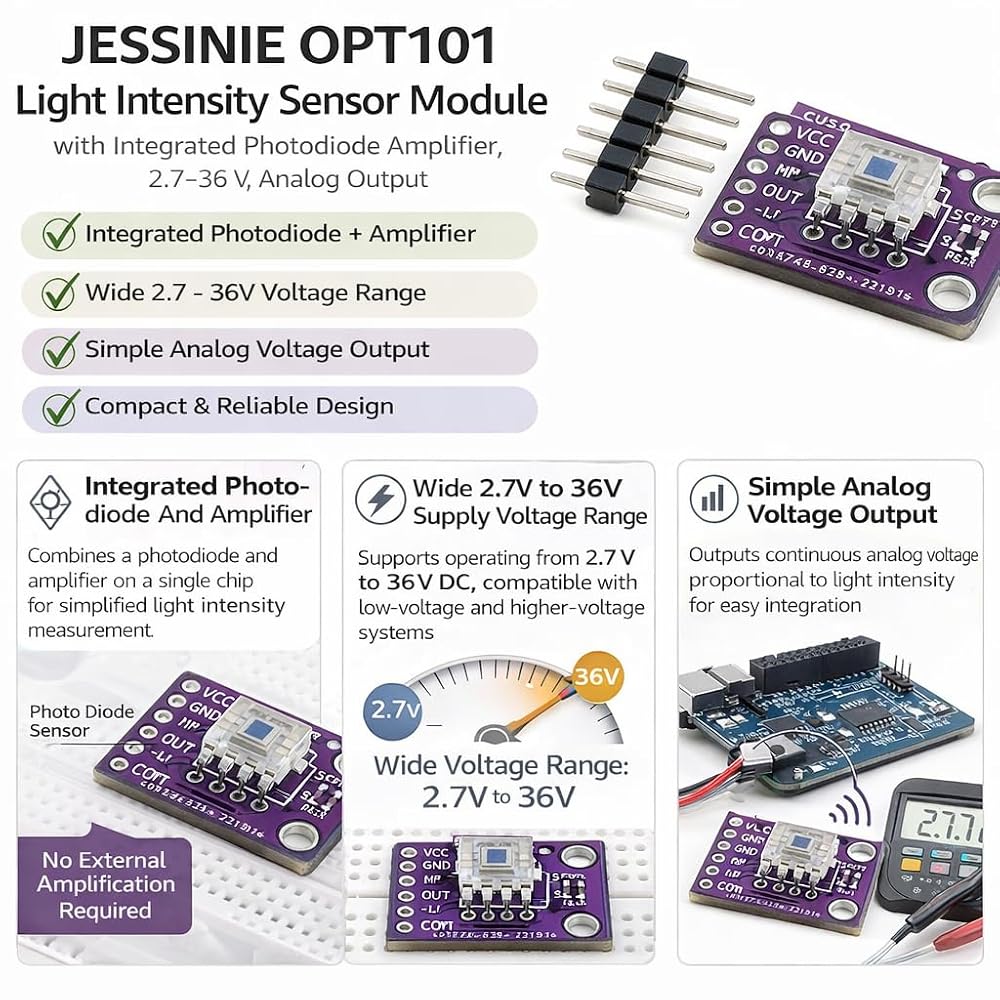

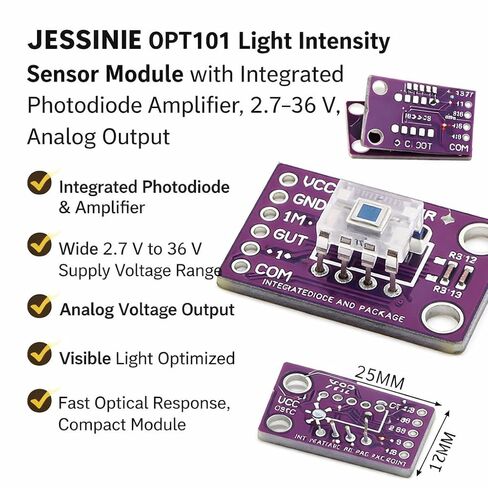

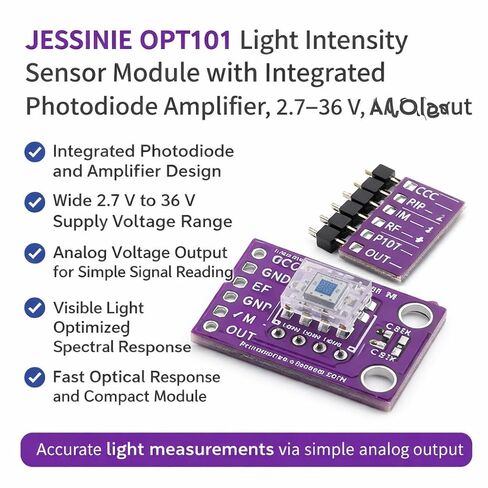

OPT101 Light Intensity Sensor Module integrating a photodiode and transimpedance amplifier on a single chip. Designed for accurate ambient light measurement with simple analog output. Built with original OPT101 chip, offering stable performance and easy system integration.

1. Product Parameters
Sensor IC: OPT101
Sensor Type: Photodiode light intensity sensor
Integrated Circuit: Photodiode + amplifier
Supply Voltage (VCC): 2.7–36 V DC
Output Type: Analog voltage proportional to light intensity
Spectral Response: Visible light optimized
Response Time: Fast optical response
Interface Type: Analog output
Operating Temperature: −40 °C to +85 °C
2. Pin Function Description
VCC (IN+): DC power input positive
GND: Power ground
OUT: Analog voltage output
REF: Output reference pin
3. Common Questions & Answers (FAQ)
Q1: What does the OPT101 measure?
A1: It measures ambient light intensity using an integrated photodiode.

Q2: Is the output signal digital or analog?
A2: The output is analog voltage.

Q3: What voltage is required to power the module?
A3: It supports a wide range from 2.7V to 36V DC.

Q4: Is external amplification required?
A4: No, the amplifier is integrated on the chip.

Q5: Is it suitable for simple light detection projects?
A5: Yes, it is ideal for straightforward light sensing applications.
