Features:
* and

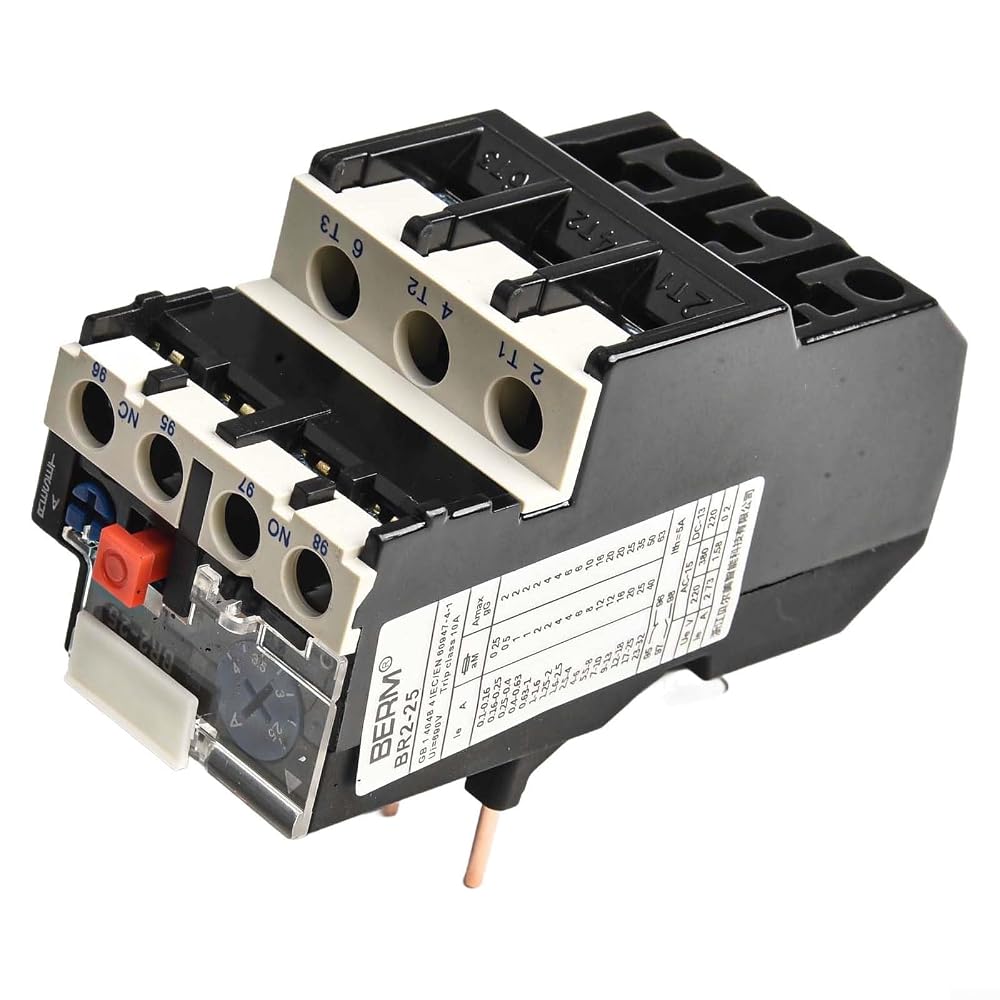

* Motor three-phase thermal overload relay FR NR2-25 has a setting current range of 0.1 A to 25 A
* Applicable to CJX2 series contactors
* Made of - materials, environmentally friendly, safe, reliable, , small in size, light in weight, with many varieties and complete specifications. It has complete functions, convenient and flexible installation, simple maintenance, and better cost performance, allowing you to easily build a safe and beautiful power distribution .
* NR2-25 series thermal overload relay is suitable for overload and phase loss for protection of AC motors with AC 50Hz/60Hz, voltage up to 690V, and set current 0.1A to 25A for long-term or intermittent .
* It also has functions such as for temperature compensation, operating instructions, automatic and manual for reset, stop and test, ., with stable and reliable performance.
* The thermal overload relay can be plugged and installed together with the contactor (applicable to CJX2 series contactors, the contactor needs to be purchased separately).
* “NO” = Normally Open, “NC” = Normally Closed.

Specification:
Model: NR2-25
Set current range (optional): 0.1-0.16 for Amp, 0.4-0.63 for Amp, 0.63-1 for Amp, 1-1.6 for Amp, 1.25-2 for Amp, 1.6-2.5 for Amp, 2.5-4 for Amp, 4-6 for Amp, 5.5- 8 for Amp, 7 -10 for Amp, 9-13 for Amp, 12-18 for Amp, 17-25 for Amp
Applicable contactor models: CJX2-09 to CJX2-32
Rated insulation voltage (Ui): 690V
Rated impulse withstand voltage (Uimp): 6kV
Rated current (AC-15 220V): 2.73A
Rated current (AC-15 380V): 1.58A
Rated current (DC-13 220V): 0.2A
for protection level: IP20
Travel Class: Class 10A
Shell material: plastic for flame retardant material
With phase loss for protection and overload for protection
With continuously adjustable setting current device
With for temperature compensation
With running indicator light
Have a testing agency
There is a stop button
Has manual and automatic for reset buttons
Comes with auxiliary contacts: 1 normally open, 1 normally closed
Ambient air for temperature: maximum operating for temperature -35°C to +70°C, normal operating for temperature -5°C to +40°C, the average value 24 hours does not exceed +35°C.
Altitude: no more than 2000m.
Installation : plug-in
Exact dimensions can also be viewed in the photo gallery.

Package Included:
1 x thermal overload relay
