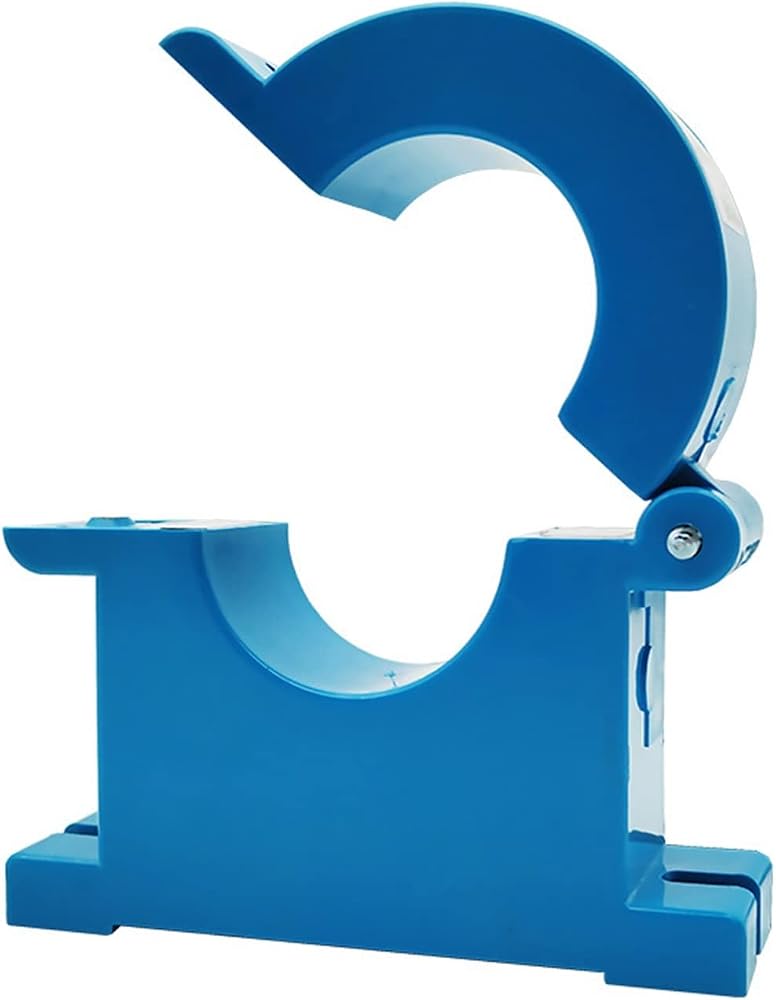

CT 100A 150A/5A 200A/5A 300A/5A 400A/5A 500A/5A 600A/5A Clamp retractable AC current transformer AC split core CTs Sensor
Features:
1) The structure of the self-locking safe easy to install portable
2) Wide inner window allowing clamping of big cables or bus-bars
3) Wide range of sizes to accommodate all the existing installations
4) Isolated case recognized
5) Wires plugs Audio plugs Power plugs and so on five kinds of plugs
6)Meet the standard IEC60044-1 and ANSI C12.20
7)High accuracy class wide linearity
8)Superitor stability separate the external magneitc field interference
9)Measure the current directly
10)It is with the diode to save people's life
Accuracy: 0.5
Application: Electricity Measuring
Operating Temperature: -40°C~+70°C
Ratio:100A 150A/5A 200A/5A 300A/5A 400A/5A 500A/5A 600A/5A
Split Core
Window Hole size:38MM
