FEWZPDTTCJ

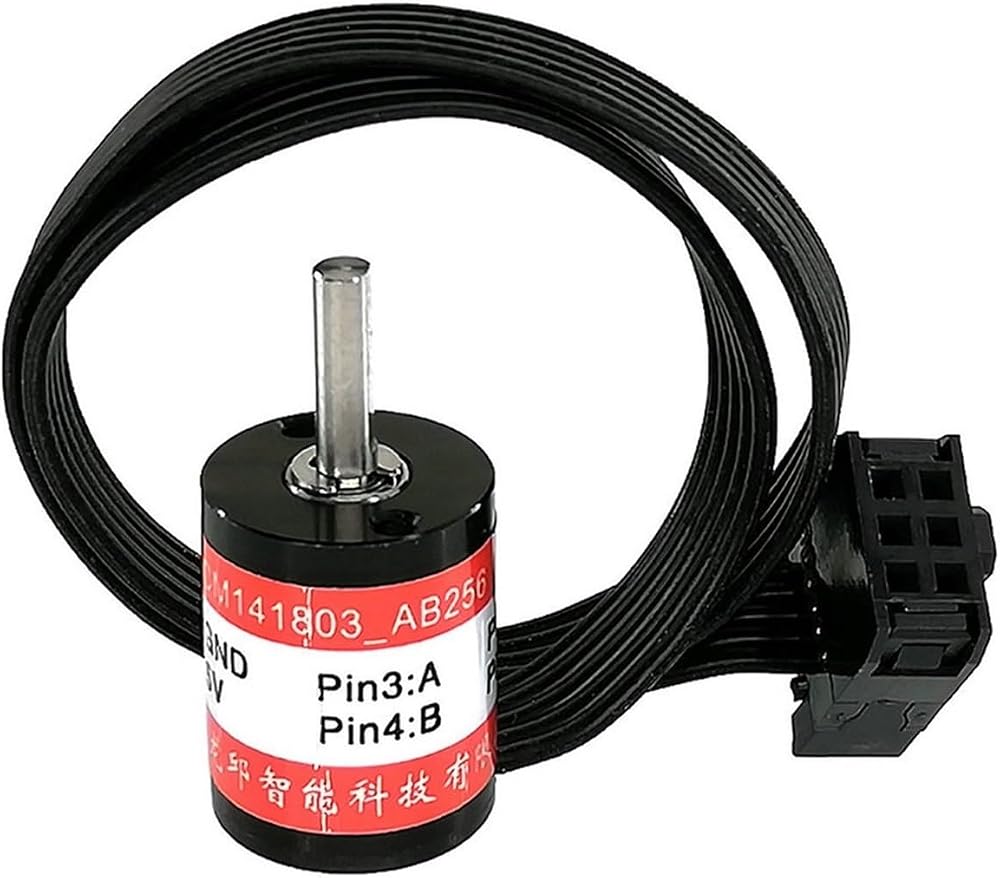

This product has the following characteristics:
Resolution: AB phase 256 lines AB phase 1024 lines step + direction output 512 lines;
High rotation speed the highest speed can reach 10000rpm;
Wide operating temperature range: -40 ~ + 125 .
Good immunity. This product uses Hall detection technology which belongs to non- detection. Affected by dust or other debris the shortcomings based on the principle of optical detection are well overcome;
Small size. Diameter D: 14mm; height H: 18mm; shaft diameter: 3mm; shaft length: 10mm; screw hole: M2 * 0.4 /M2.5
Light weight 11.5 grams all aluminum alloy structure
2.Application
robot Manipulator Motion control system Servo system Automation equipment Office equipment
Replace optical encoder Smart car
3.electrical characteristics
Parameter
Symbol
Min
Max
Unit
Remark
Power supply
VDD
3.3
5.5
V
Working current
Isupp
16
21
mA
High-level output voltage
VOH
VDD-0.5
V
A B Z
Low-level output voltage
VOL
VSS+0.4
V
A B Z
Output current
IO
4
mA
A B Z
Electrostatic discharge
ESD
±2000
KV
Storage temperature
Tstrg
-55
125
Relative humidity
H
5
85
%
