This metal 90 degree aluminum angle bracket measures 3 x 3 x .25 x 2.812 inches with eight.328 inch diameter thru holes. Perfect for your 80/20 t slot aluminum extrusion project!
8020 corner bracket is compatible with 15 Series aluminum extrusions or 1.5 inch based extruded profiles. Works with many of our competitor's aluminum extruded frame.
Strong and durable brackets that can be easily removable and reused. Top line quality control with smooth de-burred edges, tight tolerances, and a clear anodize finish ensures a perfect bracket.
Made out of 6063-T6 with an anodize finish, this can be used as brackets for home improvement projects, t slot aluminum extrusion, aluminum framing, or 3D Printer applications.
80/20's #3320 assembly hardware is recommended (but not included) for 8020 extruded aluminum t slot extrusion based applications. Perfect for 1530, 1575, 3030, 3060 and many more 80/20 t-slot profiles!
Description

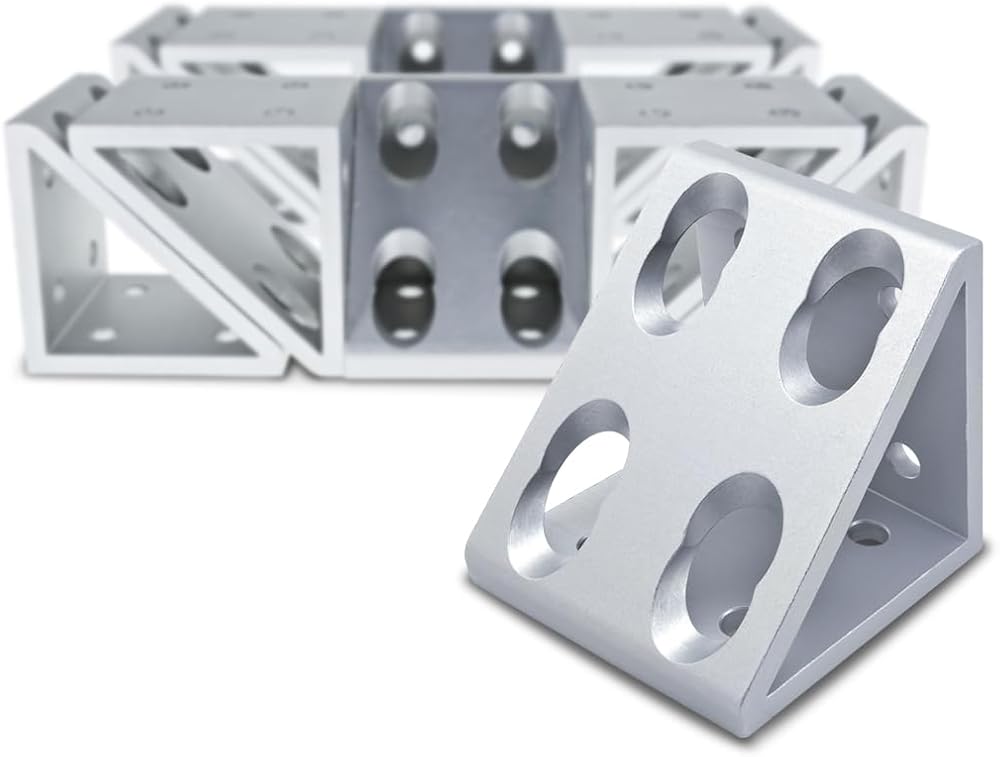

The 8 hole - gusseted inside corner bracket is a strong, external fastening method that creates a 90 degree connection. It has four holes, comprised of two rows and two columns, on each side of the bracket. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The shape of the gusset provides extra material, strengthening the connection. The 8-hole gusseted inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused.
