Features:
1. This module is the finished module of

transformer for small scientific production.
2. The input voltage is DC 3.7-7.4V and can output

high voltage of DC 800-1000KV.
3. According to the coil principle,

the module outputs high voltage pulse current, small volume and high

efficiency.
4. The peripheral circuit is simple (simply connect the switch and install the battery), the discharge intensity is violent.
5.
It can be used as high voltage source for high school science experiment, electronic instrument and anion generator.
Specification:

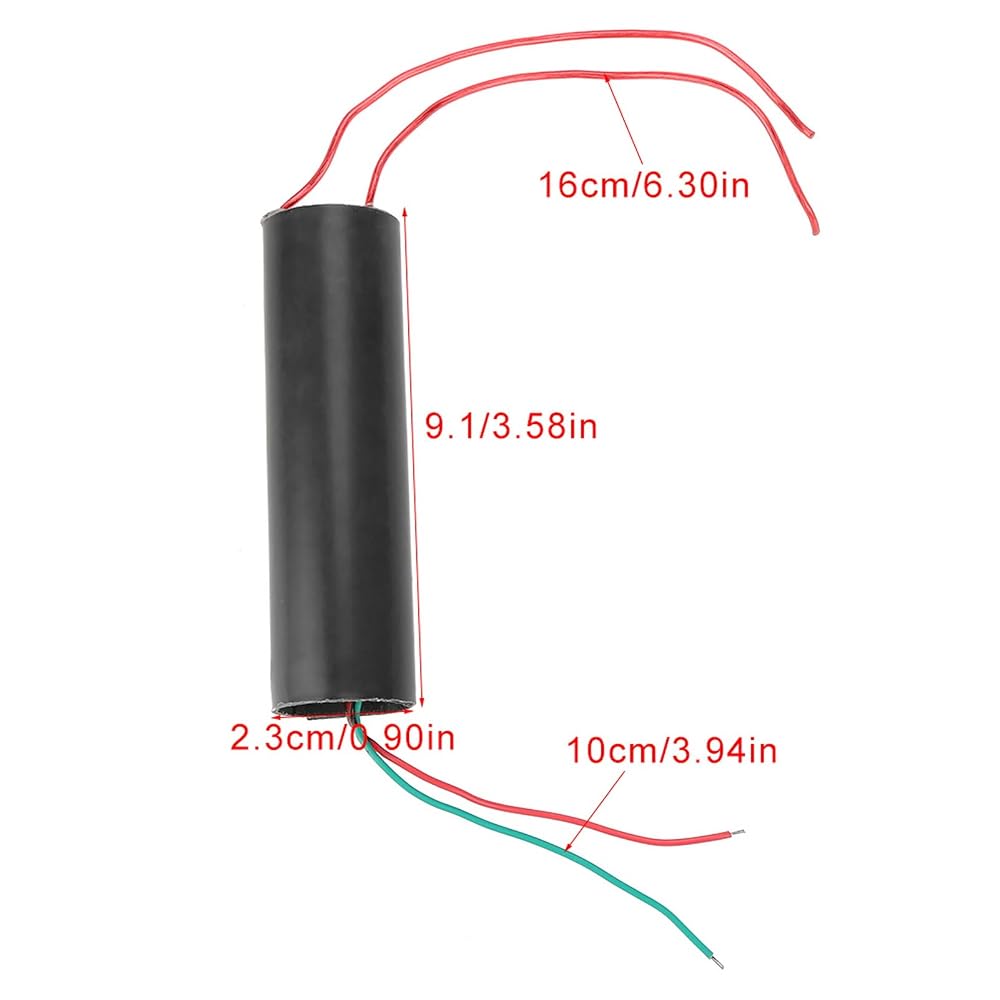

Item Size

(L*Dia.): 9.1*2.3cm / 3.58*0.90in
Input Voltage: 3.7-7.4V
Input Current: 4A
Input Cable Length: Approx. 10cm/3.94in
Output

Voltage: 800-1000KV
Output

Current: 0.5A
Output Cable Length: Approx. 16cm/6.30in
Discharge

Distance between Two Poles: 1.5-2.5cm / 0.59-0.98in
Power

Supply: 3.7V Li-ion battery, NiCd/NiMH battery pack, 4V or 6V - battery (Not included
)
Weight: Approx. 65g / 2.3oz
Packing

list:

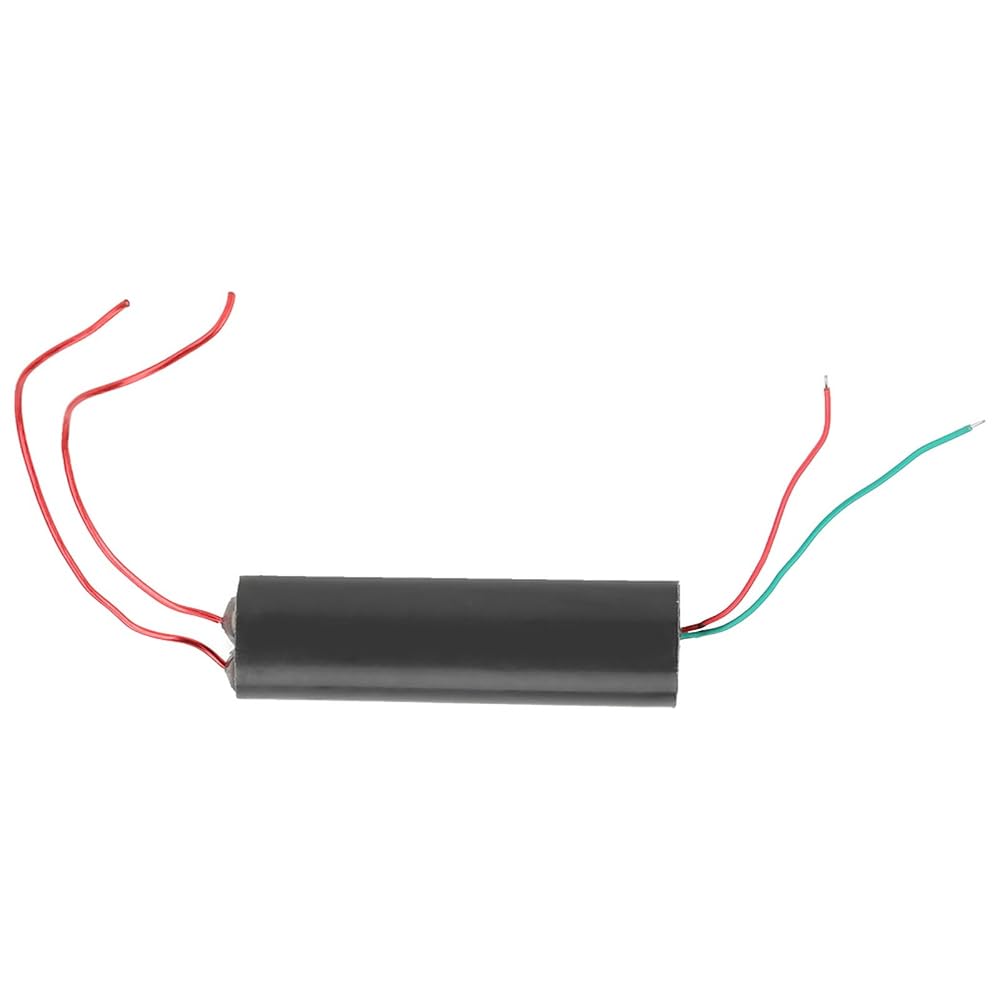

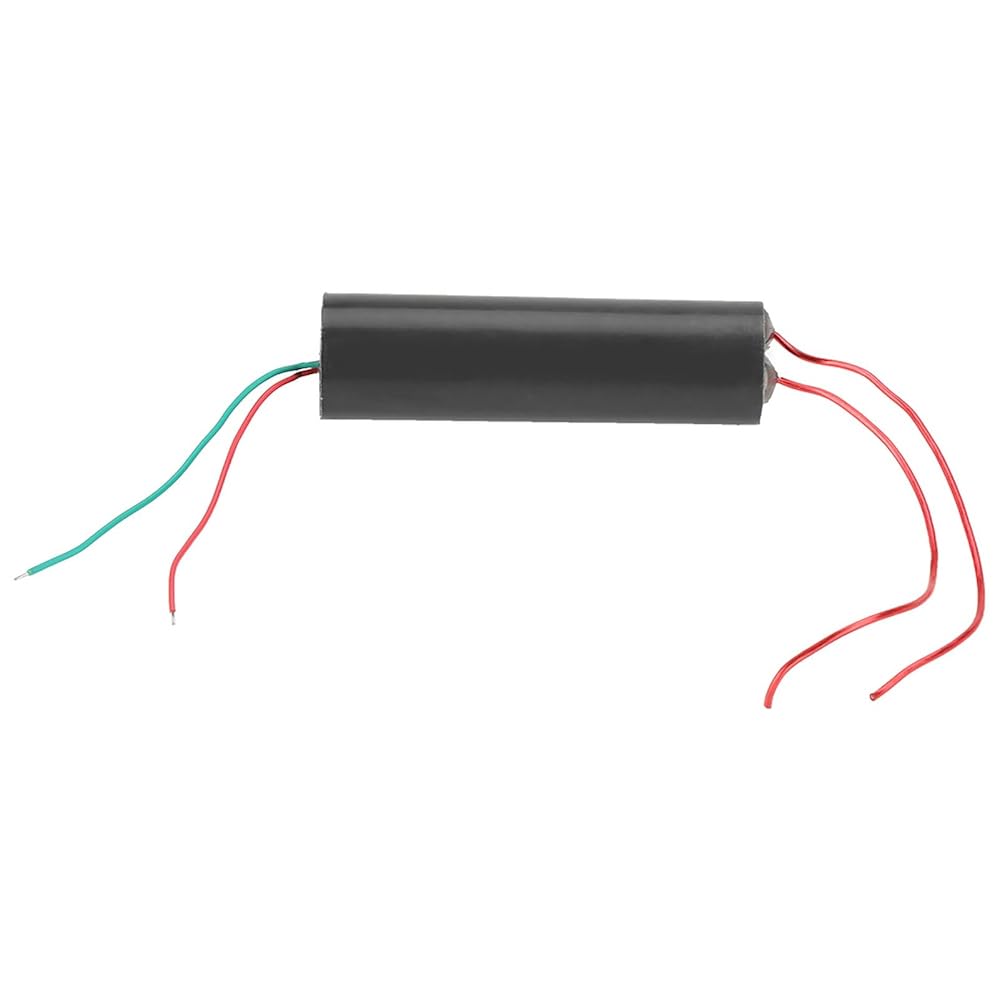

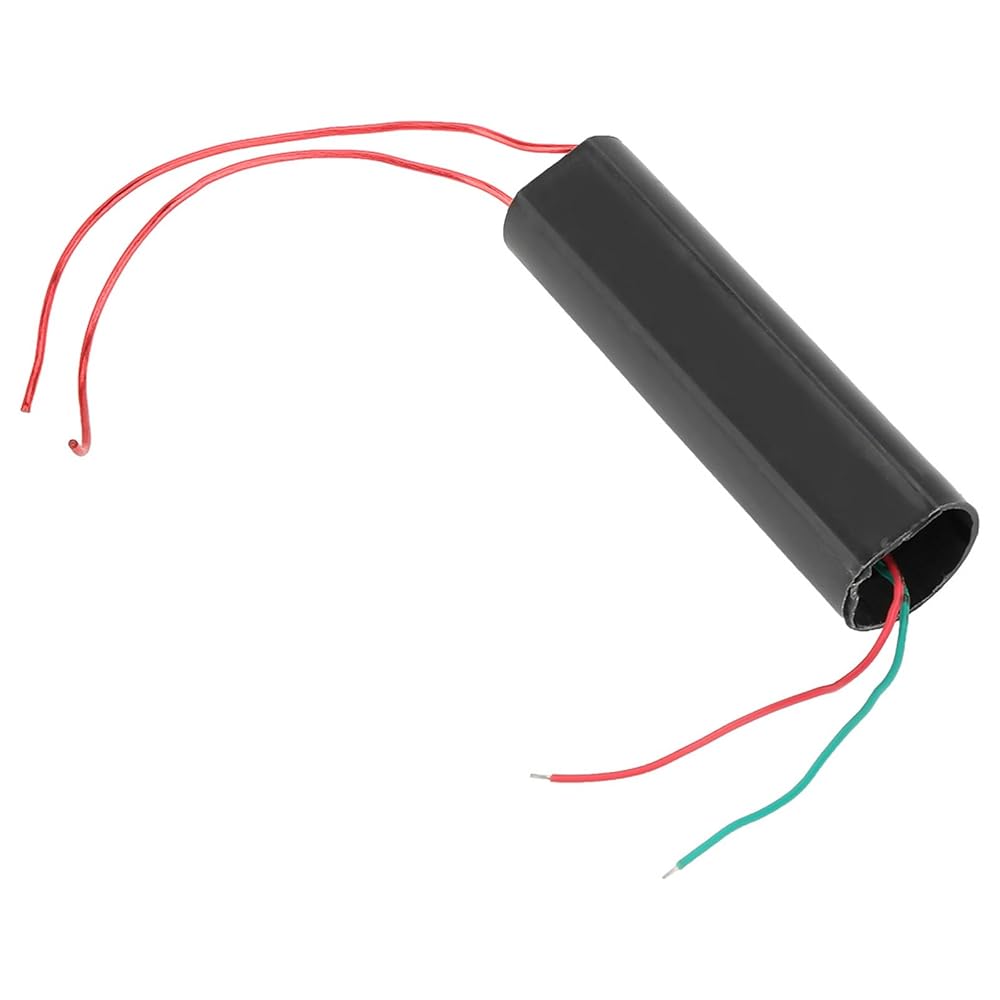

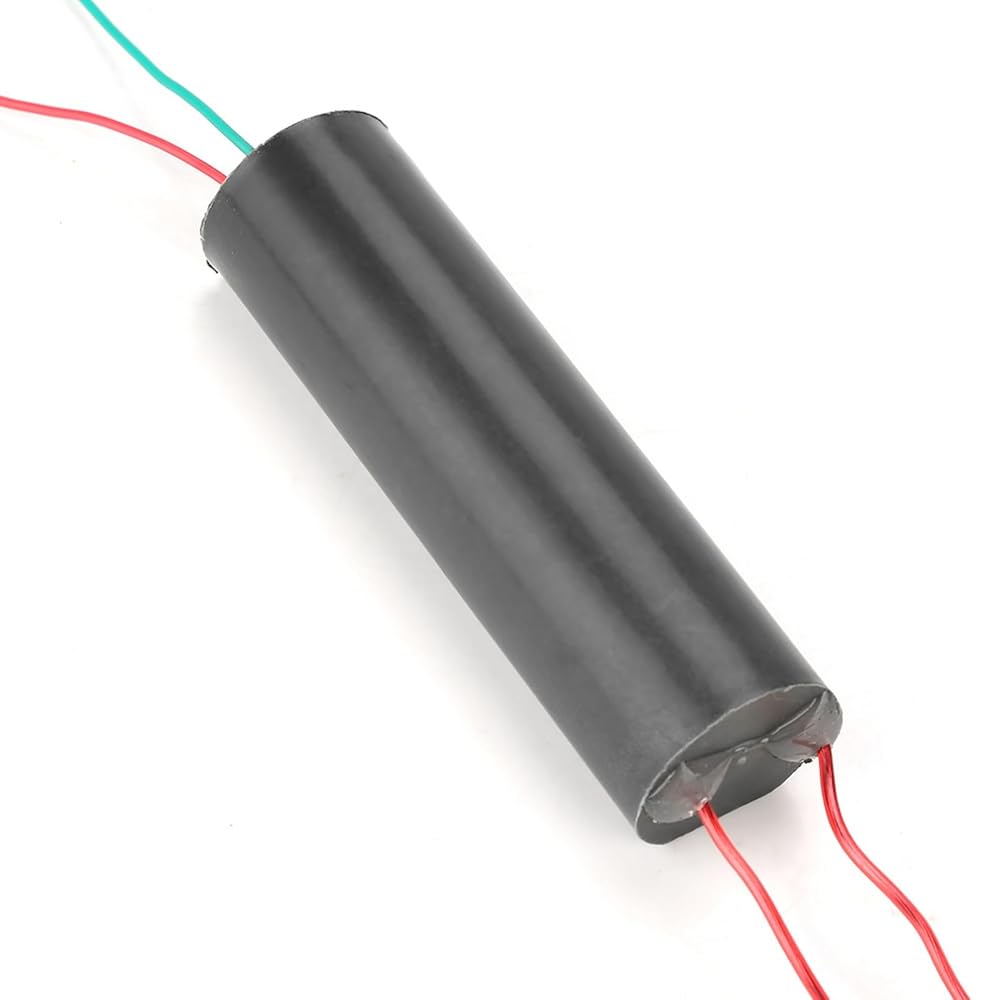

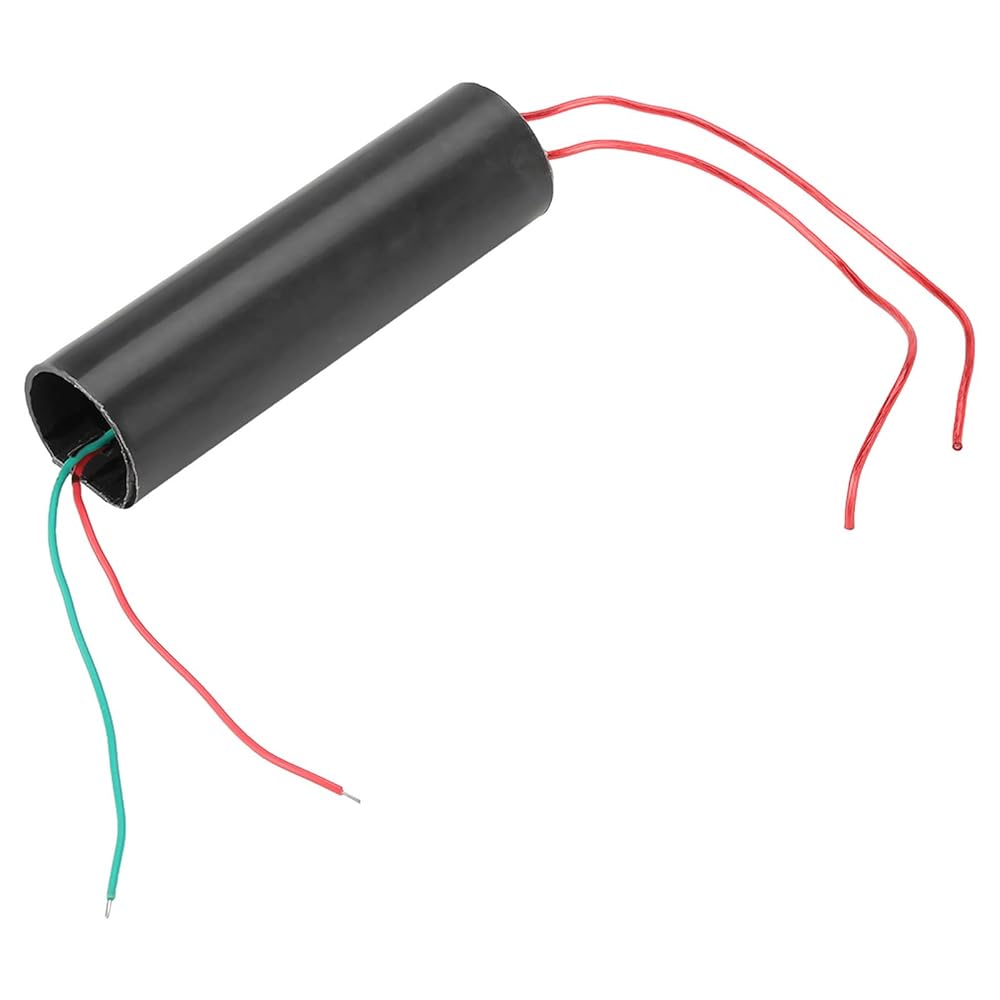

1 * High

Voltage Pulse Generator
Instruction:

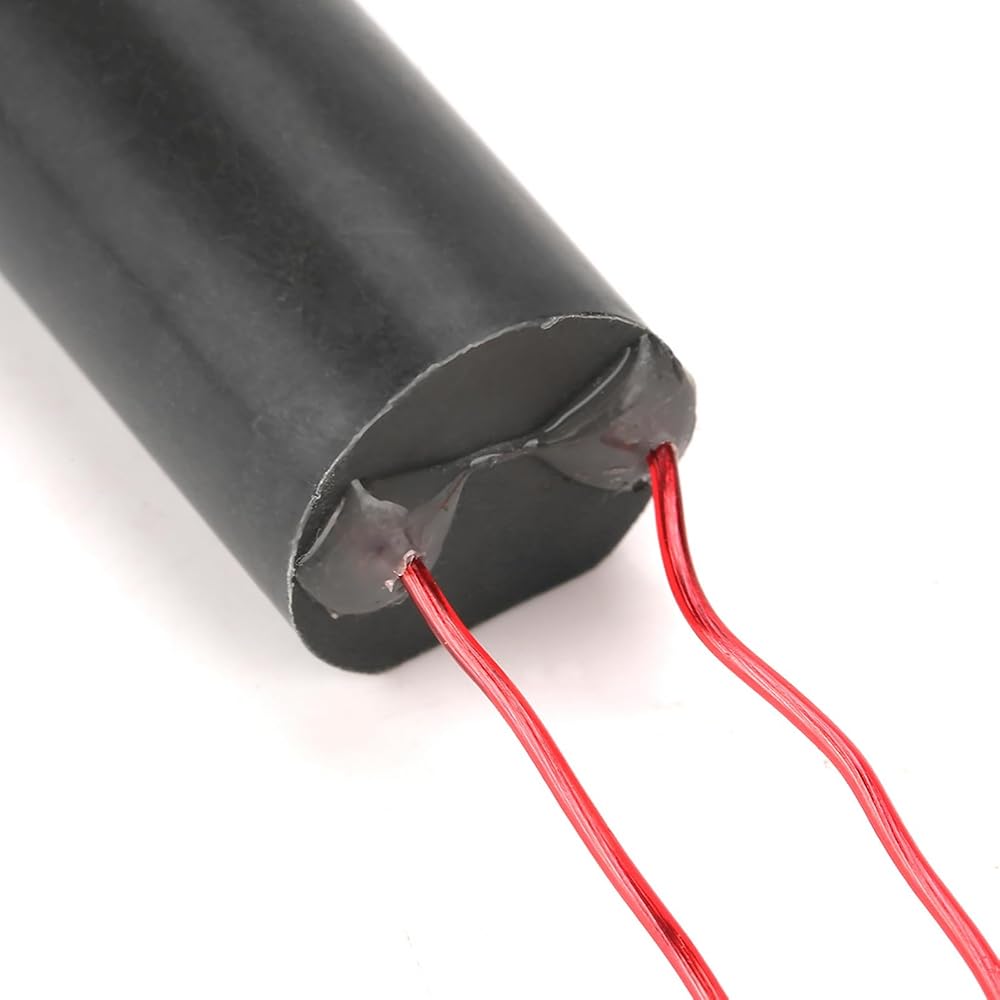

The mould is divided into input end and output end.

The red and is the input end, and red one is positive, green one is

negative. High voltage arcs can be generated by connecting the input end to the

battery.
Note:
1. Avoid power on when no load. Output ends of cable

should be adjusted properly before power on, and the arc distance depends on

battery voltage and capacity.
2. The arc distance should be from short to long, do

not produce a longest arc at first or the module might be damaged easily.
3. The module has high power and inner heat is not

easily dissipated, so it can not work for long time.
4. Less capacity the battery has, lower the output

voltage is. It is recommended to use above 2000MA lithium, it is better to

4000MA battery.
