1. [HIGH POWER] Instantly ignites cigar and paper with 3V to 6V high power for 20 seconds continuously.
2. [WIDE APPLICATION] Perfect high voltage source for high school science experiments and electronic instruments.
3. [ARC GENERATION] Quickly ignites materials with high temperature arc for various practical applications.
4. [COMPACT & POWERFUL] Small volume with high efficiency for easy transport and installation.
5. [EASY TO INSTALL] Simple peripheral circuit setup with easy battery installation.

Specification:

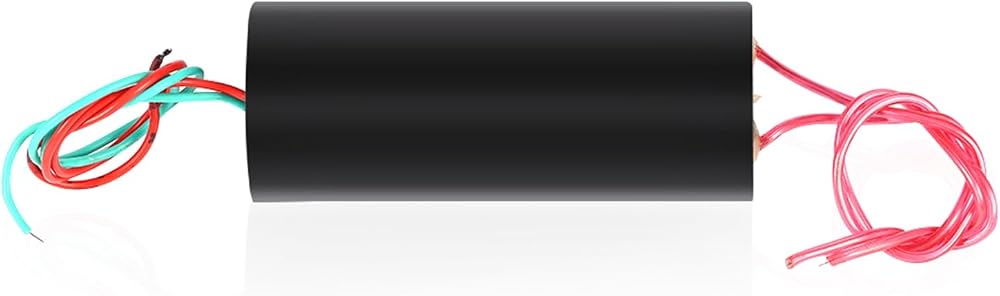

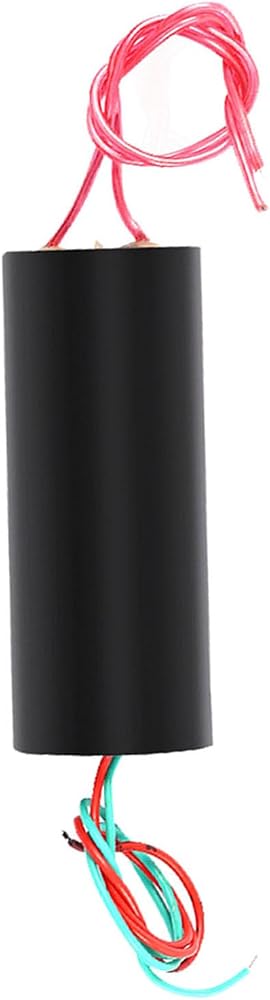

Item Type: High Voltage Generator
Material: ABS
Product Size: Approx. 55x24x22mm / 2.17x0.94x0.87in
Input Current: 0.5A-2A (Depending on the Input Voltage)
Input Line Length: Approx. 10cm / 3.94in
High Voltage Type: DC Type
Output Current: 0.5A

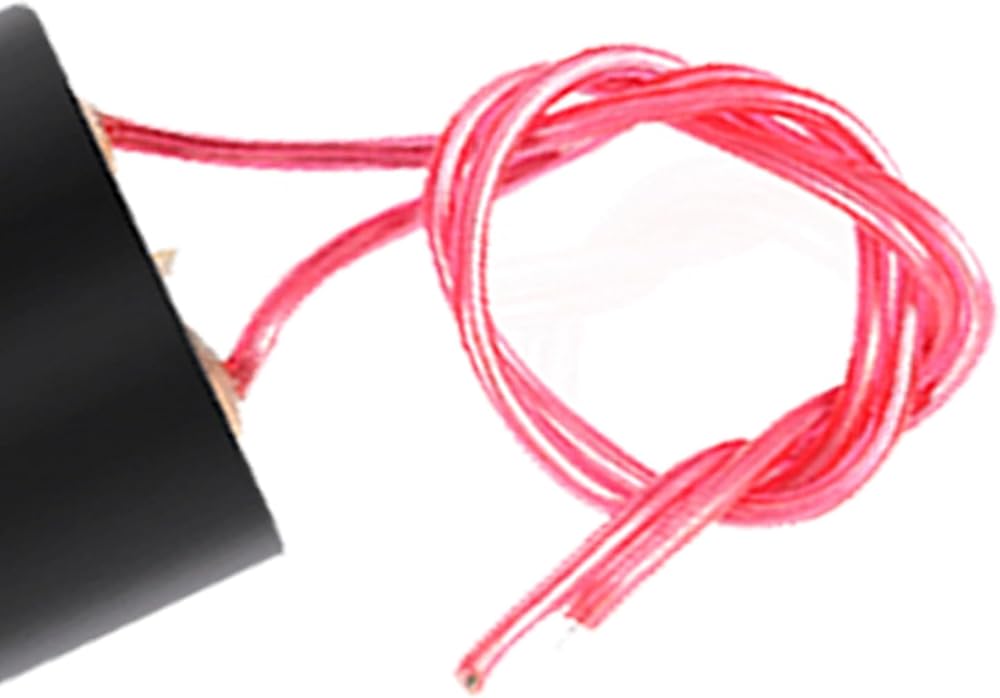

Output Line Length: Approx. 10cm / 3.94in
High Voltage Poles Ignition Distance: ≤1.5cm / 0.6in (1.5cm is maximum distance, 1cm / 0.4in is better)

PackageList:

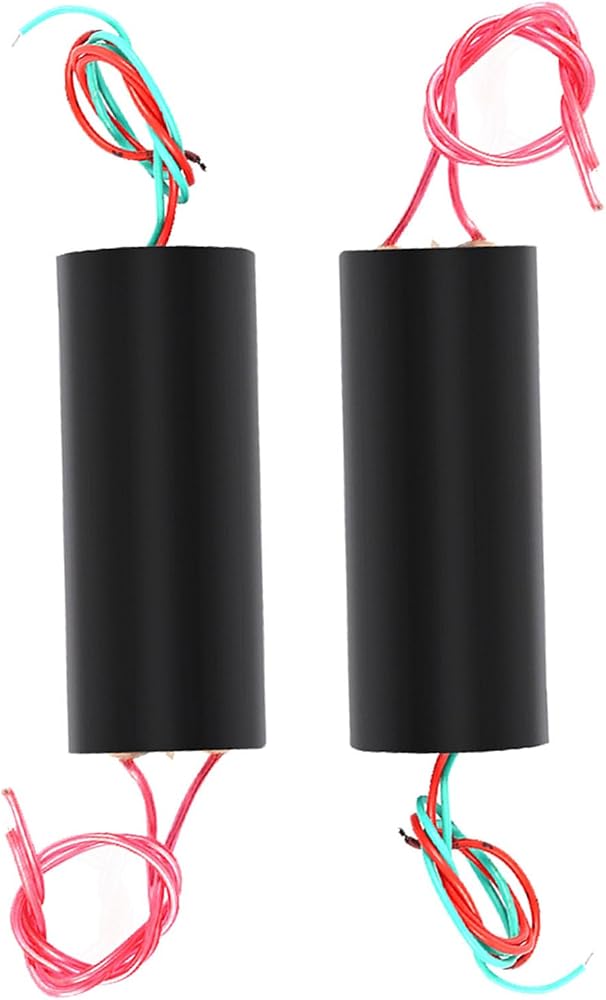

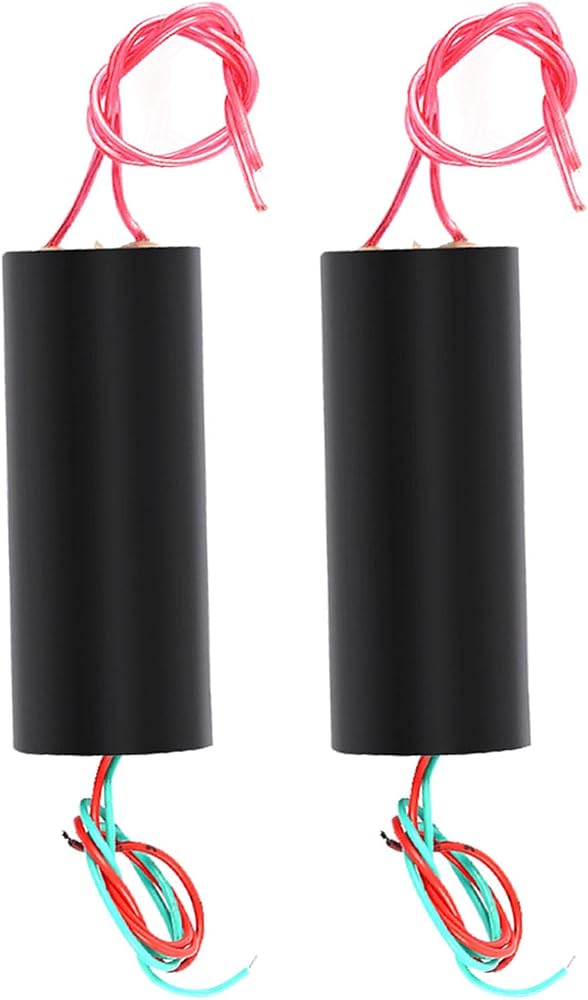

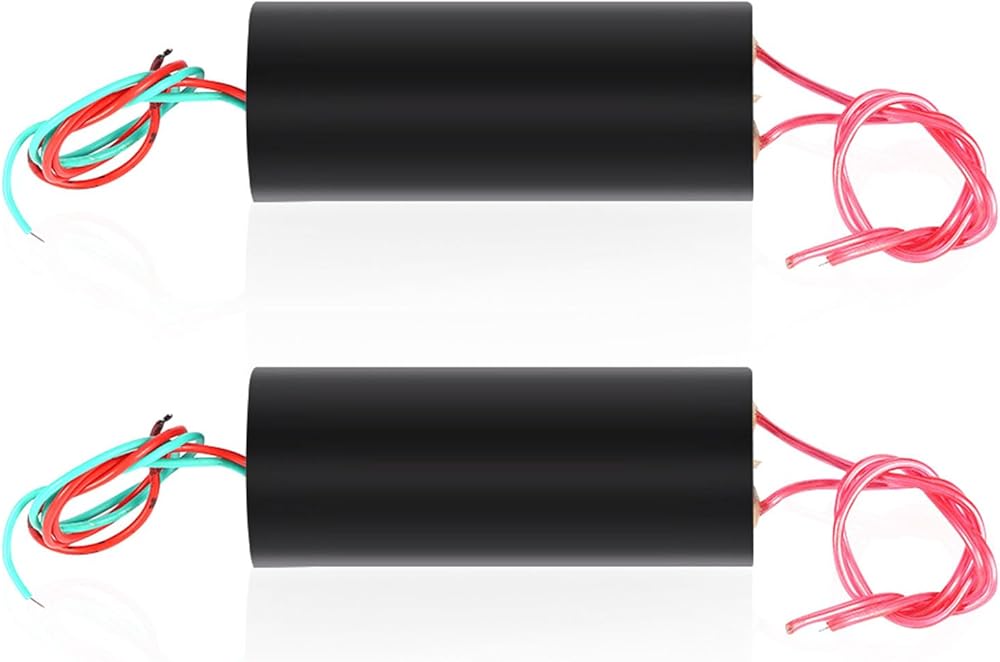

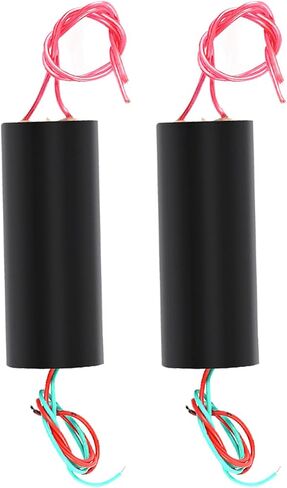

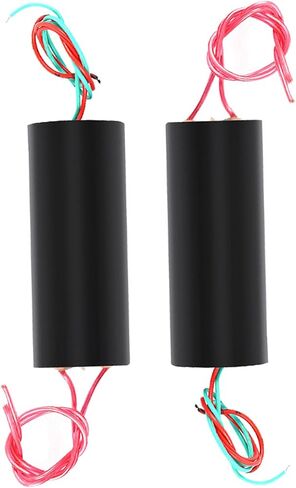

2 x High Voltage Generator

Note:
Note:
1. Input the power, output two levels of terminal can produce 1.5cm length purple high temperature arc, instantly ignite the paper, single high voltage line can also discharge of any metal body, working without a crack sound.
2. Input Power: Can use 3.7v li battery in series, idle cell phone battery (need to remove the protective board, recommended capacity above 2000mAh) or Ni Cd, Nimh battery pack, 4V or 12V batteries (12V battery works best).
3. The power time is not above 20 seconds each time. Since the output power is strong, it must be driven by rechargeable battery or storage battery. Improper voltage and long work will easily damage the high voltage module. Be careful when testing and using!
4. Ignite distance keep within 1cm.
Module Usage Precautions:
1. Avoid power on when no load. You must adjust the appropriate distance for high voltage terminal before power on, high voltage line arc distance is proportional to the battery voltage and capacity.
2. When testing the arc distance, the experiment should be conducted from short to long, and it is forbidden to exceed the maximum arc distance (3. The module has high power and poor internal heat dissipation, so it cannot work for a long time.
4. To determine whether the battery capacity can drive the maximum output power is the way to measure the battery voltage when in the arc state.
5. Small capacity series li battery is 7.2 V, voltage will drop to about 4V when arcing, the smaller the capacity, the lower the voltage will become. It is recommended to use above 2000MA li, it is better to choose 4000MA and above battery.
