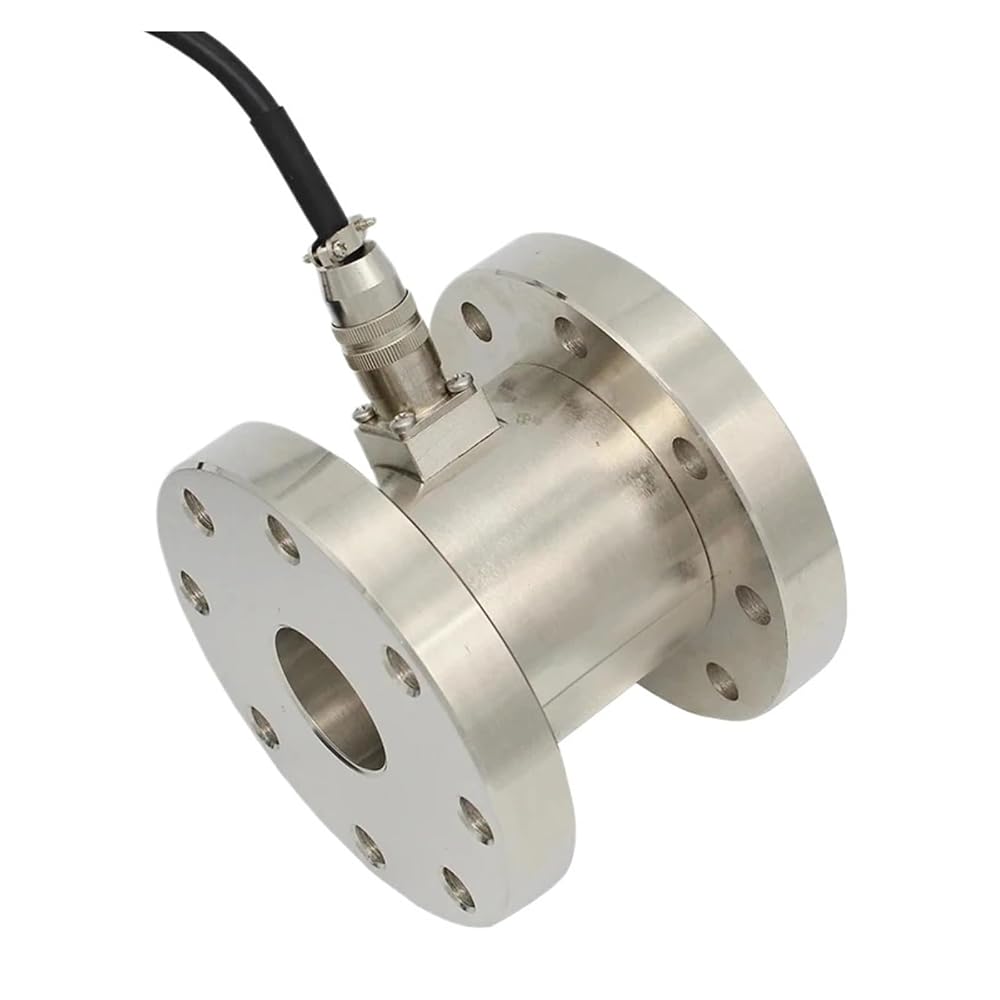

0-2000Nm مستشعر عزم الدوران شفة قفل لولبي دوار ثابت مزدوج (20Nm-50Nm-100Nm) in Kuwait 0-2000Nm مستشعر عزم الدوران شفة قفل لولبي دوار ثابت مزدوج (20Nm-50Nm-100Nm) in Kuwait

0-2000Nm مستشعر عزم الدوران شفة قفل لولبي دوار ثابت مزدوج (20Nm-50Nm-100Nm)

KWD 269
مقاس20Nm-50Nm-100Nm
– 1 +

مميزات خاصة

  • Sensors
  • Torque sensor is a strain gauge sensor for static torque measurement or torque wrench calibration
  • Compact structure
  • It can measure both forward and reverse torque
  • Measurement of torsional moments and conversion of physical changes into information
  • The principle of operation is based on the resistive strain principle

وصف

Sensors
Capacity
0-100000N.m
Output .
1.02.0mV/v
Response frequency
1kHz
Zero point output
±2%F.S.
Material
Alloy steel
Non-Linearity
0.3%F.S.
lmpedance
350
Hysteresis
0.1%F.S.
lnsulation resistance
5000M/100V DC
Repeatability
0.1%F.S.
Working Power
DC 5-10V
Creep(30min)
0.1%F.S/30min
Operatingtemperature range
-20-80°C
Temperature sensitivity drift
0.05%F.S./10
Safety overload
120%R.C.
Zero temperature coefficient
0.05%F.S./10
Extreme overload
1500%R.C.
==========
Model Number : DSJN-101
