[High Measurement]Provides accurate torque measurements up to 20000N.m ensuring reliable performance in industrial applications.
[Real Time Monitoring]Features RS485 communication for instant data transmission, enabling seamless integration with motor speed monitoring systems.

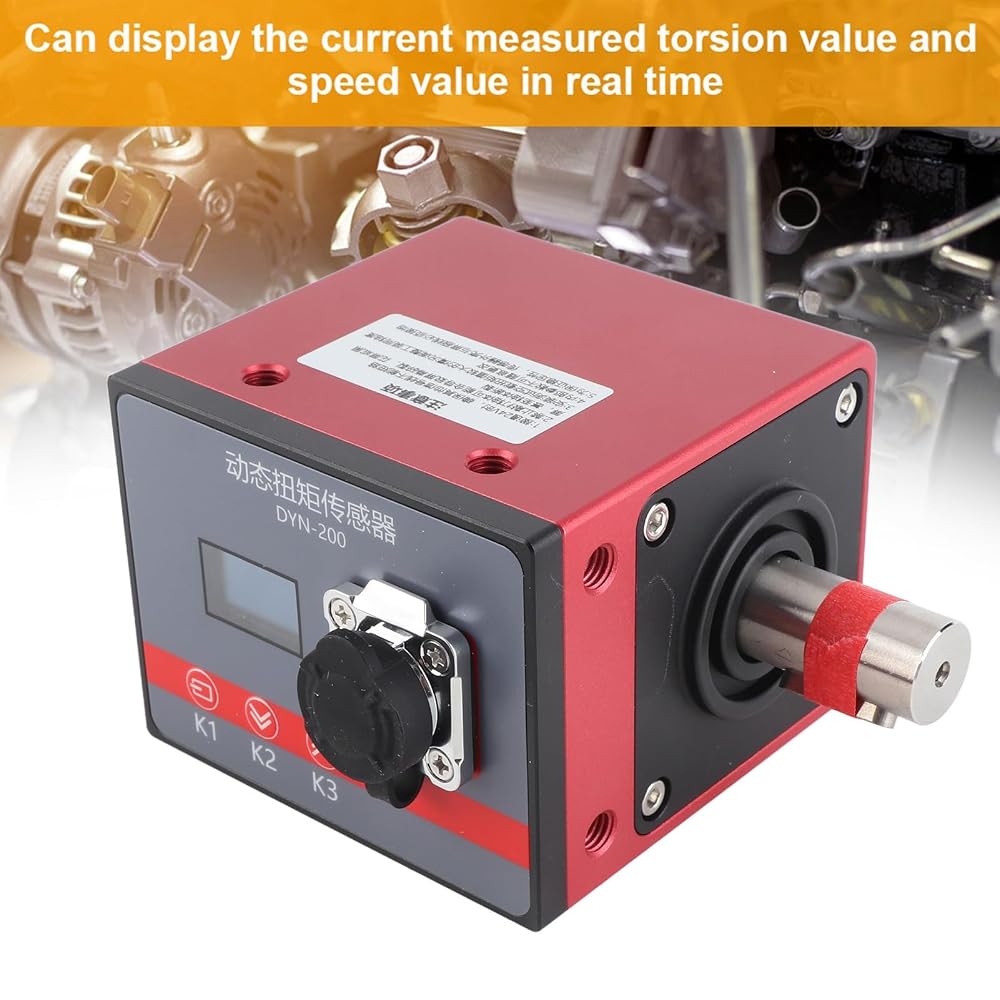

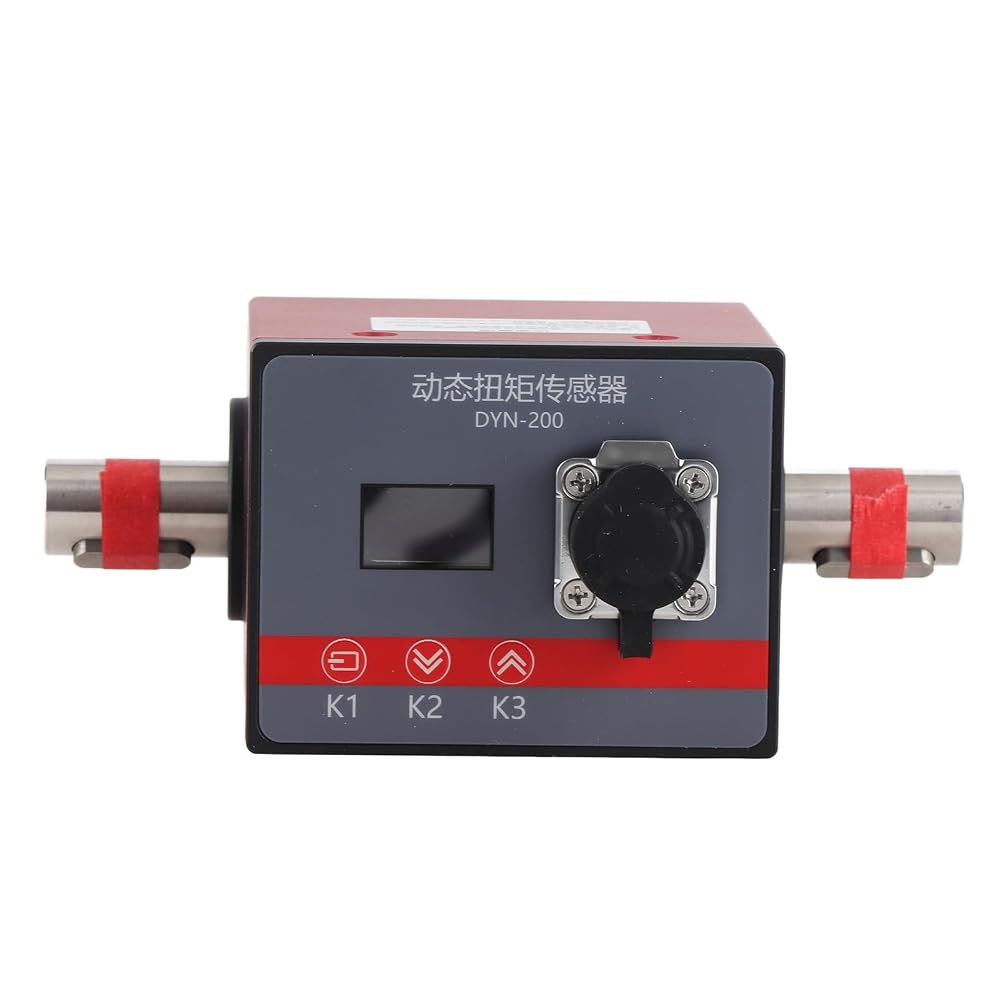

[OLED Display]Equipped with a clear OLED display showing real time readings of torque and speed for effortless monitoring.
[Wide Operational Range]Operates in temperatures from 14°F to 122°F, making it suitable for diverse environments and conditions.
[Versatile Applications]Ideal for motor testing, machinery diagnostics, and engineering solutions, catering to various industrial needs.

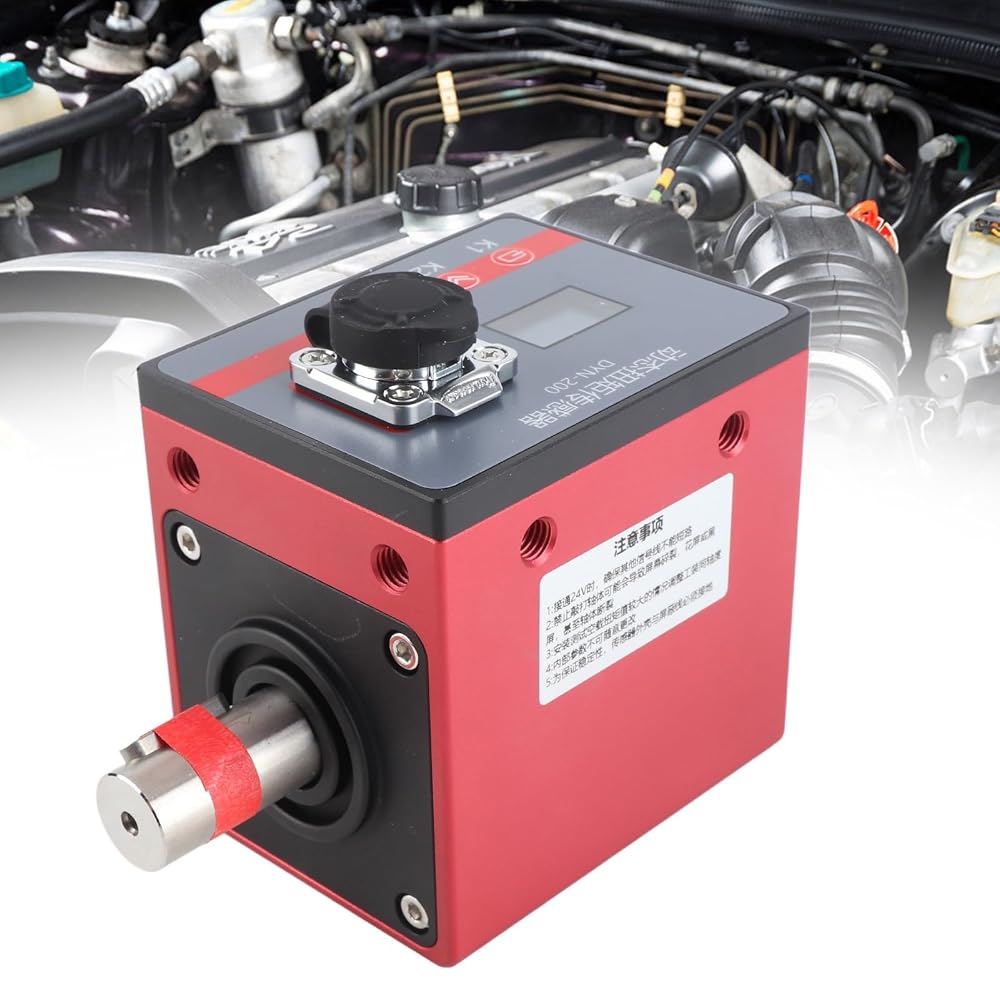

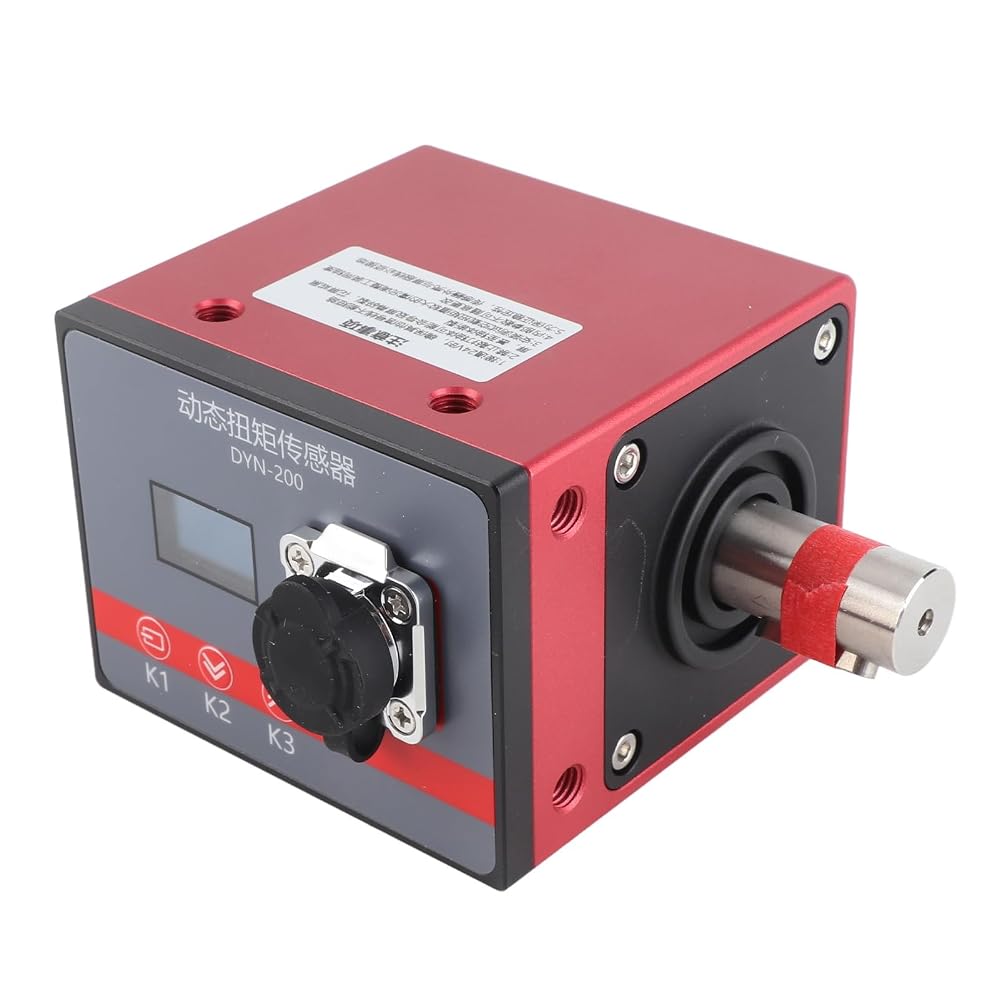

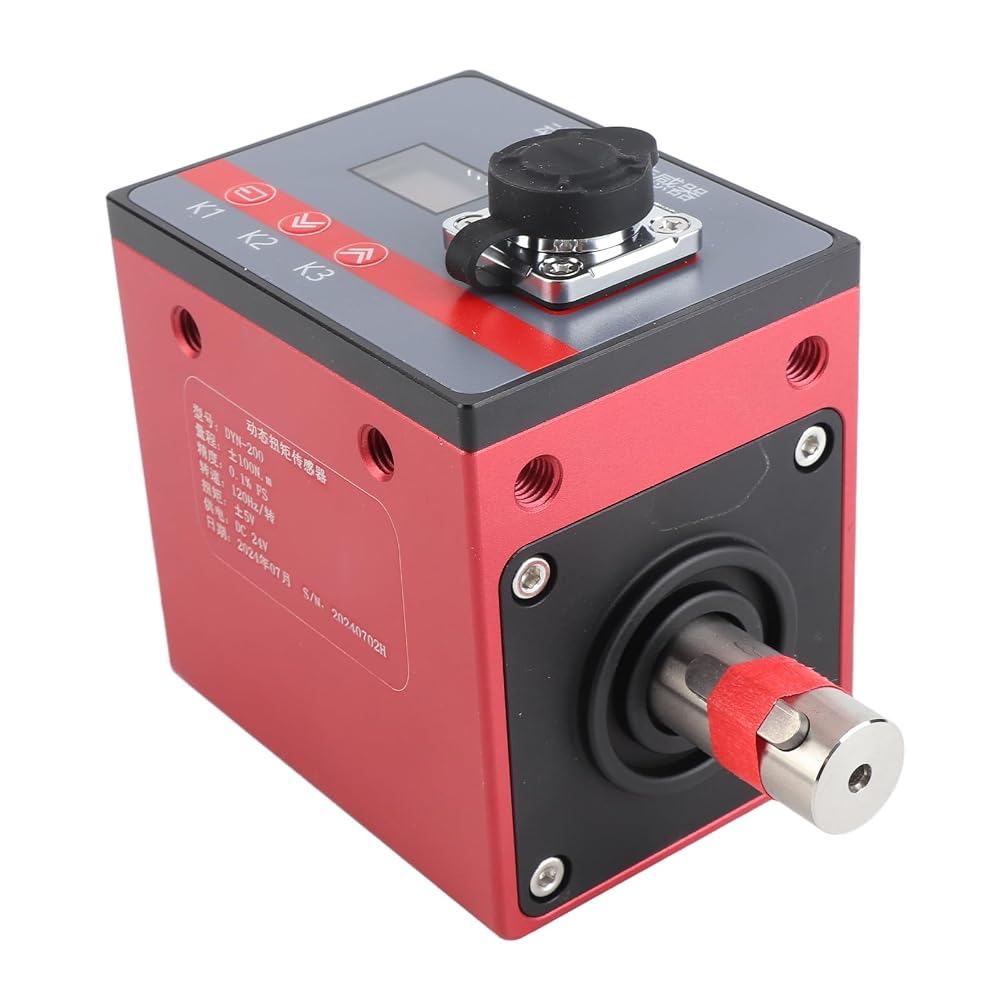

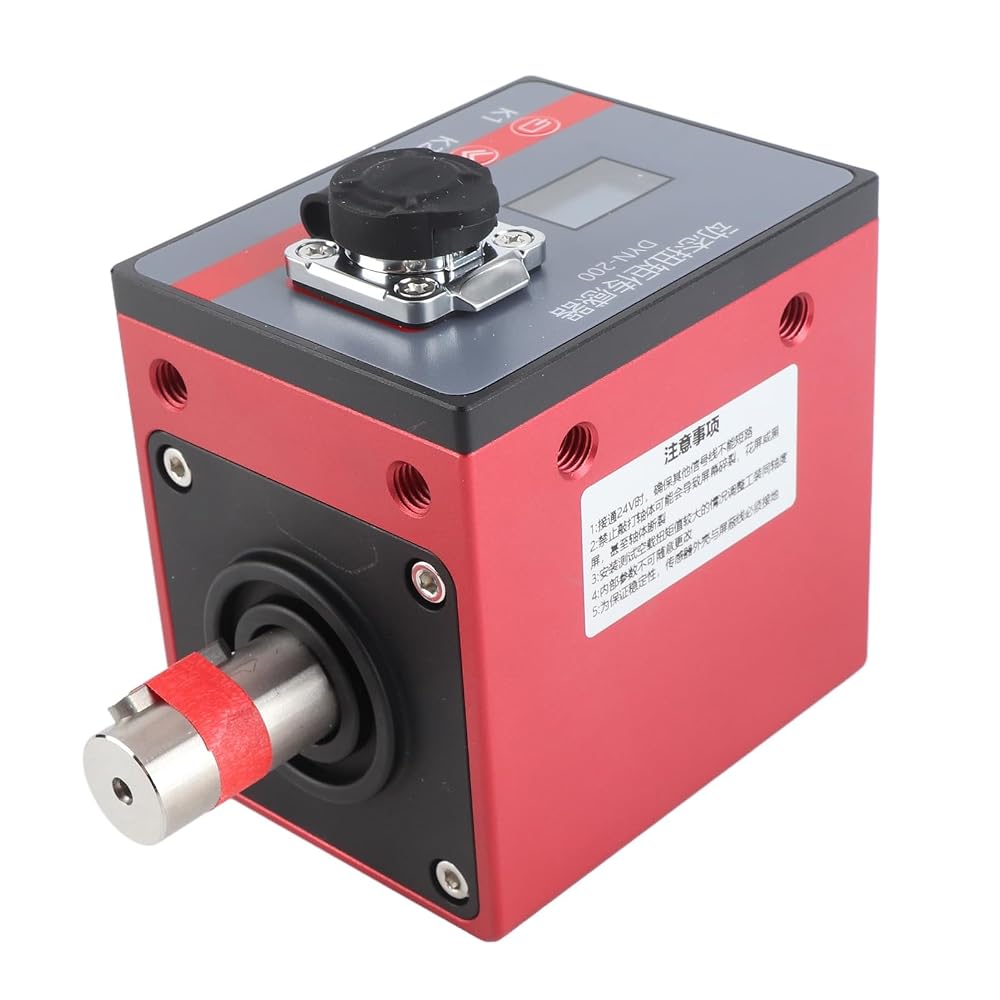

Item Type: Dynamic Torsion Sensor
Rated Capacity: ± 20000N.m
Power Input: DC24V
Current Consumption: Below 200mA
Torsion Output: ± 5VDC; 0-10V; 4-20mA
Speed Output: 60 pulses / revolution
Response Performance: 1kHz
Load Resistance: 2kΩ or more
Signal Delay: 2.6ms (50% response)
Allow Overload: 150% FS
Operating Temperature Range: -10 ~ + 50 ℃
Non-linearity: 0.1% FS
Repeatability: 0.03% FS
Lag: 0.03%
Temperature Effect Of Zero Point: 0.01% FS / C
Temperature Effect Of Output: 0.01% FS / C
Rated Speed: 8000rpm
The Fastest Rotation Speed: 15000rpm
Maximum Twisted Angle: 2.60 × 10rad (0.149 °)
Moment Of Inertia: 0.38kgcm
Vibration Natural Frequency (rotor Part): 19.4kHz
Torsion Constant: 3.85 × 10Nm / rad

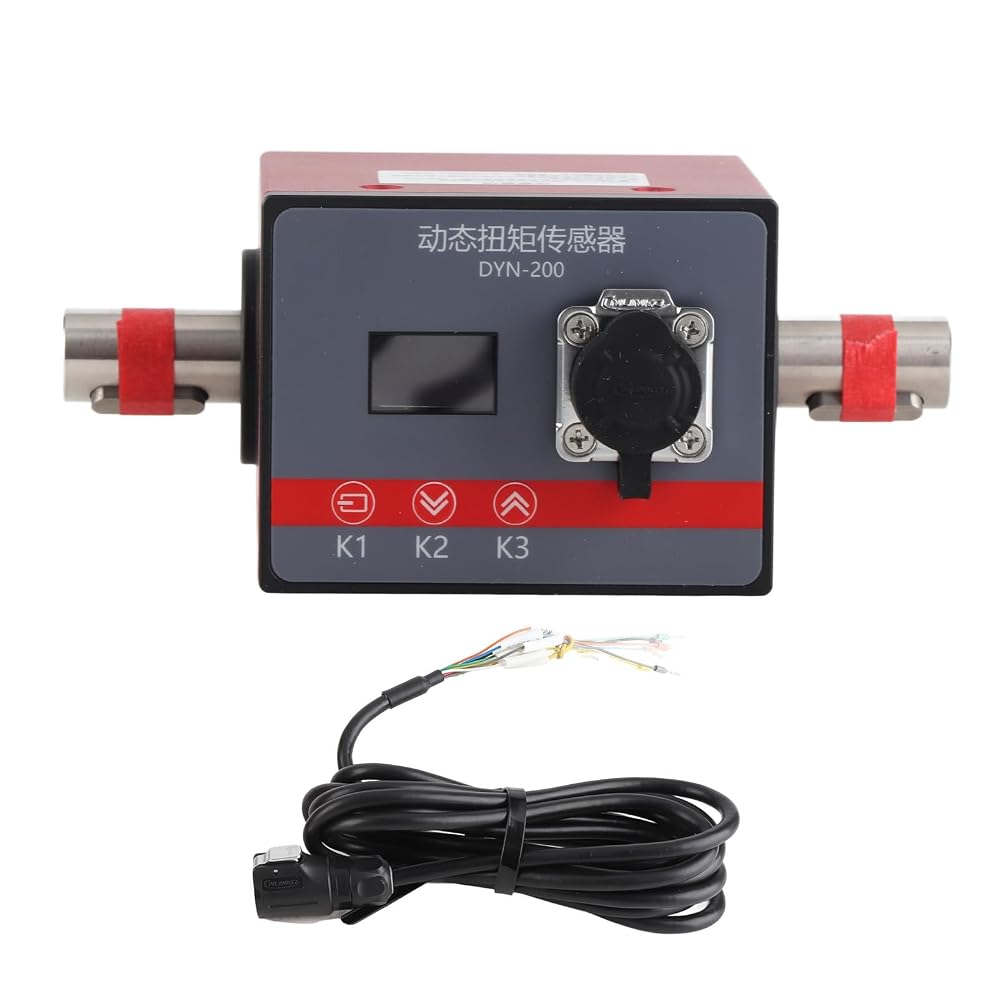

?1 x Sensor?
?1 x Line?
