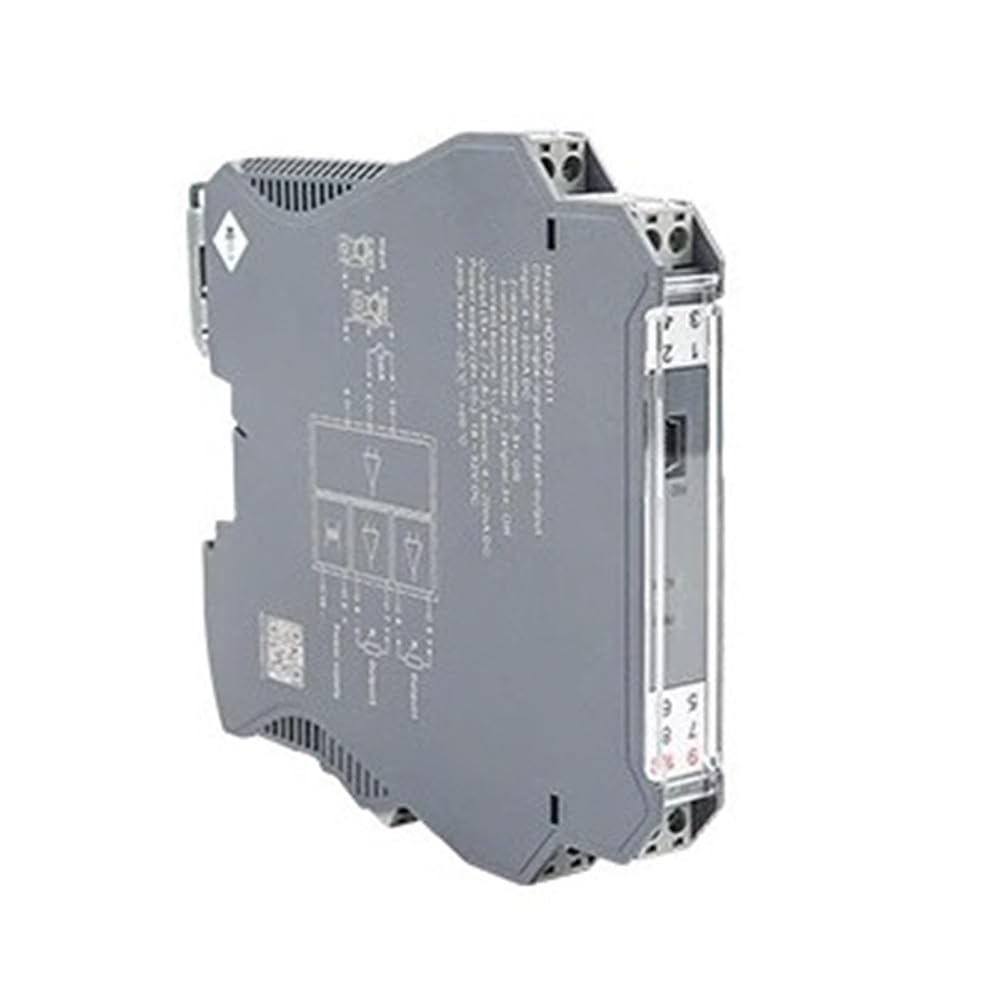

Signal Isolator 4-20mA Distribution Analog galvanic sinal Isolation
The HDTD full intelligent distribution signal transformer provides isolated power supply to the field two-wire, three-wire transmitter, and detects the current signal in a circuit meanwhile. It transmits the input current or voltage signal to isolated current or voltage signal in a circuit or two isolated circuits, and the input, output, and power supply are galvanic-ally isolated from each other.
Features
1)0.05%FS high accuracy measurement
2)Distribution & Isolation Transmission threeinone
3Input terminal 2-wire, 3-wire and 4-wire apply universally
4)Switchable output signal between active and passive
5)Strong isolation , high conversion and low temperature drift
6)Thinner shell and charged plug gable available

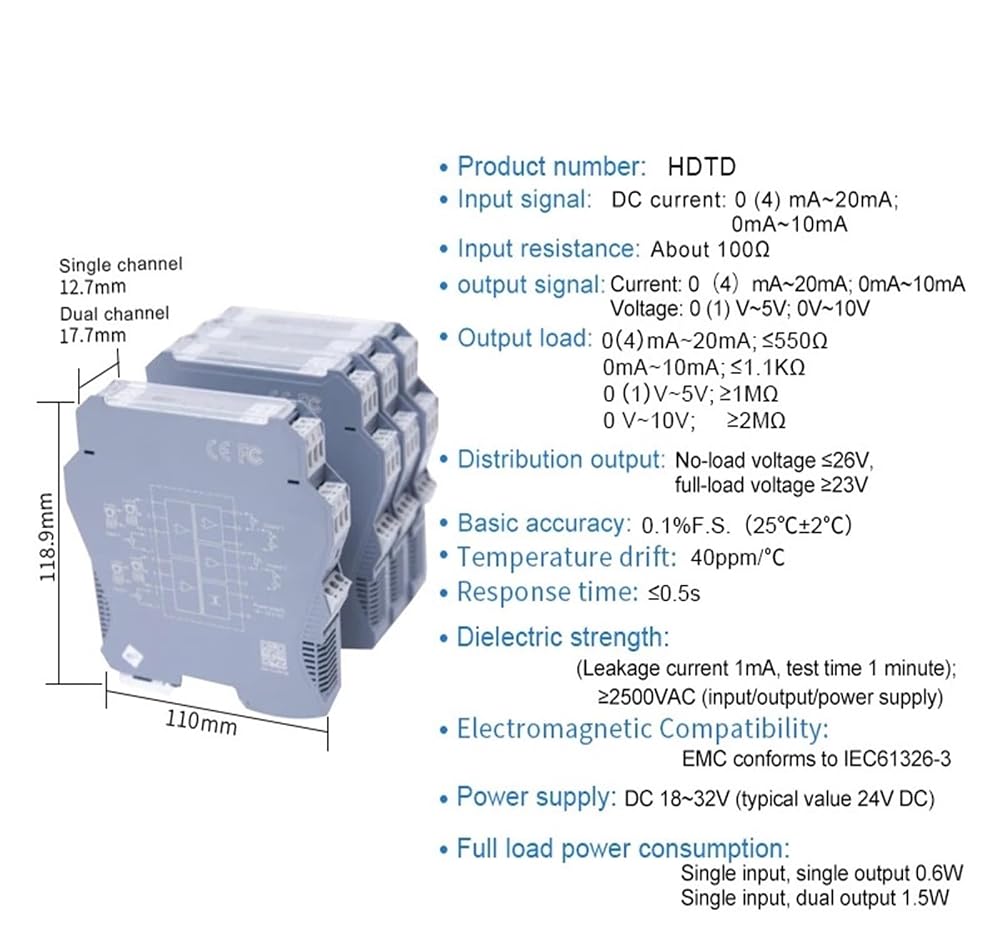

Dimensions : 12.7x110x118.9mm/17.7x110x118.9mm
Operating Temperature : -20°C-60°c
Supply Voltage : DC18-32V
Accuracy Class : 0.1%

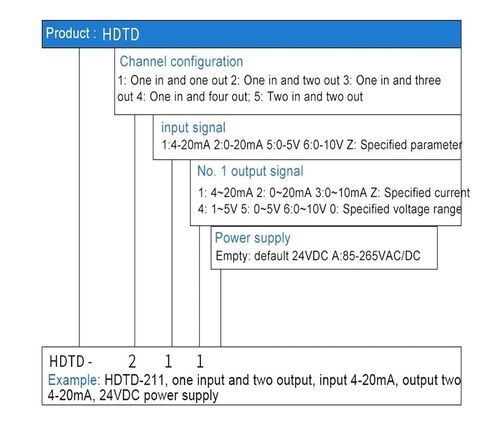

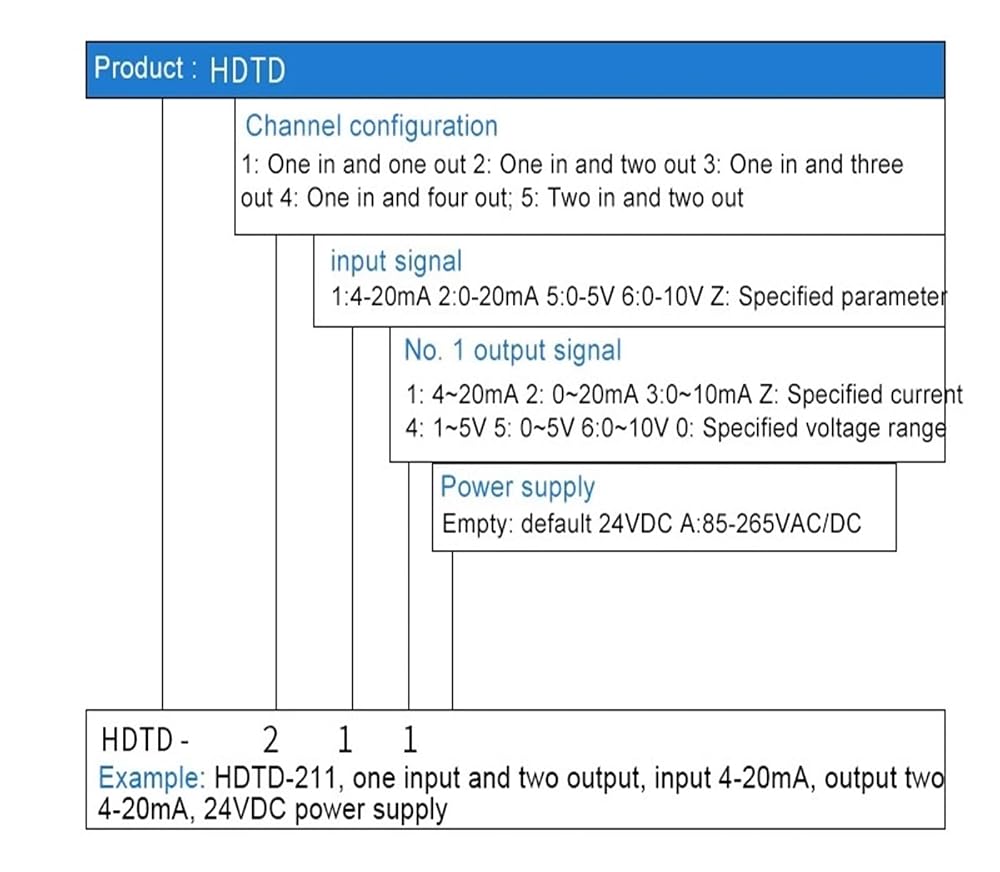

Model Number : HDTD
Display Type : Analog and Digital
Product name : Signal Isolator/Signal Converter
Iutput Signal : 4-20mA, 1-5V,0-10V,etc
Output Signal : 4-20mA, 1-5V,0-10V, etc

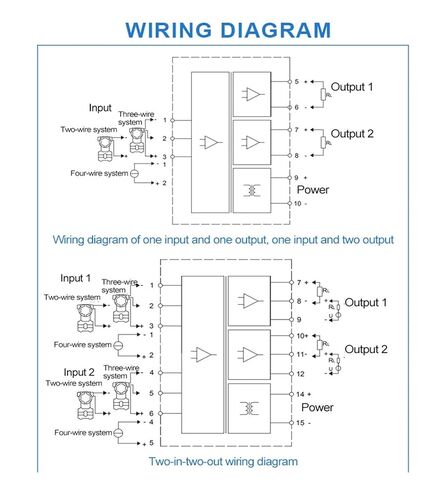

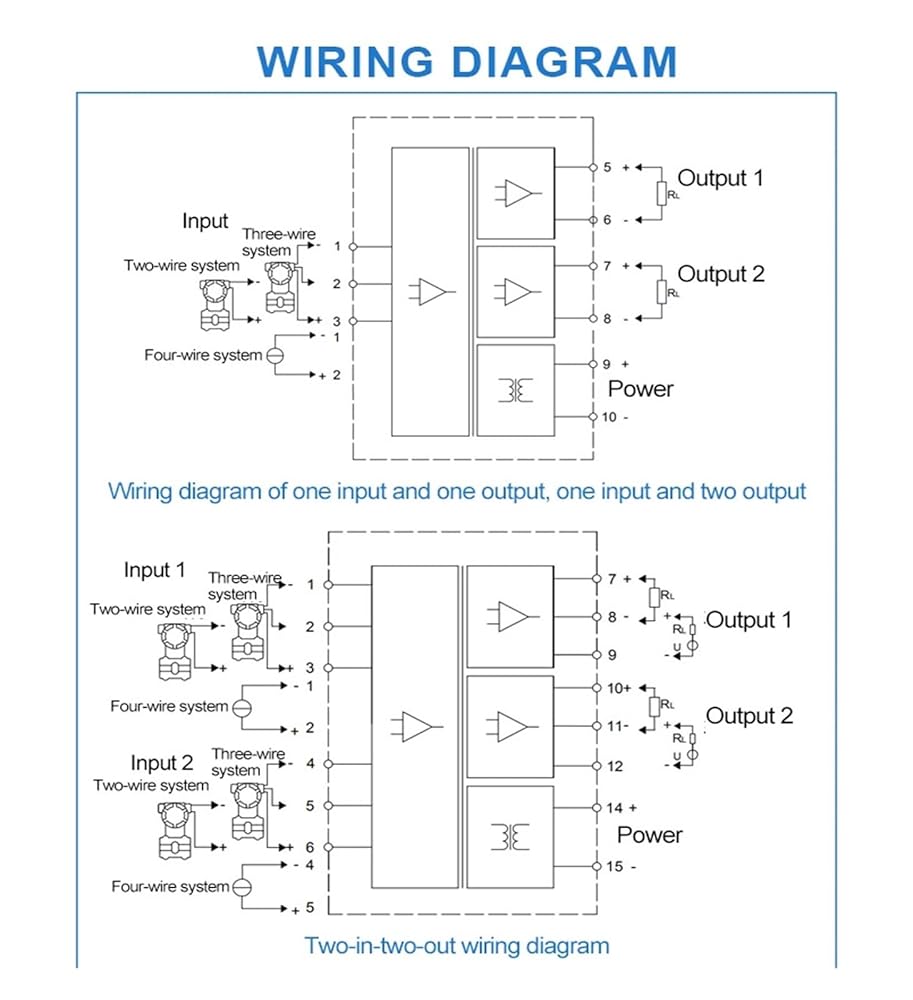

Channels : 1 in 1out , 1 in 2out, 1 In 4 out, 2 in 2 out
Installation : 35mm DIN rail
Linearity : 0.1%
Accuracy : 0.1%
Power supply : DC18-32V
Temperature drift : 40ppm/Deg.C
Insulation intensity : 3kv/50HZ, one min
Response time : 10ms
Characteristics : Active or passive output switchable
Full-load Consumption : 2W
Dimension : 12.7*110*118.9mm;17.7*110*118.9mm
Weight : 0.15Kg
