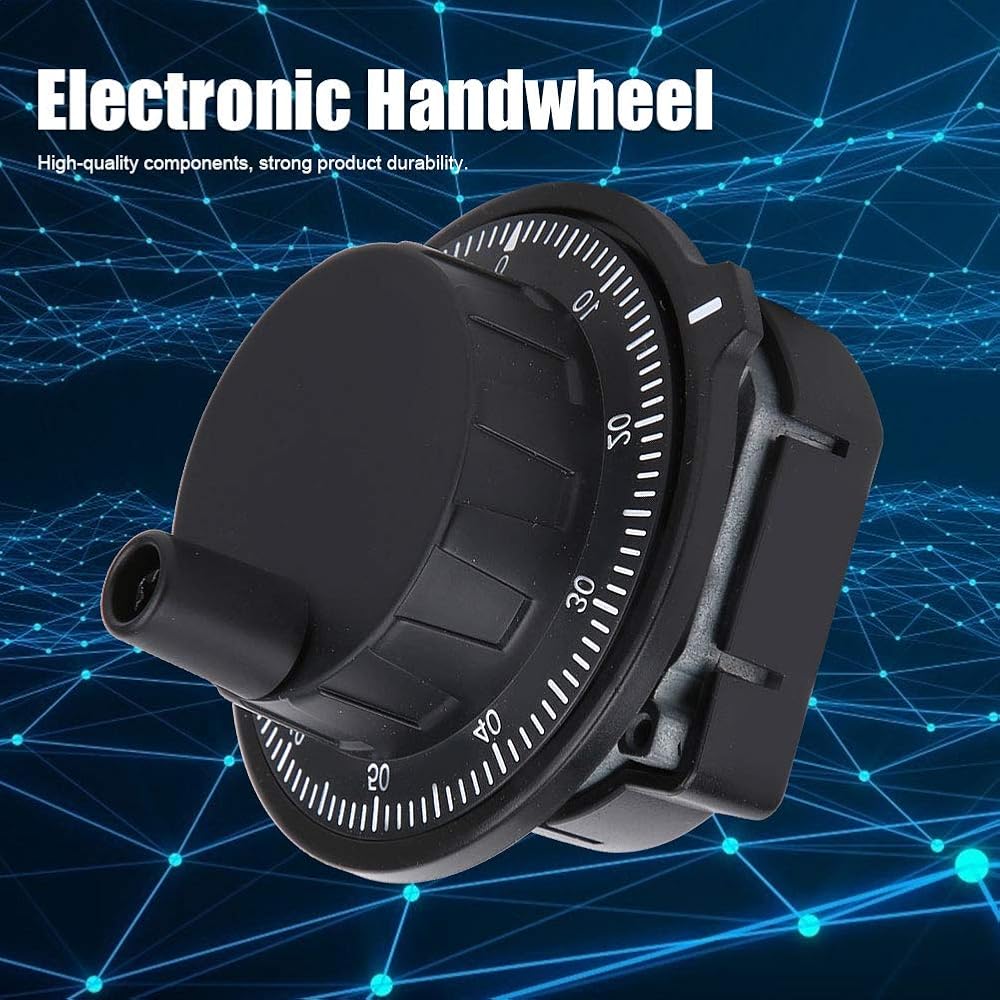

BORDSTRACT 65mm Electronic Handwheel Pulse Generator, 100PPR 100B LCNC Manual Pulse Controller Compatible with LinuxCNC and GRBL for CNC Machine Tools

KWD 13.500
– 1 +

Special Features

  • Premium CNC Handwheel:High -grade electronic handwheel with fine workmanship, built with selected high-quality components for excellent sturdiness and long service life.
  • Standard Parameter Configuration:Working voltage: DC 5V, 100PPR pulse, comes with A, B, A-, B- differential signal output to meet professional control needs.
  • Stable & Reliable Performance:Professionally manufactured with strict production standards. Featuring 5KHz reaction speed, low power consumption and stable signal output for long -term continuous use.
  • Professional Drive Output:Adopts long -line drive output design with two orthogonal AB signals, strong anti-interference ability, ideal for precise control of CNC machine tools.
  • Wide Compatibility & Durability:65mm compact size, wear rotating structure with 1 million rotation lifespan. Supports stable operation in complex environments, perfectly matching LinuxCNC, GRBL and other controllers.

Description

Condition: 100%
Item type: Electronic Handwheel
Material: plastic
Color: As picture shown

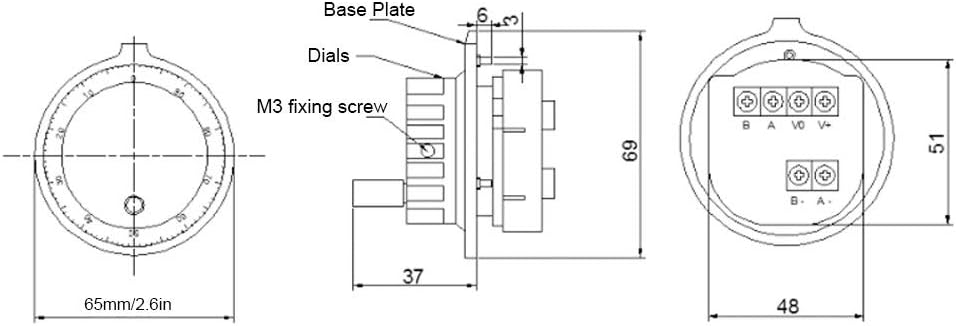

Handwheel dameter: Approx. 65mm/2.6in
Weight: Approx. 137g
Encoder
Power supply voltage: DC5±10%
Pulse number: 100PPR
(VH) output voltage (maximum): 3.8V
(VL) output voltage (minimum): 0.3V
Output current: 80mA
Model format: A.B.A-.B-
Output resistance: DIFF
Reaction speed: 5KHz
Current consumption ：50mA
Starting torques (maximum): 150g
Axial volume (minimum): R 2kg±10%
Rotation life (minimum) :1KKR
Operation temperature: 0℃/+50℃
Storage temperature ：-10℃/+70℃
Operation humidity: 35-80%
Vibration resistance: 0.5G
Heavy strike resistance: 2G

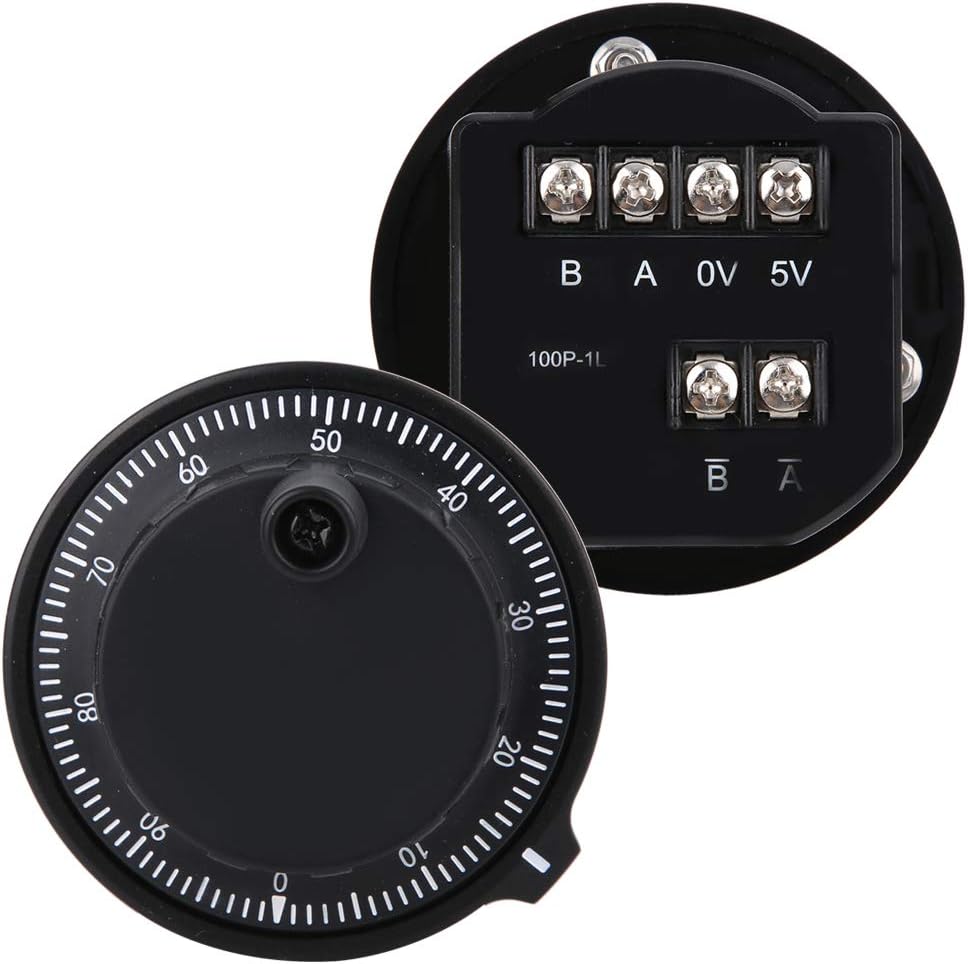

Wiring table
Output Signal: A B V0 V+ A- B-
Terminal-Line Driver A: 1 2 3 4 5 6

YP600-100B-1L represents a large handwheel with a diameter of 65mm, the output is 100 pulses, the working voltage is 5V, and the output mode is long-line output. This product is suitable for CNC machine tools, two orthogonal output signals (A, B), 100 pulses , The output mode is long-line drive.

Package List：
1
