Compatible with PTO. Please verify your OEM part number from your original unit to help ensure fitment.
Replaces: Specifications: / Type: Pto Driveline Shaft — Series 4 Tri-Tube With Torque Limiter / Collapsed Length: 53-3/4" / Tractor End: 1-3/8" 6 Spline Push Lock Coupler / Implement End: 1-3/8" 6 Spline Ring & Ball Lock With Torque Limiter / Rpm: 540 / Pto Rated Horsepower: 35 Hp / Torque: 460 Nm At 540 Rpm / Tube Type: Tri-Tube (Triangular) / Torque Limiter: Integrated On Implement End / Universal Joint Material: 20Crmnti Carburized Steel / Inner Shaft
Applications: Bush Hog Rotary Cutters — 540 Rpm Pto: / Bush Hog 2610 Rotary Cutter 540 Rpm Pto / Bush Hog 2615 Rotary Cutter 540 Rpm Pto / Bush Hog 2620 Rotary Cutter 540 Rpm Pto / Bush Hog 275 Rotary Cutter 540 Rpm Pto / Bush Hog 285 Rotary Cutter 540 Rpm Pto / Bush Hog 305 Rotary Cutter 540 Rpm Pto / Bush Hog Sq72 Rotary Cutter 540 Rpm Pto / Bush Hog Sq84 Rotary Cutter 540 Rpm Pto / Land Pride Rotary Cutters & Finish Mowers — 540 Rpm Pto: / Land Pride Rc2512
Applications: Rc2512 Rotary Cutter 540 Rpm Pto / Land Pride Rc2515 Rotary Cutter 540 Rpm Pto / Land Pride Rcr1542 Rotary Cutter 540 Rpm Pto / Land Pride Rcr1548 Rotary Cutter 540 Rpm Pto / Land Pride Rcr1560 Rotary Cutter 540 Rpm Pto / Land Pride Rcr1572 Rotary Cutter 540 Rpm Pto / Land Pride Fdr1548 Finish Mower 540 Rpm Pto / Land Pride Fdr1560 Finish Mower 540 Rpm Pto / Land Pride Fdr1572 Finish Mower 540 Rpm Pto / / Woods Rotary Cutters — 540 Rpm Pto: / ...
Driveline Source: Aftermarket

وصف

WOODS ROTARY CUTTERS & BRUSH CUTTERS:
Woods BB72 Brush Bull Rotary Cutter 540 RPM PTO
Woods BB84 Brush Bull Rotary Cutter 540 RPM PTO
Woods BB600X BrushBull Rotary Cutter 540 RPM PTO
Woods BB720X BrushBull Rotary Cutter 540 RPM PTO
Woods BB840X BrushBull Rotary Cutter 540 RPM PTO
Woods DS96 Rotary Cutter 540 RPM PTO
Woods DS120 Rotary Cutter 540 RPM PTO

LAND PRIDE ROTARY CUTTERS & MOWERS:
Land Pride RC2512 Rotary Cutter 540 RPM PTO
Land Pride RC2515 Rotary Cutter 540 RPM PTO
Land Pride RCR1542 Rotary Cutter 540 RPM PTO
Land Pride RCR1548 Rotary Cutter 540 RPM PTO
Land Pride RCR1560 Rotary Cutter 540 RPM PTO
Land Pride RCR1572 Rotary Cutter 540 RPM PTO
Land Pride FDR1548 Finish Mower 540 RPM PTO
Land Pride FDR1560 Finish Mower 540 RPM PTO

KING KUTTER ROTARY CUTTERS:
King Kutter L-60 Rotary Cutter 540 RPM PTO
King Kutter L-72 Rotary Cutter 540 RPM PTO
King Kutter P-60 HD Rotary Cutter 540 RPM PTO
King Kutter P-72 RD Rotary Cutter 540 RPM PTO

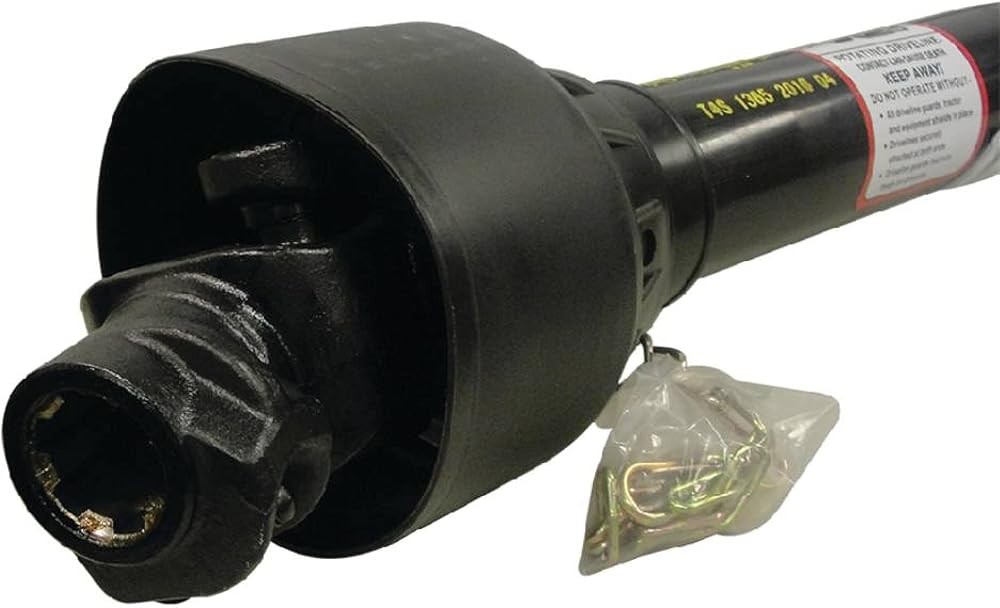

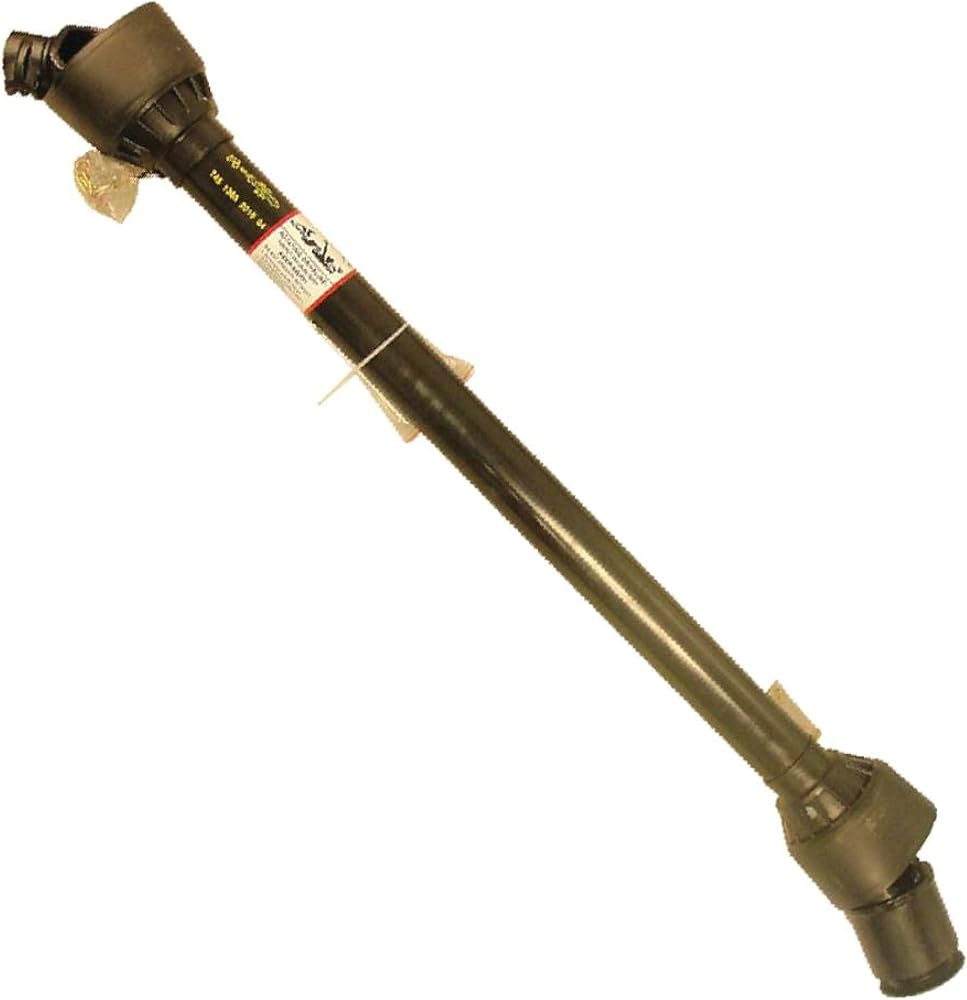

Series 4 PTO Driveline — Tri-Tube with Torque Limiter 53-3/4" Collapsed 540 RPM 35HP:
Series 4 PTO driveline shaft with tri-tube telescoping design and integrated torque limiter on implement end for overload protection. 53-3/4" collapsed length. Tractor end has 1-3/8" 6 spline push lock coupler for easy connection. Implement end has 1-3/8" 6 spline ring and ball lock with torque limiter that protects implement gearbox from overload damage by slipping at the preset torque threshold. 35 HP at 540 RPM with 460 Nm torque. Forged 20CrMnTi carburized steel universal joints with replaceable cross and bearing kits. Q345 steel tri-tube inner shaft. Safety shield guards included. CE certified.

⚠️ IMPORTANT: Verify OEM part number before ordering to ensure proper fitment.
