Specification:

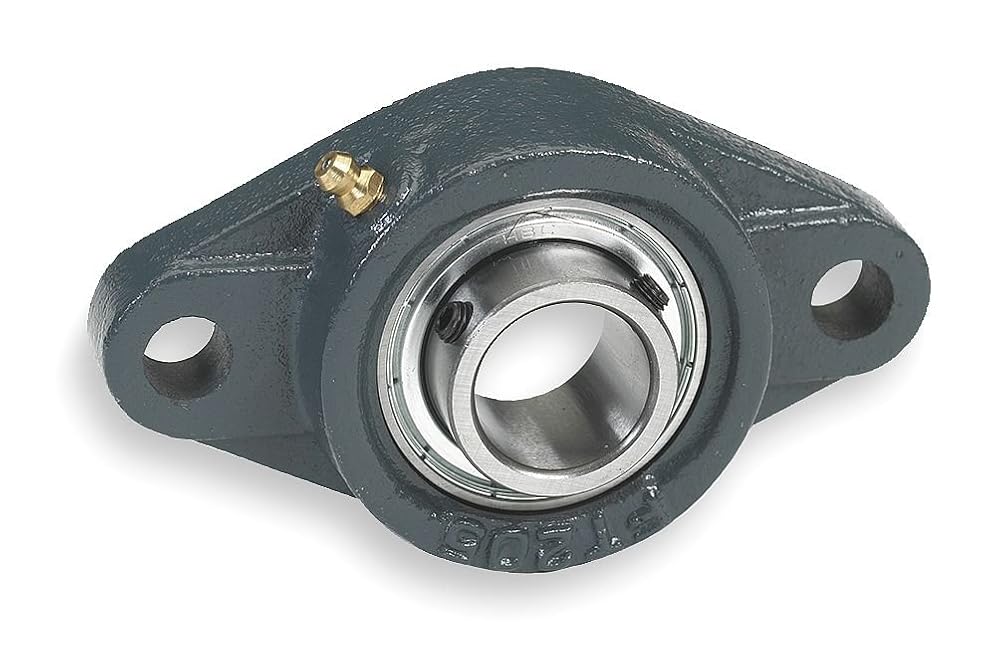

Item: 2-Bolt Flange Bearing
Mounted Bearing Item: 2-Bolt Flange Bearing
Bearing Insert Type: Ball
Bore Dia.: 1-15/16"
Shaft Locking Type: Set Screw
Bearing Housing Material Type: Cast Iron
Bearing Insert Material: 52100 Chrome Steel
Bolt Hole Center-to-Center: 6-3/16"
Series: Standard Duty
Bolt Size: 9/16"
Overall Height: 2-5/32"
Overall Width: 4-9/16"
Overall Length: 7-7/16"
Bearing Lubrication: Chevron SRI-2 or NLGI #2 Equivalent
Dynamic Load Capacity: 7888 lb.
Static Load Capacity: 5213 lb.
Temp. Range: -20 Degrees to 200 Degrees F
Finish: Painted
Includes: (2) Set Screws, Oiler Cap
Dimension A: 7/16"
Dimension B: 4-9/16"
Dimension C: 6-3/16"
Dimension D: 5/8"
Dimension F: 2-5/32"
