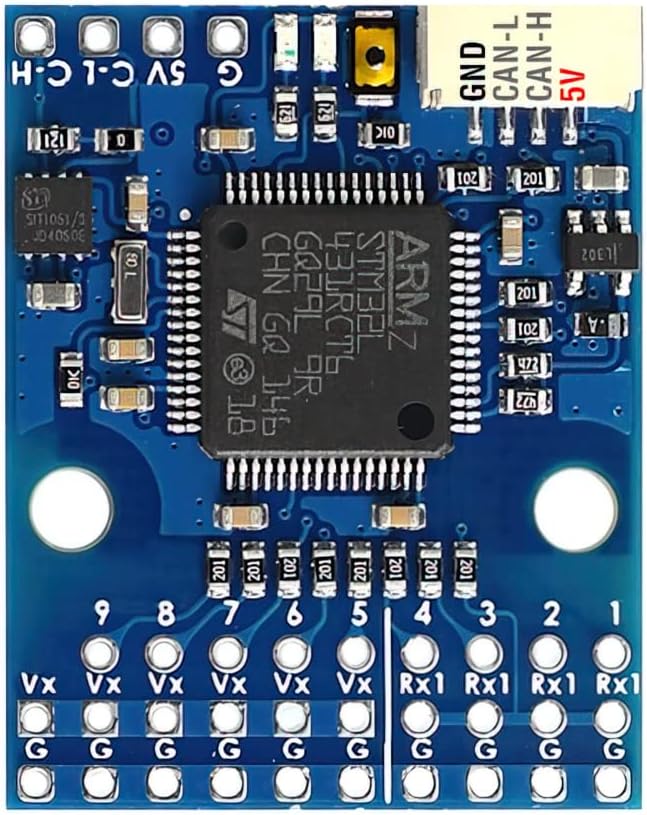

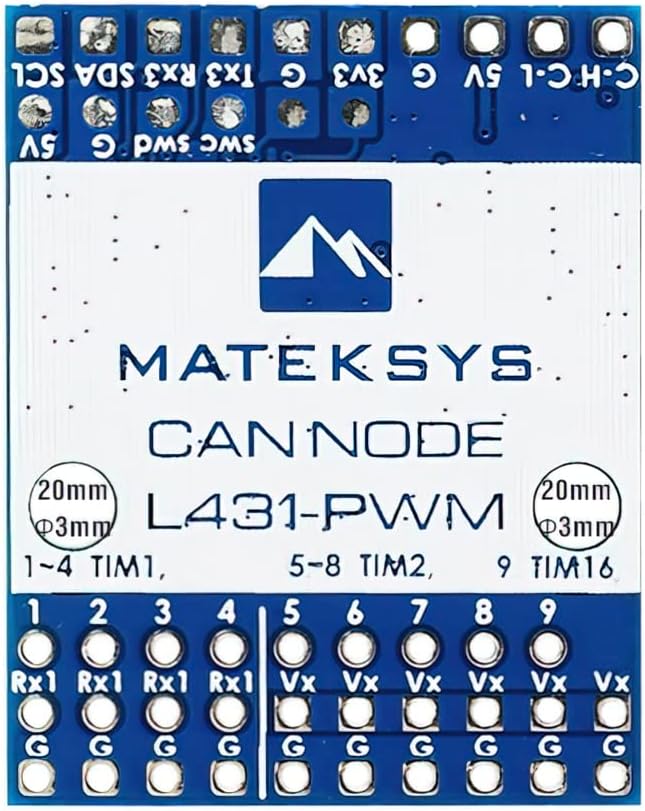

dummyThe Mateksys CAN-L4-PWM is an Adapter Node based on ArudPilot AP_Periph firmware. This adapter turns DShot capable ESCs into CAN ESCs, including full ESC telemetry. This adapter can also turn PWM servos into CAN servos.Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC UnboxingFeaturesArduPilot AP_Periph MatekL431-Dshot FirmwareAP_PERIPH DroneCan TO PWM Adapter1 CAN, DroneCAN Protocol9 PWM outputs (8x Dshot)4.5-5.5V Voltage RangeLED Indicator LightsUSE BULLETED FEATURE HERE IN BOLD CAPS.Add additional feature descriptions here to describe the above.USE BULLETED FEATURE HERE IN BOLD CAPS.Add additional feature descriptions here to describe the above.SpecificationsLED: (Blue, Fast blinking, Booting)(Blue, Slow blinking, working)(Red, 3.3V indicator)Firmware: ArduPilot AP_Periph MatekL431-Dshot (Update via DroneCAN GUI Tool)"Rx1" pads are for ESC Telemetry, DO NOT connect ESC BEC output to Rx1 pad.Input voltage range: 4.5~5.5V @5V pad/pin1.5x UARTs: UART1, RX1 - UART3, Tx3/ Rx3Operating Temperatures: -20~80 °CMounting: 20mm. Diameter - 3mmMCU: STM32L431xC, 256KB FlashST debug, SWCLK & SWDIOPower consumption: 30mABoard Size: 32x25.4mmWeight:3.5gIMPORTANT NOTES"Vx" pads are for powering servos via external BEC. "Vx" is not connected to other components on this board.Recommended (Not Included) (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")Links3D file: CAN-L4-PWM_STEP.zipIncludes1x MATEKSYSSYS AP Periph DroneCAN to PWM Adapter - CAN-L4-PWM1x JST-GH-4P to JST-GH-4P 20cm silicon wireFeatured VideosADD VIDEO TITLE HERE IN BOLD CAPSADD VIDEO TITLE HERE IN BOLD CAPS
