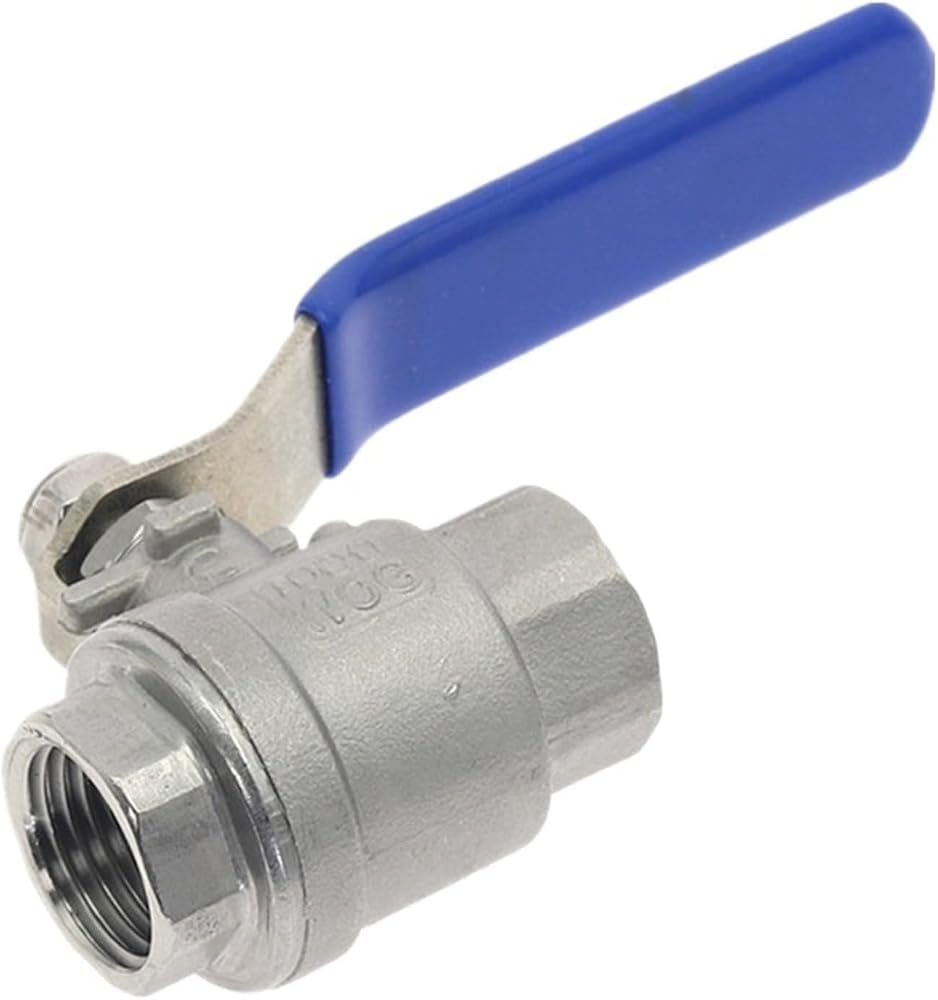

Valve
Specifications:
Material: 304 stainless steel
Thread Type: Female x Female
Thread Standard: BSP(British Standard Pipe)
Thread Size:
DN6=1/8"=9.5mm= 0.374 inch
DN8=1/4"=12.5mm= 0.4724 inch
DN10=3/8"=16mm= 0.6299 inch
DN15=1/2"=20mm=0.7874 inch
DN20=3/4"=26mm= 1.0236 inch
DN25=1"=32mm= 1.2598 inch
DN32=1-1/4"=41.5mm= 1.6338 inch
DN40=1-1/2"=47.5mm =1.8503 inch
Work Pressure:1.6Mpa
Work Temperature:-40~150 C
Medium:Oil. Water.Air
==========
NC or NO : NORMALLY CLOSED
Actuator Mode : With Instruction
Structure : Ball
Port Size : DN8 DN10 DN15 DN20 DN25 DN32
Media : Water
Material : Stainless Steel
Temperature of Media : Medium Temperature
Power : Pneumatic
Standard or Nonstandard : Standard
Pressure : High Pressure
Model Number : 304
Power Source : DC
Origin : Mainland China
Certification : None
DN8 : BSP 1/4"
DN10 : BSP 3/8"
DN15 : BSP 1/2"
DN20 : BSP 3/4"
DN25 : BSP 1'
DN32 : BSP 1-1/4"
Apply to : Gas, water and oil
