Relays

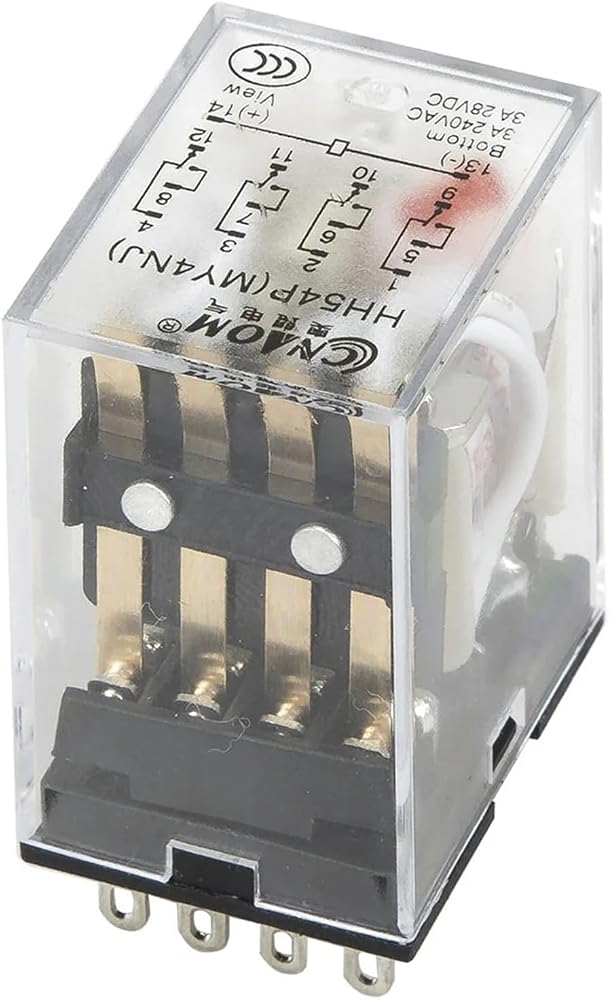

HH54P series electromagnetic relay
Model number and type
Model number
Same model
Type
Related product
HH54P
MY4
Standard
HH54PL
HH54P-L, MY4NJ
With LED indicator
Visiting...
HH54PL electromagnetic relay model number legend
HH54PL
Parent Model Number
Socket
-N: Without socket
-S: With socket
Coil voltage
220VAC: 220VAC
110VAC: 110VAC
24VAC: 24VAC
24VDC: 24VDC
12VDC: 12VDC
General
Model number
HH54P series
Contact material
Silver alloy
Contact form
4PST-NO, 4PST-NC, 4PDT
Contact rating
3A@28Vdc/240Vac
Rated coil power
1.2Wac, 0.9Wdc
Rated coil voltage
AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V
Dielectric strength
1,500Vac, 50/60 Hz for 1 min between coil and contacts
1,000Vac, 50/60 Hz for 1 min between opening contacts
Pick-up voltage
DC types: 75% max; AC types: 80% max
Drop-out voltage
DC types: 10% min; AC types: 30% min
Operation voltage
110% max
Contact resistance
50m max
Termination
14 pins
Mounting
Quick connect
Matched socket
PYF14A,PY14
Mechanical life
1x107 operations min
Electrical life
1x105 operations min
Insulation resistance
100M min. at 500 VDC
Operating temperature
-30 to 55 °C (-22 to 131 °F)
Operating humidity
35 to 85% RH, no condensation
External dimensions
27.3x21x35.2 mm
Alias name
HH54P series power relay, electric relay, electrical relay
HH54PL electromagnetic relay related products
No
Model Number
Socket
Coil Voltage
Related Product
1 HH54PL-N220VAC(110VAC, 24VAC, 24VDC, 12VDC)
Without socket
220VAC; 110VAC; 24VAC; 24VDC; 12VDC
Visiting...
2 HH54PL-S220VAC(110VAC, 24VDC, 12VDC)
With socket
220VAC; 110VAC; 24VDC; 12VDC
Order
finglaiHH54P series electromagnetic relay mounting dimensions
