20x4.0 QS205 50H 190 مللي متر التسرب 3T/3.5T/4T/5T 72V QS 5000w الدهون دراجة محرك بمحور غير فرجوني عجلة للدراجة الكهربائية الدهون Ebike 60-100kph in Kuwait

5 طن 20*4.0

KWD 216
اللون5 طن
مقاس20*4.0
– 1 +

مميزات خاصة

  • QS 205 5000W Fat Motor
  • This motorwheel need bike Rear fork inner distance reach 190mm
  • 190mm dropout QS 5000W Motorwheel
  • 20*4.0 100mm width Fat rim (if need other rim ,please contact us ，we also can customize it ;
  • For 5000W Ebike bicycle

وصف

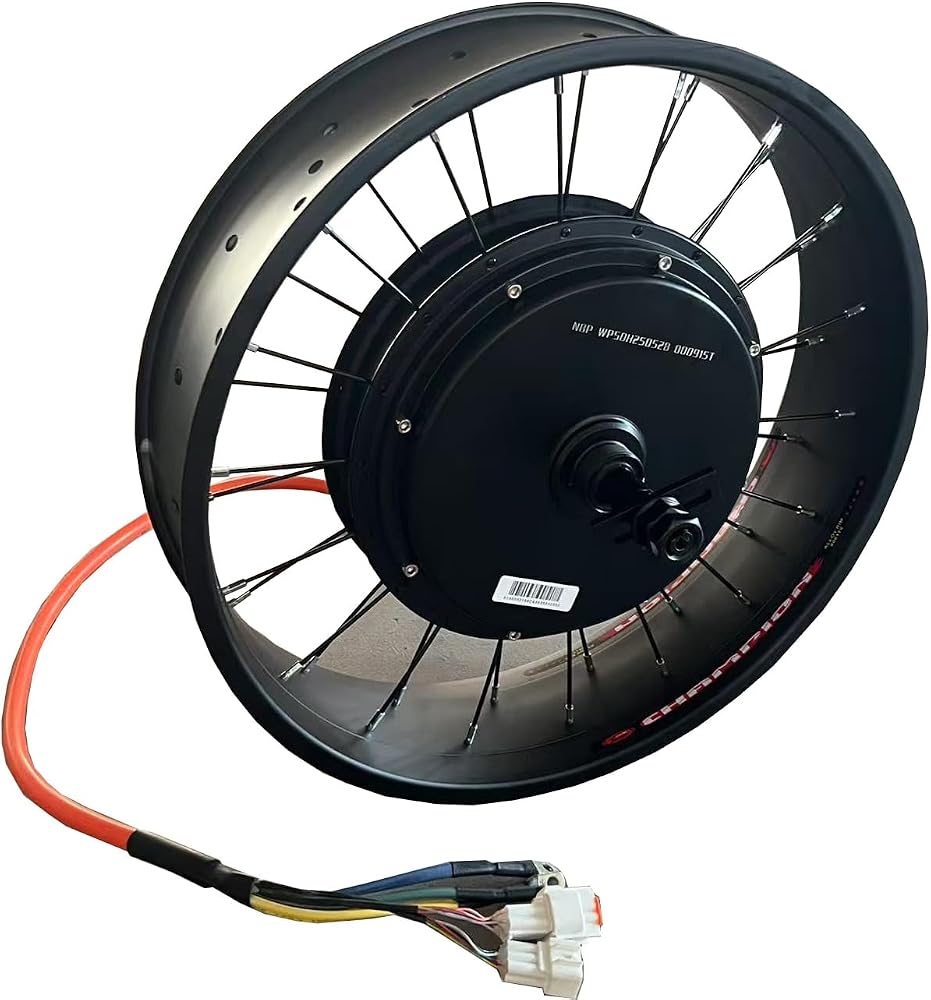

QS 190mm dropout 5000W Motor wheel
1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim(integrated)
3. Matched Tire: 20*4.0
4. PCD: 6*44mm
5. Stator: Aluminum Core
6. Rated Power: 5000W
7. Peak Power: 10000W in few seconds
8. Rated Voltage: 72V
9. Speed:70-120KMh
3.5T: 840RPM
4T: 770RPM
5T: 650RPM
10. Drop-outs: 190mm
11. Max Torque:
3.5T: 180N.M
4T: 200N.M
5T: 220N.M
12. Max Efficiency: approx 91%
13. Suggest Peak Phase Current: N/A
14. Thermic Probe: KTY83/122(as default)
15. Working Temperature: 70-120℃, peak 150℃
16. Brake Type: Disc Brake
17. Hall Sensor: Dual hall set with waterproof connector
18. Phase Wire:2*5mm²Cross
19. Hall Sensor Phasing Angle: 120 degree
20. Waterproof Grade: IP65
