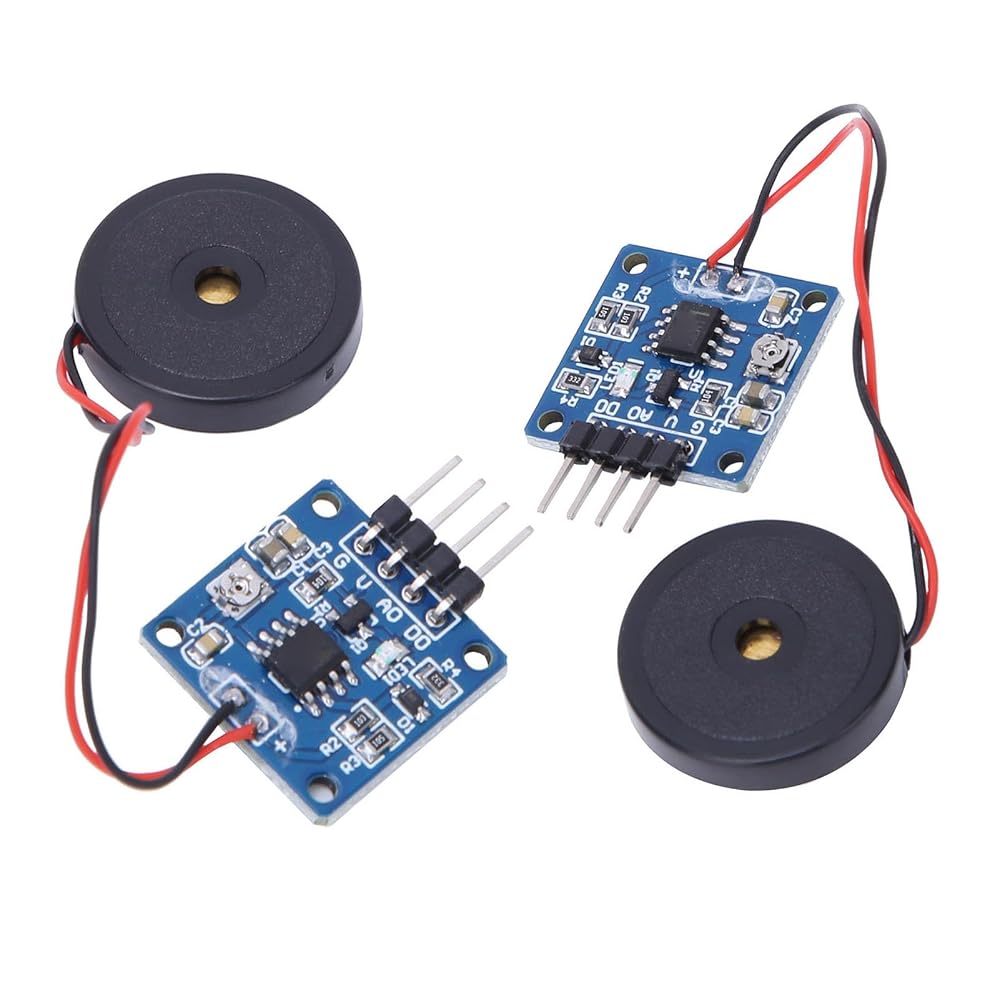

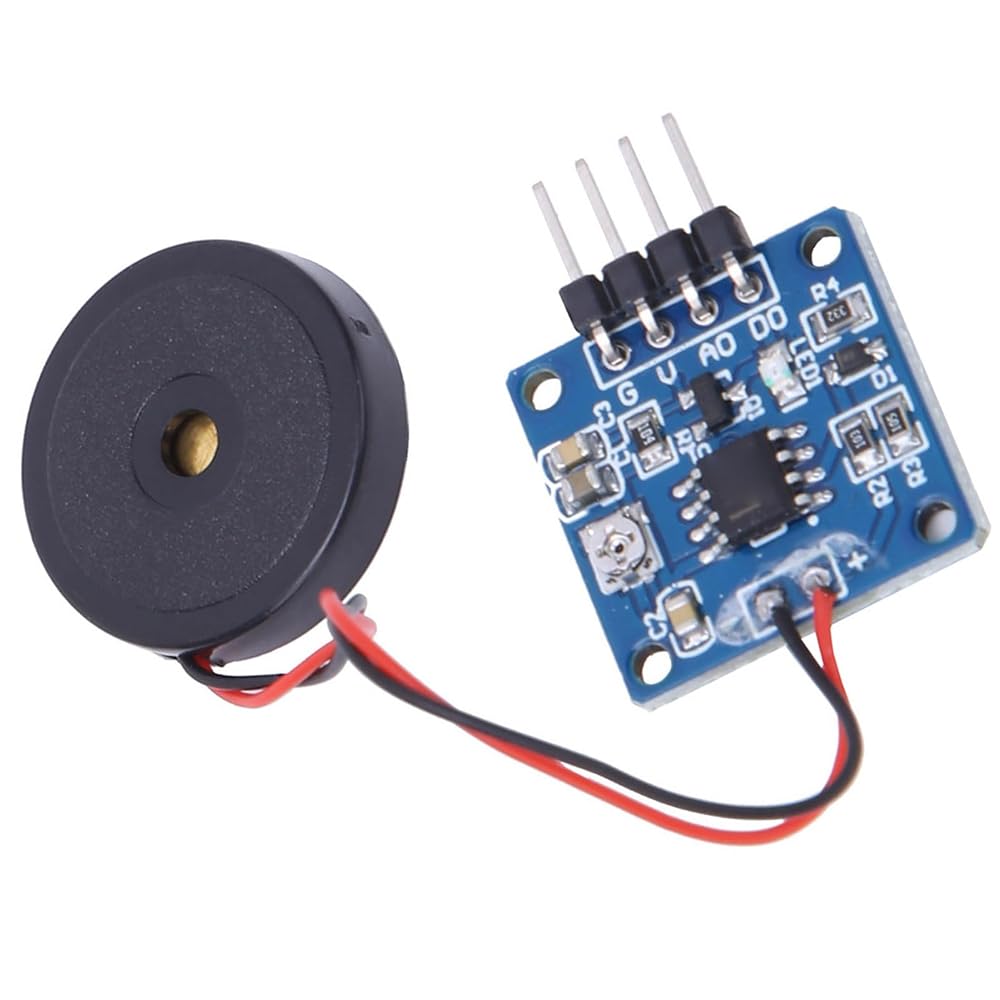

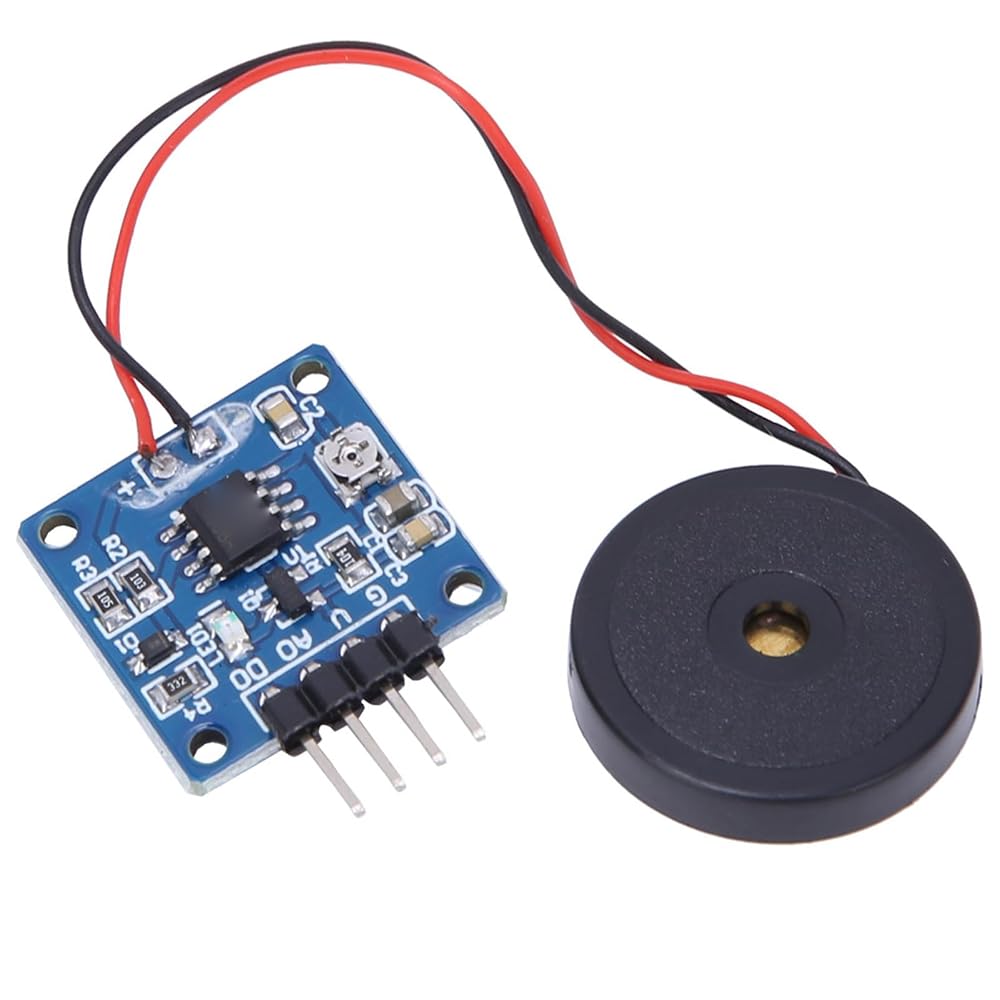

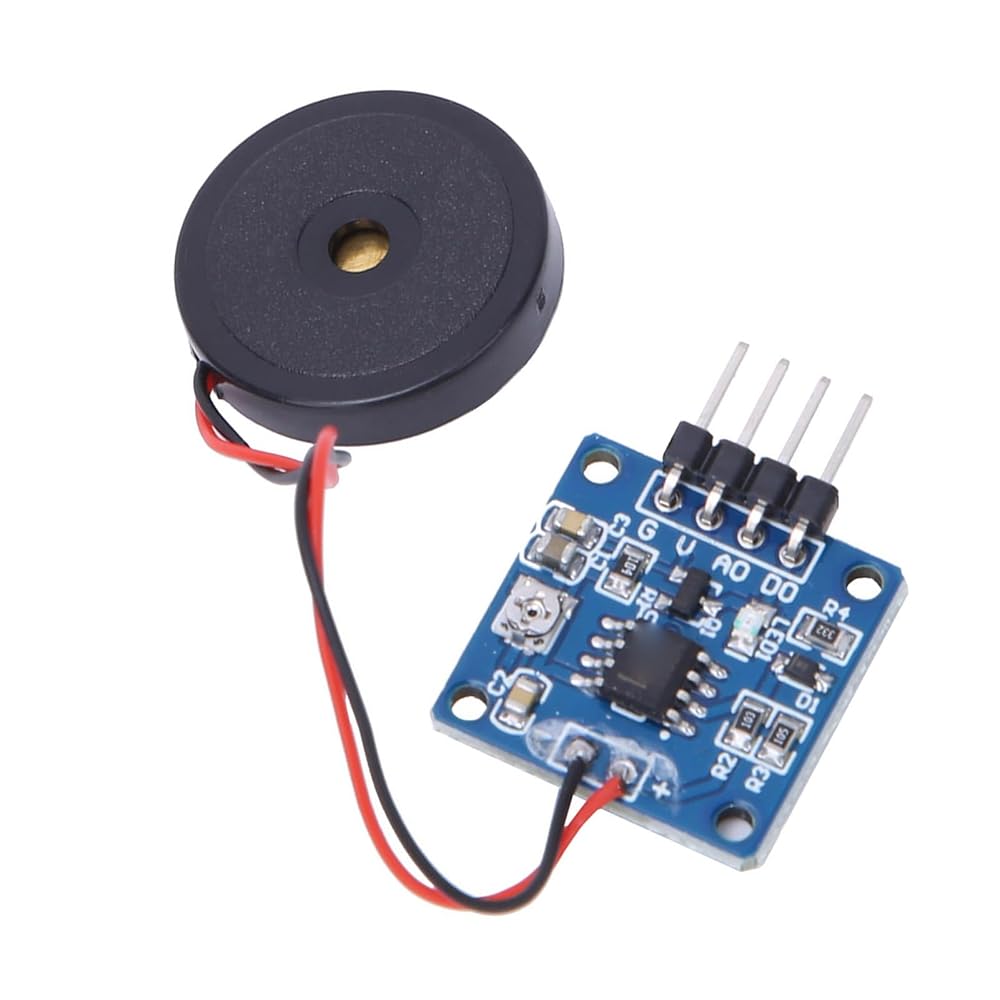

Piezoelectric Vibration Sensor Module, Analog Vibration Switch Module, Adjustable Sensitivity Potentiometer Sensor with Accurate Detection, Ideal for Electronic Drum Interaction

KWD 4
Brand
Leftwei
– 1 +

Special Features

  • [Adjustable Sensitivity for Versatile Use] Featuring a convenient potentiometer, this module allows you to easily adjust sensitivity levels - turn left for lower sensitivity or right for higher sensitivity. fine-tune it to respond to gentle blows from your mouth or detect firm taps by hand, making it adaptable to various interactive projects.
  • [Strong Output Capability] With its robust ttl level output, this module can handle up to 1a control current, powerful enough to drive high-power led lights or other external devices directly. the high-level valid signal ensures reliable operation in various electronic applications.
  • [Compact and Versatile Design] Measuring just , these compact sensor modules are perfect for space-constrained projects. the durable pvc construction ensures longevity, while the dual-module package provides extra value for diy enthusiasts working on vibration-sensitive interactive projects or electronic prototypes.
  • [Dual Output Options for Flexibility] The module offers both analog (ad) and digital (do) output options. connect to controller analog port a0 to measure varying vibration levels through voltage changes, or use the ttl level digital output with led indication for simple on/off detection in your electronic projects.
  • [High Sensitivity Vibration Detection] This piezoelectric vibration sensor module utilizes a piezoelectric ceramic sheet to detect even the slightest vibrations. when the ceramic piece vibrates, it generates a precise electrical signal, making it perfect for applications requiring accurate vibration detection like electronic drum kits or security systems.

Description

1. Working Principle: An analog vibration sensor based on a piezoelectric ceramic sheet is an inverse conversion process that uses piezoelectric ceramics to generate vibration. When the piezoelectric ceramic piece vibrates, an electrical signal is generated.
2. Versatile Use: Special sensor expansion boards are used in combination, and analog ports can be weakly perceived. Vibrating electrical signals enable interactive work related to vibration, such as electronic drum interactions.
3. ADO Output: The analog voltage ceramic vibration sensor can connect to controller analog port A0 according to the program. When the vibration level is different, observing output value of serial port, can achieve interactive work related to vibration. According to the vibration strength, the higher the output voltage, the higher the vibration amplitude.
4. Adjustable Sensitivity: Sensitivity can be adjusted by the potentiometer (low sensitivity for left turns, high sensitivity for right turns). Can be adjusted to have a response when blowing with the mouth or output when tapping with the hand.
5. DO Output: TTL level output, output signal LED indication. The TTL output valid signal is high level, and the output control current can achieve 1A for external high power LED lights.

Spec:
Item Type: Vibration Switch Sensor Module
Material: PVC
Interface Type: AD/DO
AO: Analog Signal Output
DO: TTL Level Output
Working Temperature: -10℃ to +70℃
Size: Approx. / 0.79x0.79in

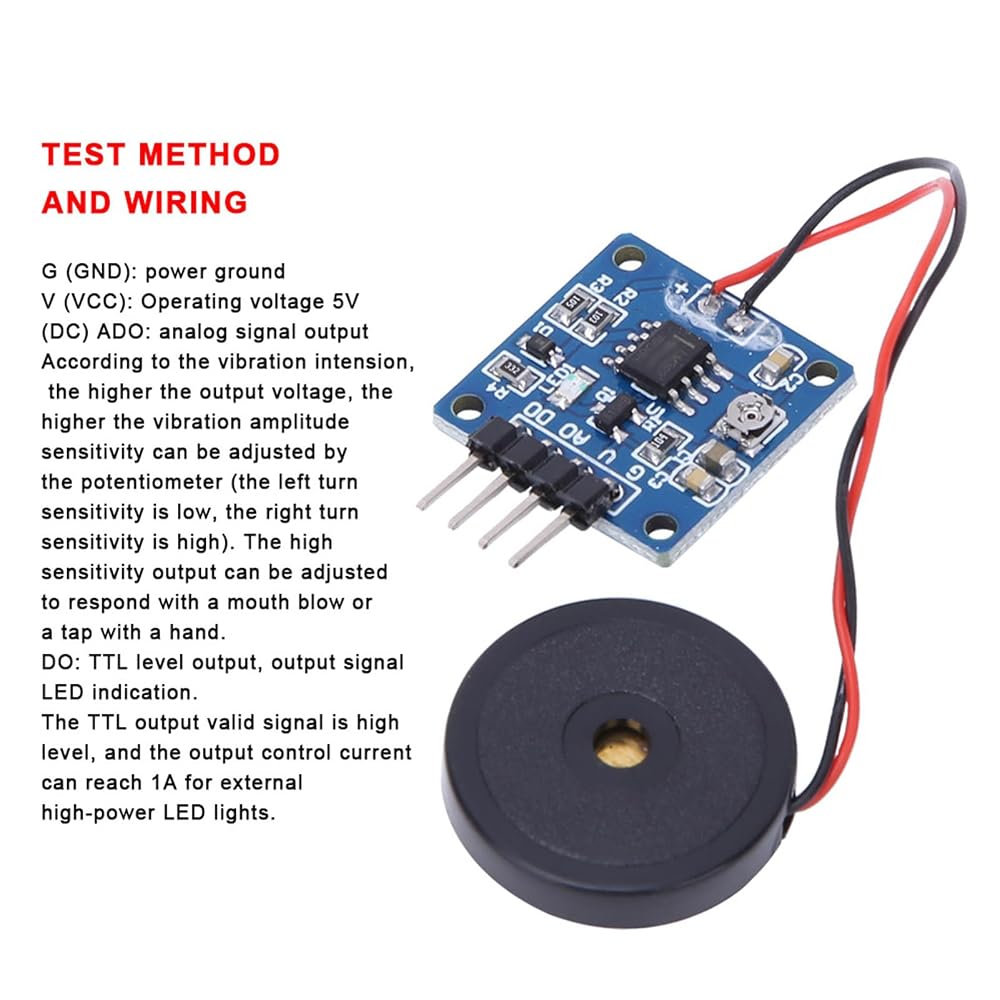

G (GND): Power Ground
V (VCC): Working Voltage 5V (DC)
ADO: Analog Signal Output
According to the vibration strength, the higher the output voltage, the higher the vibration amplitude.
Sensitivity can be adjusted by the potentiometer (low sensitivity for left turns, high sensitivity for right turns).
High Sensitivity Output: Can be adjusted to have a response when blowing with the mouth or output when tapping with the hand.
DO: TTL level output, output signal LED indication. The TTL output valid signal is high level, and the output control current can achieve 1A for external high power LED lights.

packing list:

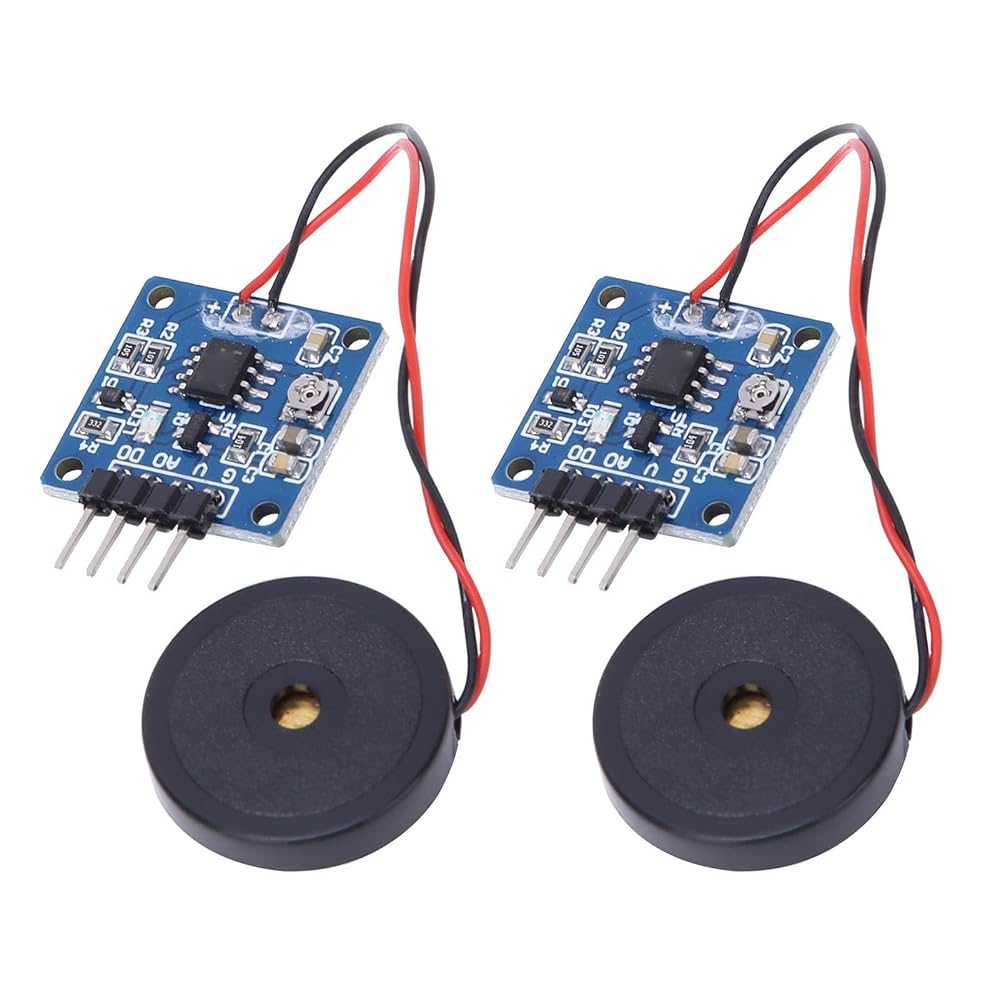

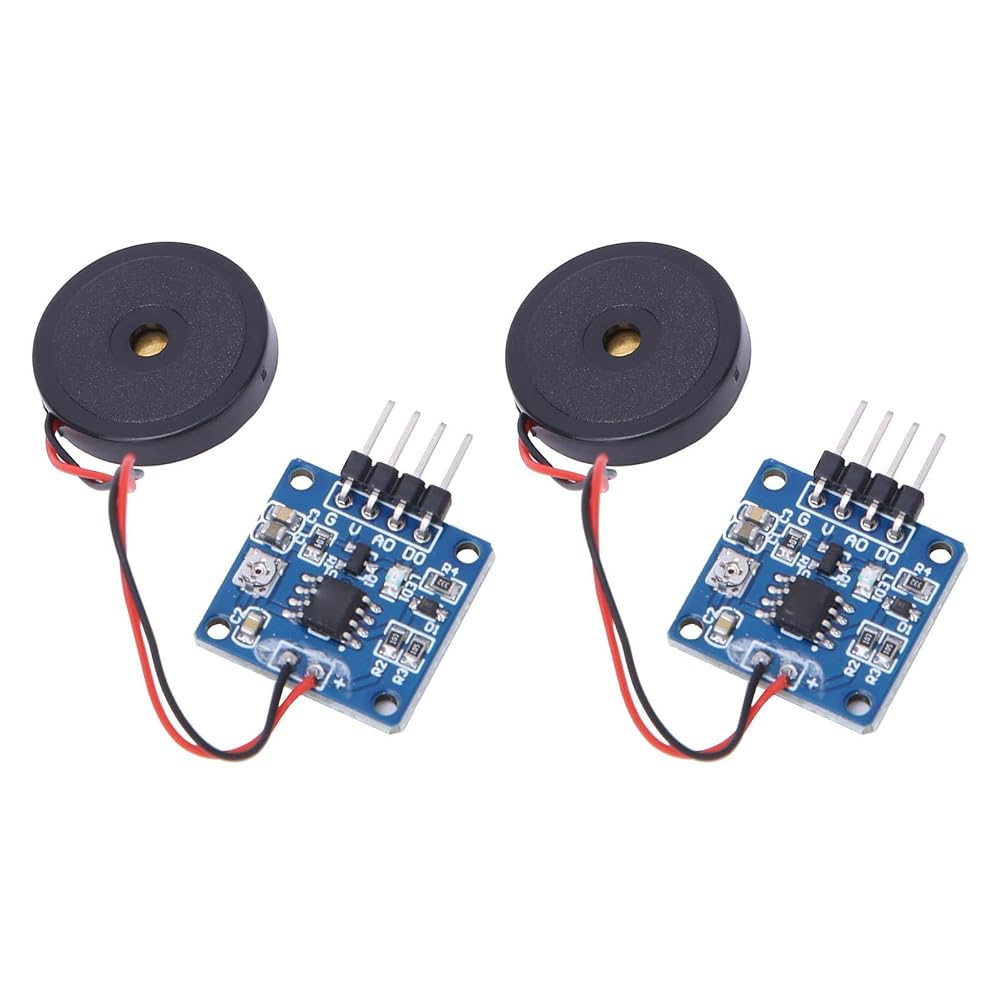

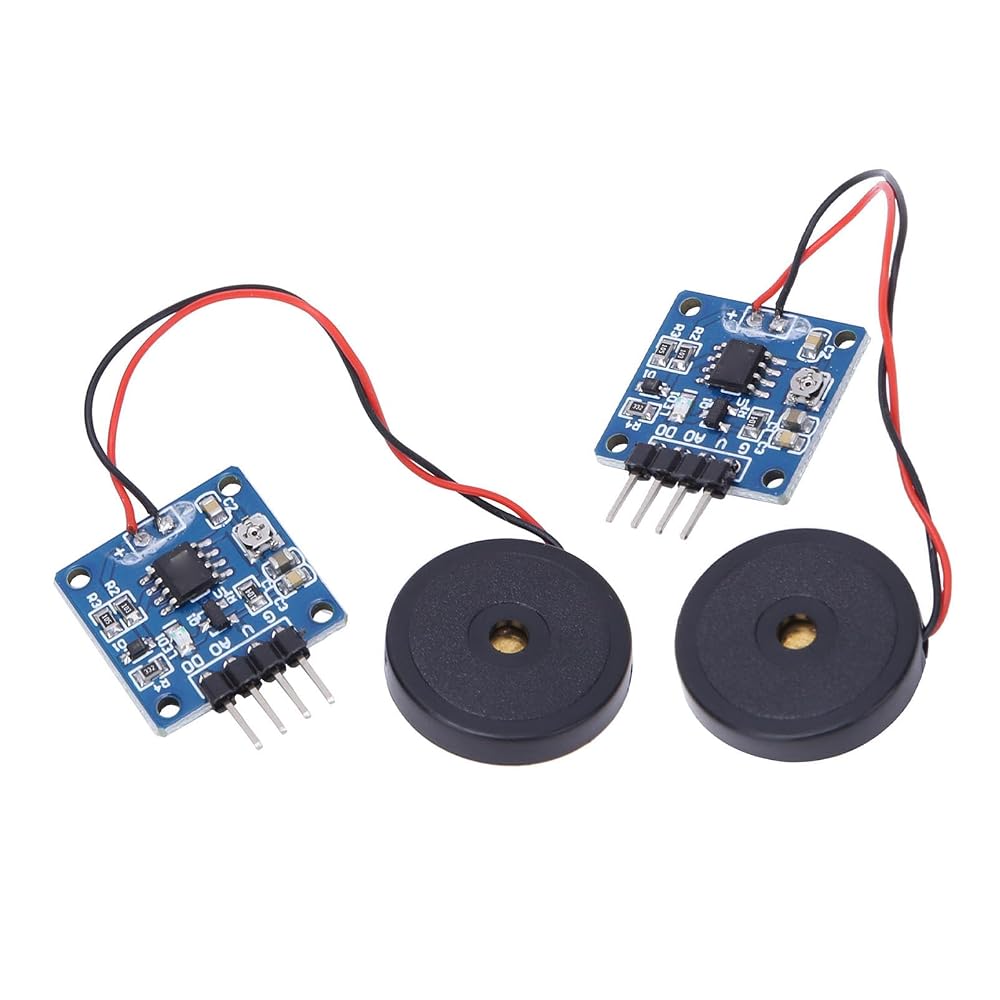

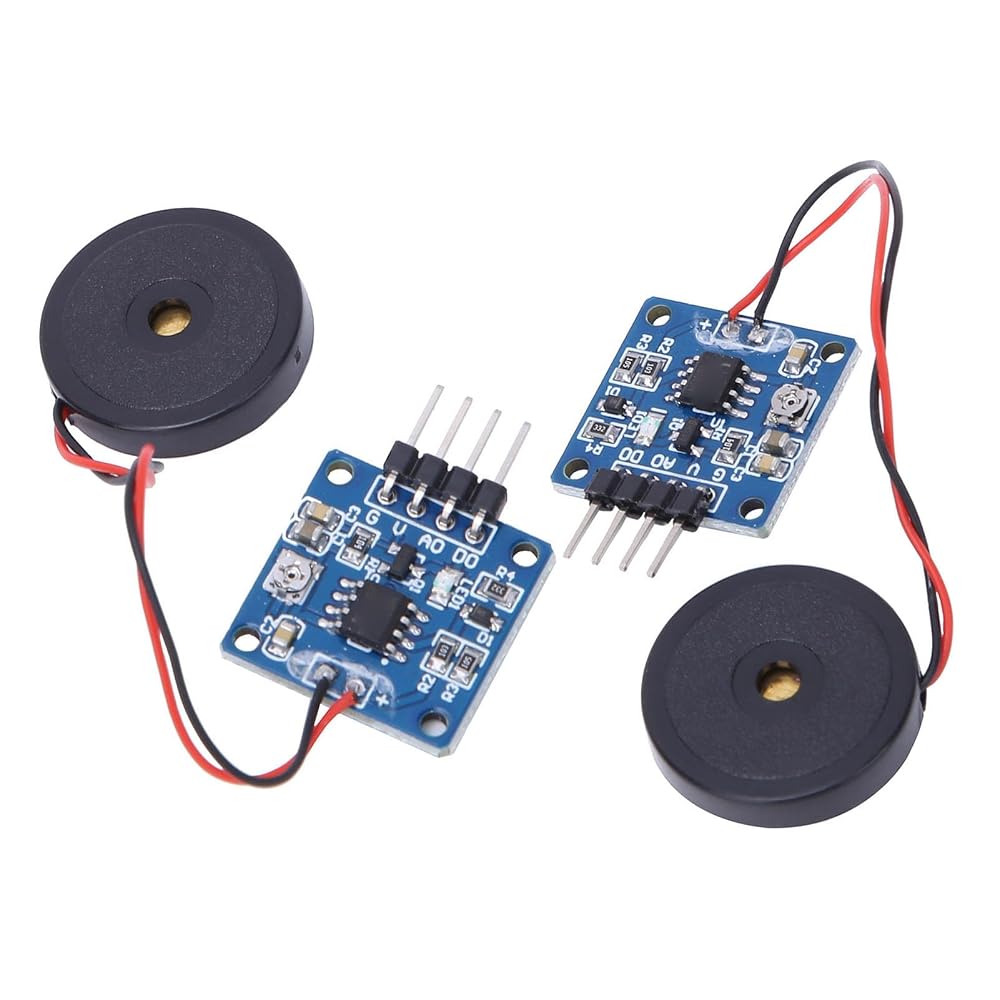

2 x Vibration Switch Sensor Module

Note:
