Fast installation: Field-installable design enables quick termination in under two minutes per fiber without polishing or epoxy
Superior optical performance: Factory-polished ceramic ferrule ensures low insertion loss up to 0.5 dB and reflectance of Less than or equal to -26 dB
Durable construction: Maintains performance with Less than or equal to 0.2 dB change after 500 rematings for long-term reliability
Broad compatibility: Designed for 50 µm multimode fiber, optimized for OM3 and OM4 applications
Robust environmental range: Operates reliably from -40°C to 75°C for diverse installation environments
Easy to use: No consumables required
Secure connection: ST compatible connector style with amber housing and aqua boot for easy identification
High tensile strength: Supports jacketed cable tensile strength up to 50 N for secure fiber retention
وصف

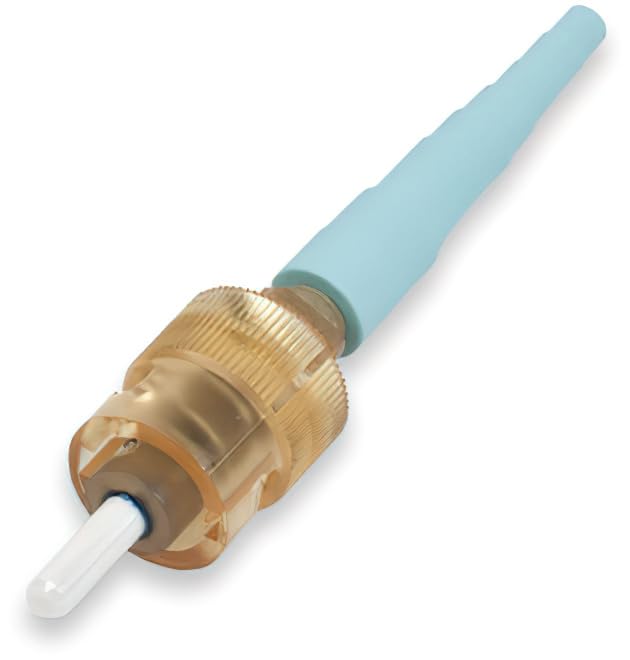

95-050-51-X UniCam ST Compatible Fiber Optic Connector, 50 Micron Multimode OM3 OM4, No Epoxy No Polish, Field Installable, Low Loss
The 95-050-51-X UniCam Connector is a high-performance, field-installable fiber optic connector designed for 50 Micron multimode fibers, optimized for OM3 and OM4 standards. Its no-epoxy, no-polish technology allows fast, reliable installation with minimal tools, delivering consistent low loss and reflectance. Ideal for fiber-to-the-workstation and network applications.
Key Features:Fast field termination without polishing
Factory-polished ceramic ferrule
Low insertion loss max 0.5 dB
Reflectance less than or equal to -26 dB
Durability with 500 rematings
Compatible with 50 Micron OM3/OM4 fiber
Operating temperature -40°C to 75°C
ST connector style with amber housing
Includes crimp band and boots (900 Micron and 3.0 mm)
RoHS compliant and environmentally safe
Specifications:Product Number: 95-050-51-X
Fiber Category: 50 Micron MM (OM3/OM4)
Product Type: Field-Installable Connectors
Keyed (security): No
Technology: No-Epoxy/No-Polish
Temperature Range, Operation: -40C to 75C (-40F to 167F)
Connector Type: ST compatible
Housing Color: Amber
Boot Color: Aqua
Ferrule Material: Ceramic
Nominal Fiber Outer Diameter: 125 Micron
Tensile Strength Jacketed Cable: 50 N (11.24 lbf)
Durability: Less than or equal to 0.2 dB change, 500 rematings, FOTP-21
Tensile Strength 900 Micron Cable: 4.9 N (1.1 lb) change Less than or equal to 0.2 dB, FOTP-6
Insertion Loss, Max.: 0.5 dB
Package Contents: Connector, crimp band, boot (900 Micron), boot (3.0 mm)
