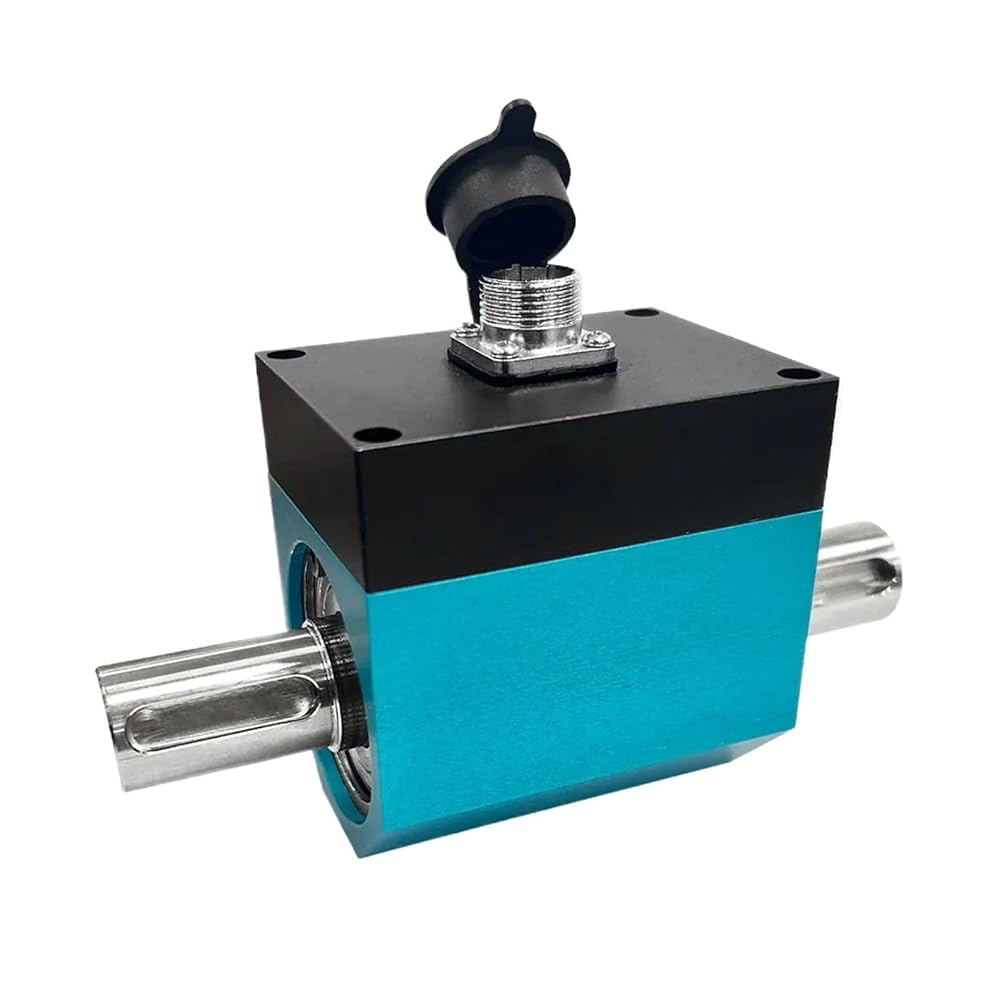

Non-Contact Dynamic Rotating Torque Sensor, for Force Sensors & Load Cells
Special Features
- Precision Torque Measurement: Used for measuring dynamic torque and speed in motor testing and power transmission
- Dynamic Performance: Capable of measuring rapidly changing torque values at high speeds, providing real-time performance
- Rugged Industrial Design: Designed for continuous in harsh environments and includes integrated overload protection

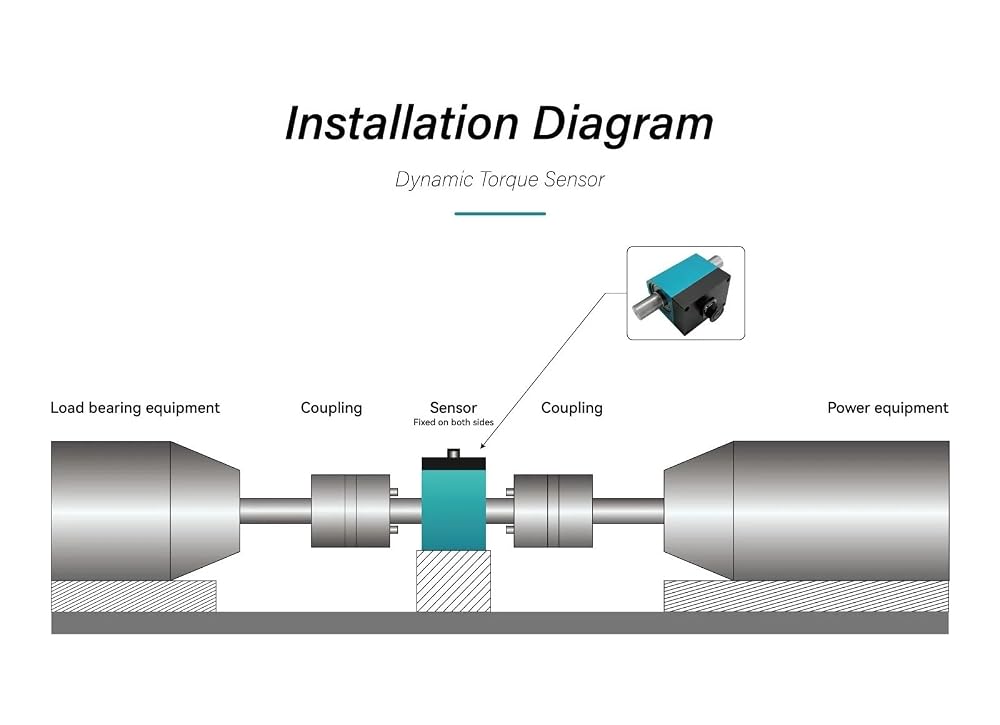

- Easy Integration: Standard electrical interfaces and mounting options allow for easy installation on test benches and in mechanical equipment
Description
Series : Torque Sensor
Features : Contactless Rotary Dynamic Torque Sensor
Mounting Type : Screw installation
Description : Dynamic rotary torque sensor, Torque Sensor
Model Number : NJ5101
Type : Dynamic Rotary Torque Transducer
Use : Industry
Theory : Strain Gauge Torque Sensor
Output : 5-15KHz ,4-20mA ,0-10V , RS485,SPEED
Product name : Rotary Dynamic Torque Sensor
Measuring Range : (0~±200)N.m
Accuracy : 0.3% ; 0.1%
Power : (9~36)VDC
Output Signal : 5-15KHz ,4-20mA ,0-10V , RS485, SPEED
Speed : (0~10000) rpm
Working Temperature : -40~60
Repeatability : 0.1%
Linear : 0.1%
