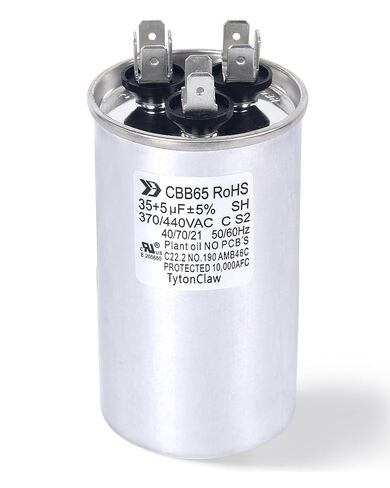

[UL Recognized] 35+5 µF 35/5 MFD ±5% Dual Run Capacitor for Condenser | 370/440VAC CBB65 HVAC capacitor for AC condenser, fan motor, compressor, heat pump. Match 35+5 µF; replaces C3355R, C4355R in Kuwait [UL Recognized] 35+5 µF 35/5 MFD ±5% Dual Run Capacitor for Condenser | 370/440VAC CBB65 HVAC capacitor for AC condenser, fan motor, compressor, heat pump. Match 35+5 µF; replaces C3355R, C4355R in Kuwait [UL Recognized] 35+5 µF 35/5 MFD ±5% Dual Run Capacitor for Condenser | 370/440VAC CBB65 HVAC capacitor for AC condenser, fan motor, compressor, heat pump. Match 35+5 µF; replaces C3355R, C4355R in Kuwait [UL Recognized] 35+5 µF 35/5 MFD ±5% Dual Run Capacitor for Condenser | 370/440VAC CBB65 HVAC capacitor for AC condenser, fan motor, compressor, heat pump. Match 35+5 µF; replaces C3355R, C4355R in Kuwait [UL Recognized] 35+5 µF 35/5 MFD ±5% Dual Run Capacitor for Condenser | 370/440VAC CBB65 HVAC capacitor for AC condenser, fan motor, compressor, heat pump. Match 35+5 µF; replaces C3355R, C4355R in Kuwait [UL Recognized] 35+5 µF 35/5 MFD ±5% Dual Run Capacitor for Condenser | 370/440VAC CBB65 HVAC capacitor for AC condenser, fan motor, compressor, heat pump. Match 35+5 µF; replaces C3355R, C4355R in Kuwait [UL Recognized] 35+5 µF 35/5 MFD ±5% Dual Run Capacitor for Condenser | 370/440VAC CBB65 HVAC capacitor for AC condenser, fan motor, compressor, heat pump. Match 35+5 µF; replaces C3355R, C4355R in Kuwait

[UL Recognized] 35+5 µF 35/5 MFD ±5% Dual Run Capacitor for Condenser | 370/440VAC CBB65 HVAC capacitor for AC condenser, fan motor, compressor, heat pump. Match 35+5 µF; replaces C3355R, C4355R

KWD 8
Brand
TytonClaw
– 1 +

Special Features

  • Match 35+5 µF: Helps restore fan or compressor operation when replacing a failed run capacitor in a matching AC or heat pump system. Match the 35+5 µF / 35/5 MFD ±5% rating on your old part before ordering to ensure the correct replacement
  • UL Recognized CBB65: Designed for AC condensers, fan motors, compressor motors, heat pumps, and straight cool units. Built with No PCBs construction and protected 10,000 AFC rating for safer HVAC use
  • For 370/440VAC: Works with matching 370V or 440V HVAC capacitors when the µF rating, terminal layout, and mounting space are the same. Rated for 50/60Hz AC motor run applications and designed for use as a dual run capacitor in compatible systems
  • Check Before Ordering: The can measures 2" diameter x 3.35" height, so please compare it with your old capacitor and bracket space before purchase. Also check the rating, voltage, terminals, and wiring layout to help avoid fit or compatibility issues
  • Common HVAC Replacement: Fits many 35+5 MFD capacitor applications and commonly cross-references with C3355R, C4355R, TRCFD355, and similar HVAC replacement part numbers. A practical choice for routine AC repair, condenser service, and capacitor replacement

Description

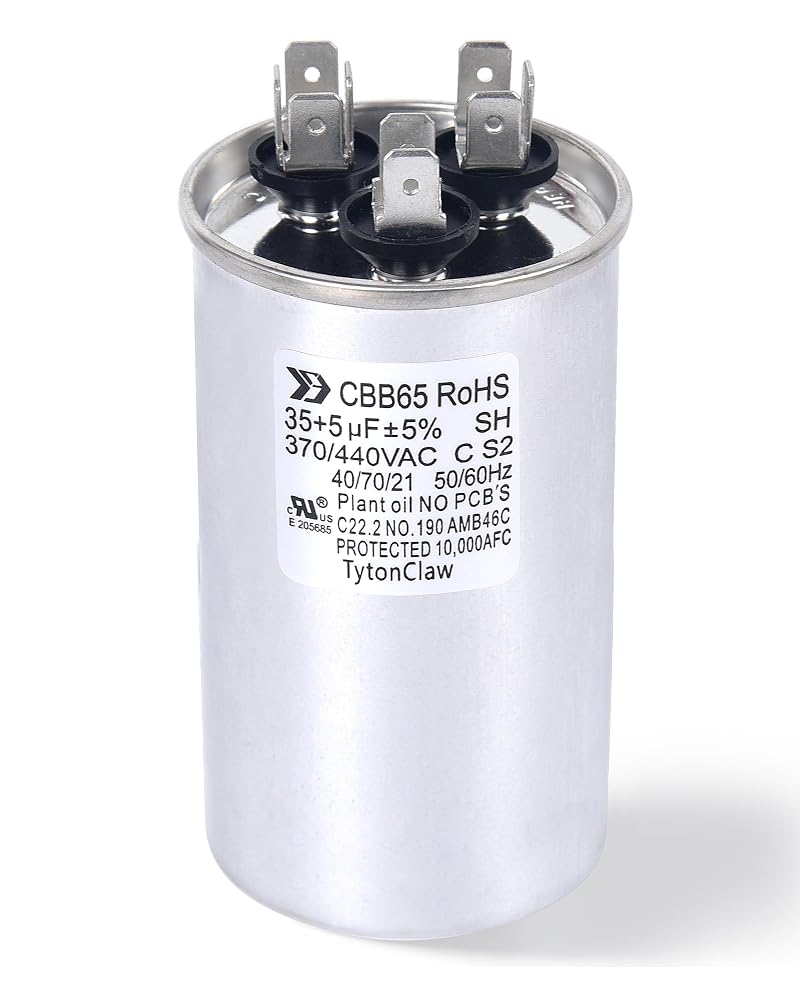

TytonClaw 35+5 µF / 35/5 MFD ±5% Dual Run Capacitor
Replace a weak or failed AC run capacitor and help restore normal fan and compressor operation in a compatible HVAC system.
This CBB65 round dual run capacitor is designed for AC condensers, fan motors, compressor motors, heat pumps, and straight cool units.

Product Specifications:
Capacitance: 35+5 µF / 35/5 MFD
Tolerance: ±5%
Voltage Rating: 370/440VAC
Frequency: 50/60Hz

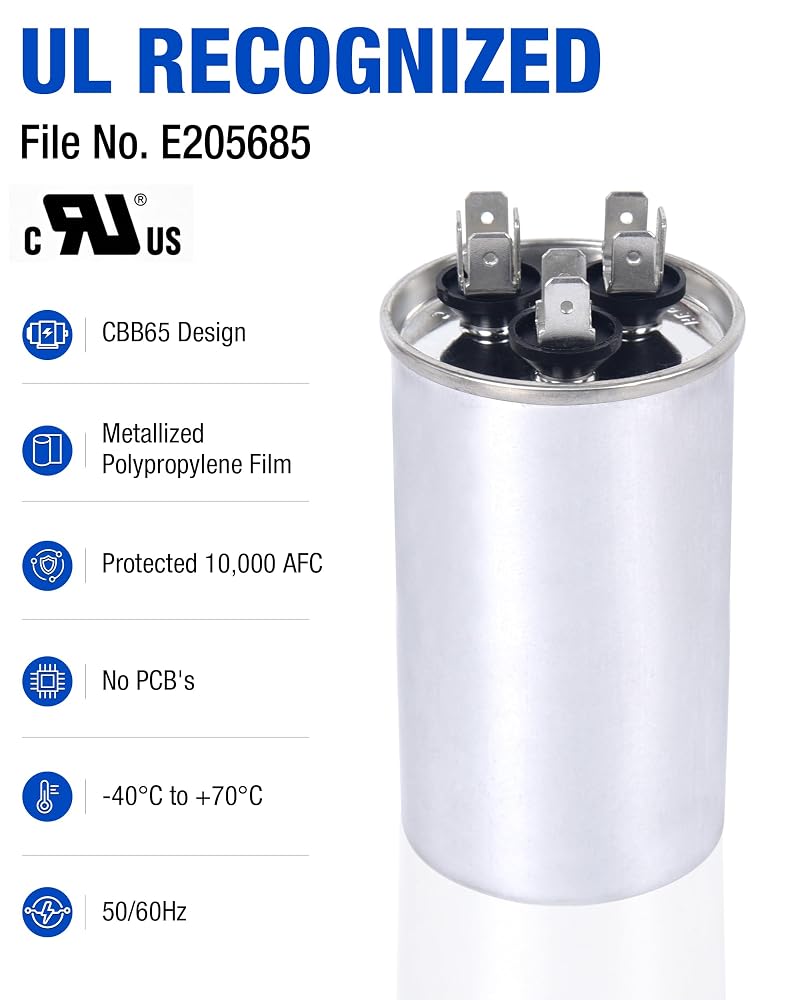

Certification: UL Recognized Component
Type: CBB65 round dual run capacitor
Dielectric Material: Metallized polypropylene film

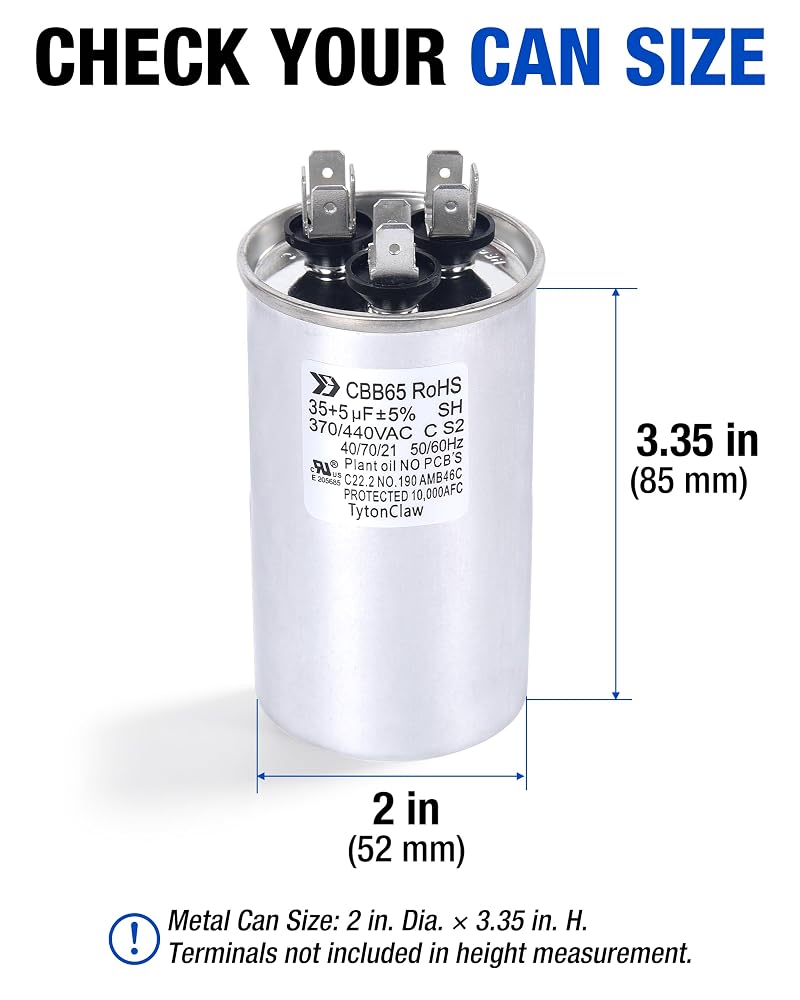

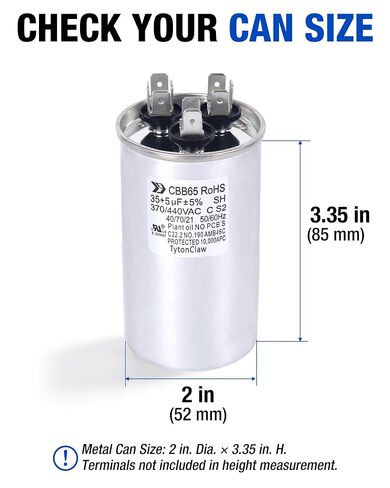

Size: 2" diameter x 3.35" height

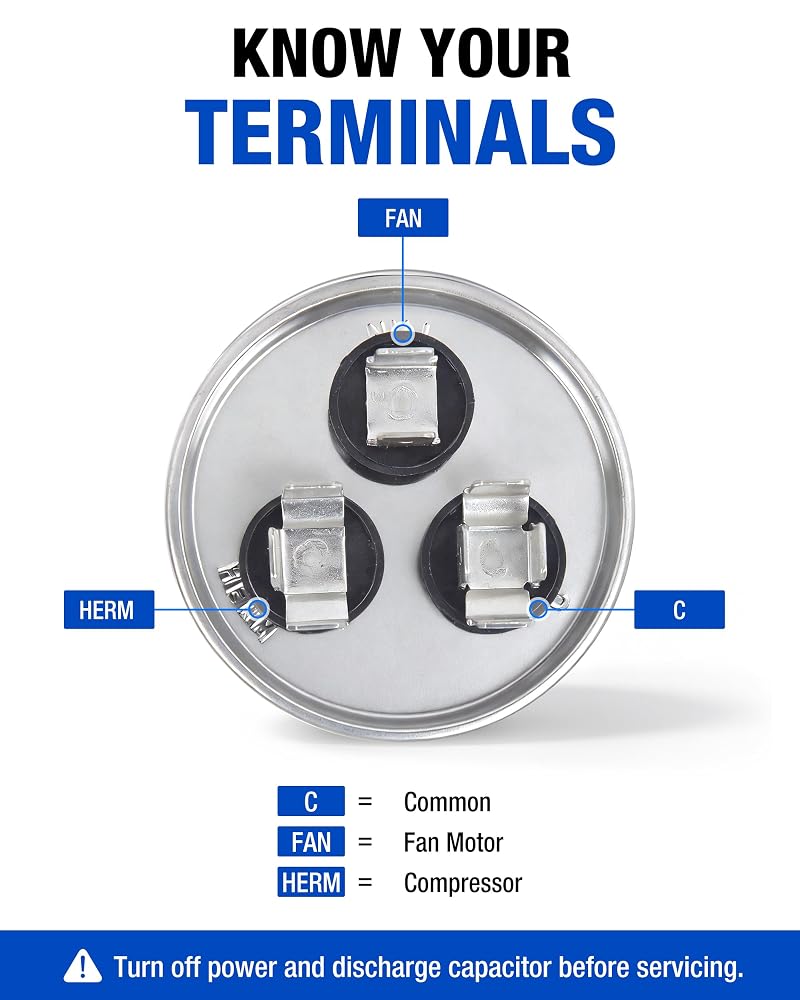

Terminals: HERM/H for compressor, FAN/F for fan motor, C for common
Safety Rating: Protected 10,000 AFC
Construction: Plant oil, No PCBs
Common Cross-Reference Numbers: C3355R, C4355R, TRCFD355, CD35+5X440R, and similar 35+5 MFD HVAC capacitor part numbers.

4 Easy Installation Steps:
Step 1: Turn off power to the AC unit and locate the old capacitor.
Step 2: Discharge the old capacitor safely before handling.
Step 3: Take a photo of the wiring, then connect the wires to the matching terminals: HERM/H, FAN/F, and C.
Step 4: Secure the new capacitor, reinstall the access panel, restore power, and test the unit.

Important Note:

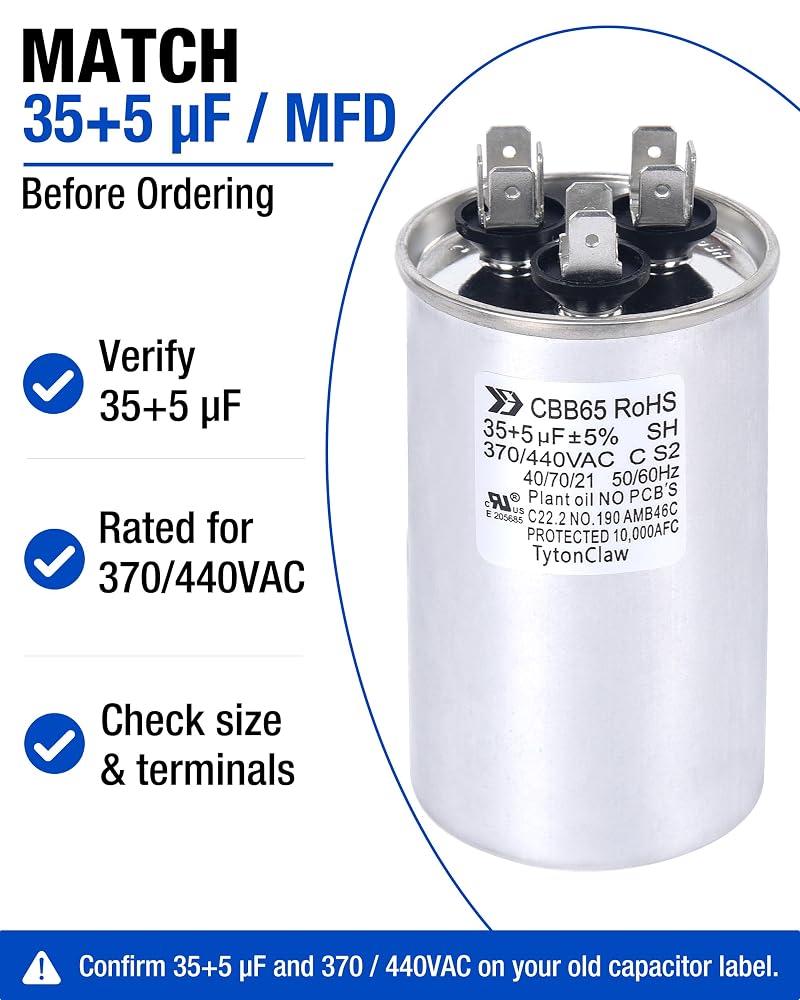

Before ordering, compare your old capacitor's µF rating, voltage, terminal layout, and size. Use only as a replacement for a matching HVAC capacitor.
If you are not familiar with HVAC electrical repair, contact a qualified technician.
