Special Features

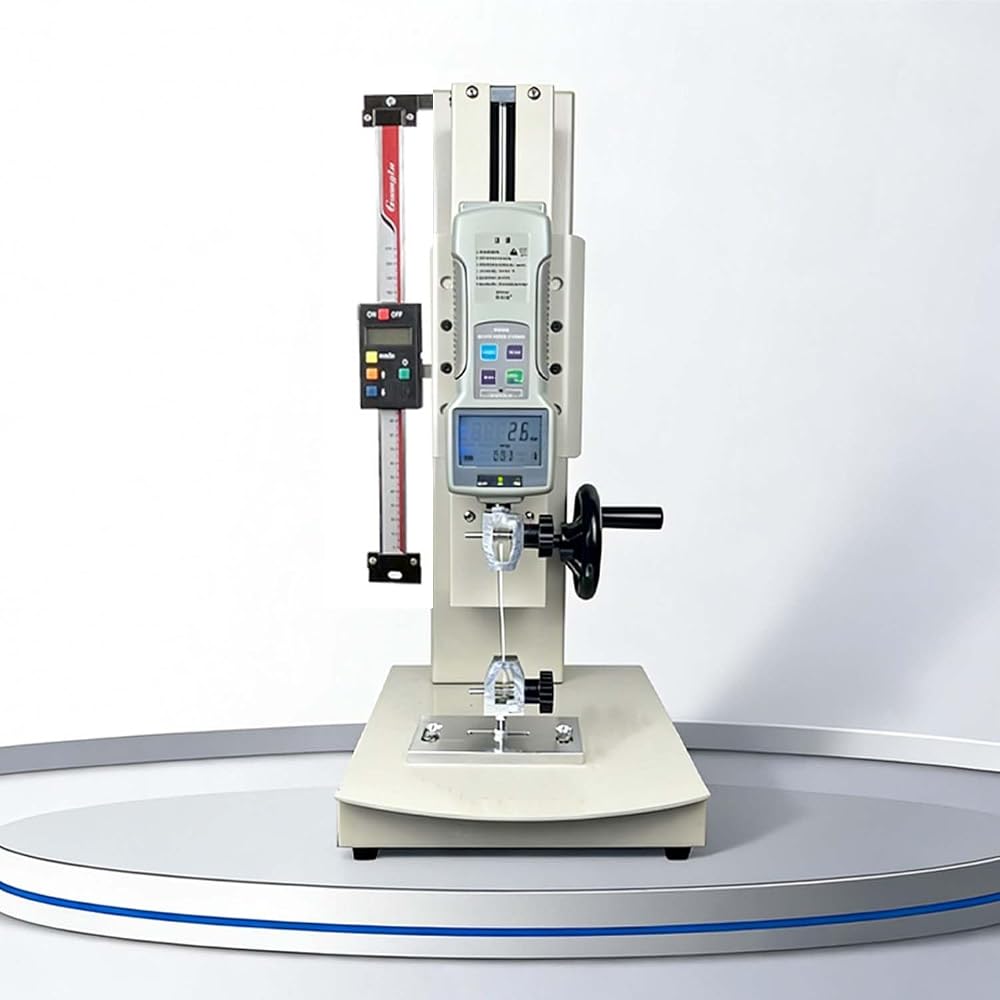

✔️【Versatile Tensile Testing Machine for Dual-Function Use】Multi-functional tensile testing machine can be installed in reverse to perform both tension and compression tests, offering a wide force measurement range from 10N to 2000N. It is available in two configurations, with or without a measurement scale, to suit your specific needs. Equipped with five interchangeable probes, ideal for testing fishing lines, ropes, wires, buckles, springs, fishhooks, solder joints, rubber bands.
✔️【High-Precision Manual Operation】Engineered for accuracy and longevity, this wide-range tensile tester features a handwheel device equipped with precision alloy reduction gears and bearings. Resolution reaches 0.01N/0.001kgf, The error is only 0.5%.. This ensures smooth, stable, and reliable operation during extended testing sessions. The adjustable clamp securely holds samples with a thickness from 0 to 8mm, guaranteeing consistent.
✔️【Clear LCD Display】The tensile testing machine is equipped with an easy-to-read digital LCD screen featuring an automatic backlight function. This allows for clear visibility of readings under any lighting condition. Free conversion between three units (kgf/Lbf/N), Housed in a durable casing made of A-BS pla-stic and metal for component protection,capable of storing up to 999 sets of peak test data for your review and analysis.
✔️【Convenient Data Connection】Facilitating easy data management, the digital dynamometer can store a maximum of 999 peak test data sets. Real-time measurement data can be directly exported to a laptop via the included USB cable, enabling detailed analysis and simplified record keeping. (Windows system). Ideal testing instrument for workshops, quality assurance laboratories, and production facilities.
✔️【Different Fixtures for the Tensile Tester】Hand-crank vertical tensile test bench comes as a complete testing kit. It includes standard fixtures, five different test heads, an extension rod (90cm), and a full installation screw set. Such as a fishing line clamp and a spring compression fixture, are also provided for specific applications. For compression tests, and destructive experiments across industries like electrical,automotive parts, light industry, machinery, and textiles.

Description

Tired of Inconsistent Quality Control Data?

Upgrade your testing process with this Digital Tensile Testing Machine, a complete solution designed to elim-inate guesswork and deliver reliable, accurate force measurements.

✅ Features

✔ Precision Force Measurement : The heart of the system is a digital push-pull force gauge with a wide measurement range (selectable from 10N to 2000N).

✔ Equipped with three types of clamps and two racks, including fishing line clamps and spring compression clamps, it meets a variety of experimental needs.

✔ A Universal Tool for Multiple Industries:This tensile tester is an essential tool for destructive and non-destructive testing in industries such as electronics, hardware, machinery, textiles

📜 Specification

● Name: Digital Pull Force Tester

● Material: Metal

● Mode: handwheel

● Power supply: 110V-220V

● Battery: 2000mAh 15V

● Load: 10N/20N/50N/100N/200N/500N/1000N/2000N

● Meter resolution: 0.1N/0.01kgf/0.01lb

● Accuracy: ±0.5%

● Stroke: 300mm/11.81in

● Stand Load Capacity: max. 2000 N

● Testing speed: Adjusted manually as needed.

● Scale: Optional

● Clamps: Two clamps, Fishing line clamp, Spring pressure clamp

● Machine dimensions: 250*320*555mm

● Applicable: measuring tension, pressure, durability

📦 Package Content

1 x Digital Force Gauge

2 x Clamp

1 x Fishing line clamp

1 x Spring compression clamp

1 Set x Metal Test Fittings

⚠️ Notes

Please place the tester on a sturdy, level surface for safe and accurate operation.

The product size is measured manually, there may be a slight error of 1-3cm, please understand.

💌 If you have any questions, our customer service team is ready to assist and will respond to your inquiry within 24 hours.
