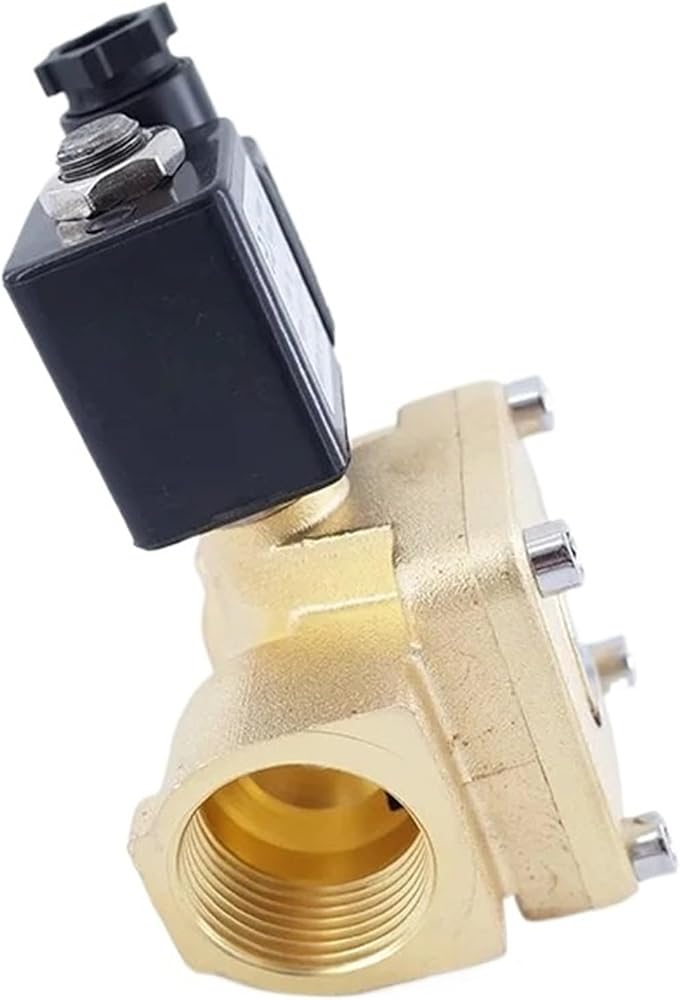

1.6Mpa Normal Close 2 Way Pilot Diaphragm Brass Electric Water Solenoid Valve NBR FKM
Model:
0927000 G1/4", Orifice: 8mm
0927100 G3/8", Orifice: 10mm
0927200 G1/2", Orifice: 12mm
NBR:-5~80°C ,FKM:-10~150°C
Voltage: 110V AC ,220V AC,12V DC ,24V DC.
0927SeriesPilot DiaphragmSlenoid valve
1.Specification
Pattern:
Two-porttwo-position
Principium:
PilotDiaphragmtype
Controlmode:
normallyclose
Valvebody:
brass,stainlesssteel
Diaphragmmaterial:
NBR:80°C,EPDM120°C,FKM:150°C,
Workingpressure:
1~16bar
Maxpressure:
16bar
Voltage:
AC220VAC110VDC12VDC24V
Medium:
Air,water,hotwater,Liquid,oilect.
Application:
Mediumpressurelarge-flowairwatercontrolsystem
==========
NC or NO : Normally Closed
Structure : Daphragm
Port Size : G1/4" ,G3/8, G1/2"
Media : Water
Material : Brass
Temperature of Media : Medium Temperature
Power : Solenoid
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : 0927
Origin : Mainland China
Certification : CE
For : Air ,water ,hot water ,liquid ,oil
Operating Temperature : NBR:-5~80°C ,FKM:-10~150°C
Orifice : 15mm
type : Normally colse
Max.pressure : 1.6Mpa
Working pressure : 0.1-1.6Mpa
Voltage : AC110V AC220V 24V DC 12V DC
Sealing materials : NBR/FKM
