Application
It is suitable for fastener torque testing where high accuracy is required and can be used for the machining field, automobile repair field, aviation field, heavy industry field, etc.

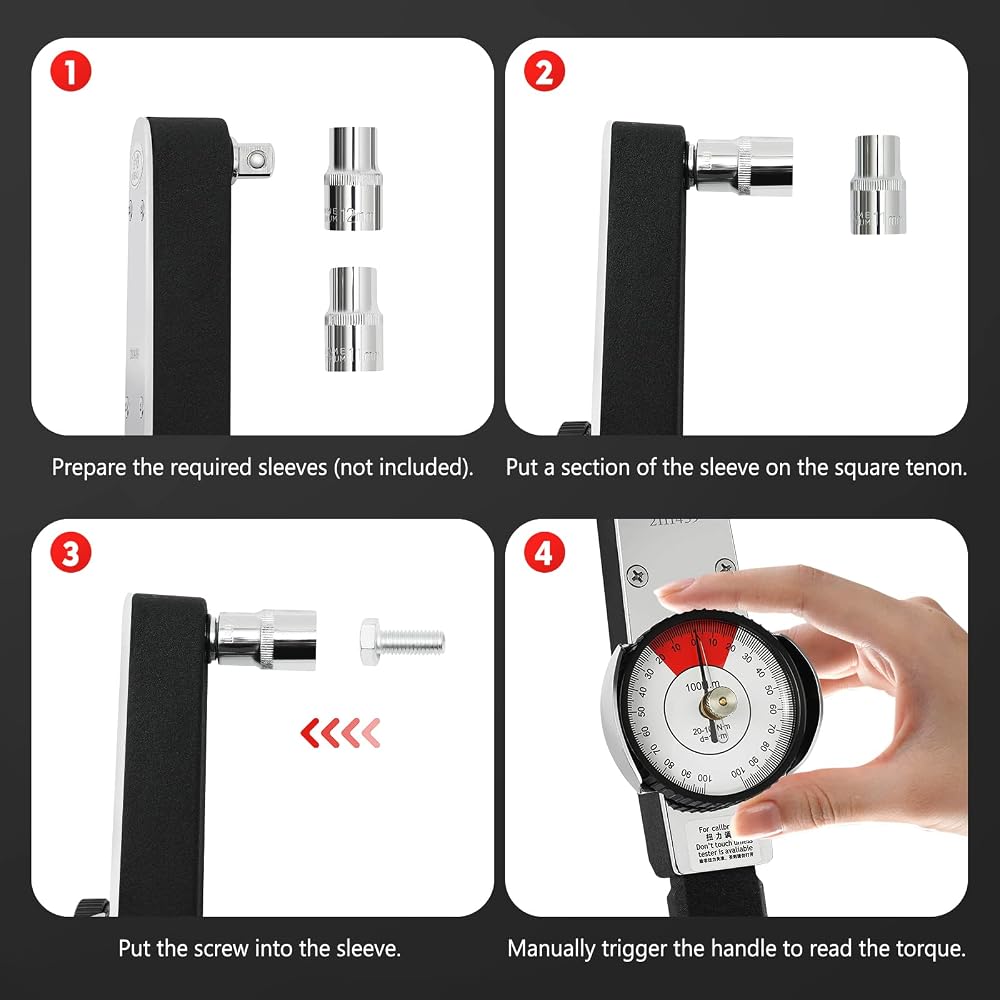

How to Install Sleeve
1. Prepare the required sleeves (not included).
2. Put a section of the sleeve on the square tenon.
3. Put the screw into the sleeve.
4. Manually trigger the handle to read the torque.

How to Use
1. Set the pointer to zero before use.

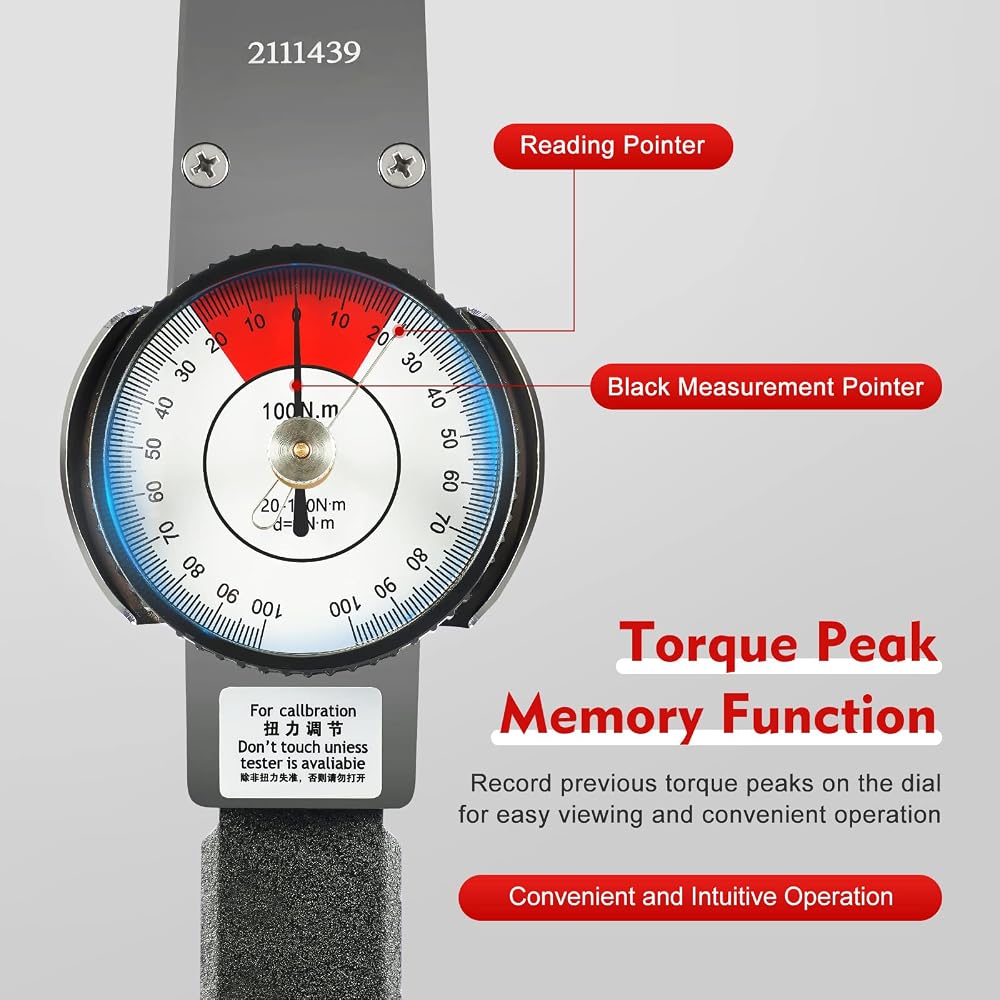

When using the right/left hand, turn the knob above the dial counterclockwise/clockwise so that the yellow reading pointer is tight against the black measurement pointer; rotate the housing to zero the yellow reading pointer.
2. When using, apply a slow and steady tightening force until the yellow reading pointer is at the desired torque value.
3. When the force stops, the black measurement pointer automatically returns to the zero position and the yellow reading pointer remains at the indicated scale value, allowing accurate reading of the torque value. Turn the knob above the dial to return the yellow reading pointer to the zero position for the next use.

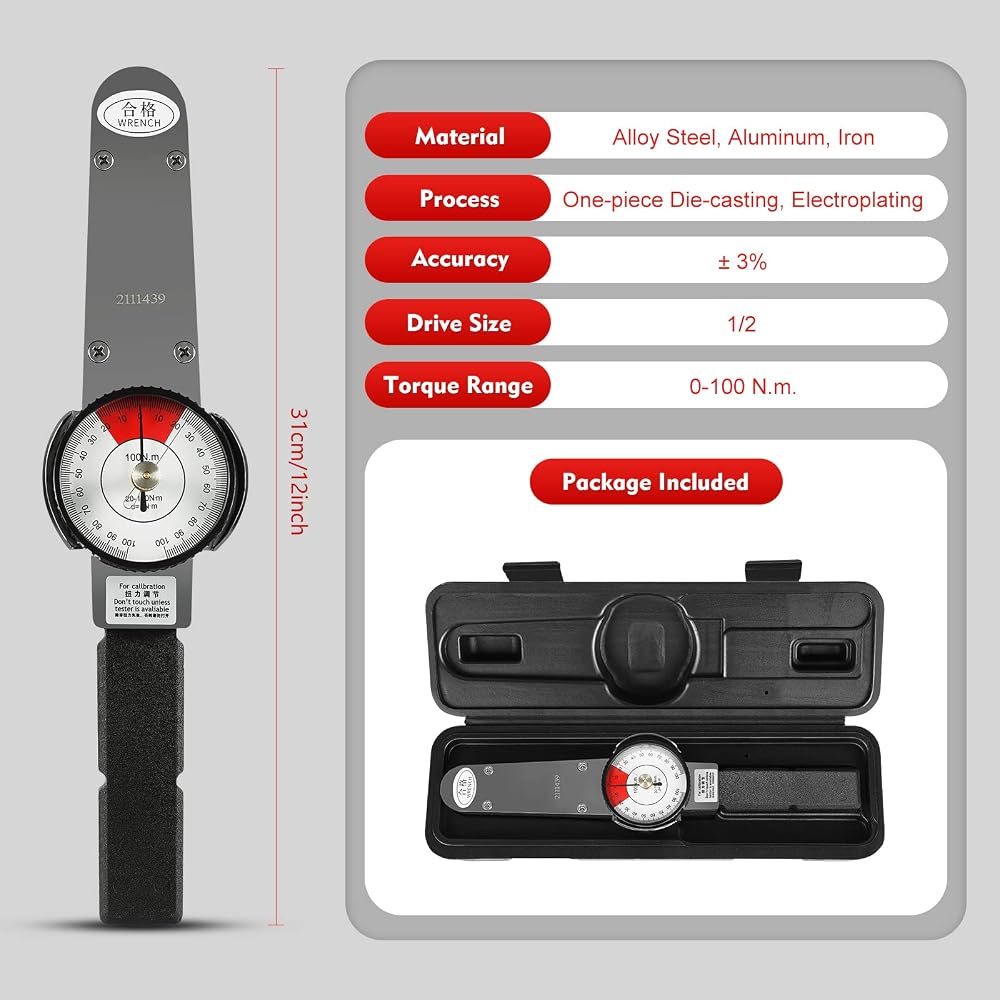

Specification

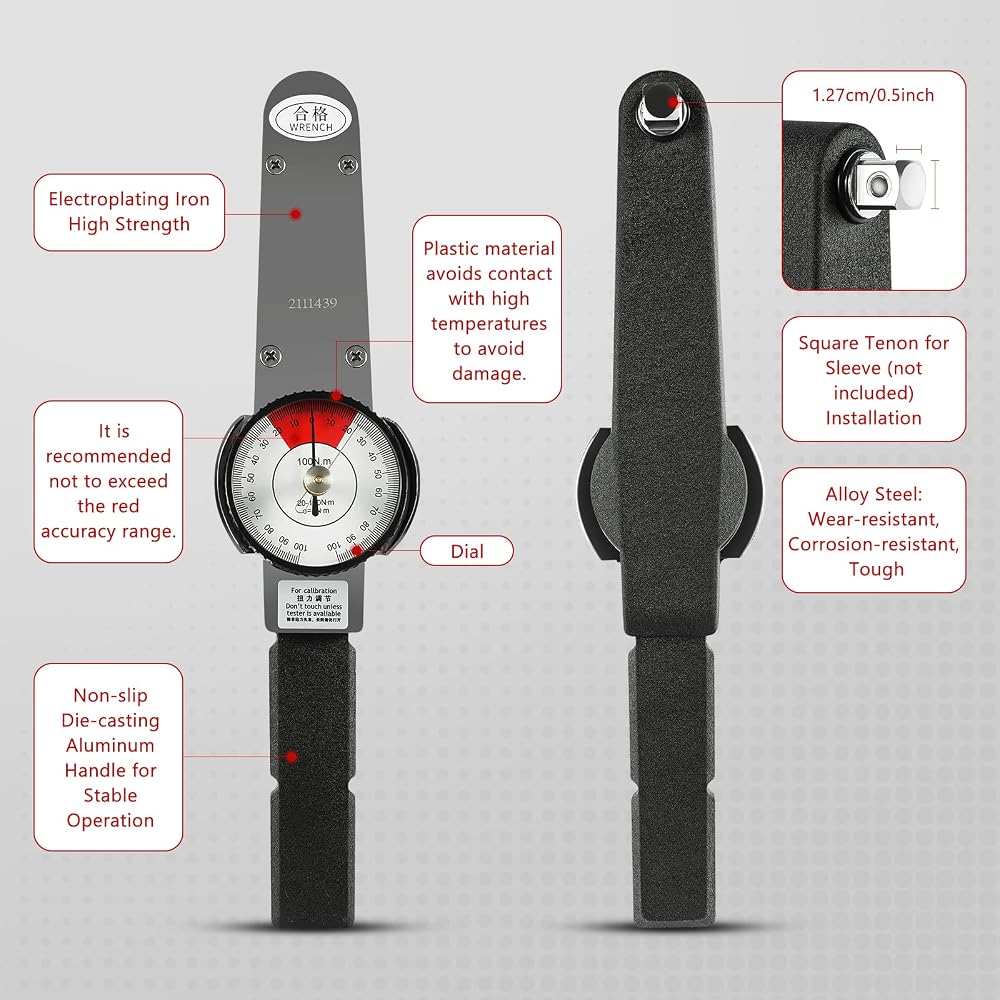

Material: Alloy Steel, Iron, Aluminum
Process: One-piece Die-casting, Electroplating
Color: Silver, Black

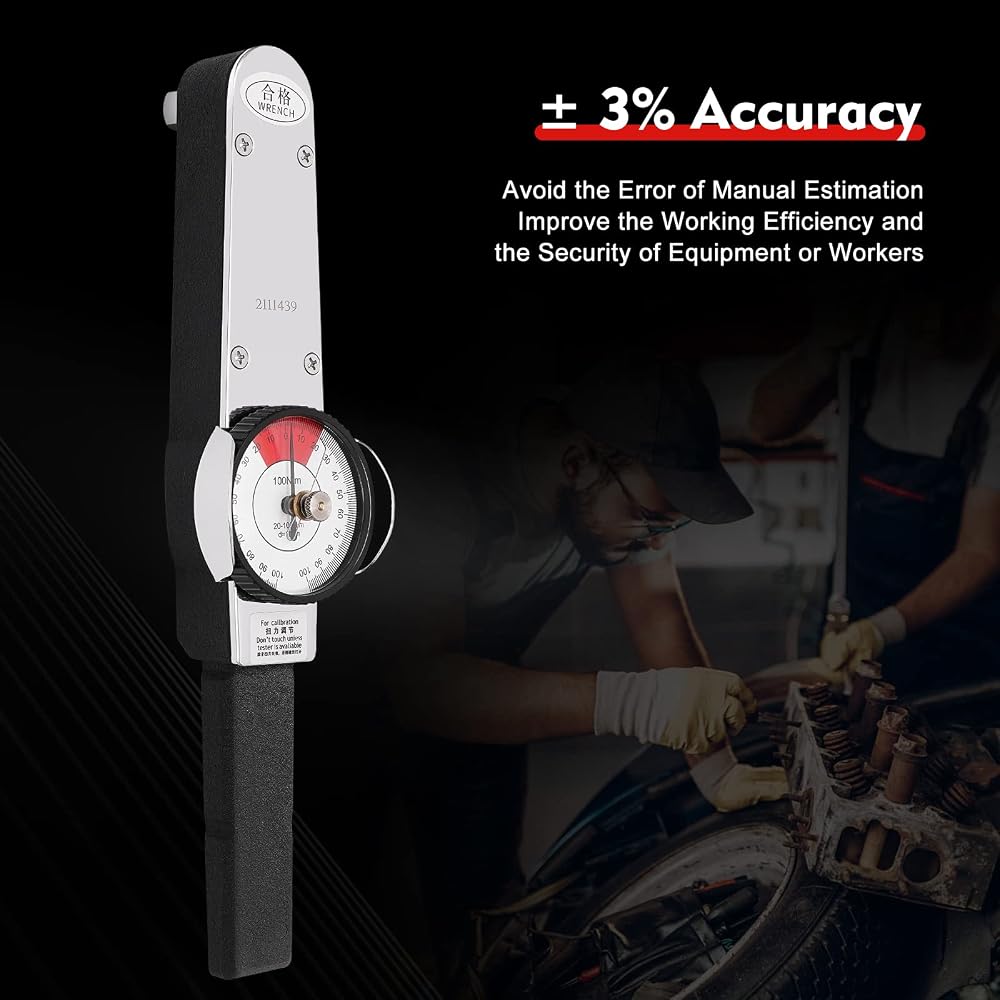

Accuracy: ± 3%
Drive Size: 1/2

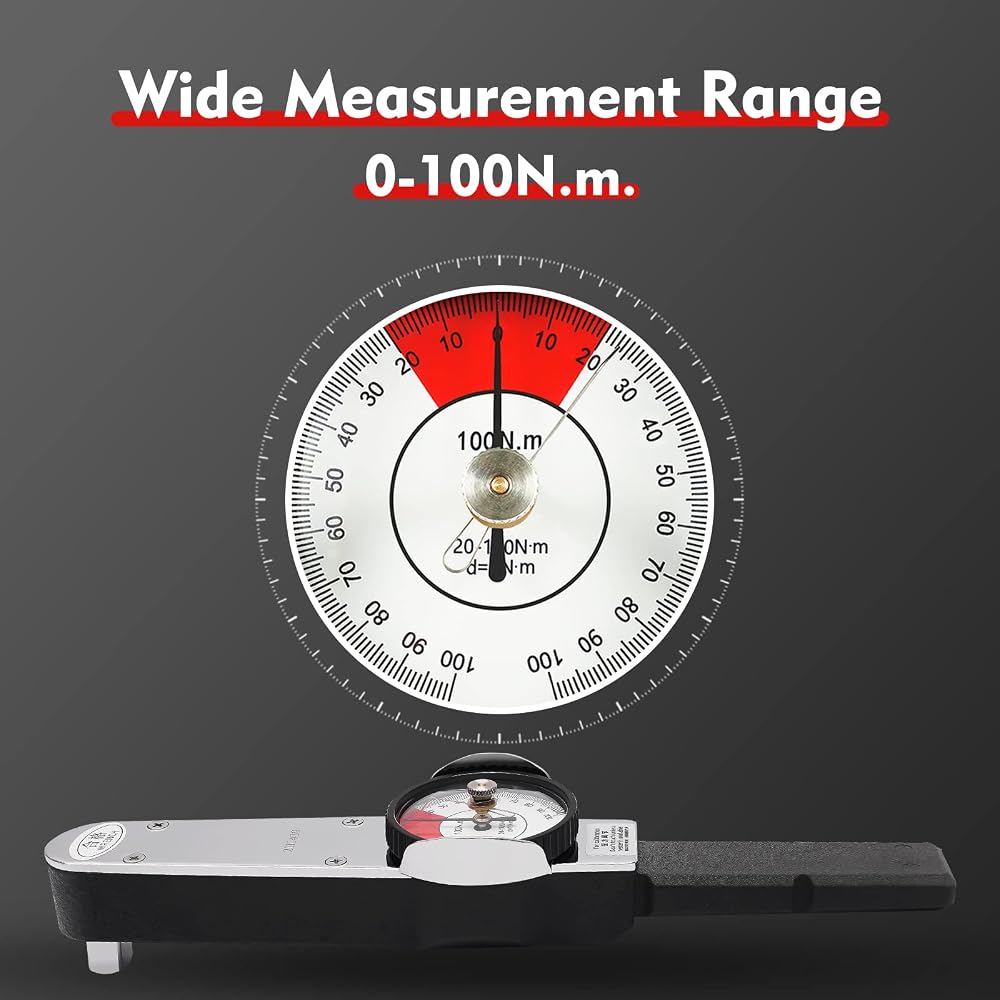

Torque Range: 0-100 n.m.
Square Tenon Size: 1.2*1.2cm/0.5*0.5inch
Dial Diameter: 6cm/2.4inch
Product Size: 31*4*3cm/12*1.6*1.2inch
Package Size: 32*10*11cm/12.6*4*4.3inch
Net Weight: 0.7kg/1.5lbs
Gross Weight: 1.3kg/2.9lbs

Package Included
1*Dial Torquemeter
1*Storage Box

Notes
1. To ensure maximum accuracy, it is recommended not to exceed the red accuracy range in the dial.
2. The outer ring of the dial is made of plastic, so avoid contact with high temperatures to avoid damage.
3. Please do not disassemble or knock at will to avoid affecting the accuracy of the product.
4. Do not use beyond the torque range to prevent affecting the accuracy of the indication.
5. Please check it every 5,000 uses or one year of purchase.
6. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
