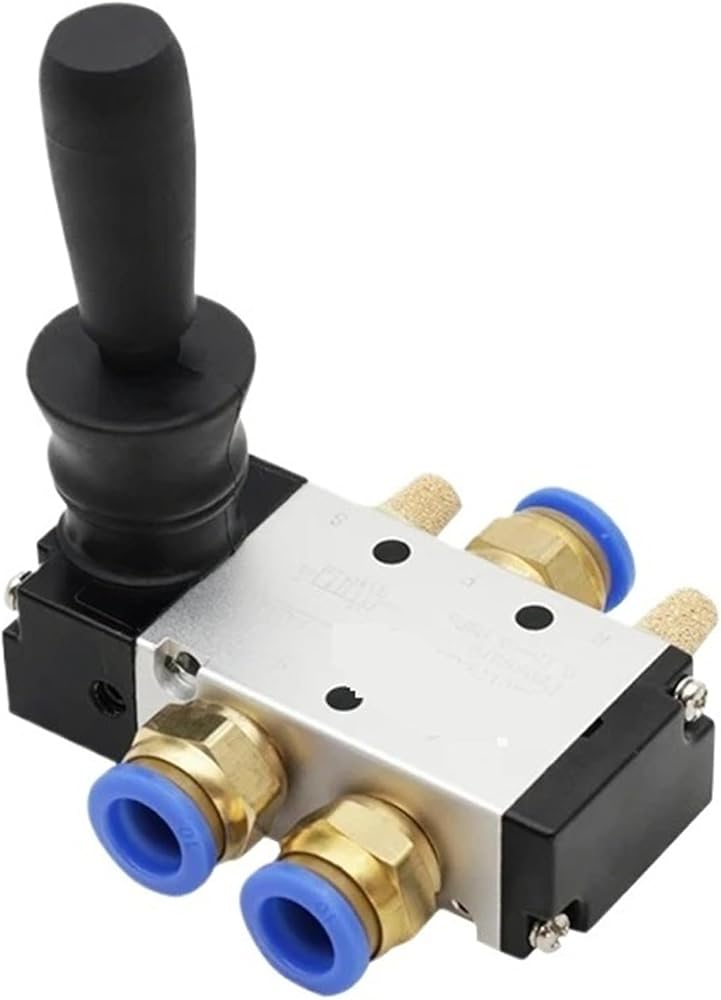

4H210-08 5/2 Way Manual Lever Actuator Pneumatic Hand Pull Valve
4H210-08 Port 1/4''
model
4H210-08
Fluid air
Action direct acting type
effective area (mm2) 16(CV=0.89) 20(CV=1.4) 30(CV=1.68)
Port size 1/4" 3/8" 1/2"
Operating pressure 0~8.0kgf/cm2
Ambient &fluid temperature 060C
Lubrication not required
Operting angle 15
==========
Hign-concerned Chemical : None
Type : Valves
Model Number : 4H210-08
Origin : Mainland China
Certification : CE
Valve type : 5/2Way
Orifice size : 14mm2(CV=0.78) or 16mm2(CV=0.89) etc.
Port size : 1/8" and 1/4"
Operating pressure : 0~0.8MPa(0~116psi)
Max.proof pressure : 1.5MPa(215psi)
Temperature : 0~60°C
