Valve

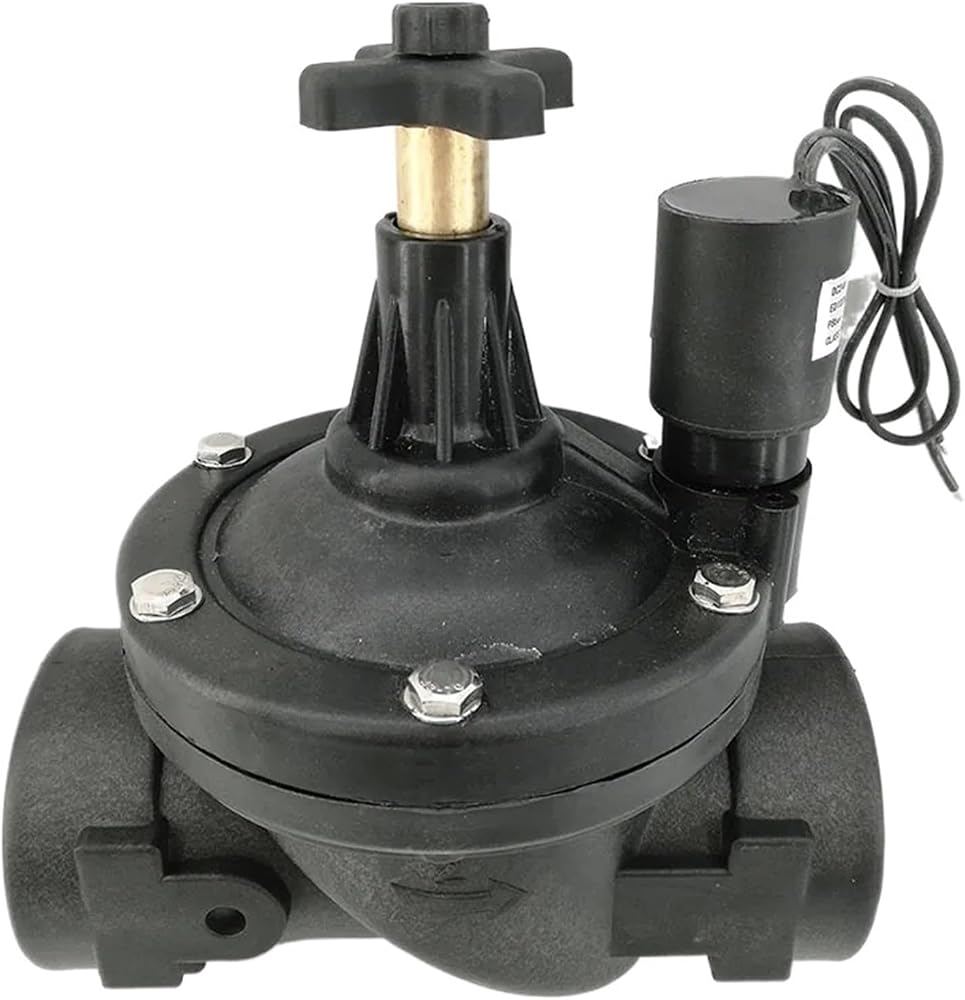

Supply of water-saving irrigation valve 2 way plastic valve 2 inch adjustable flow valve
Port size: G1 1/2" G2" optional
Voltage: AC 220V /110v; DC12V/24V Pulse 6-24V optional
2/2 way, with flow control, manual set. Apply in water and other liquid
Port Size
Female G3/4"G1"G1 1/2"G2"
Body material
Nylon Reinforced
Seal ring material
NBR
Max Media Temperature
80°c
Voltage available
DC 12V; DC 24V; AC 12V; AC 24V;
AC 110/120V;AC 220/230V
Pulse6-24VDC
Protection Class
IP65
work Pressure
0.2-10bar
Dimension(L×W×H)
17.4×12.5×21mm
Hign-concerned Chemical : None
Structure : control
Port Size : G1 1/2" G2"
Media : Water
Material : Plastic
Temperature of Media : Medium Temperature
Power : Solenoid
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Origin : Mainland China
Certification : CE
Fluids : water, gas, oil;
type : normally closed
Operating temperature : 90 °c
Voltage : AC 220V /110V; DC12V/24V
Working pressure : 0.2~10 bar
Connection Type : Screw thread
