Inverters
Product Description:
Product series: ATV ATV600
Product type: Frequency converter
Application field: Process application

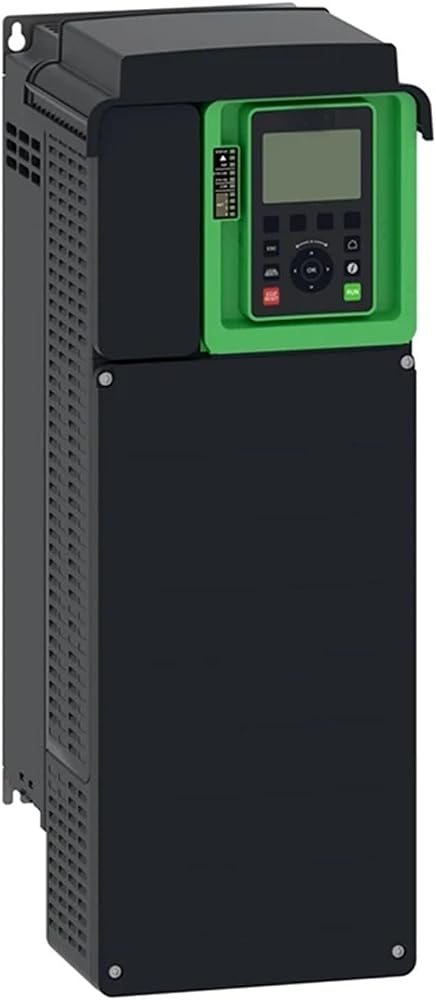

Product Short Name: ATV630
Variables: Standard Version
Product application scenarios:
Asynchronous motor
machine
EMC filter:
Integrated and 50 meter longest motor cable complies with EN/IEC 61800-3 Class C2
Integrated and 150 meter longest motor cable complies with EN/IEC 61800-3 Class C3
IP protection level:
IP21 complies with IEC 61800-5-1
IP21 compliant with threaded
Rated power supply voltage [Us]: 380... 480 V
Protection level: UL type 1 complies with UL 508C
Cooling method: forced ventilation
Power supply frequency: 50... 60 Hz -5... 5%
Rated power supply voltage [Us]: 380... 480 V -15... 10%
Motor power (kW):
15 kW (standard load)
11 kW (heavy load)
Motor power:
20 standard load
15 overload
Line current:
27 A on... 380 V (standard load)
23.3 A on... 480 V (standard load)
20.6 A on... 380 V (heavy load)
18.1 A on... 480 V (heavy load)
Expected line Isc: 50 kA
Apparent power:
19.4 kVA on... 480 V (standard load)
15 kVA on... 480 V (heavy load)
Continuous output current:
31.7 A on... 4 kHz applicable standard load
23.5 A is suitable for overload at 4 kHz on
Asynchronous motor control configuration file:
Standard constant
Standard variable
Optimize mode
motor control configuration mode:
Permanent magnet motor
reluctance motor
Output frequency of frequency converter: 0.1... 500 Hz
Rated switching frequency: 4 kHz
Switching frequency:
2... 12 kHz adjustable
4... 12 kHz available
Safety function: STO (safety interruption) SIL 3
Discrete input logic: 16 preset speeds
Communication port protocol:
Ethernet
Modbus serial
Ethernet Modbus
