Inverters
Product Description:

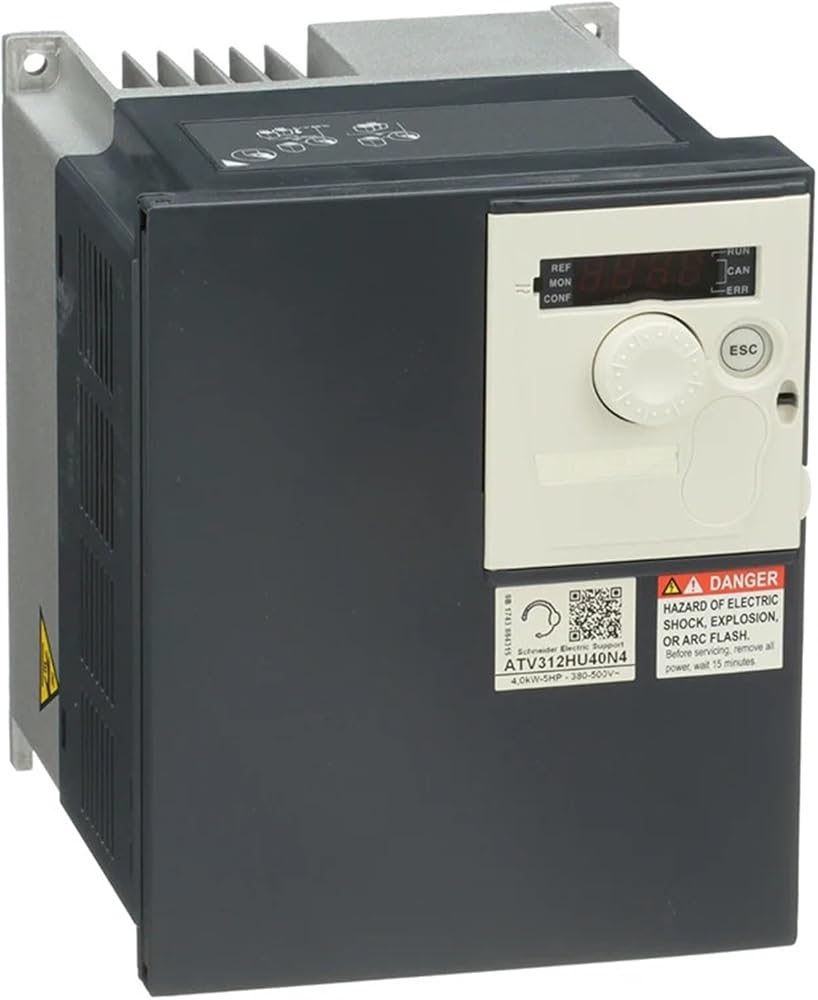

Product series: Altivar 312
Product type: frequency converter
Product application scenario: asynchronous motor
Application field: Simple machinery
Assembly method: with heat dissipation fins
Component name: ATV312
Motor power (kW): 4 kW
Motor power: 5
Rated power supply voltage [Us]: 380... 500 V -15... 10%
Power supply frequency: 50... 60 Hz -5... 5%
Number of phases in the power grid: 3 phases
Line current: 13.9 A on... 380 V, Isc=5 kA 10.6 A on... 500 V
EMC filter: integrated
Apparent power: 9.2 kVA
Maximum transient current: 14.3 A for 60 seconds
Power consumption W: 150 W rated load current
Speed range: 1... 50
