[HIGH-QUALITY MATERIAL] Made of PCB with 1.6mm thick double-sided sheet for durability.
[EFFICIENT PERFORMANCE] Spraying tin process ensures effective current transmission.

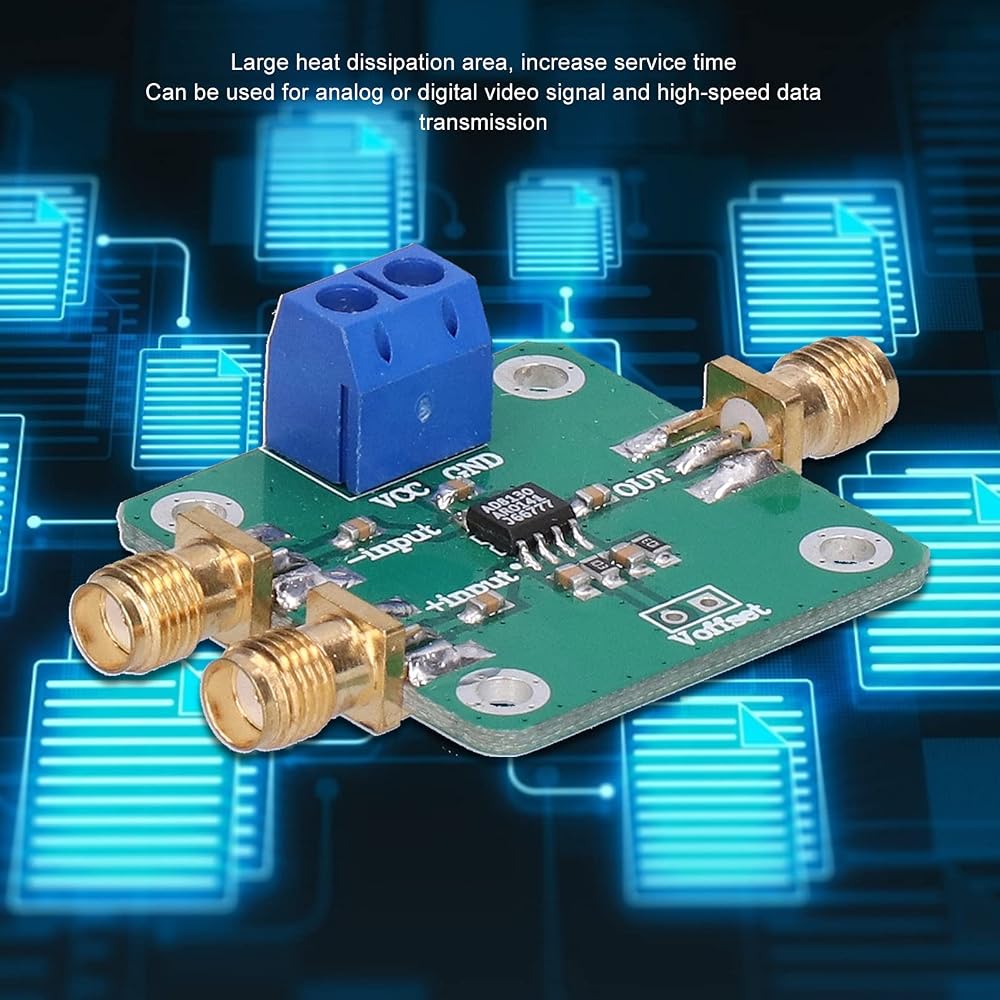

[EXCELLENT HEAT DISSIPATION] Features a large heat dissipation area for prolonged usage.
[VERSATILE USAGE] Can be used for analog/digital video signal and high-speed data transmission.
[COMPACT DESIGN] Small and lightweight, making it convenient for on-the-go use.

Spec:

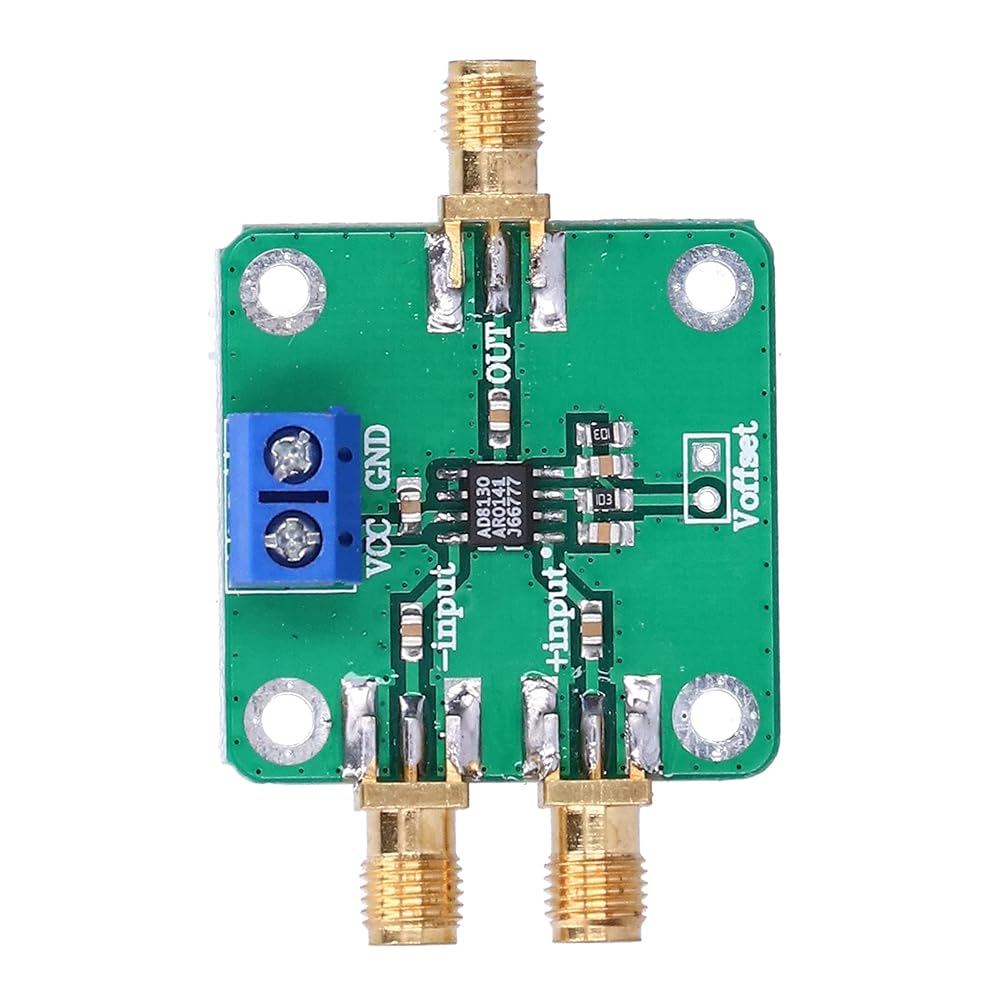

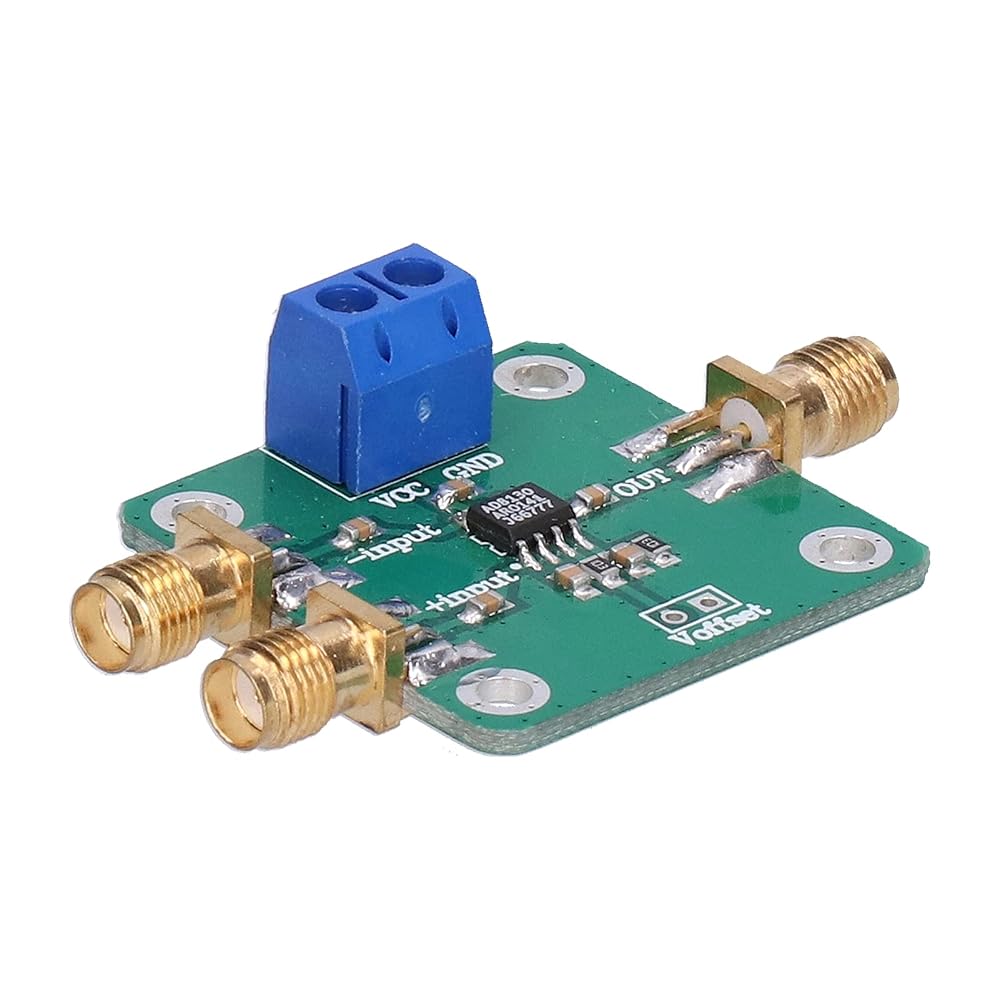

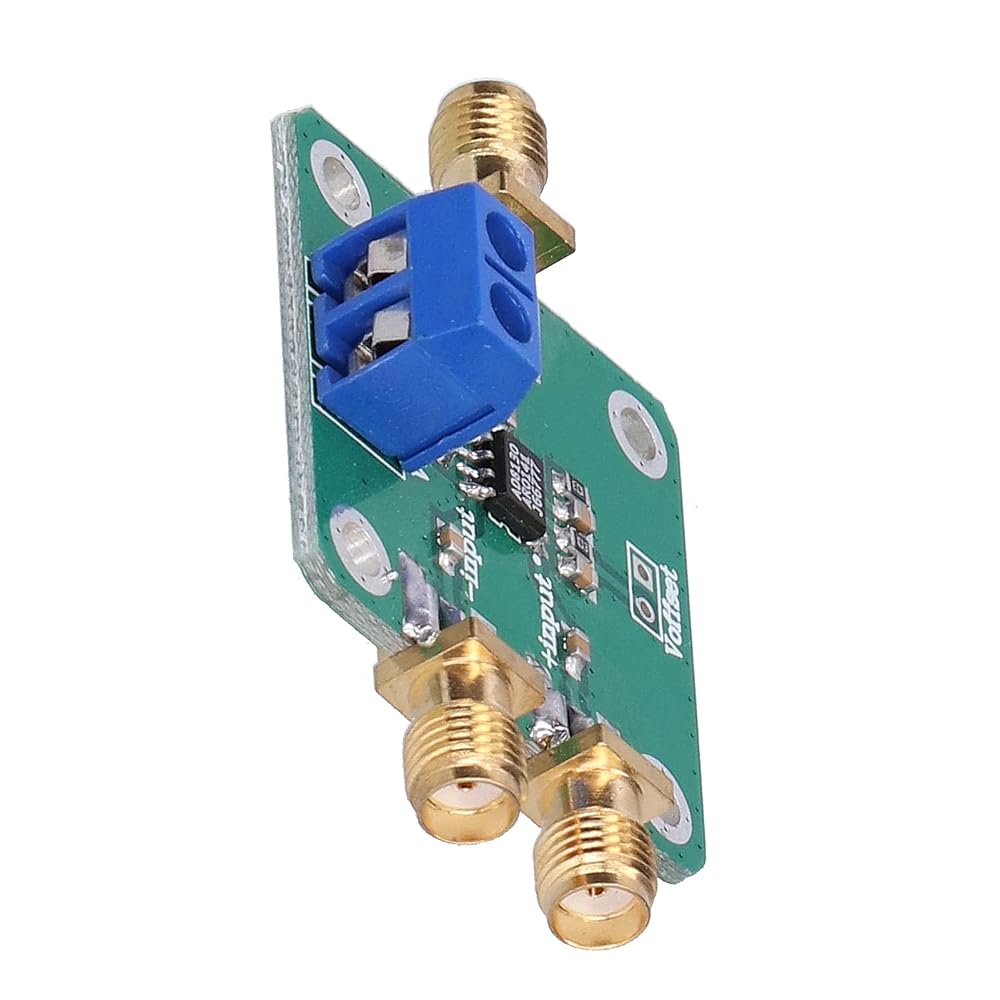

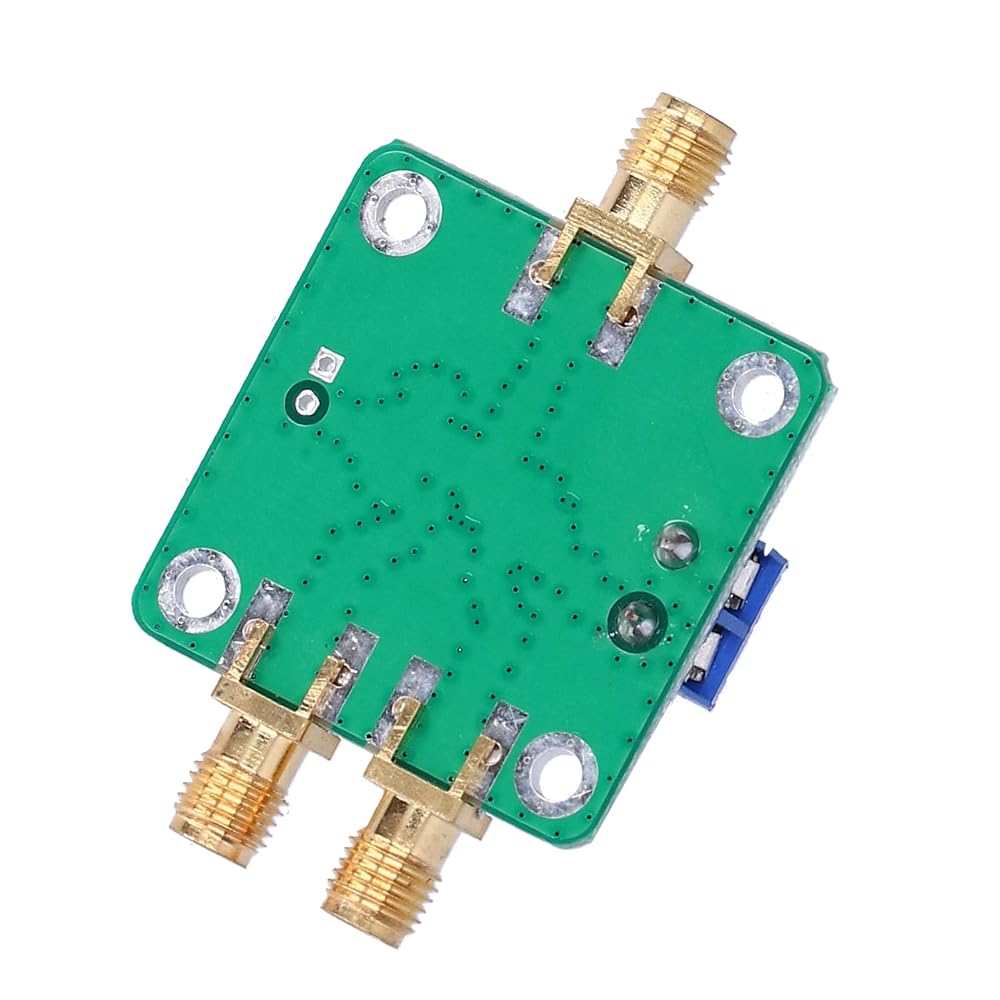

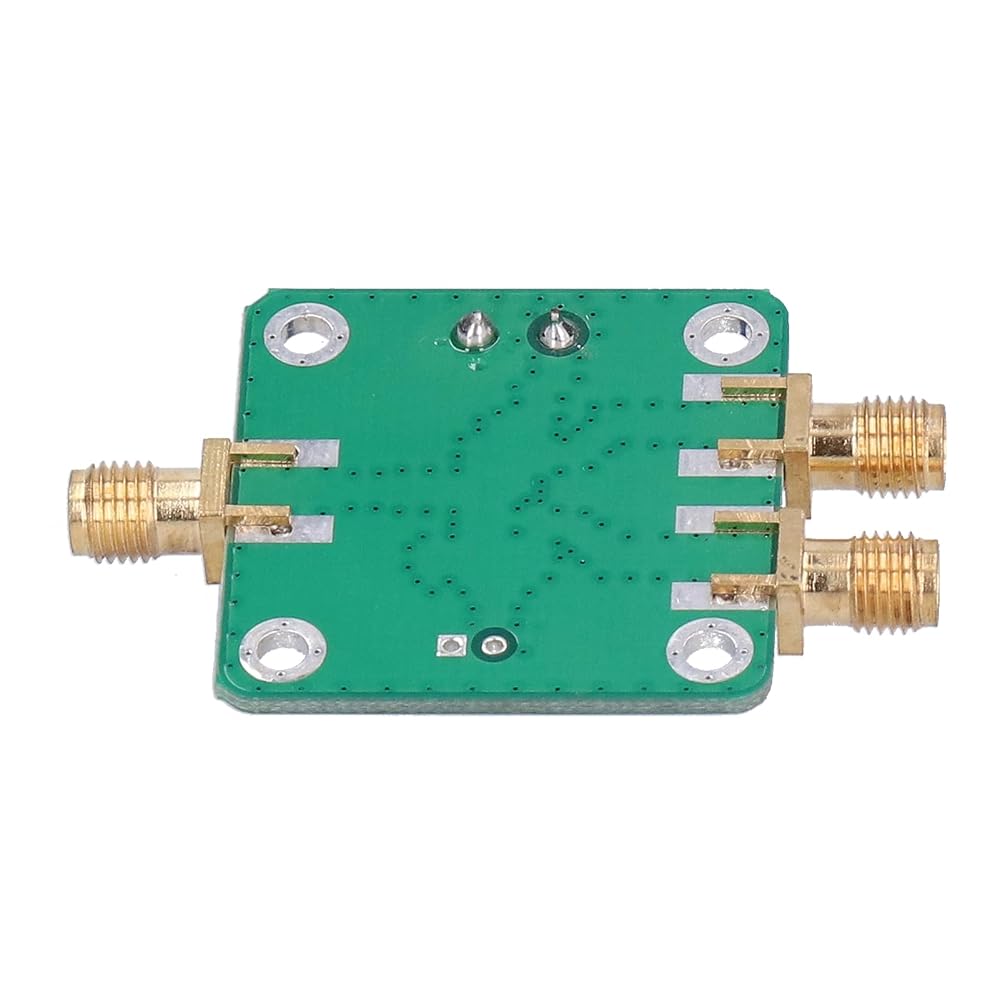

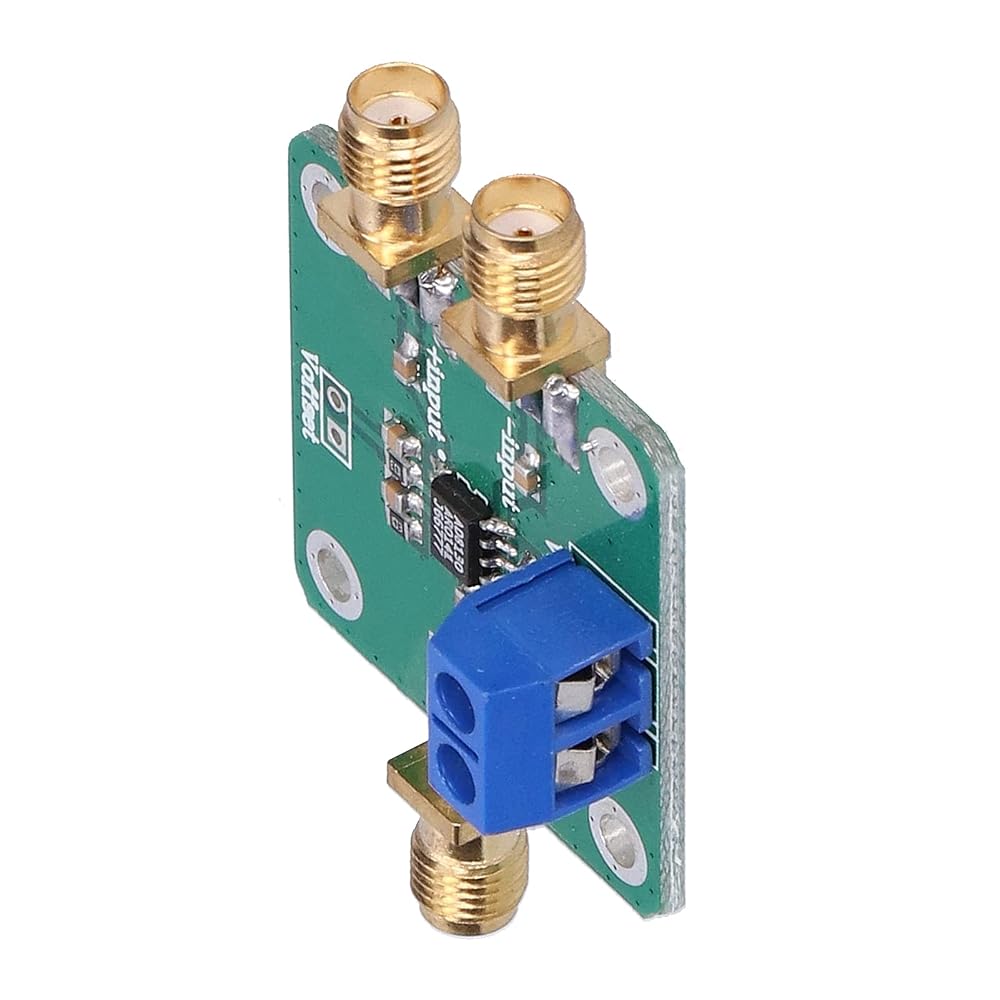

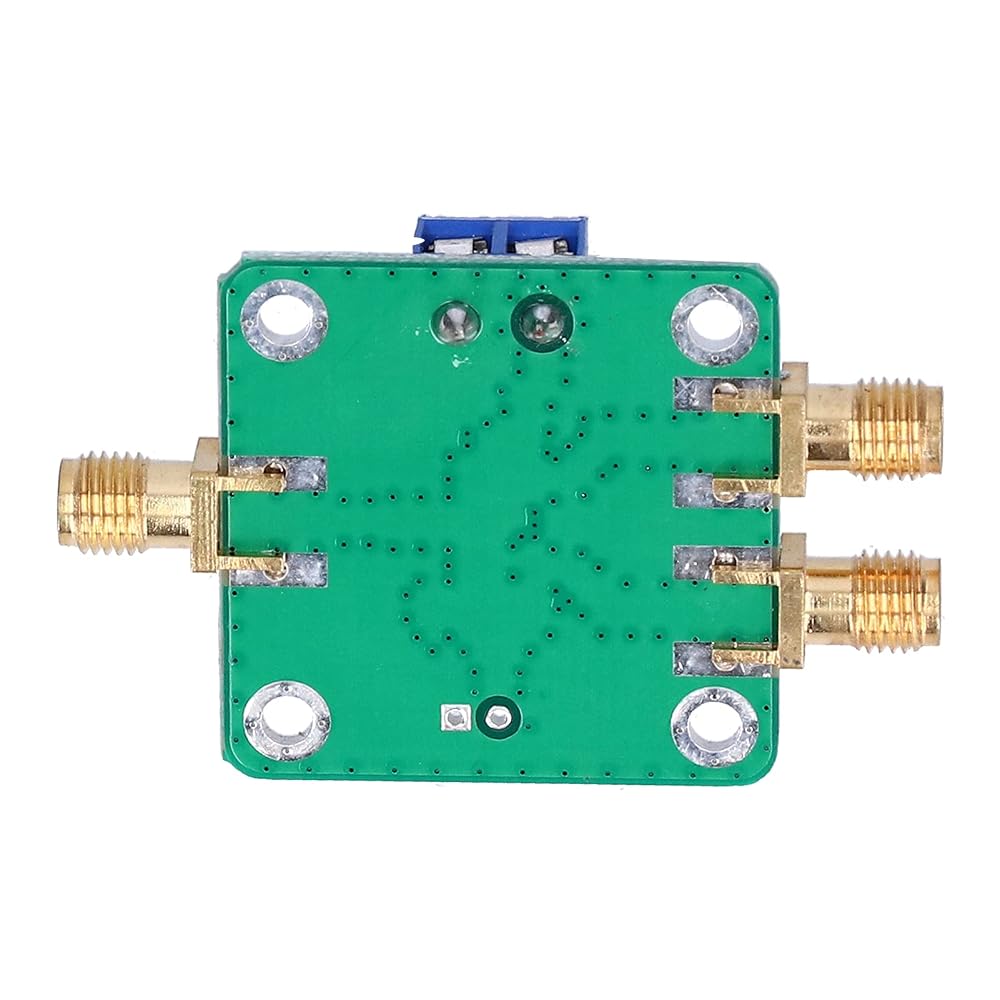

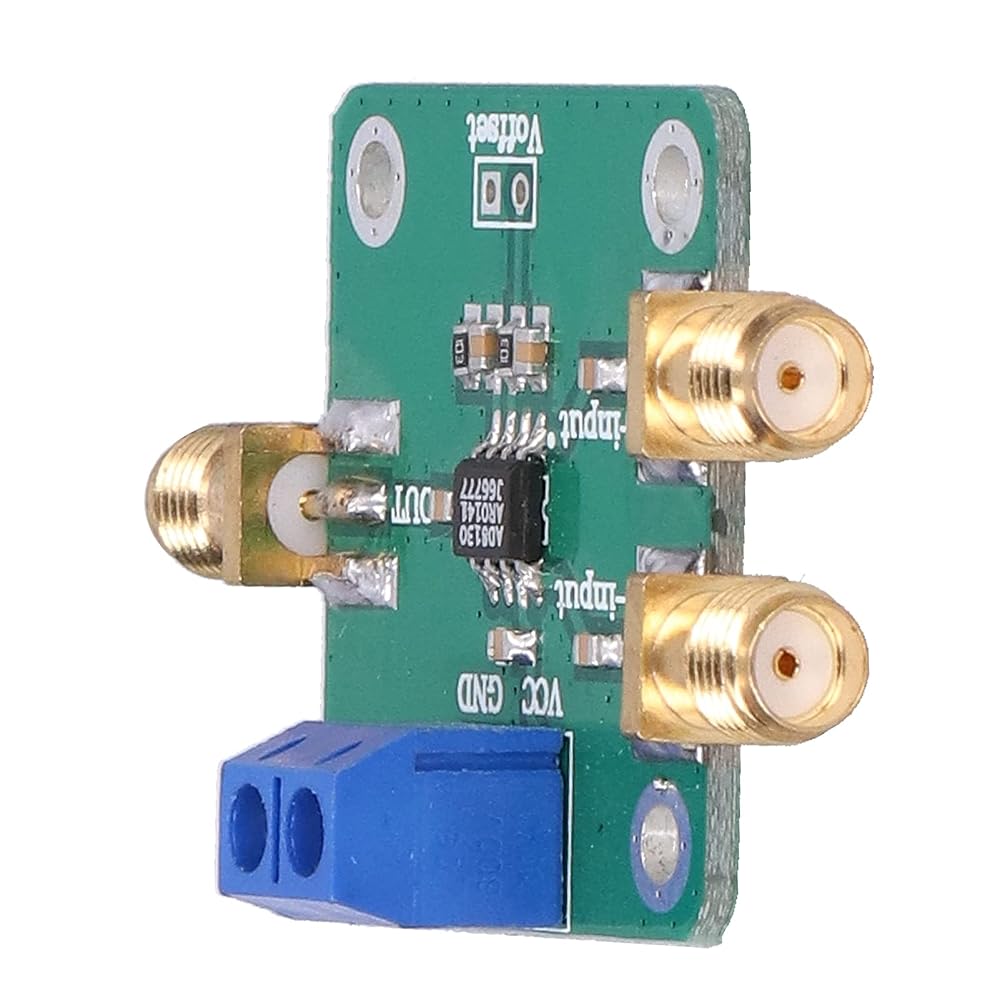

Item Type: Radio Frequency Mixer Module
Material: PCB
AD8130: 270 MHz, 1090 V/μs (G = +1)
AD8129: 200 MHz, 1060 V/μs (G = +10)
High Common Mode Rejection Ratio (CMRR) 94 dB (minimum, DC to 100 kHz) 80 dB (minimum, 2 MHz) 70 dB (10 MHz)
High Input Impedance: 1 MΩ differential
Low Noise AD8130: 12.5 nV/Hz AD8129: 4.5 nV/Hz
Input Common Mode Range: ±10.5 V
Low Distortion, 1 V peak-to-peak (5 MHz): AD8130, -79 dBc (worst harmonic, 5 MHz) AD8129, -74 dBc (worst harmonic, 5 MHz)
Gain G = +1 without external components
Power Supply Voltage Range: +4.5 V to ±12.6 V

Package List：
1 x

Radio Frequency Mixer Module
Note：
1. Do not use over load
2. Do not use over pressure
3. Do not use over current
