Linear Sensors
Theory : Resistance Sensor
Material : Metal
Type : Magnetic Sensor
Output : Analog Sensor
Use : Pressure Sensor

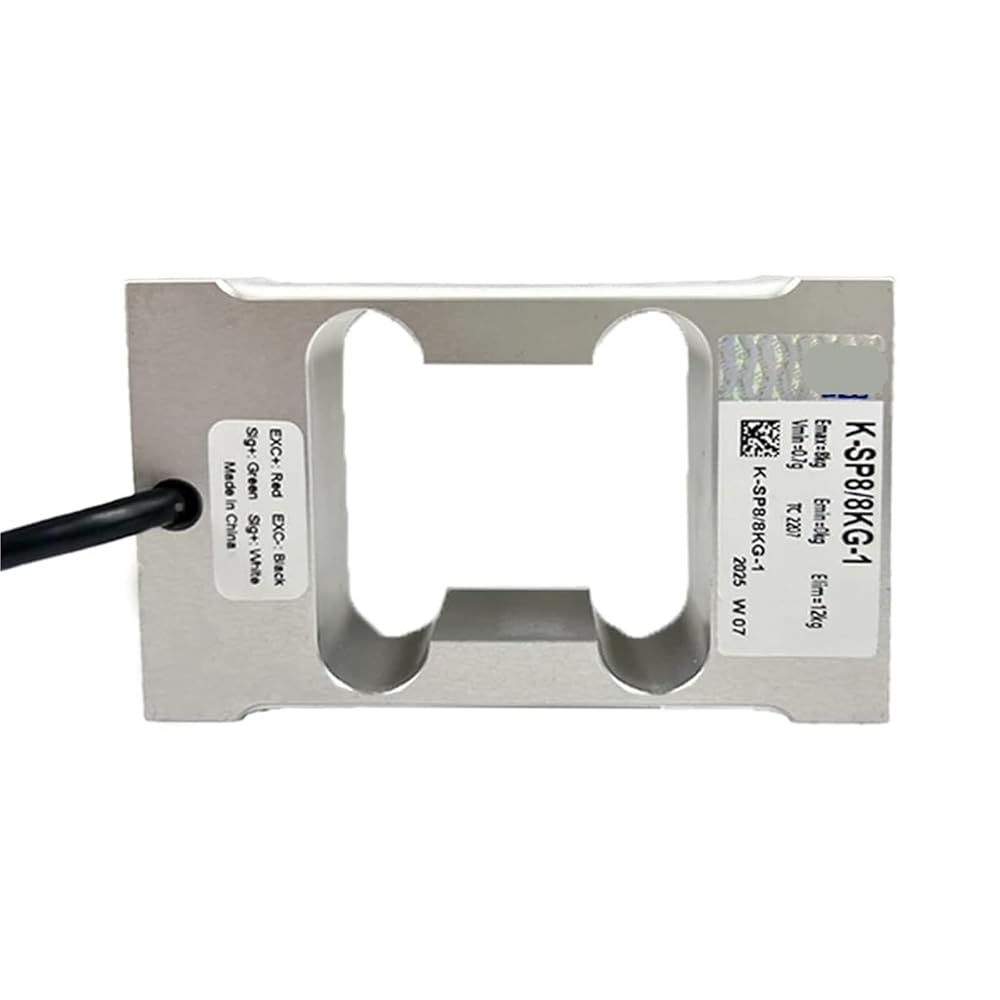

Type : Load Cell/Force Sensor
Number of load cell verification intervals : 3000nLC
Maximum capacity : 5-100KG
Minimum load cell verification interval : 0.5-10g
Temperature coefficient of zero signal per 10 K : ±0.0140,±0.0175,±0.0186,±0.0233,±0.0140
Ratio of minimum verification interval Y : 10,000,8,000,7,500,6,000,10,000
Nominal sensitivity : 2.0±0.2mV/V
Zero signal (without initial load) : 0±0.2mV/V
Temperature coefficient of sensitivity +20-+40 °C -10-+20 °C : ±0.0175% of Cn /10 K,±0.0117% of Cn /10 K
Relative reversibility error : ±0.0150% of Cn
Non-linearity : ±0.0150
Load creep in 30 minutes : ±0.0166
Off-center load error : ±0.0233
Input resistance : 300-500
Output resistance : 300-500
Reference excitation voltage : 5
Nominal (rated) range of the excitation voltage : 1-12V
Maximum excitation voltage : 15V
Insulation resistance at 100 VDC : >2G
Nominal (rated) range of the ambient temperature : -10-+50°C
Operating temperature range : -10-+60°C
Storage temperature range : -10-+70°C
Resonance frequence, approx. : 330Hz,420Hz,620Hz,920Hz,1220Hz,1720Hz
Material : Aluminum
