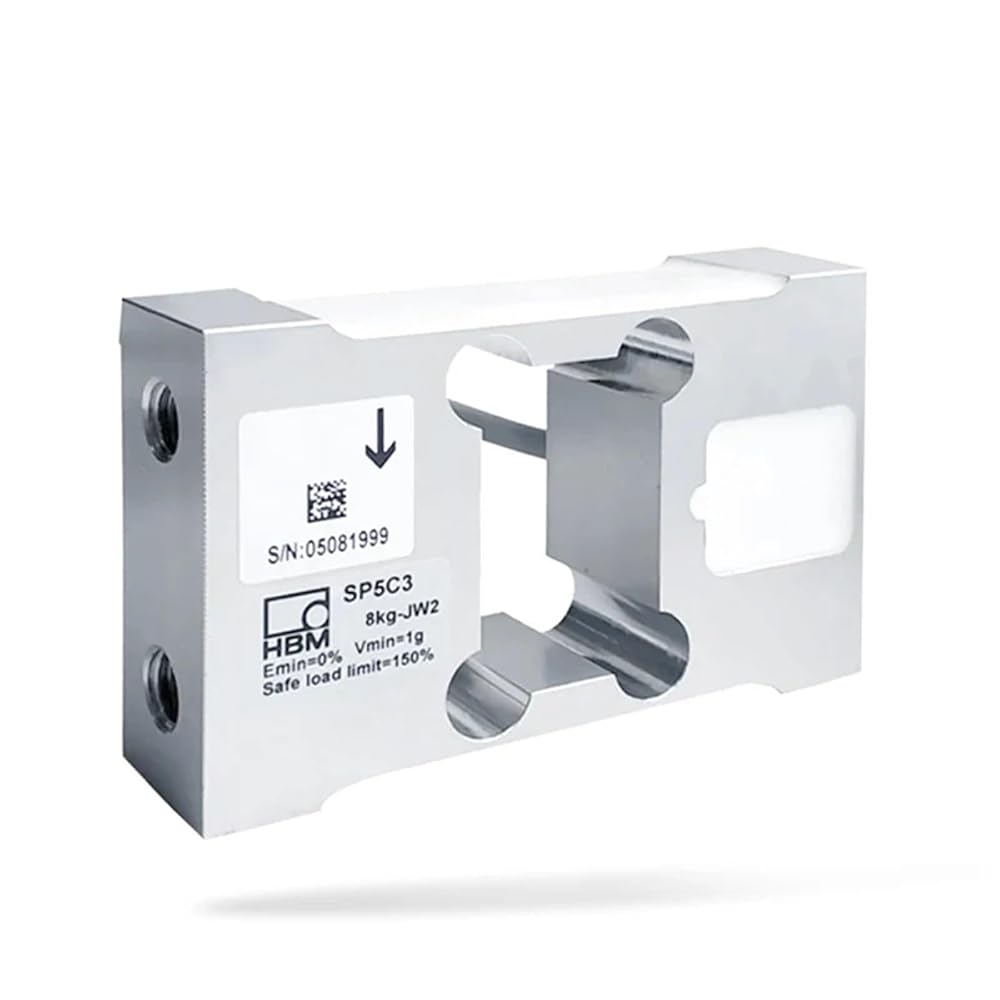

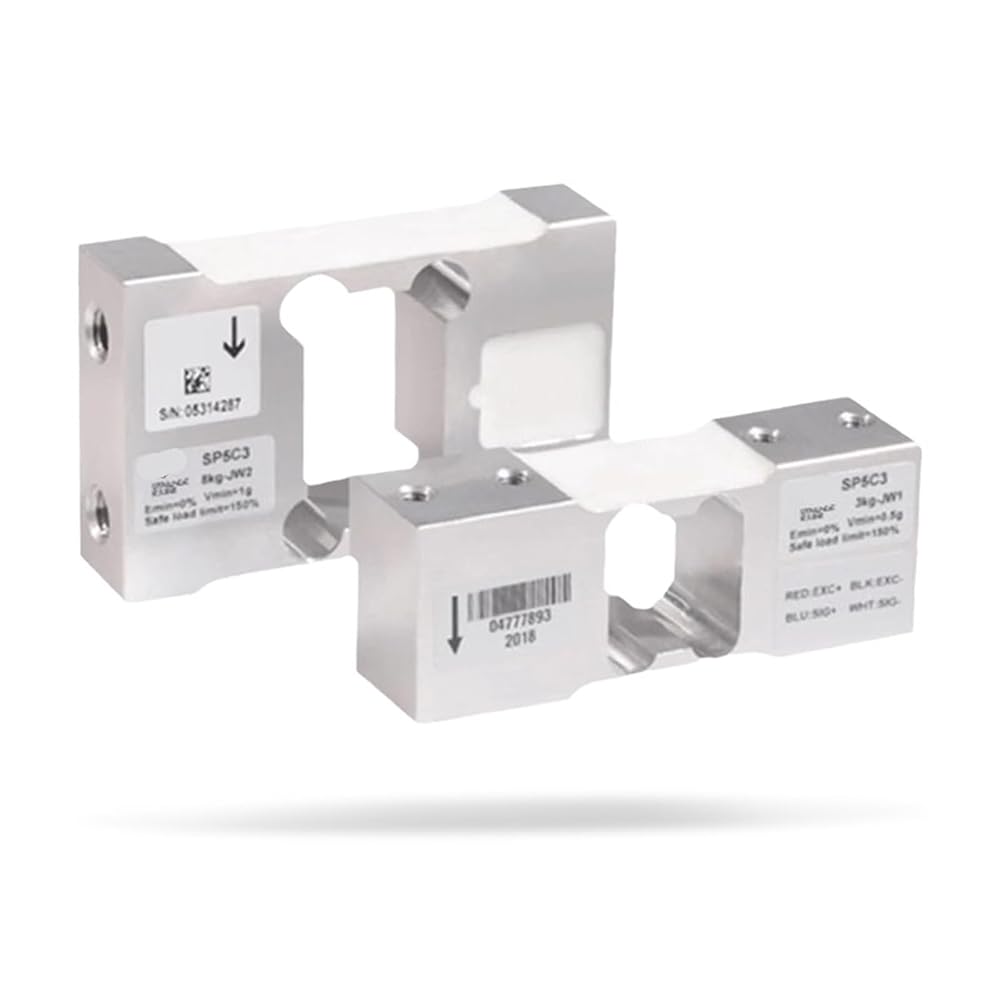

Linear Sensors
Theory : Resistance Sensor
Material : Metal
Type : Magnetic Sensor
Output : Analog Sensor
Use : Pressure Sensor
Type : Load Cell/Force Sensor
Maximum capacity : 8KG
Temperature coefficient of zero signal per 10 K : ±0.0166
Sensitivity : 2.3±0.2
Temperature coefficient of sensitivity +20 - +40 °C -10 - +20 °C : ±0.0175,±0.0117
Non-linearity : ±0.0150
Hysteresis error : ±0.0150
Load creep in 30 minutes : ±0.0166
Max. platform size : 350 x 350
Eccentric error : ±0.0233
Zero balance : ±0.2
Input resistance : 380±38
Output resistance : 380±38
Reference excitation voltage : 5
Nominal (rated) range of the excitation voltage : 1-15
Insulation resistance : >2
Nominal (rated) range of ambient temperature : -10 - +50
Service temperature range : -10 - +60
Storage temperature range : -25 - +70
Safe load limit : 150
Breaking load limit : 300
Material : Aluminum
