Linear Sensors
Theory : Resistance Sensor
Material : Metal
Type : Magnetic Sensor
Output : Analog Sensor
Use : Pressure Sensor

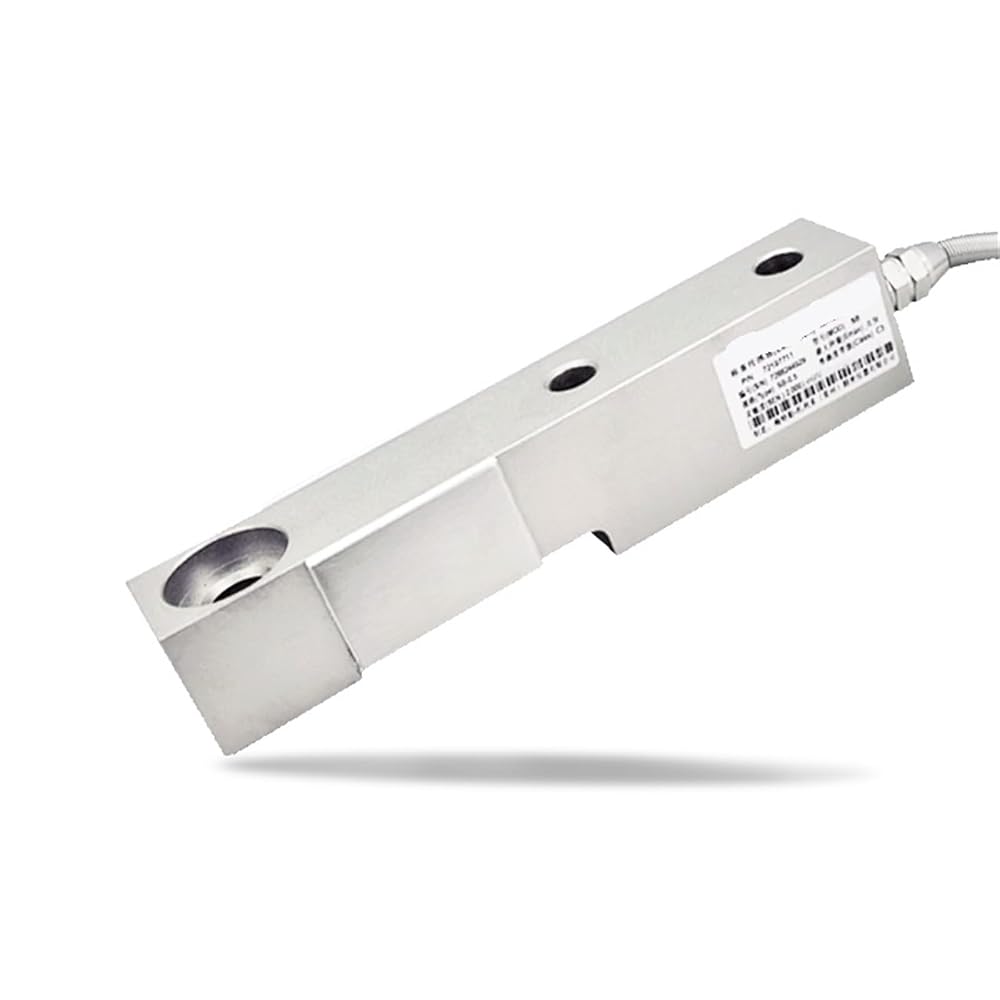

Type : Load Cell/Force Sensor
Maximum capacity : 0.3T-5T
Sensitivity : 2±0.002
Hysteresis : 0.02
Non-linearity : 0.02
creep over 30 min : 0.02
Non-repetitive : 0.01
Zero output : 1
Temperature compensation range : -10 - +40
Operating temperature range : -40 - +65
Temperature coefficient of sensitivity : 0.002
Zero temperature coefficient : 0.002
Input resistance : 381±4
Output resistance : 350±1
Insulation resistance : 5000
Recommended excitation voltage : 5 - 15
Maximum excitation voltage : 20
Safe load : 150
Extreme overload : 300
Cable length : 4 5
