Power Supplies

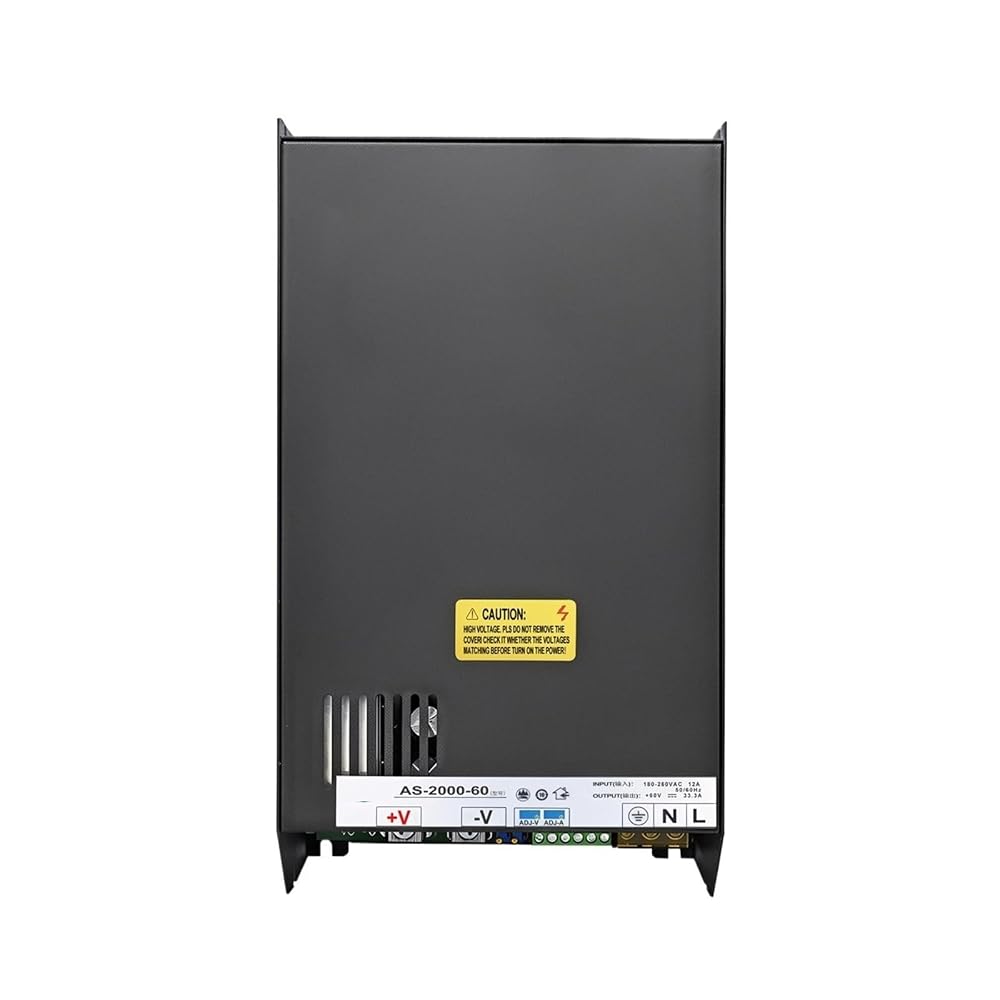

Function: AS-2000seriescan convert AC180-260Vvoltage to DC12V/24V/36V/48V/60Vvoltage.
Input AC180260V 5060Hz.
Output: 12VDC,24VDC,36VDC,48VDC,60VDC
Protections: overload/ over voltage/ short circuit.
Cooling by free air convection.
(Not suggest for use in bathroom)
Connection:
L, N: AC power input
GND: power output "-"
-V: power output "-"
+V: power output "+"
ADJ: Adjust the output voltage ±10%
Working Temperature: -20~70.
Storage Temperature: -40~85.
Ambient Humidity: 0~95% Non-Condensation
Built-in over voltage, over current, and short circuit protection
==========
Type : others
Rated Capacity : >1000VA
High-concerned chemical : None
is_customized : Yes
Output Current : 33A-167A
Model Number : AS-2000
Output Frequency : N
Output Type : SINGLE
Origin :
Size : 154*70*280
Weight : 2.064Kg/PCS
Protection : Short Circuit, Over load
adjustable : 10%
INPUT AC VOLTAGE : 180-260V 50-60Hz
