[Tilt Sensor Protection]Highly sensitive SW-520 tilt sensor activates relay to protect your equipment from tipping and dumping.
[Direct Relay Output]Allows for direct connection to high current loads, supporting 250V 10A AC or 30V 10A DC appliances.

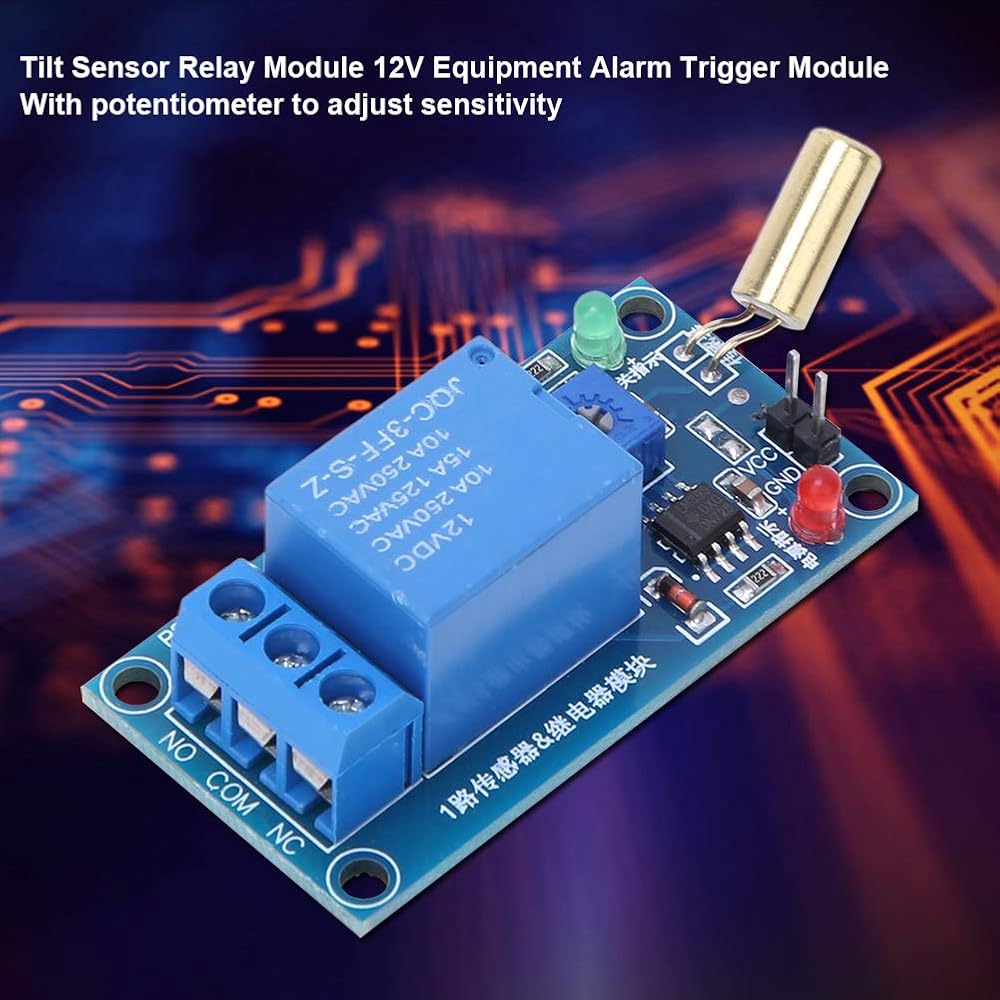

[Adjustable Sensitivity]Features a potentiometer for customizing sensor sensitivity according to your specific needs.
[Easy Installation]Includes 4 fixing Screw/Fastener holes and a blue terminal block for straightforward wiring setup.
[Versatile Applications]Ideal for various equipment requiring angle detection, enhancing functional safety and reliability.

Item Type: 12VDC Relay Module
Supply Voltage: 12VDC
Current: Greater than 100mA
Load: 250V 10A AC or 30V 10A DC
Module instructions:
1. The initial state of the relay depends on the conduction and disconnection of the tilt sensor. When it is turned on, the relay is closed, the common terminal is connected to the normally open end, and when the tilt sensor is disconnected, the relay is disconnected, the common terminal and the normally closed state. End on;
2. The tilt sensor is generally installed in the normally open state in the initial state, so that the tilt sensor and the relay are not in the working state, and the service life is prolonged;
3. The default SW-520D sensor is used for 90 degree tilt detection of the object. For other angles, please consult the seller.

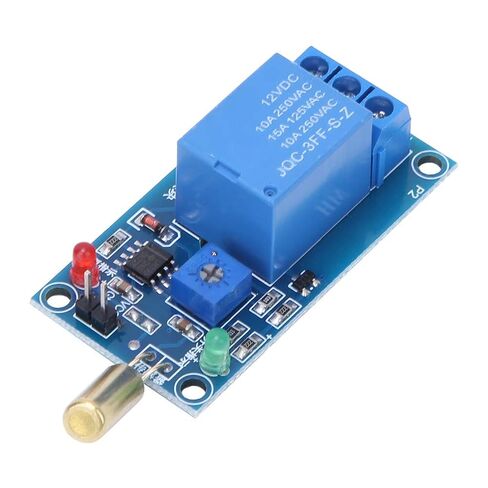

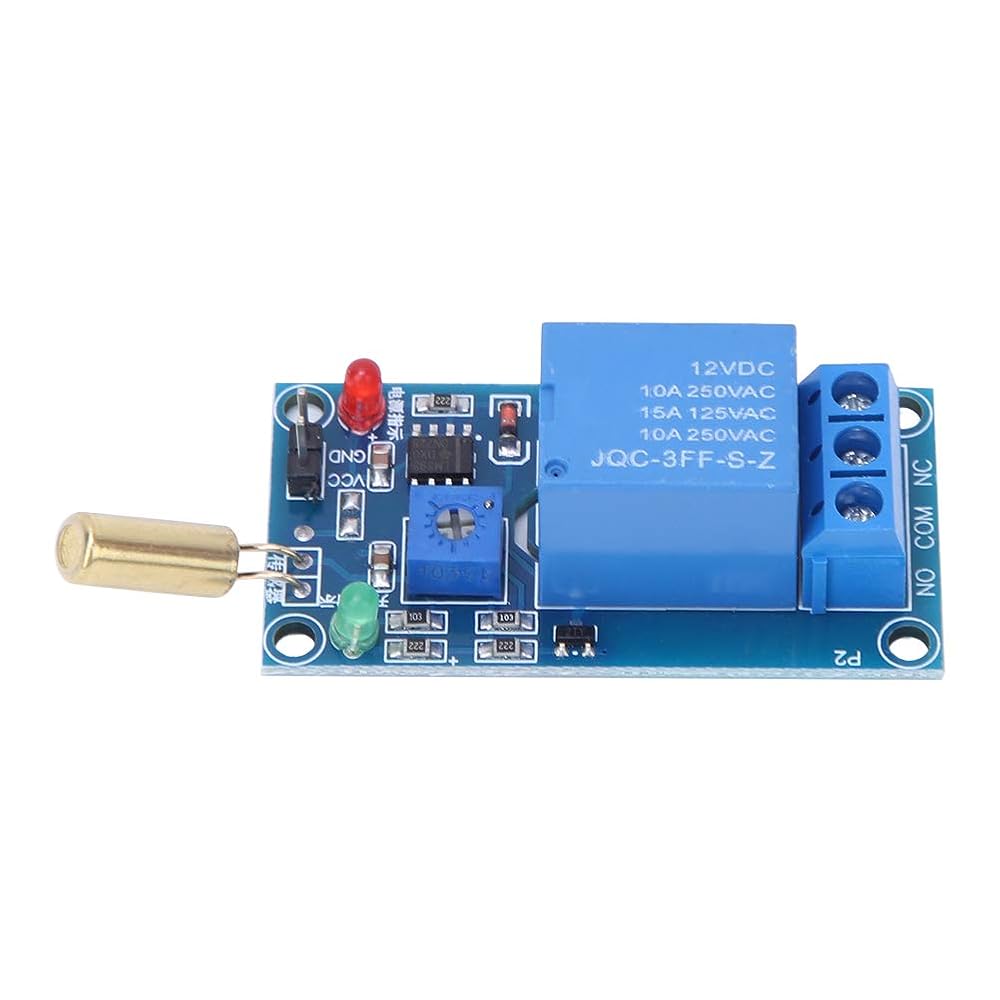

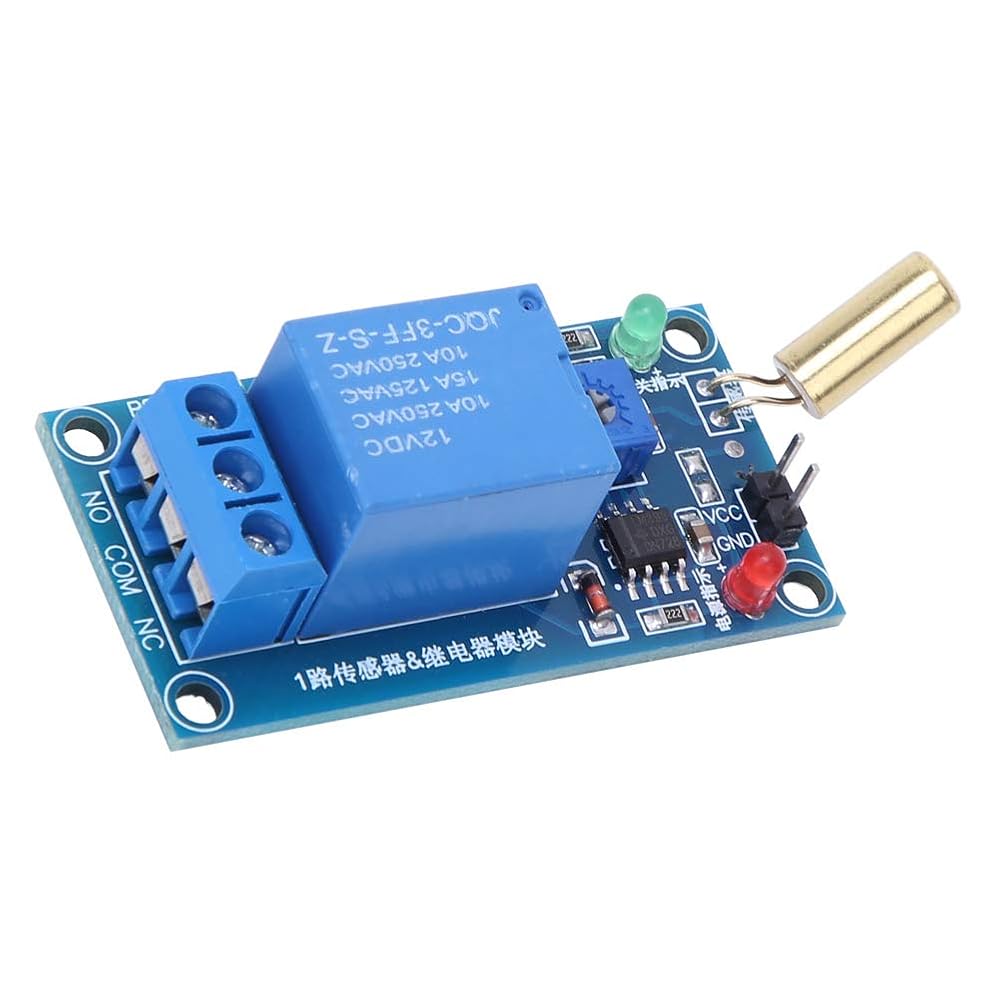

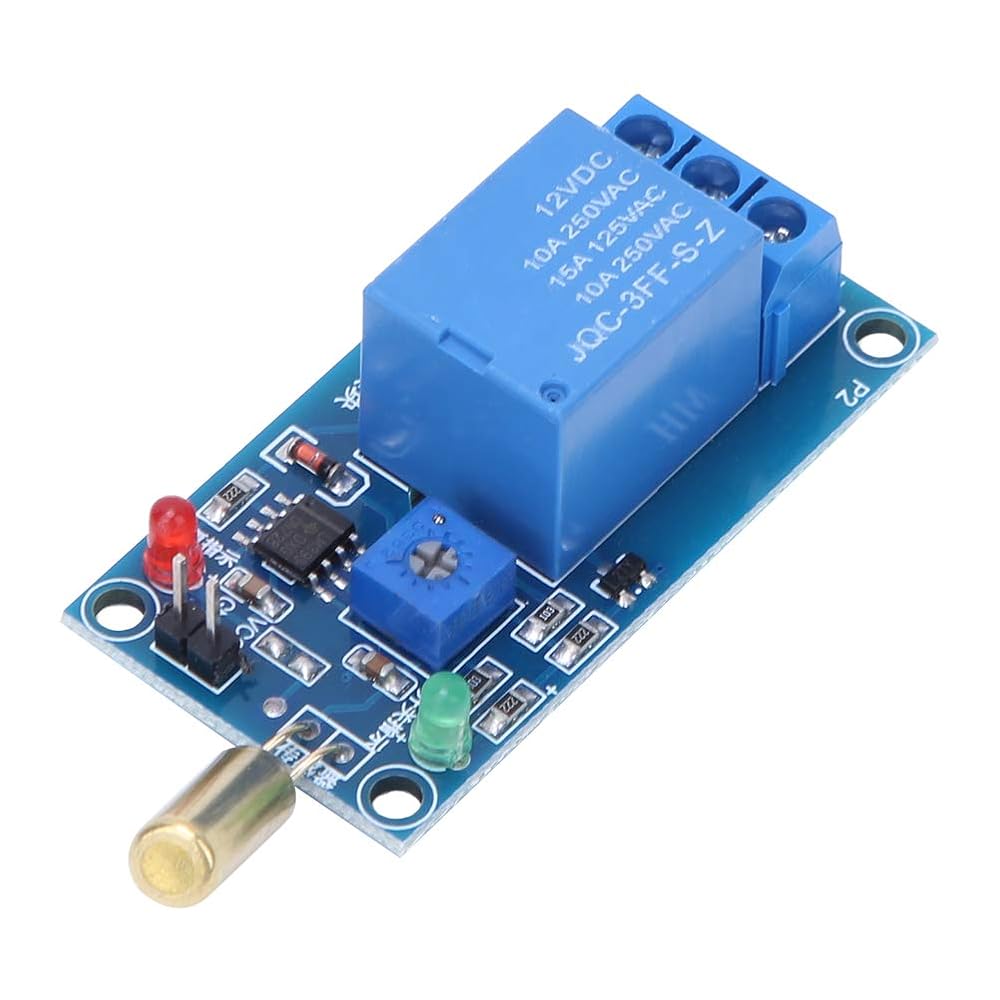

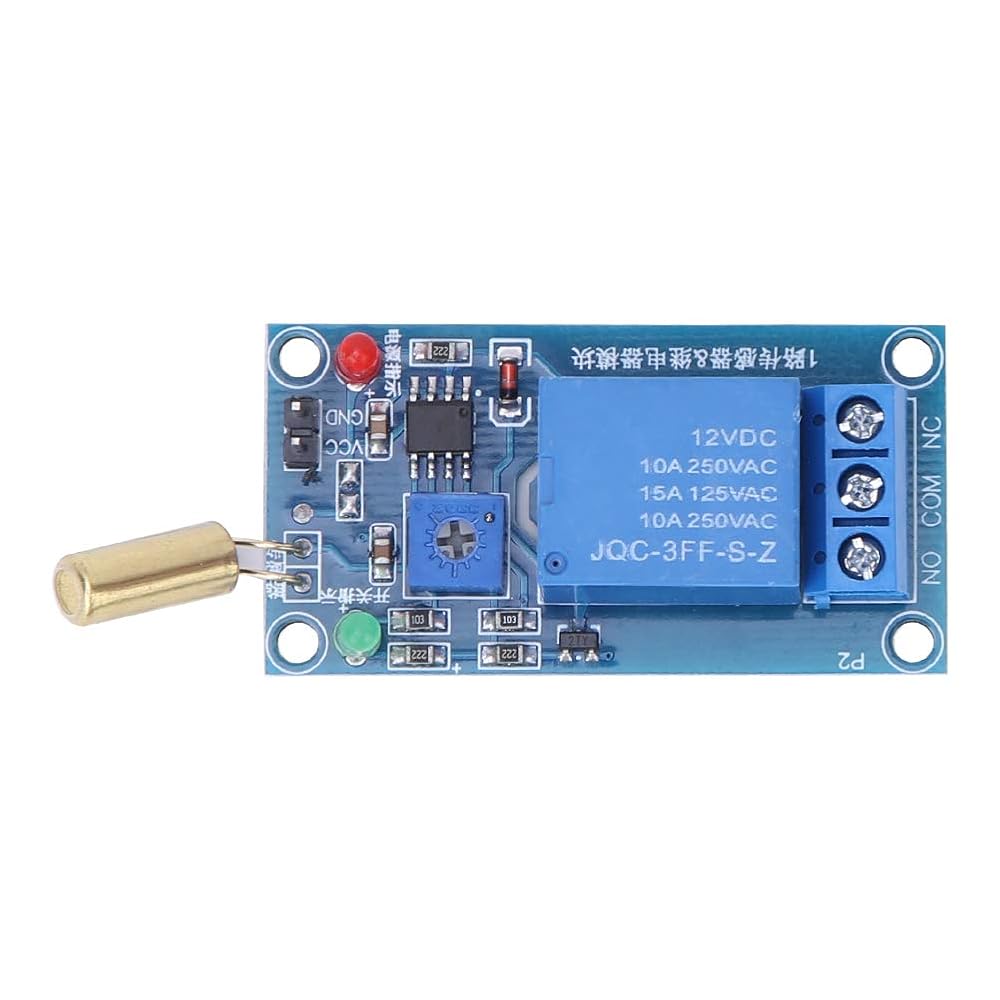

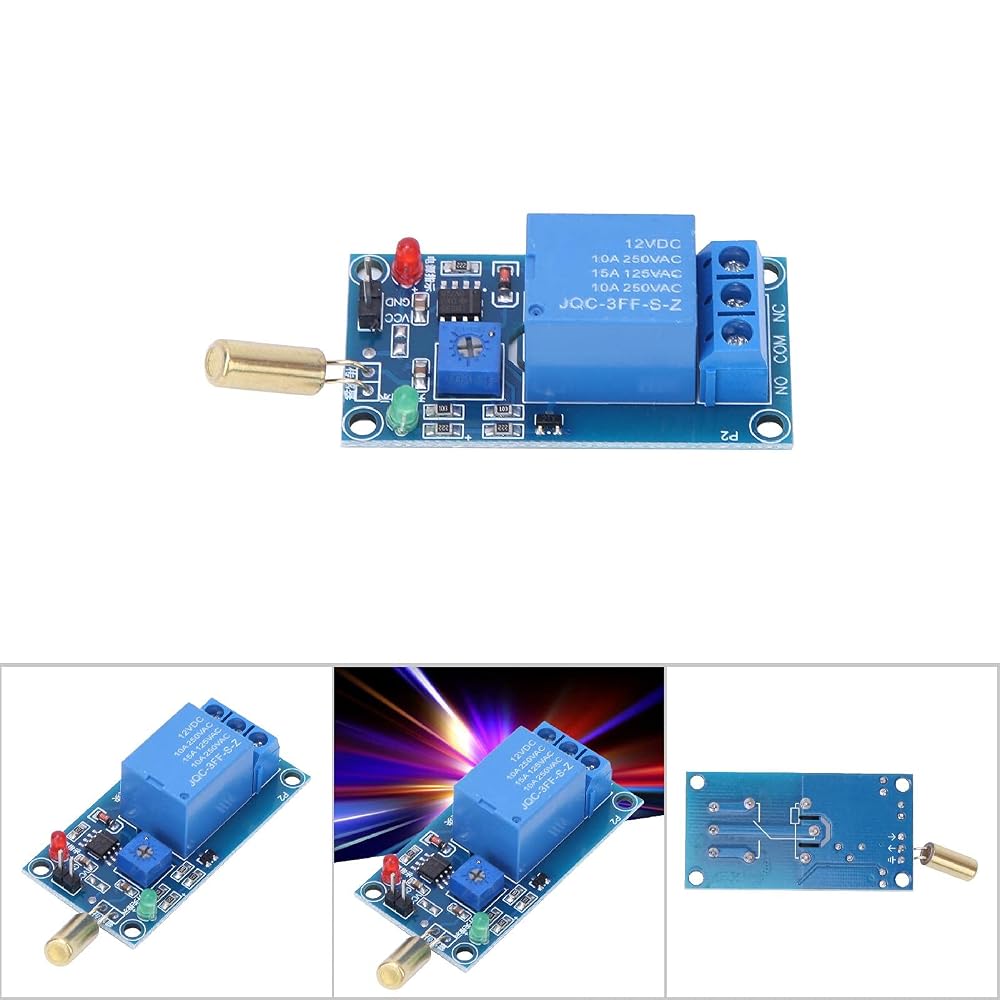

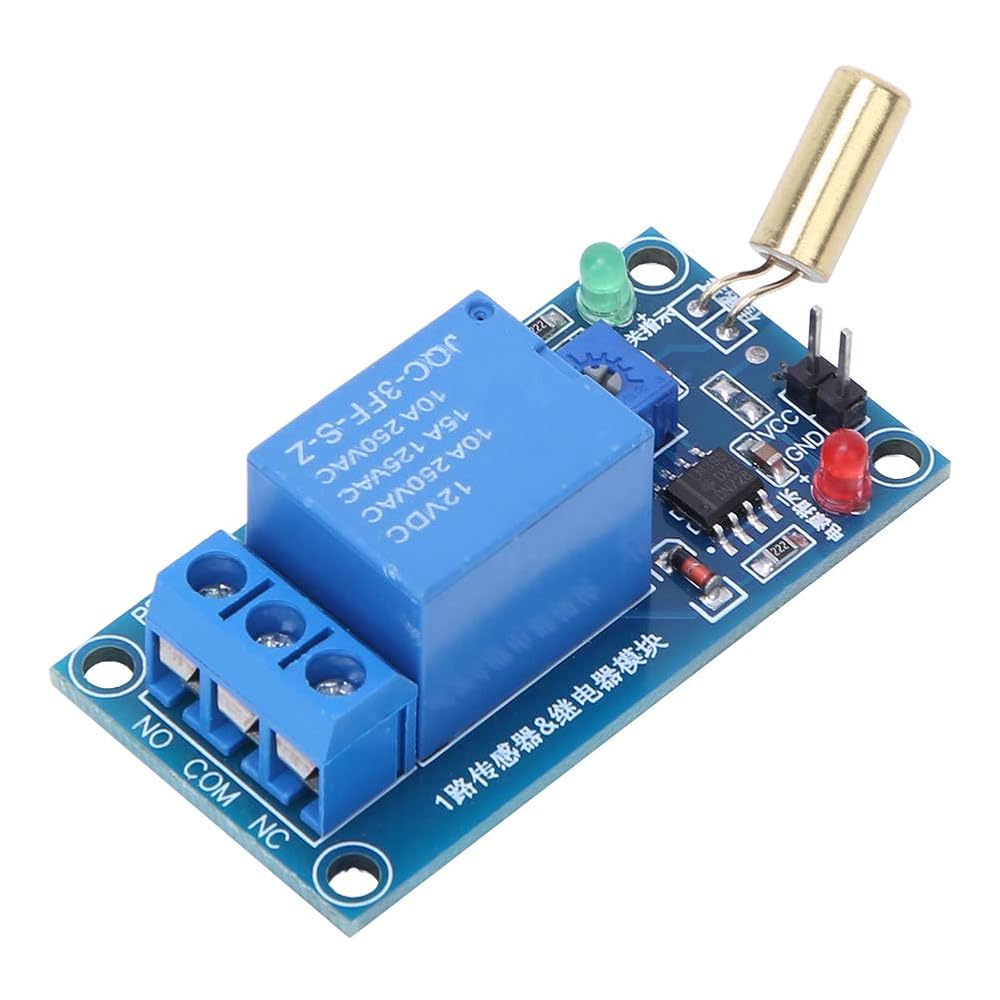

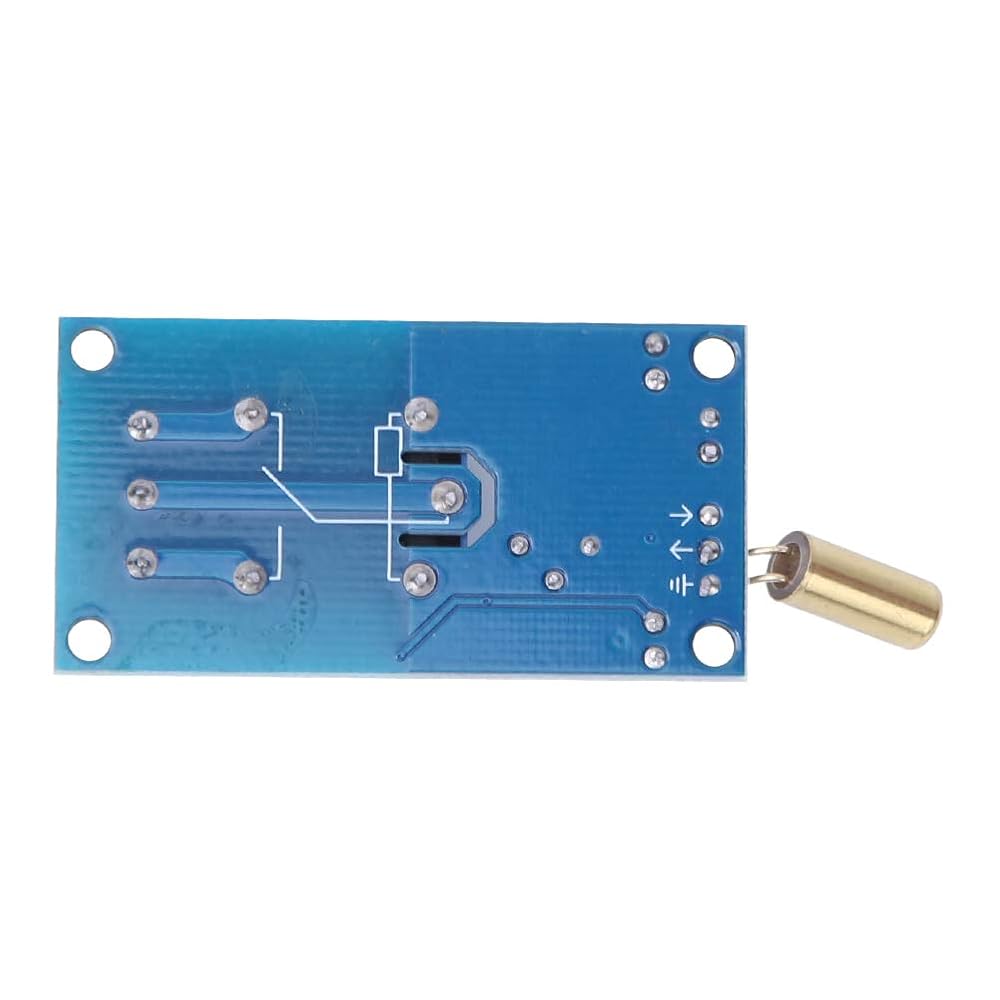

1 x Relay Module with SW-520 Tilt Sensor
