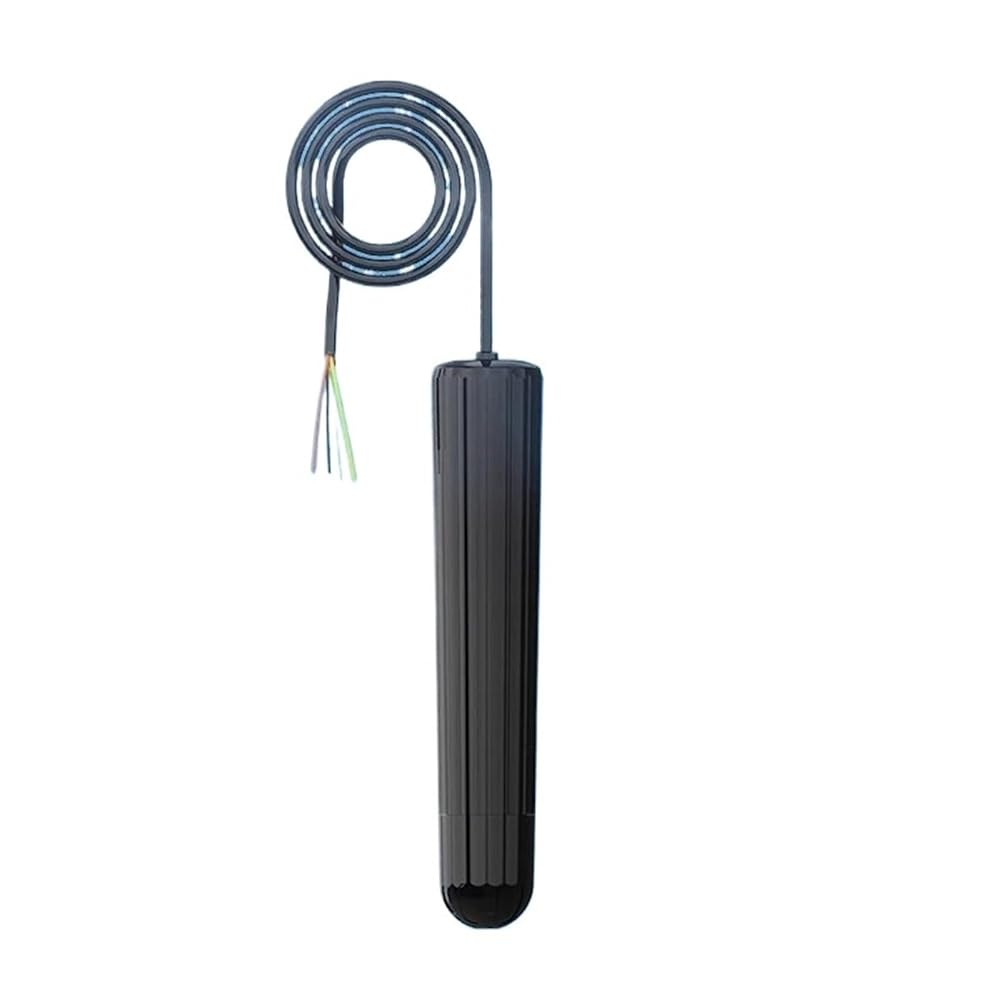

8-in-1 Water Quality Sensor - PH/EC/TDS/Temp/ORP/Salinity/Specific Gravit Tester with RS485 Output
Product Overview
CWT-MS8-S RS485 8-in-1 water quality sensor features a high-sensitivity, high-temperature/pressure-resistant pH glass electrode that's adaptable and easy to maintain. As an 8-in-1 device, it measures pH, ORP, temperature, TDS, conductivity, specific gravit and salinity (ppt/%).
Powered by a 32-bit MCU and RTOS system, it ensures precise readings. With ATC temperature compensation, IP68 waterproofing (three-layer potting), RS485 output, and customizable interface/cable length, it's built for industrial reliability.

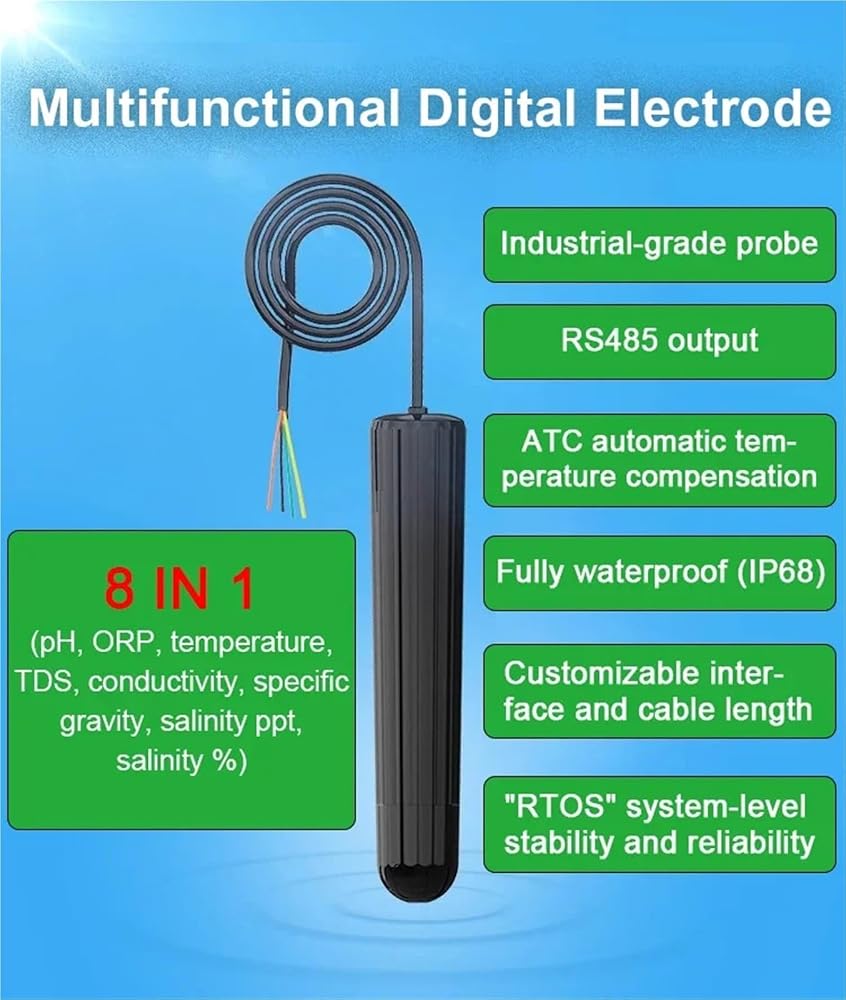

Product Features
1. 8-in-1 Multifunction:
Measures 8 parameters: pH, temperature, ORP, conductivity, salinity (ppt & TDS specific gravit.
2. Powerful Performance
32-bit MCU + RTOS system for precise measurement
RTOS system ensures stability and reliability
ATC (automatic temperature compensation)
3. Durable Build
Industrial-grade probe: pressure & contaminationresistant
Threelayer potting process IP68 fully waterproof rating
4. Practical Design
Small size (dimensions: 32*165mm) with high performance
Customizable interface and cable length
5. RS485 output
Supports Modbus RTU protocol

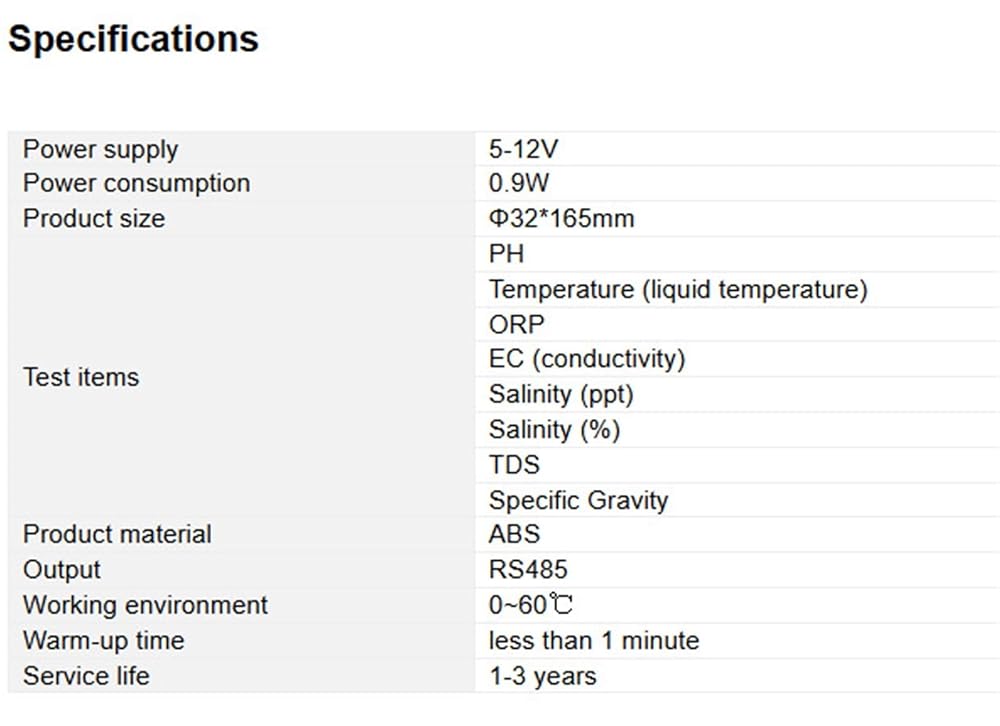

Specifications
Power supply
5-12V
Power consumption
0.9W
Product size
32*165mm
Test items
PH
Temperature (liquid temperature)
ORP
EC (conductivity)
Salinity (ppt)
Salinity (%)
TDS
Specific Gravit
Product material
ABS
Output
RS485
Working environment
0~60
Warm-up time
less than 1 minute
Service life
1-3 years
Data
Range
Resolution
Accuracy
PH
0~14
0.01
±0.05
℃
0-60
0.01
±0.1
Fahrenheit
32-140
0.5
±0.1
TDS
0-999ppm
1.00-200ppt
1ppm
1ppt
±5%F.S
EC
0-999us/cm
1.00-400ms/cm
1us/cm
1ms/cm
±5%F.S
Salinity
0.01%-25.00%
0.01%-5.00% (±0.1%)
5.10%-25.00% (±1%)
±2%F.S
0.1-200.0ppt
0.1
±2%F.S
Specific gravit
1.000-1.222
/ /
ORP
0-±999mv
1mv
/
TDS:1ppt=1000ppm
EC:1mS/cm=1000uS/cm

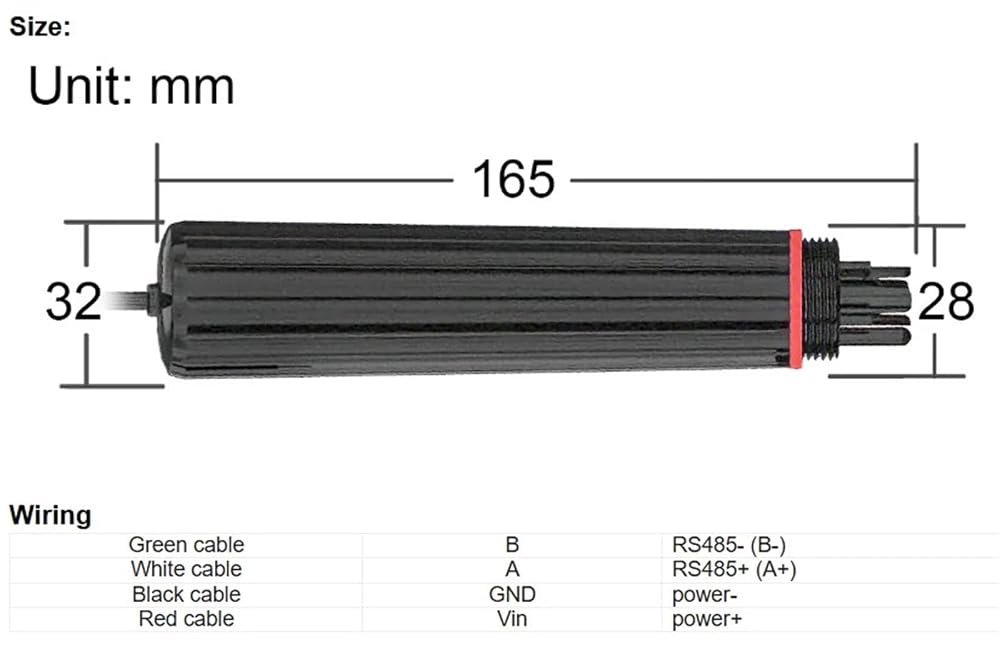

Size:
Wiring
Green cable
B RS485- (B-)
White cable
A RS485+ (A+)
Black cable
GND
power-
Red cable
Vin
power+
Origin : Mainland China
