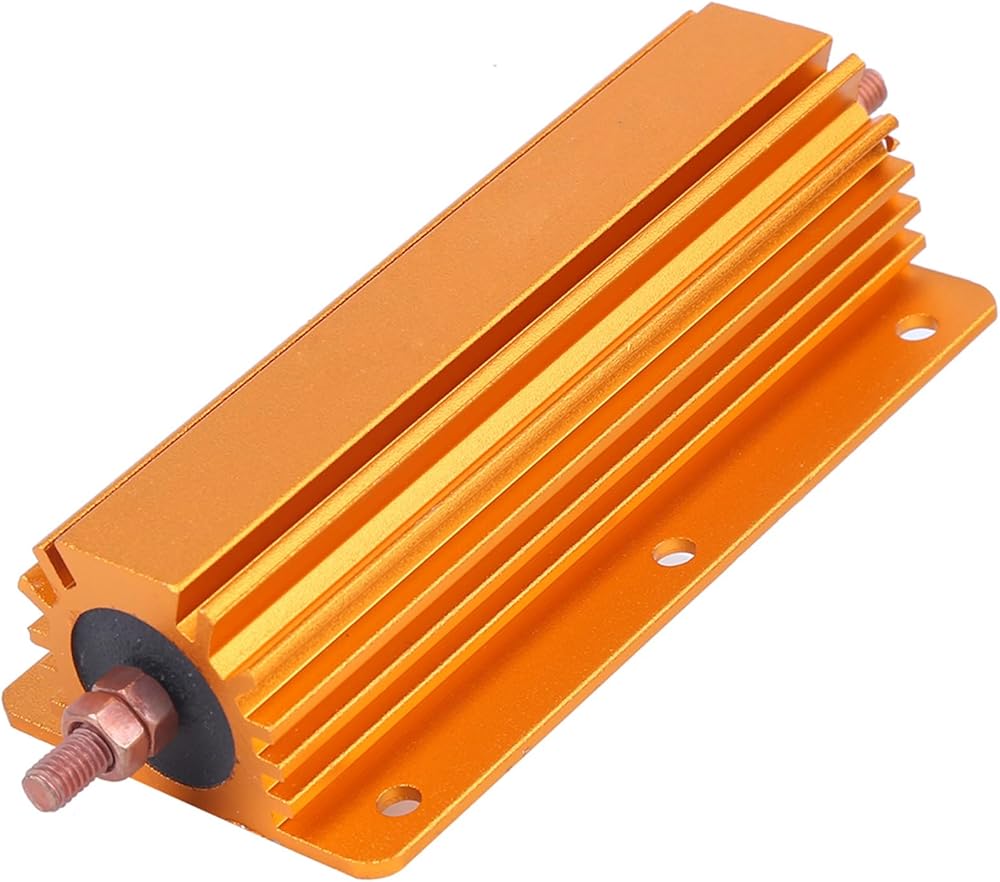

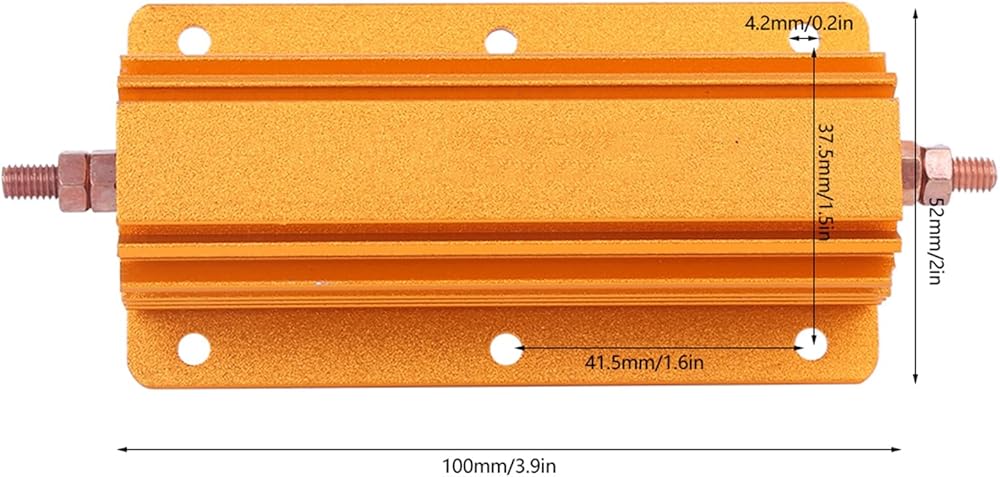

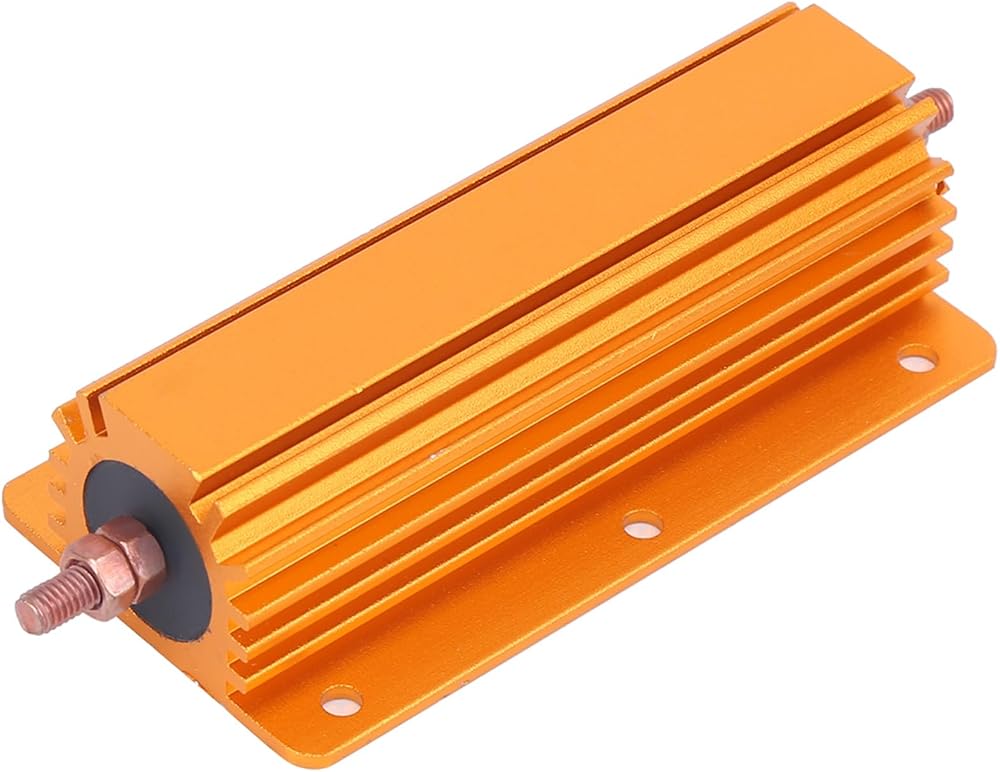

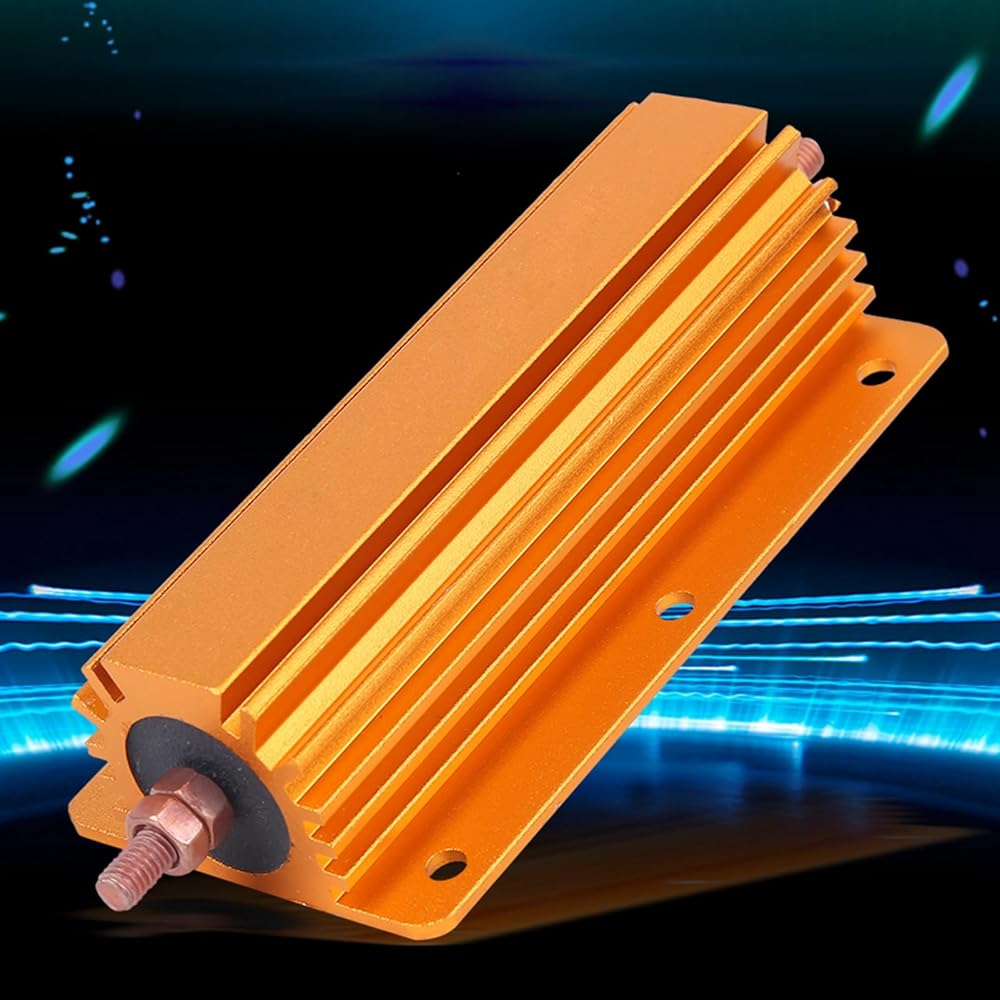

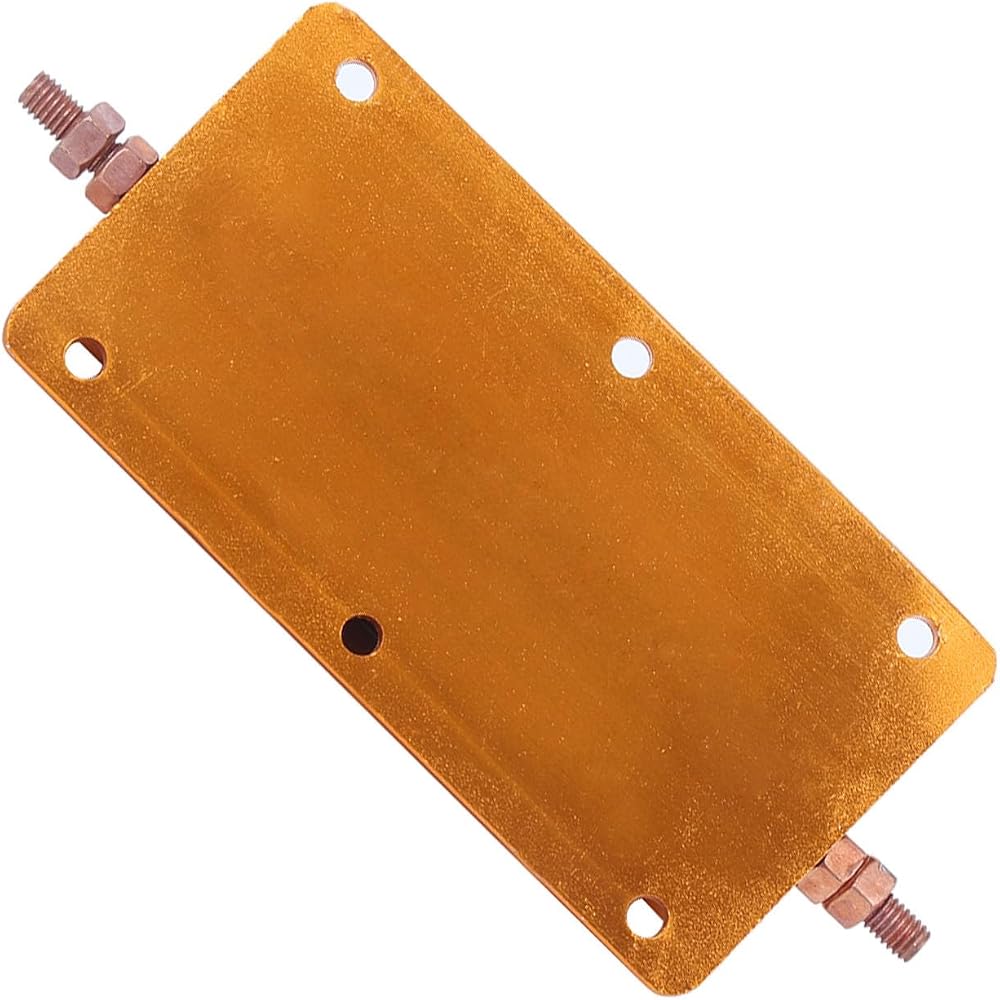

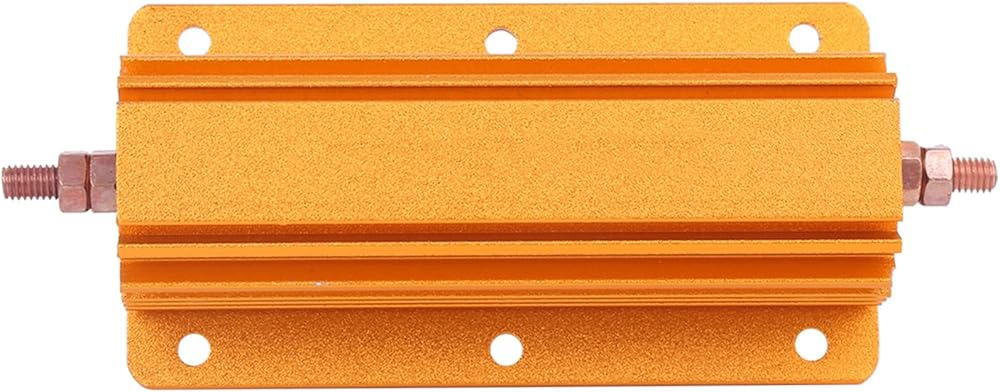

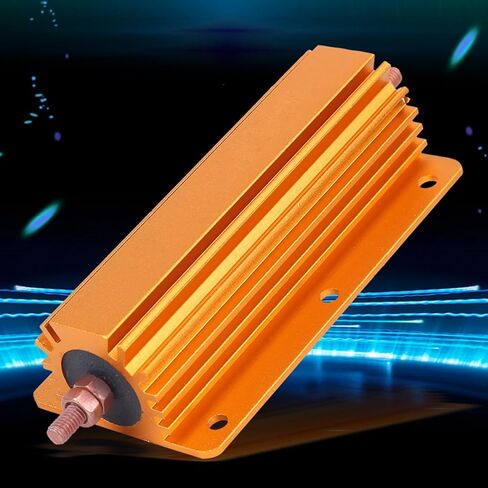

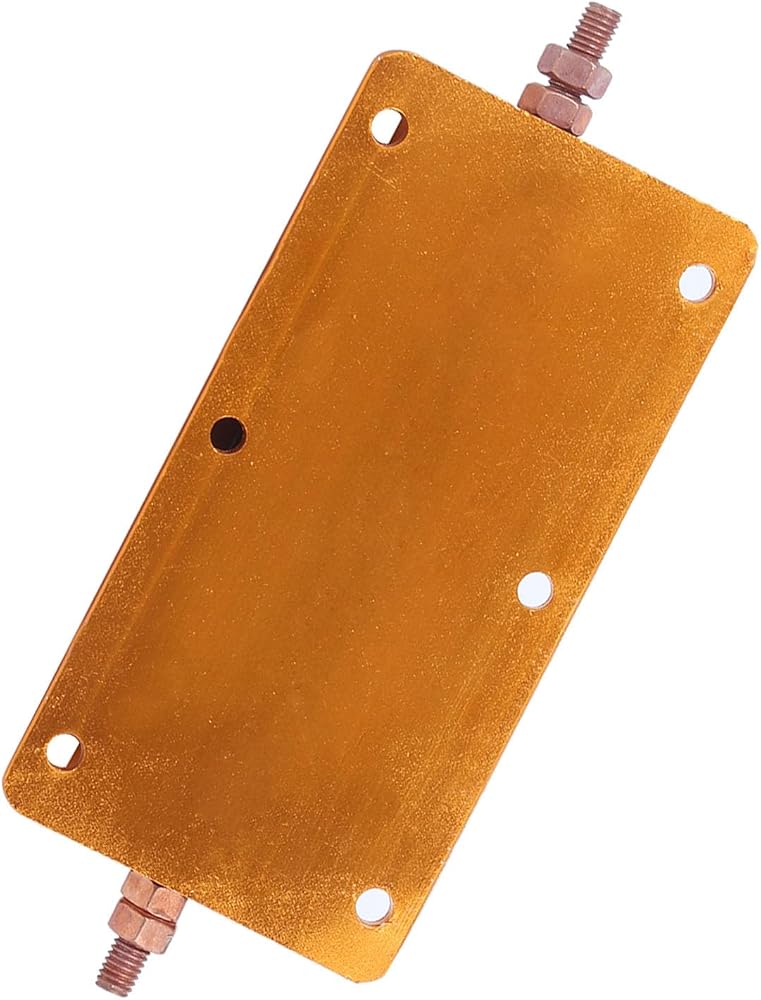

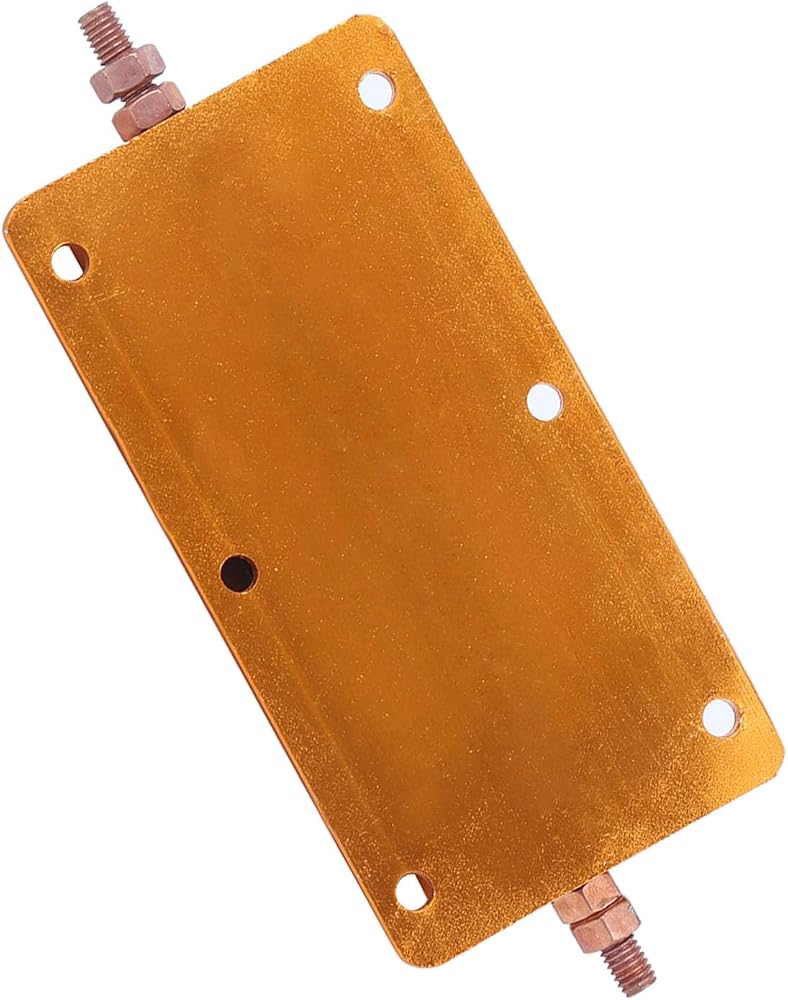

Specifications: Condition: 100% Brand New Item Type: Resistor External Material: Aluminum Color: Gold Resistance Value: 1R Rated Power: 200W Endurance: ±5% (J) Mounting Hole Diameter: Approx. 4.2mm / 0.2in Hole to Hole Distance: Approx. 41.5mm / 1.6in, 37.5mm / 1.5in Board Size (L x W x H): Approx. 100 x 52 x 29 mm / 3.9 x 2 x 1.1 in Body Size (L x D): Approx. 100 x 32 mm / 3.9 x 1.3 in Type 25℃ Rated Power (W) RES. Ranges (Q) TCR (10/℃) RES. Error (%) Withstand Voltage (V) With Cooling Plate Without Cooling Plate Rx24 5 3 0.01~1K ±50 ±100 ±250 ±1 (F) ±2 (G) ±5 (J) 2000 10 8 0.01~1.5K 25 12.5 0.01~10K 30 15 0.01~27K 50 20 0.01~33K 75 45 0.01~39K 2500 100 50 0.01~51K 150 55 0.01~56K 100 50 0.01~62K 200 100 0.01~56K 250 120 0.01~75K 300 150 0.01~75K 500 200 0.01~82K Test Item Specifications Test Method SJ1330-78 Solderability Solder flows freely and wet 235±5℃, 2s precise welding method Terminal Tensile Strength △R≤ ±(1%R+0.05Ω) 40N Overload △R≤ ±(1%R+0.05Ω) 5P, 5s Resistance with Temperature △R≤ ±(1%R+0.05Ω) -55℃~+155℃, 5 Cycles Sold Heat △R≤ ±(1%R+0.05Ω) 350±10℃, 3.5±.5s Shook △R≤ ±(1%R+0.05Ω) Acceleration 490m/s², 11ms, 18 times Vibratious △R≤ ±(1%R+0.05Ω) Frequency 10-50Hz, acceleration 90m/s², 6h Surface Temperature Rise ≤275℃ VR Dampheat, Steady State △R≤ ±(5%R+0.05Ω) Temperature 40±2℃, humidity 93+2-3%, 21 days Load Life △R≤ ±(5%R+0.05Ω) 1000h rated power load applied at room temperature Voltage Parameter How to Use Package List 1 x RX24 200W 1R Resistor
