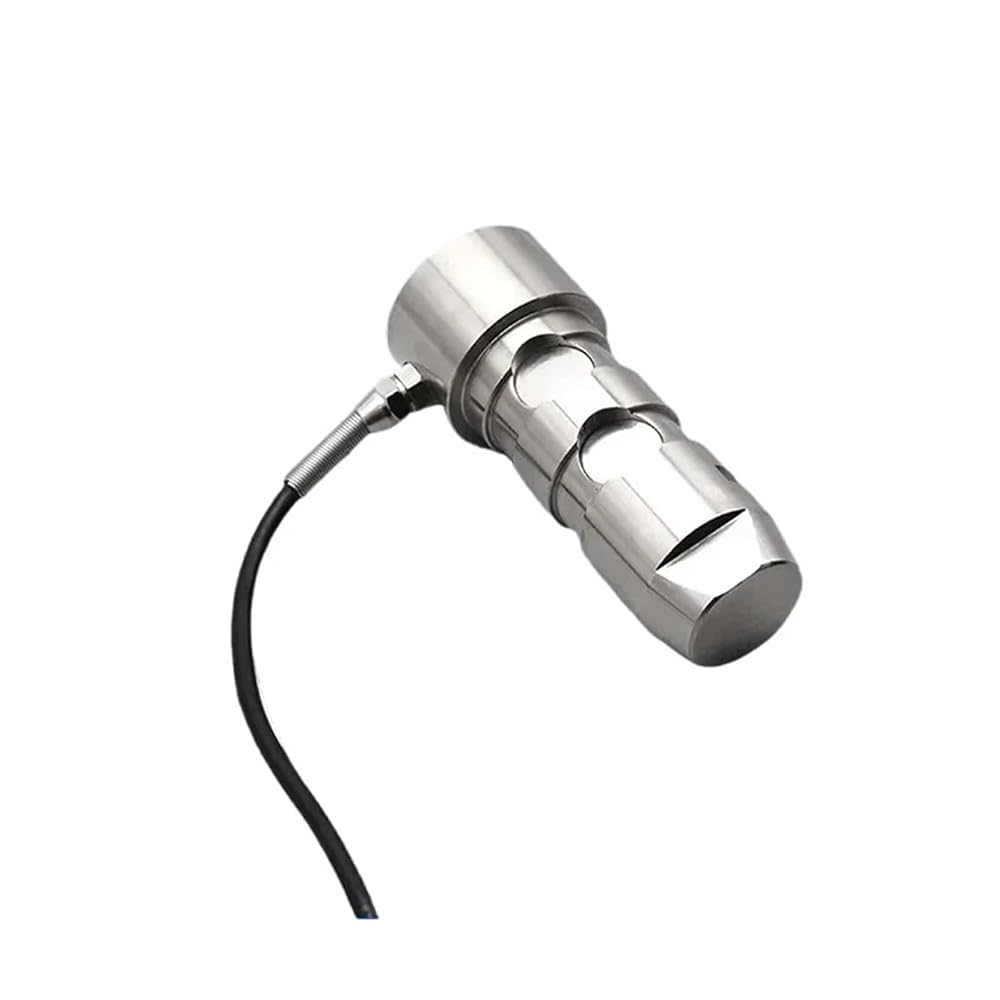

Linear Sensors
Use : Pressure Sensor
Range : 1T~10T
Zero output : ±1%F.S
Sensitivity : 1.0~1.5mV/V
Nonlinear : ±0.5%F.S
Lag : ±0.5%F.S
Repeatability : ±0.5%F.S
Creep : ±0.5%F.S/30min
Zero Temperature Drift : ±0.05%F.S/10
Sensitivity temperature drift : ±0.05%F.S/10
Operating temperature range : -20~+60
Input impedance : 380±30/730±30
Output impedance : 320±2/700±3
Insulation Resistance : 5000M/100VDC
Overload : 120%F.S
Supply bridge voltage : 5~12VDC(10VDC recommended)
Material : Alloy Steel/stainless steel
Connection mode : Red:Power+(E+) Black:Power supply-(E-) Green:output+(S+) White:output-(S-)
