Linear Sensors
Capacity : 3~40KG

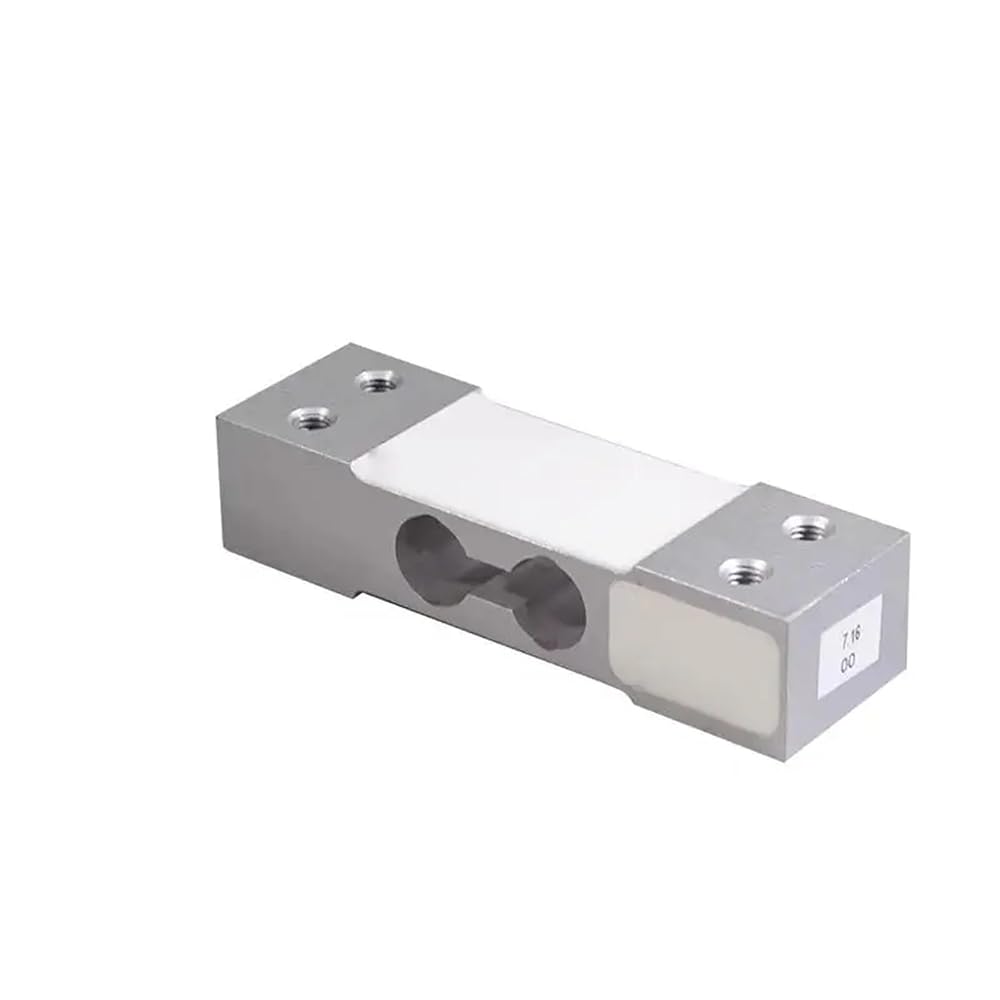

Type : Load Cell/Force Sensor
Output Sensitivity : 2.0±0.2mV/V
Comprehensive error : ±0.2%F.S
Relative creep over 30 min : ±0.0167%F.S
Temp. influence on Output sensitivity : ±0.0175%F.S/10
Temp. influence on the zero output : ±0.02%F.S/10
Zero output : ±2%FS
Temperature influence on zero : -10~+40
Temperature range operating : -35~+65
Input resistance : 406±6
Output resistance : 350±3
Insulation resistance : 5000(50VDC)M
Reference excitation voltage : 5-12V
Excitation,maximum : 18DC
Maximum safe overload : 120%F.S
Ultimate overload : 150%F.S
Recommended weighing platform : 250*350
Four-corner error : 0.02% Load value/100mm
Recommended mounting torque : 6N.m(3kg-30kg),10N.m(40kg)
