Spec:

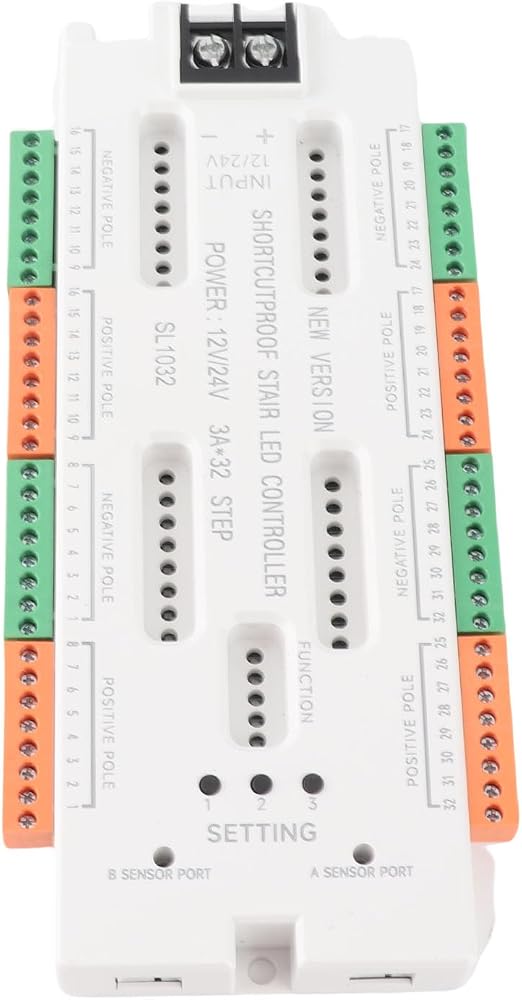

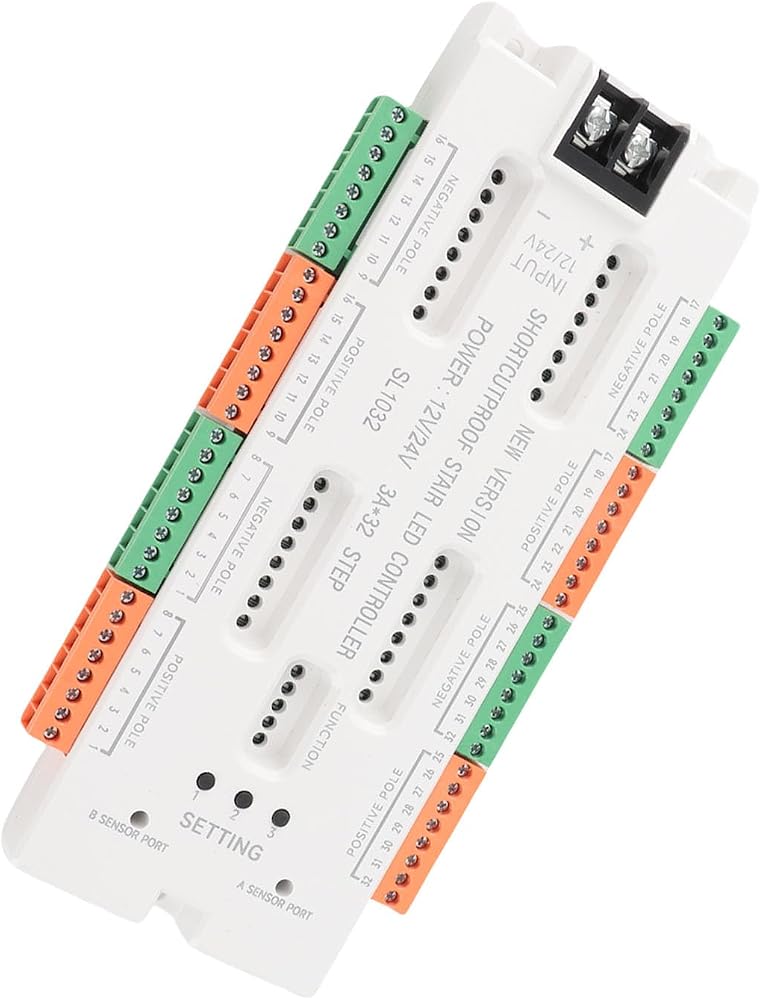

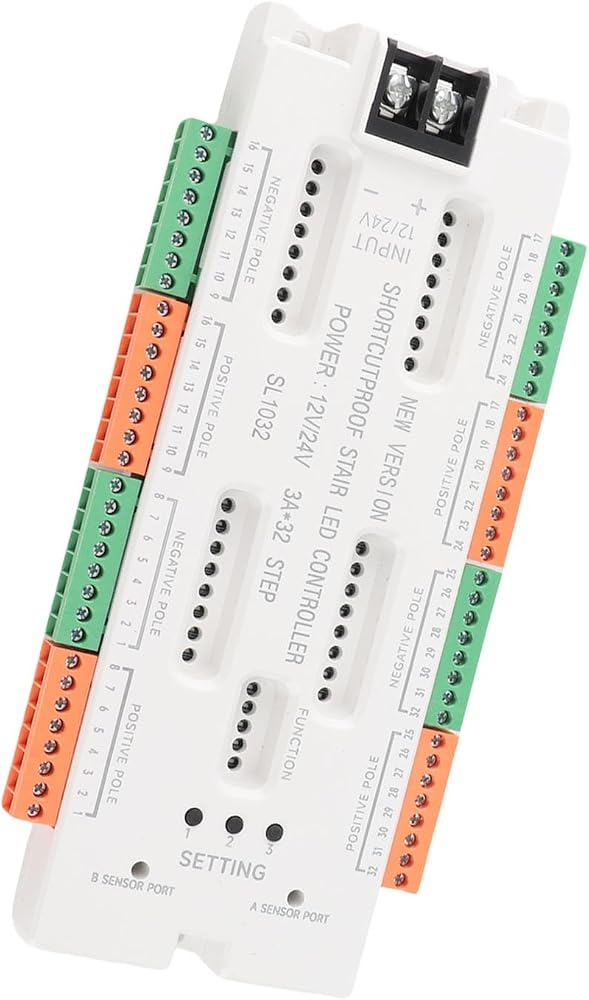

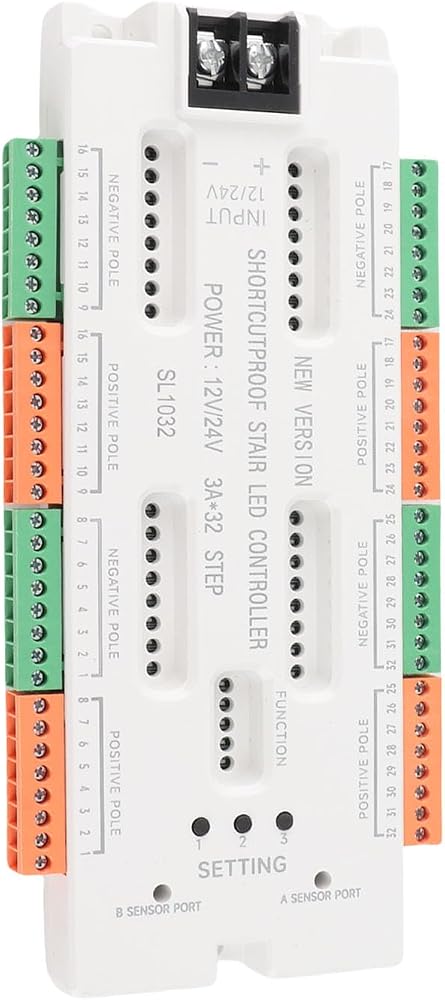

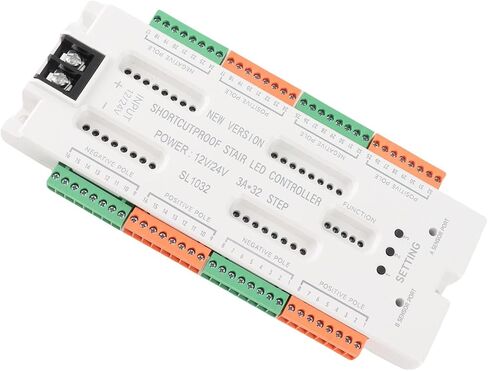

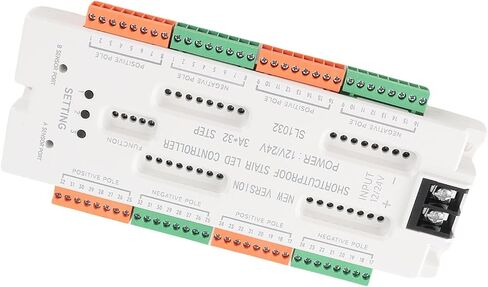

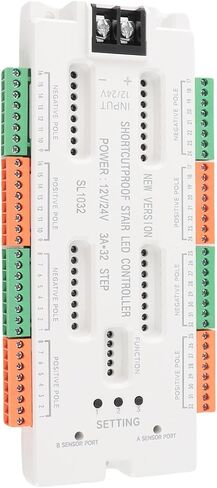

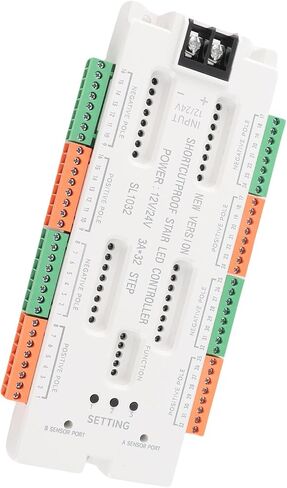

Item Type: Motion Sensor LED Stair Light Controller
Material: ABS
Weight: Approx. 330g/11.6oz
Motherboard Size:
Length: Approx. 18cm/7.1in
Width: Approx. 8cm/3.1in
Cord Length: Approx. 5m/16.4ft (2 Bundles)
Ports: 32 Groups
Sensing Port: A B

How to Use:

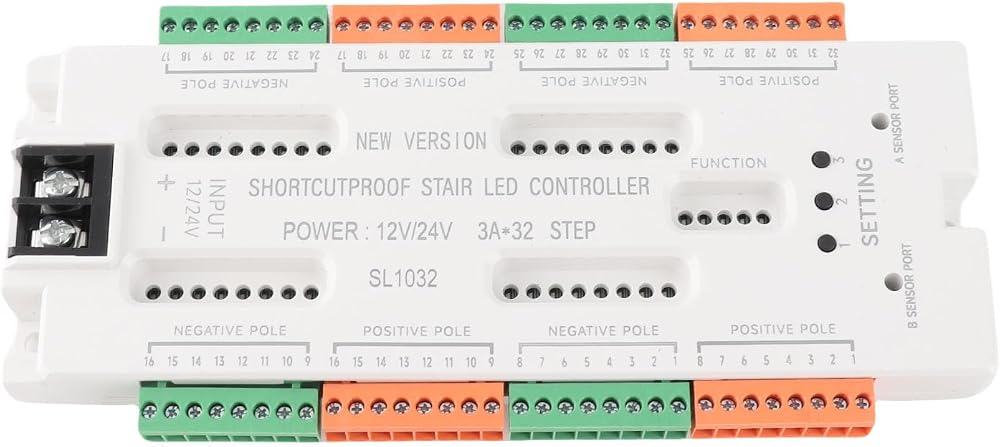

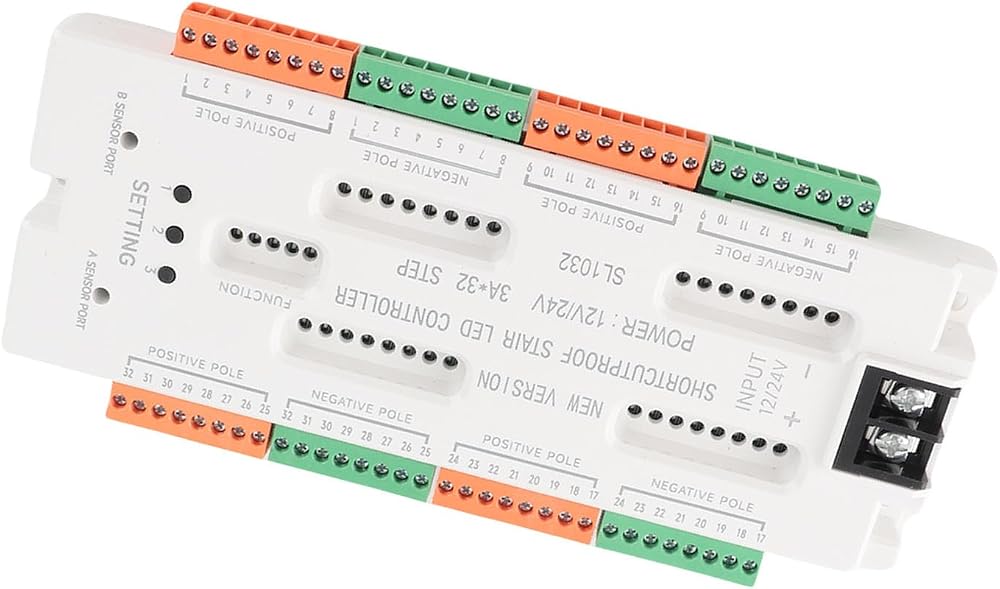

Connection method: Insert the LED light bar into the controller port of the corresponding staircase step in sequence.
For example: the first step of the lamps and lanterns positive pole inserted in the orange terminal number 1, negative pole inserted in the green terminal number 1; the second step of the lamps and lanterns positive pole inserted in the orange terminal number 2, negative pole inserted in the green terminal number 2; the third step of the lamps and lanterns positive pole inserted in the gift color number 3, negative pole inserted in the green terminal number 3, ...... And so on and so forth, the controller system has 32 ports, according to the actual situation, according to the order of the insertion of the required light bar, the extra ports do not need to pay attention to, later can also be added to the light bar.

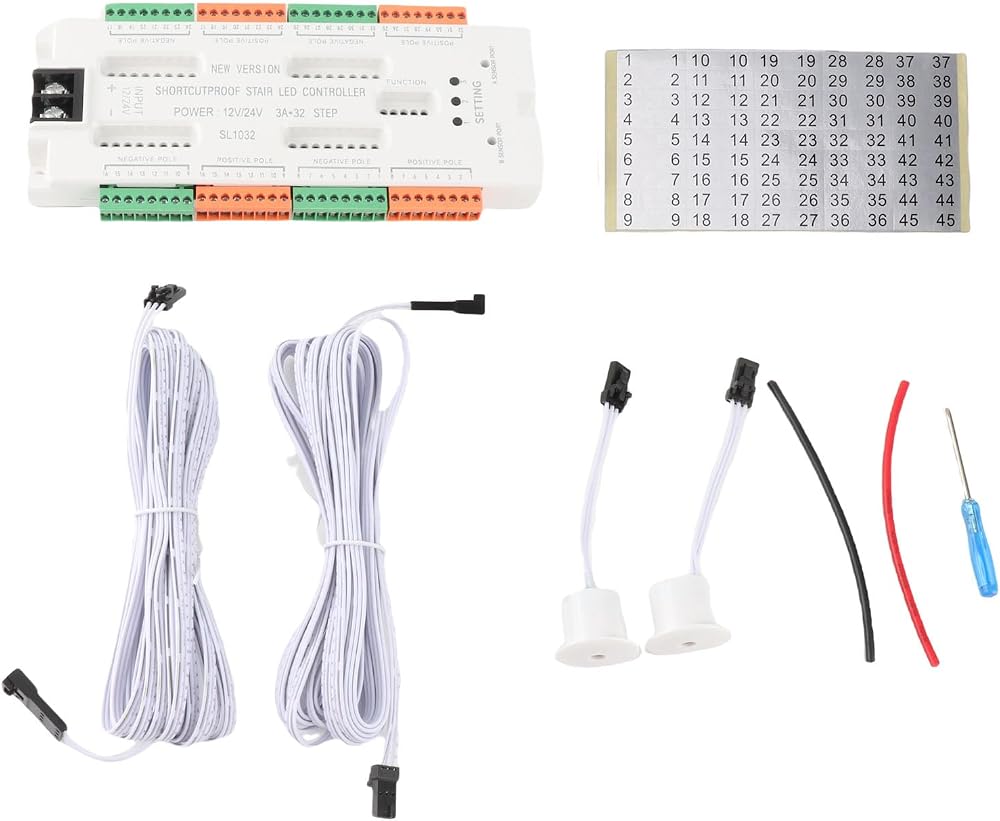

Package List:
1 x Serial Number Sticker1 x Instruction Manual
1 x Main Module
1 x Screwdriver
2 x Wire
2 x Sensor Head
2 x Wire Bundle

Notice:
Manual measurement please allow some error.
