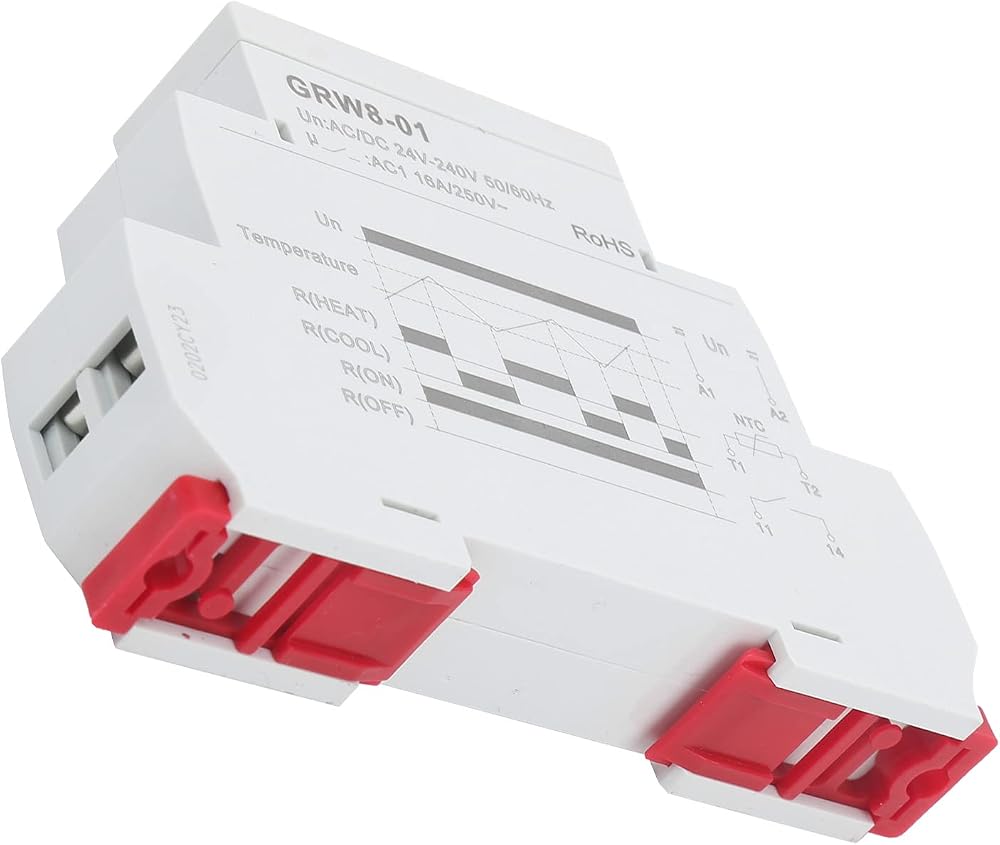

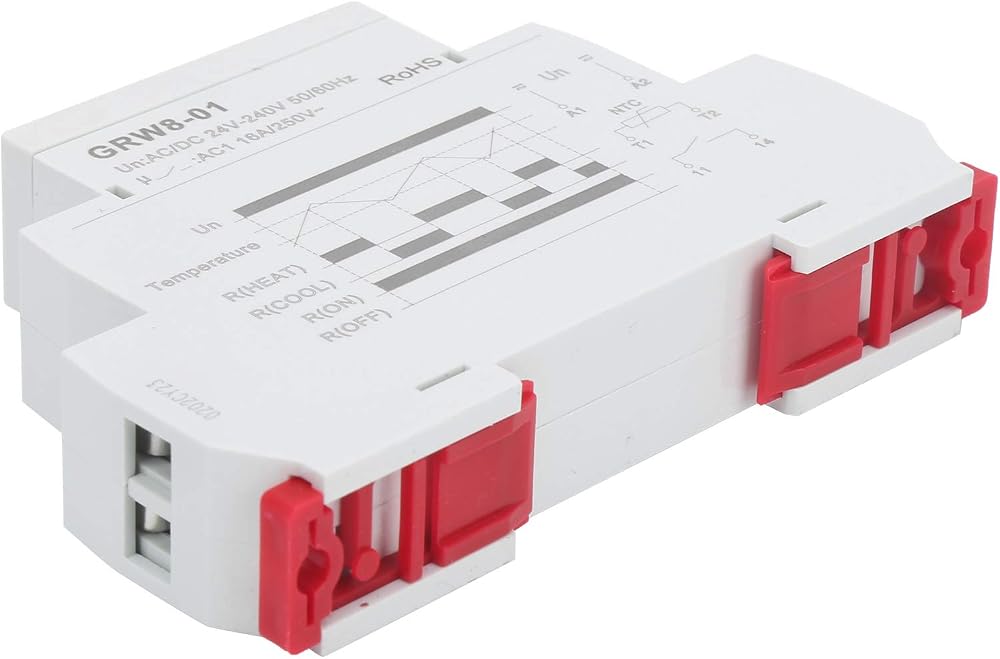

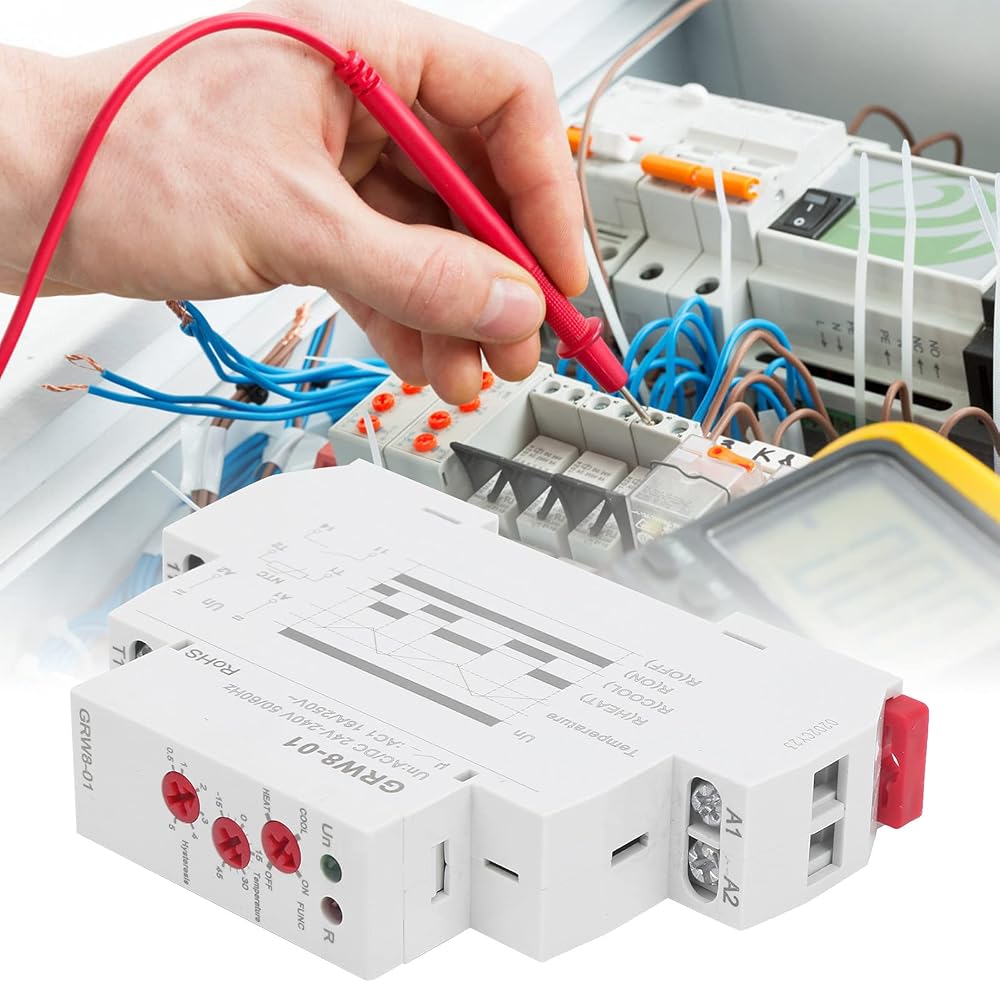

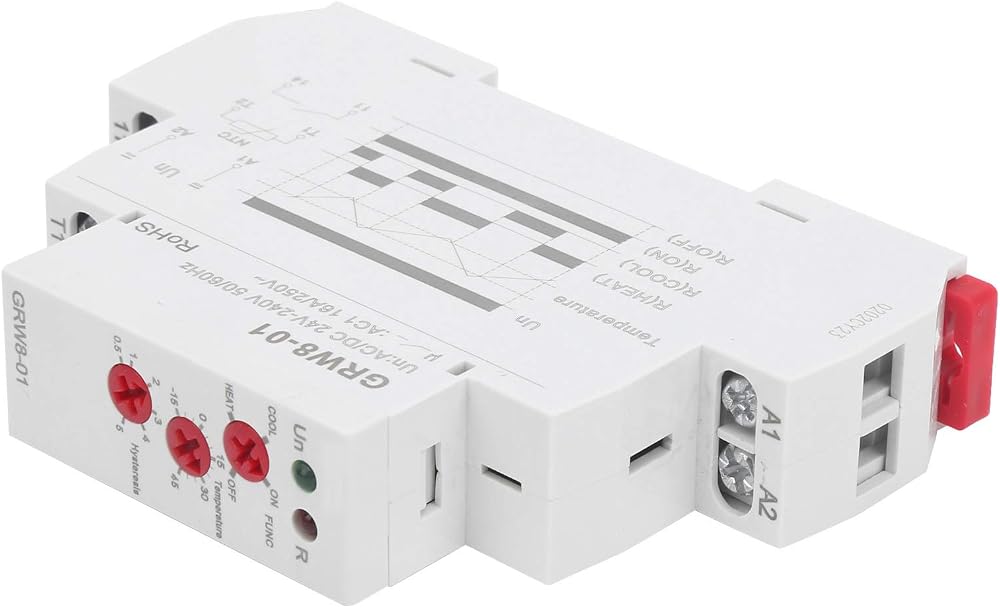

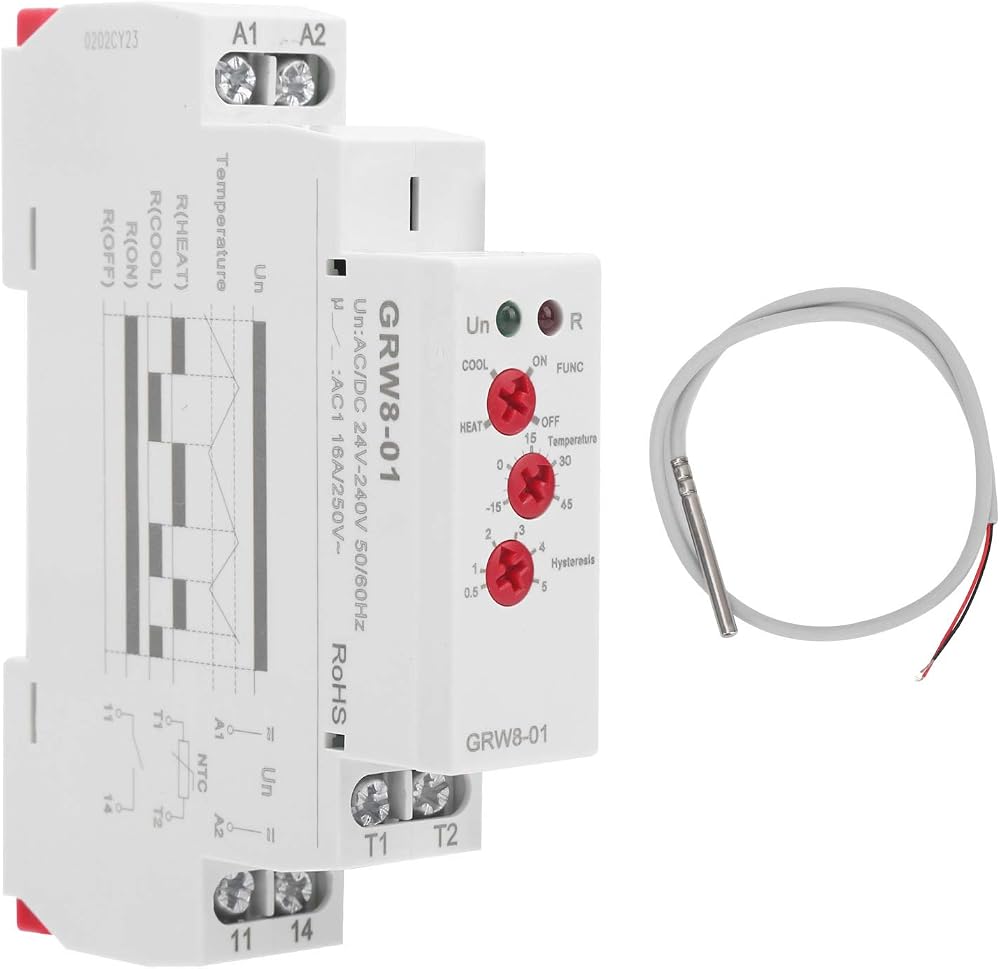

Temperature Control Relay, AC/DC 24V-240V DIN Rail Temperature Controller Thermostat GRW8-01 16A with Sensor Probe Heating and Cooling Mode

KWD 13
– 1 +

Special Features

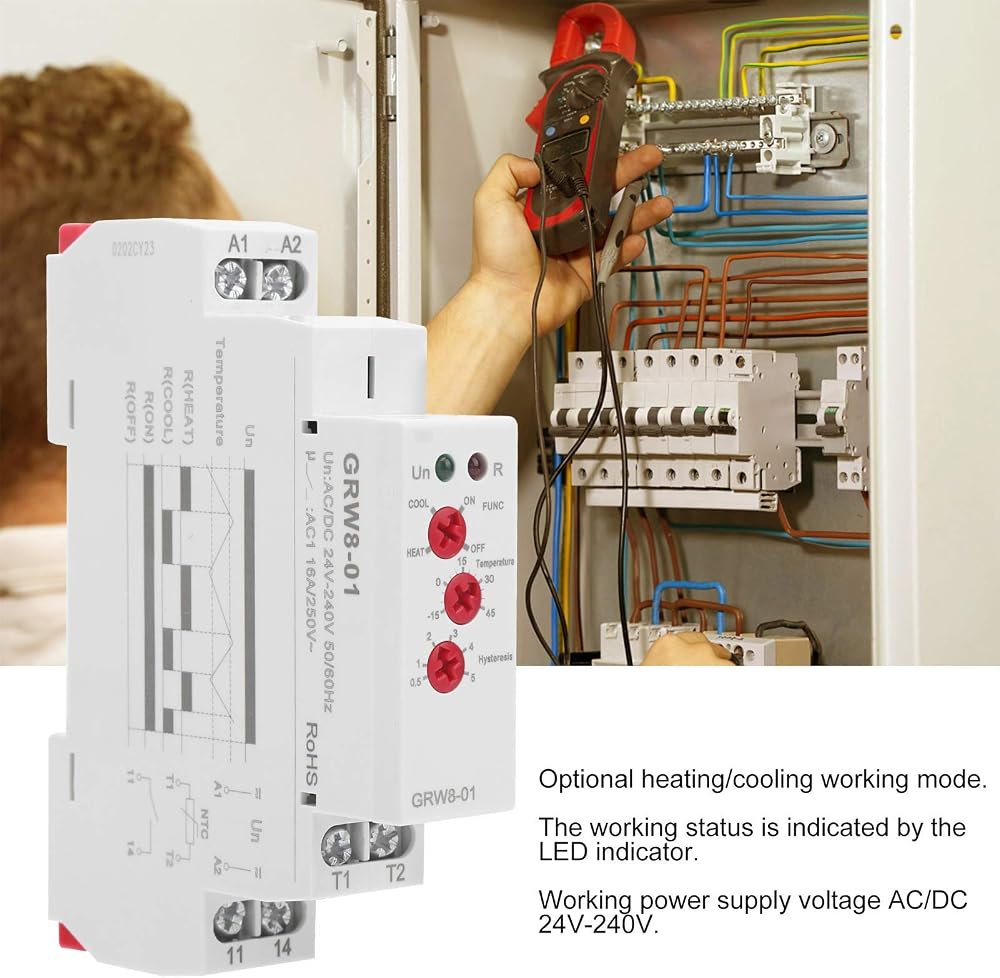

  • Dual-Mode Temperature Monitoring - This advanced relay offers flexible heating/cooling mode selection for precise temperature regulation. With an adjustable range of -15℃ to +45℃ and configurable hysteresis (0.5℃-5℃), it maintains optimal conditions for various applications.
  • Clear Visual Status Indicators - Features intuitive dual-color LED displays - green for power status and red for relay activation. The bright indicators provide instant system feedback for easy monitoring at a glance.
  • Wide Voltage Compatibility - Operates across AC/DC 24V-240V with 50/60Hz frequency support. The robust design handles power fluctuations (-15% to +10%) while consuming minimal energy (max 2VA).
  • Industrial-Grade Performance - Rated for 16A/250VAC switching capacity with 10 million mechanical operations. The relay withstands harsh environments (-20℃ to +55℃) and features 2.5kV impulse protection for reliable operation.

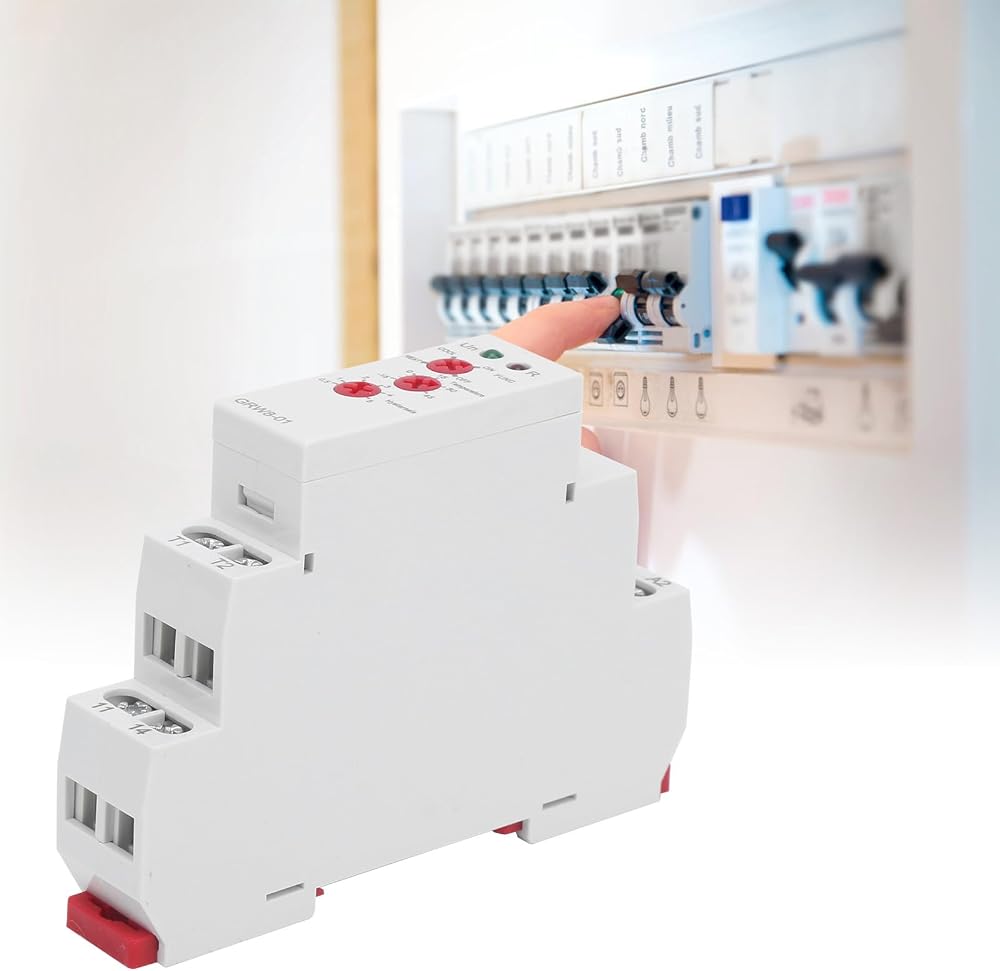

  • Space-Saving DIN Rail Design - Compact 35mm rail-mounted unit saves panel space while supporting standard 2.5mm² wiring. Includes mounting probe for accurate temperature sensing in various installations.

Description

Item Type: Temperature Control Relay
Function: Monitor high/low temperature

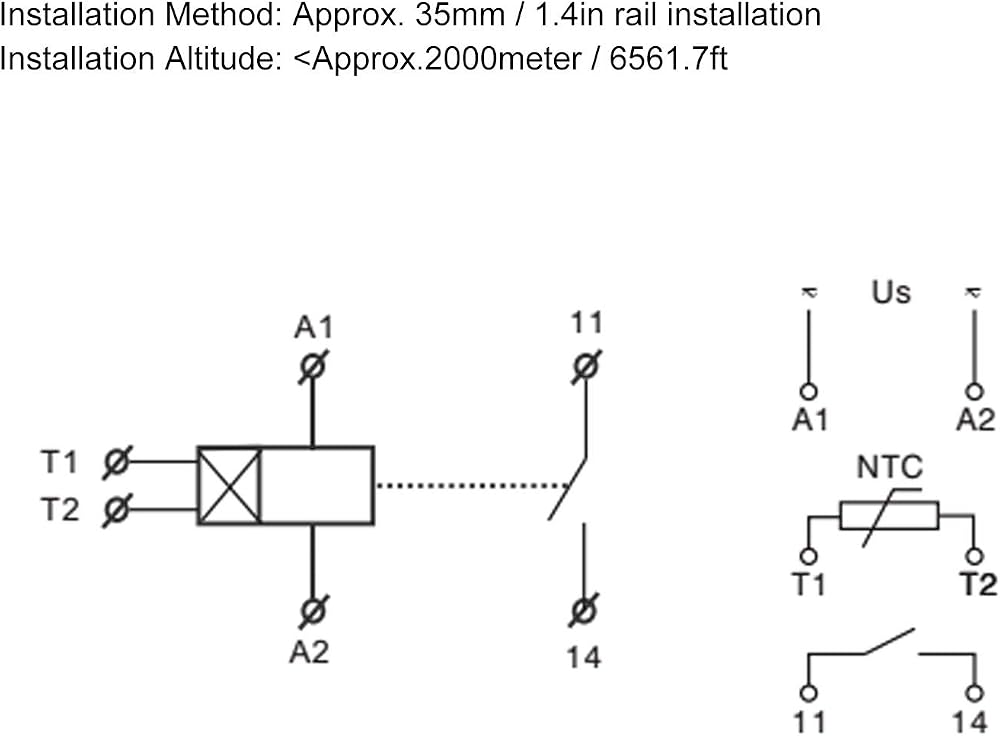

Power Terminal: L-N
Rated Power Supply Voltage: AC/DC 24V-240V
Rated Power Frequency: 50/60Hz
Rated Impulse Withstand Voltage: 2.5kV
Rated Insulation Voltage: 250V
Power Consumption: Maximum 2VA
Power Supply Allowable Fluctuation Range: -15%~+10%
Temperature Adjustment Range: -15℃ to +45℃
Temperature Adjustment Hysteresis Value: 0.5℃ to 5°℃

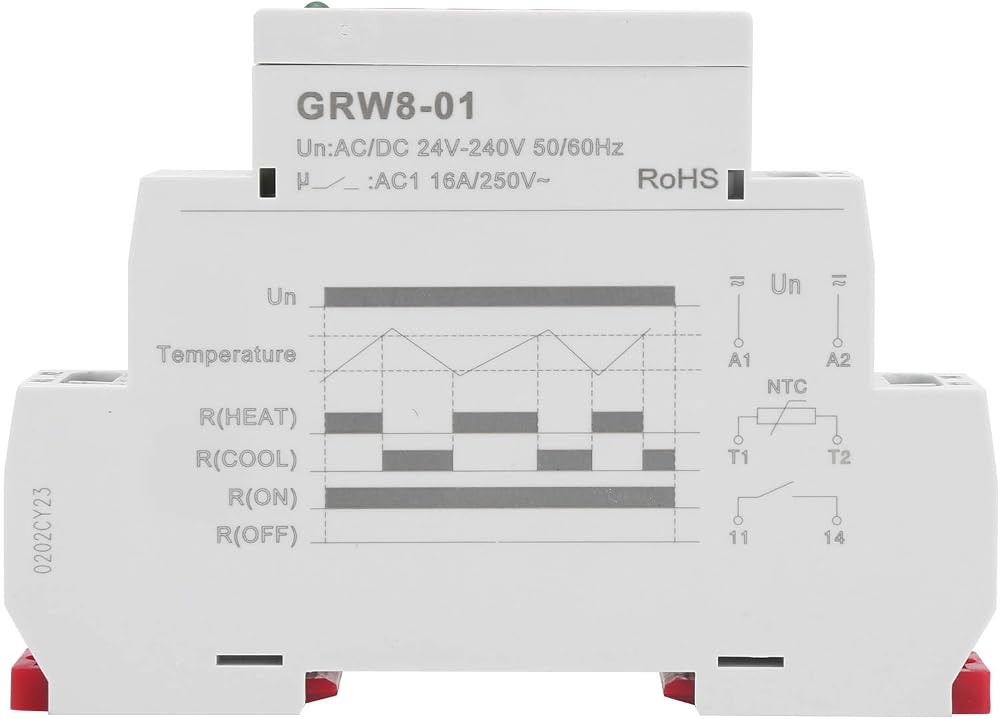

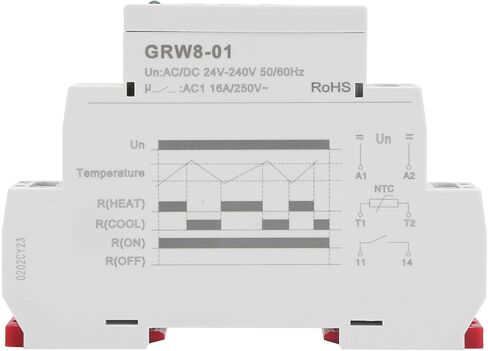

Working Mode: Heating-cooling-on and off can be set
Power Indicator: Green LED
Output contacts Parameters: 1xSPST 16A/AC1 250VAC/24VDC
Minimum Switching Power: 500mW
Output Relay Indication: Red LED
Mechanical Life: 1x10000000
Electrical Life (resistive Load): 1x100000
Working Environment Temperature: -20℃ ~+55℃
Storage and Transportation Environment Temperature: -35℃~+75℃
Installation Method: Approx. 35mm / 1.4in rail installation
Protection Level: IP20
Installation Location: Any
Installation Altitude: Pollution Degree: 2
Wiring Capacity: 1x2.5mm² or 2x1.5mm² 0.8Nm

Package List：
1 x Temperature Control Relay
1 x Probe
1 x User Manual
