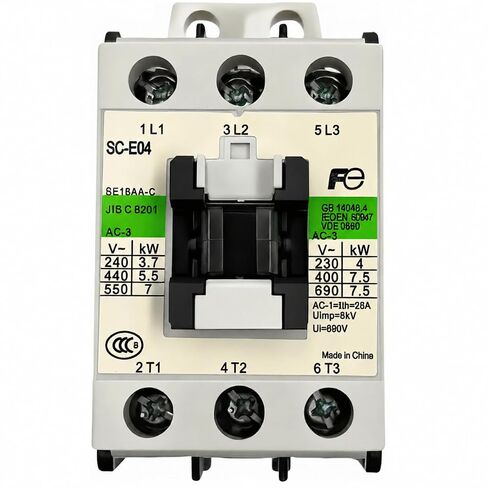

Product type: 3-pole AC magnetic contactor, 1 pack
Model/reference: SC-E04 / SC-E04H5-C; visible marking SE16AA-C

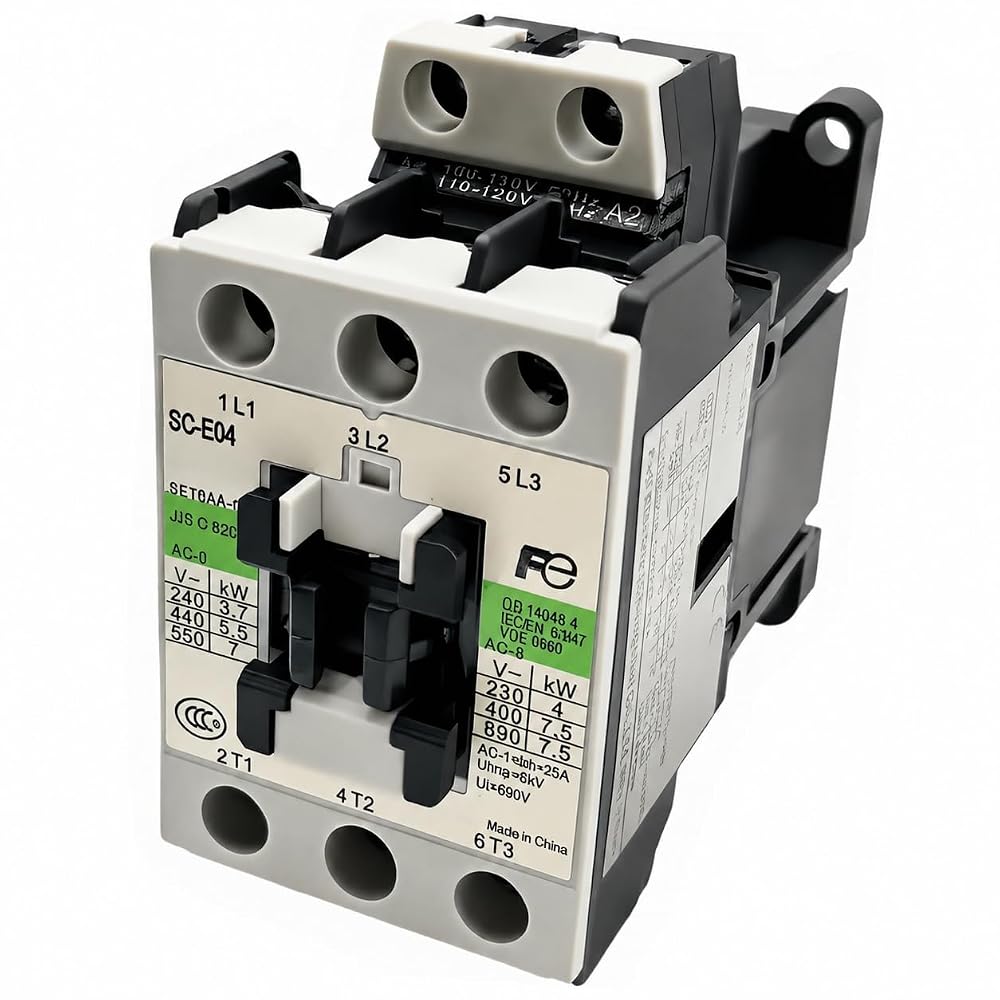

Coil: AC 110V 50Hz; photographed coil marking also shows 100-110V 50Hz / 110-120V 60Hz

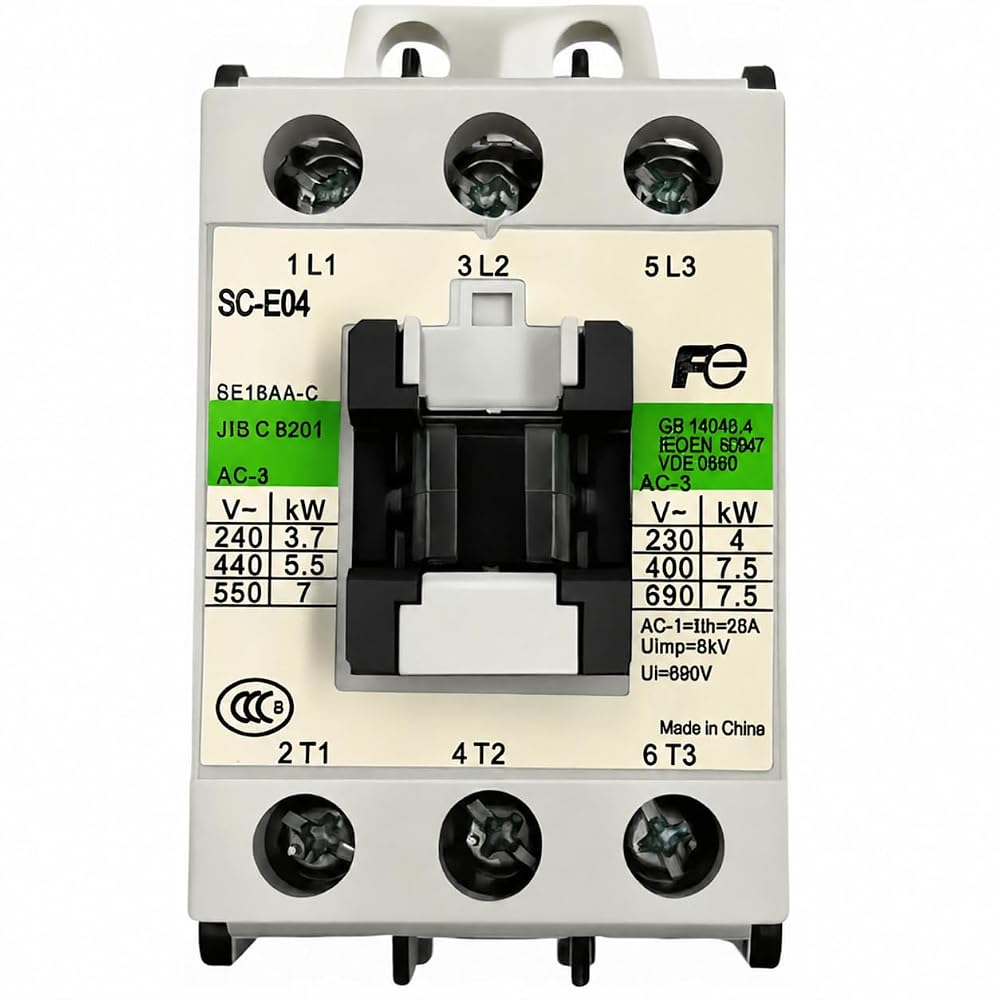

Main terminals: 1L1, 3L2, 5L3 / 2T1, 4T2, 6T3; coil terminals A1/A2

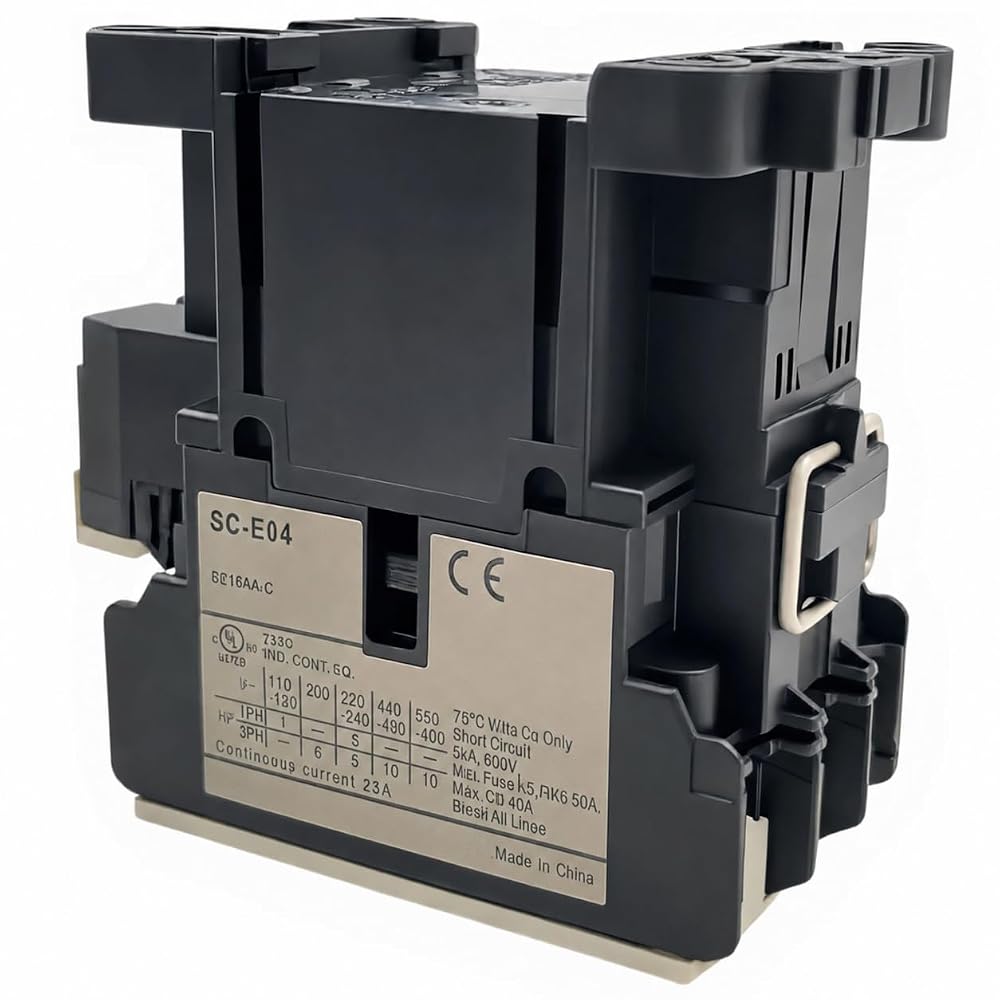

Visible ratings: AC-1 Ith / continuous current 25A, Ui 690V, Uimp 6kV; AC-3 230V 4kW, 400V 7.5kW, 690V 7.5kW

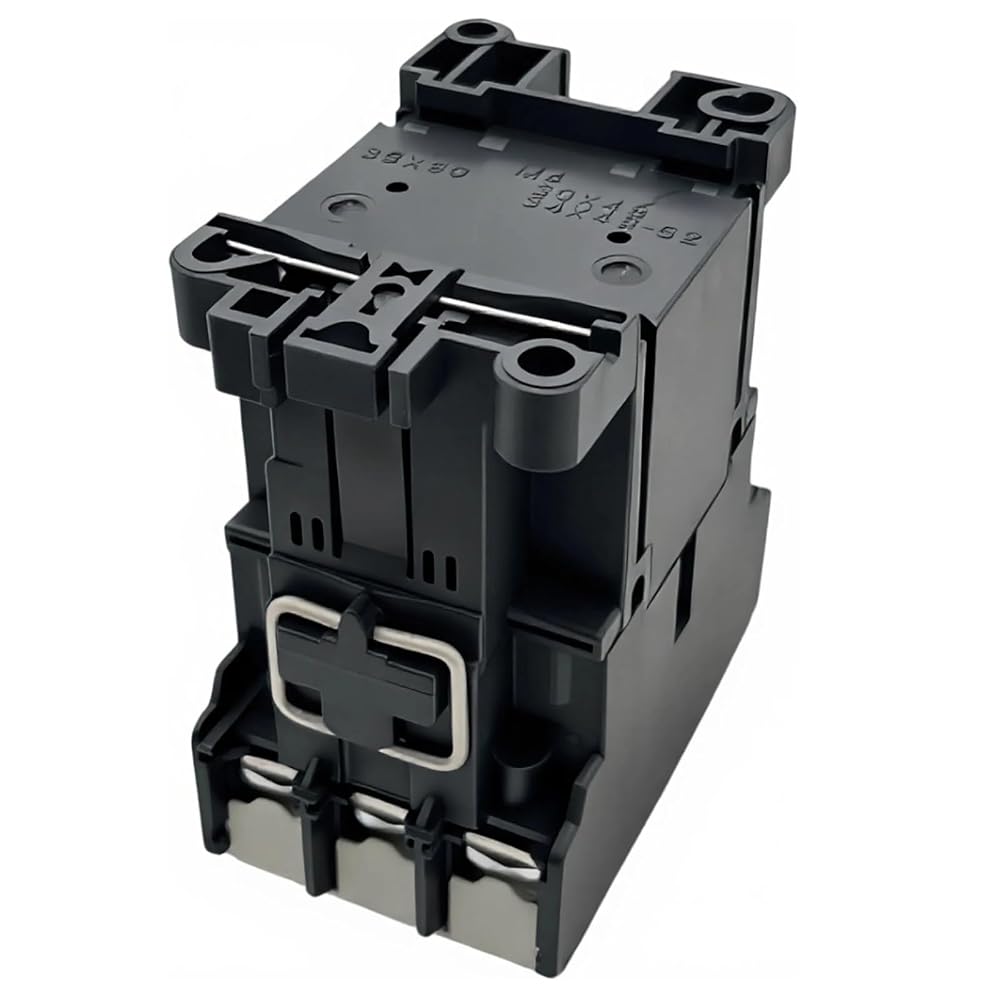

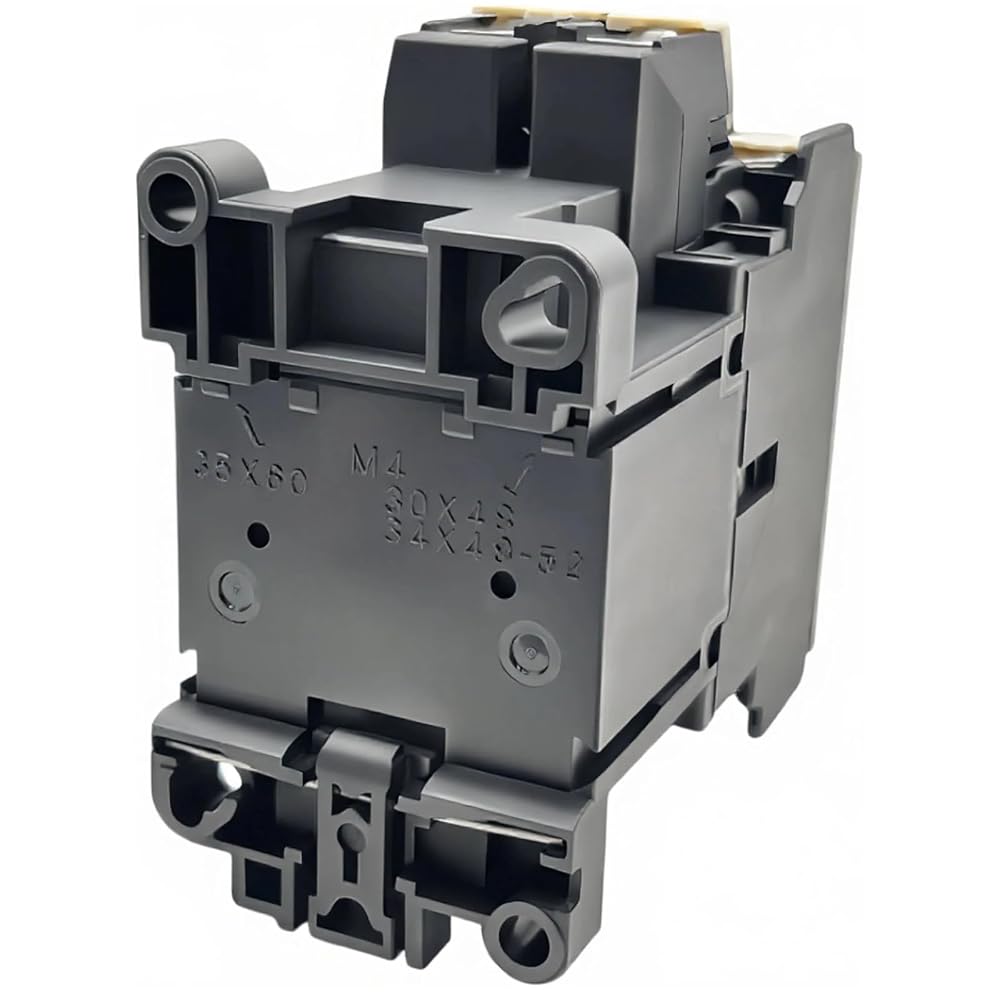

Connection/mounting: screw-terminal contactor with visible panel mounting points
Match SC-E04 or SC-E04H5-C on the original contactor label.
Match AC 110V 50Hz coil requirement and the A1/A2 coil terminal location.
Match 3-pole terminal layout, screw-terminal style, current/load rating and mounting position.
Check the equipment wiring diagram before energizing the circuit.
Disconnect and lock out power before replacing a contactor.
Label each wire before removal and reinstall wires to the same terminal positions.
Inspect the panel terminals for heat damage, corrosion or loose hardware.
Installation should be performed by a qualified person familiar with electrical control panels.
Q: Is this for every 110V contactor? A: No. It is for SC-E04 / SC-E04H5-C style applications with matching voltage, terminals, ratings and mounting.
Q: Can it replace a different coil voltage? A: No. Do not use it in 24V, 220V, 230V or other non-matching coil-voltage panels unless the original contactor and diagram confirm compatibility.
Q: What symptoms can a contactor replacement help with? A: It may help when diagnosis confirms a failed, burned, sticking or damaged contactor.
Model numbers and brand references are included only for compatibility verification. Always compare your original label and equipment manual before purchase.
