What is this?
Pneumatic solenoid valve is an automation component used to control air flow. It is widely used in various industrial that require the control of gas flow, such as the compressed air brake system of railway vehicles.

What will I get?

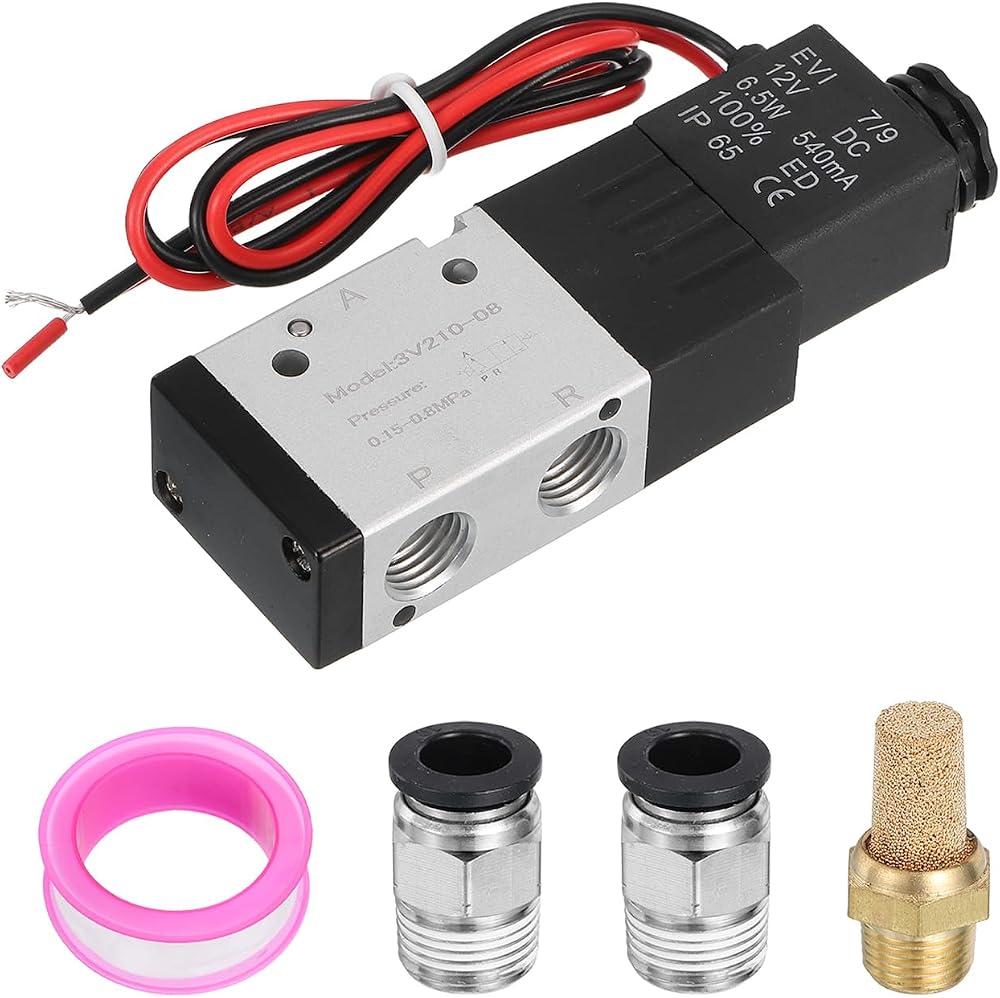

Electric Air Solenoid Valve
Working Pressure: 0-60℃
Volt: DC12V/6.5W/540mA
Fluid Temperature: 0.15-0.8MPa(25~116Psi)
Total Size: 11x3.5x2cm/4.3x1.4x0.78 Inch(H*BD*TD)
Thread Size: 1/4" NPT
Connector Size: 24x14x10 mm/0.9x0.55x0.4 Inch(L*W*T)
Muffler Size: 28x15x8 mm/1.1x0.6X0.3 Inch(L*W*T)
In the Package: 1 x Pneumatic Valve, 2 x Connector, 1 x Muffler, 1 x Raw Tape

Are there any advantages of the product?
The pneumatic solenoid valve control system is stable and reliable, does not require preheating or pre cooling, and is suitable for continuous operation and frequent start and stop. Made of aluminum alloy, it has high hardness, corrosion resistance, good heat dissipation and long service life.

How to use it?
Connect the pipeline of the pneumatic manual control valve in the direction of the arrow on the valve body (make sure the flow direction is correct). Use raw tape or sealant to enhance the air tightness of the threaded interface. Avoid severe vibration or external force impacting the valve body

What should I notice?
Before installation, confirm that the voltage matches the nominal voltage of the solenoid valve. Avoid long-term exposure to highly corrosive gases. Be sure to cut off the power supply and release the pressure before maintenance!
