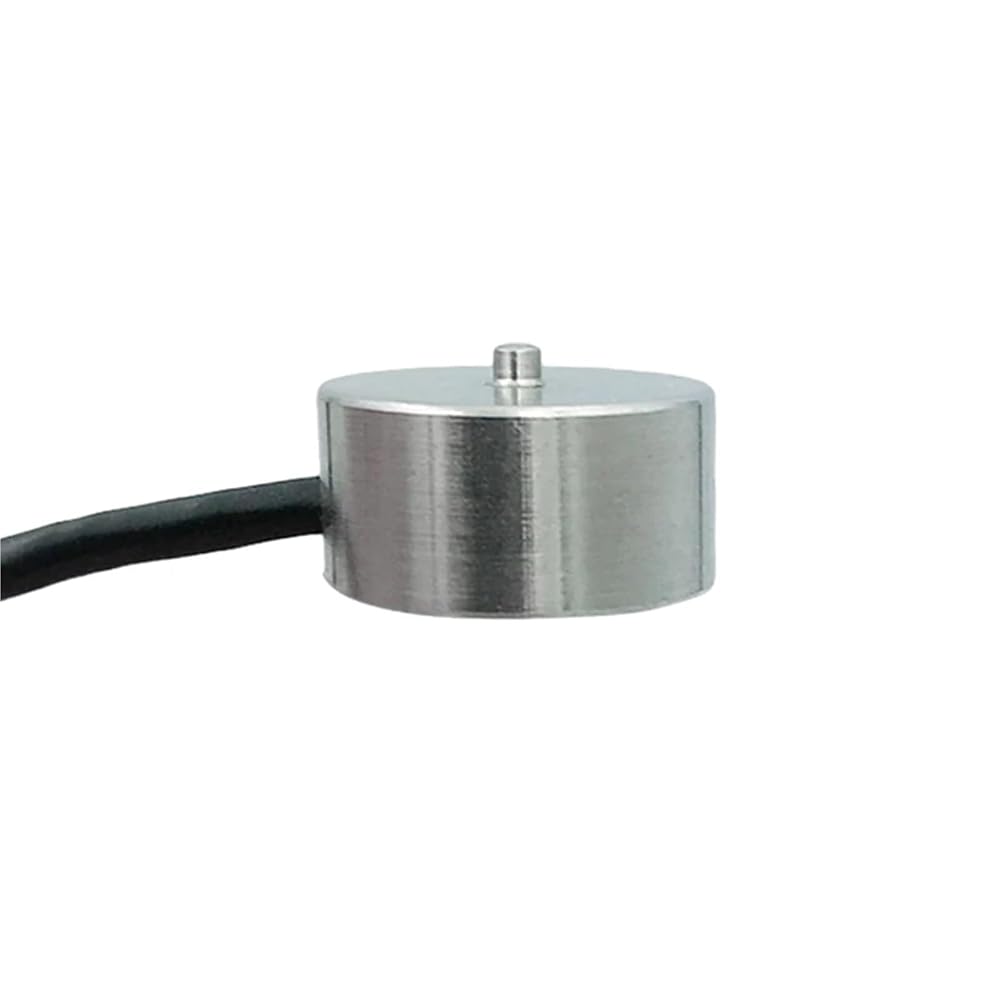

Linear Sensors
Use : Pressure Sensor
Capacity : 5~5000KG
Type : Load Cell/Force Sensor
Sensitivity : 1.0-1.5±0.05mV/V
Non-linearity : ±0.3%F.S
Hysteresis : ±0.3%F.S
Repeatability : ±0.3%F.S
Creep In 30 Minutes : ±0.1%F.S
Temp. influence on sensitivity : ±0.1%F.S/ 10
Temp. influence on the zero signal : ±0.05%F.S/ 10
Zero point output : ±1%F.S
zero temperature : ±0.1%F.S/ 10
Input Impedance : 350+50
Output Resistance : 350+5
Operating temperature range : -20~+80
Safe Overload : 150%
Insulation resistance : 2000M/50VDC
Recommended Excitation : 10-15V
