Linear Sensors
Theory : Resistance Sensor
Material : Metal
Type : Magnetic Sensor
Output : Analog Sensor
Use : Pressure Sensor

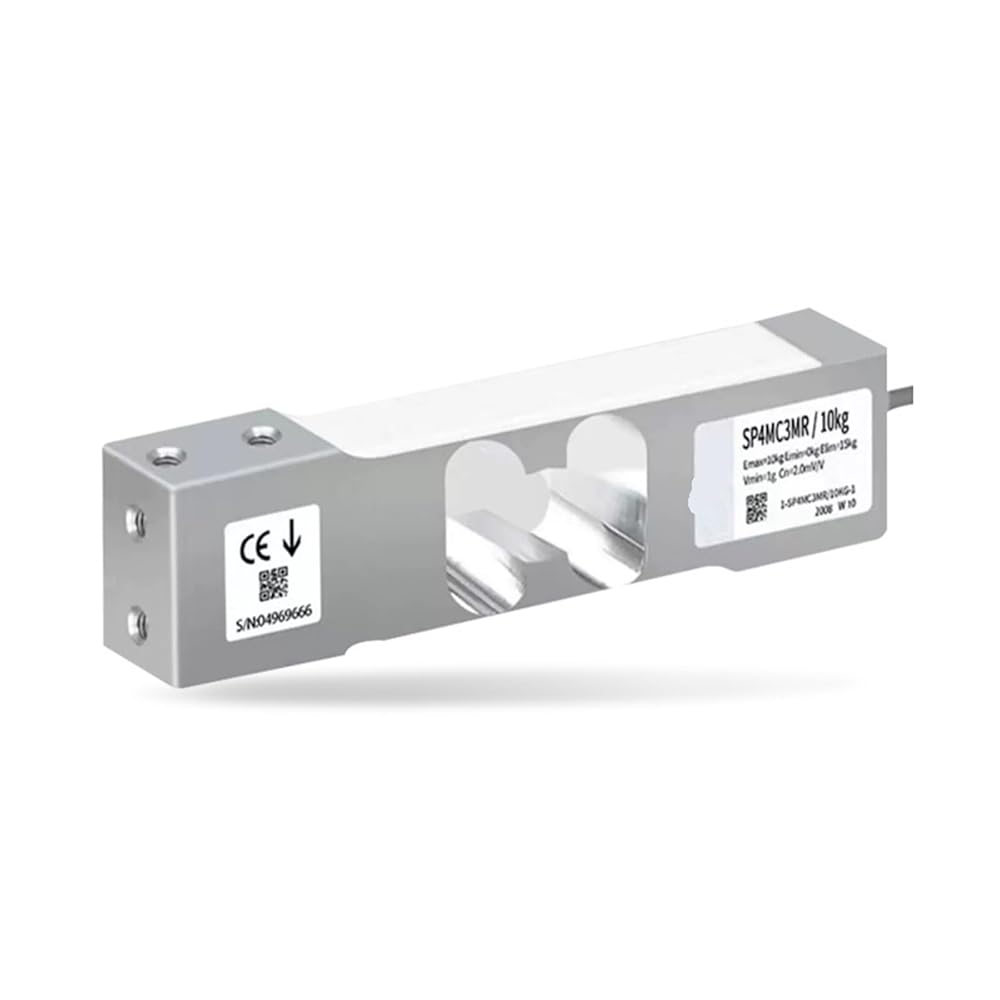

Type : Load Cell/Force Sensor
Number of load cell verification intervals : 3000nLC
Maximum capacity : 1-200KG
Minimum load cell verification interval : 0.1-20g
Temperature coefficient of zero signal per 10 K : ±0.0140,±0.0093,±0.0140,±0.0100,±0.0140,±0.0093,±0.0140,±0.0093,±0.0140,±0.0093,±0.0140,±0.0093,±0.0140
Ratio of minimum verification interval : 10000,15000,10000,14000,10000,15000,10000,15000,10000,15000,10000,15000,10000
Nominal sensitivity Maximum capacity 1 kg Maximum capacities 3 kg - 200 kg : 1.8 +0.27 -0.18 (Option 6: A1 = 1.8 mV/V±0.1 %) 2.0±0.2 (Option 6: A = 2mV/V±0.1 %)
Zero signal : 0±0.1
Temperature coefficient of sensitivity +20 - +40 °C -10 - +20 °C : ±0.0170,±0.0110
Non-linearity : ±0.0166
Relative reversibility error : ±0.0166
Minimum dead load output return : ±0.0166
Off-center load error, as per OIML R76 : ±0.0233
Input resistance : 300 - 500
Output resistance : 300 - 500 (Option 6: A = 410 ±0.2 )
Reference excitation voltage : 5V
Nominal (rated) range of the excitation voltage : 1 - 12
Maximum excitation voltage : 15
Insulation resistance at 100 VDC : >2G
Nominal (rated) range of the ambient temperature : -10 - +40°C
Operating temperature range : -10 - +50°C
Storage temperature range : -25 - +70°C
Limit load : 150
Limit lateral loading, static : 300
Service load at max. 100 mm eccentricity : 150
Breaking load at max. 20 mm eccentricity : 300
Relative permissible oscillation stress at max. 20 mm eccentricity : 70
Weight, approx. : 0.45kg
