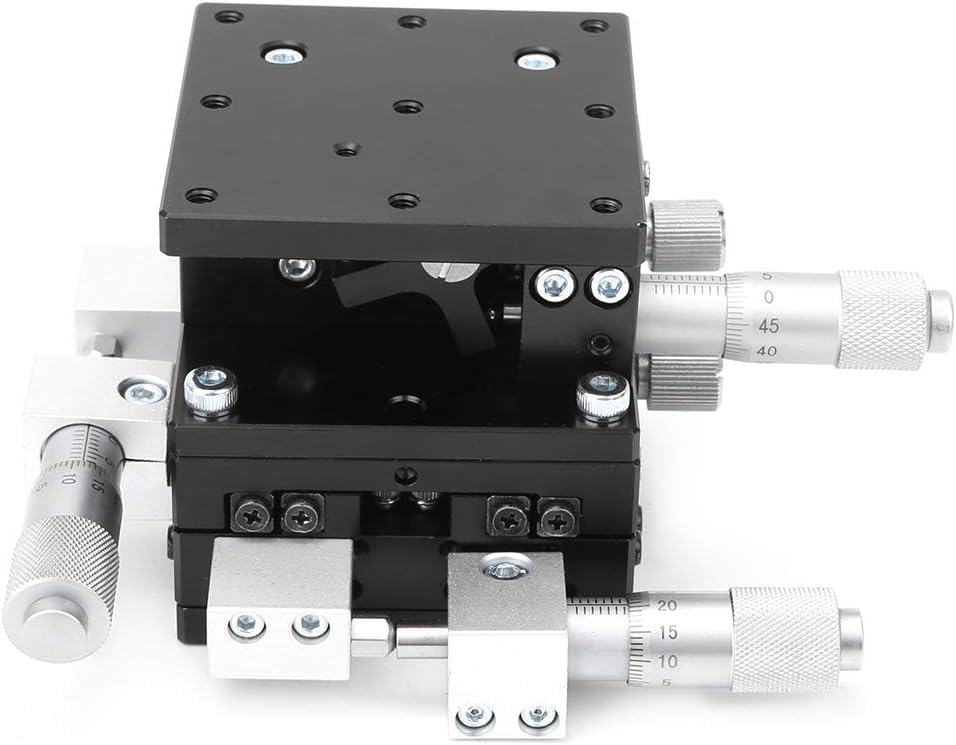

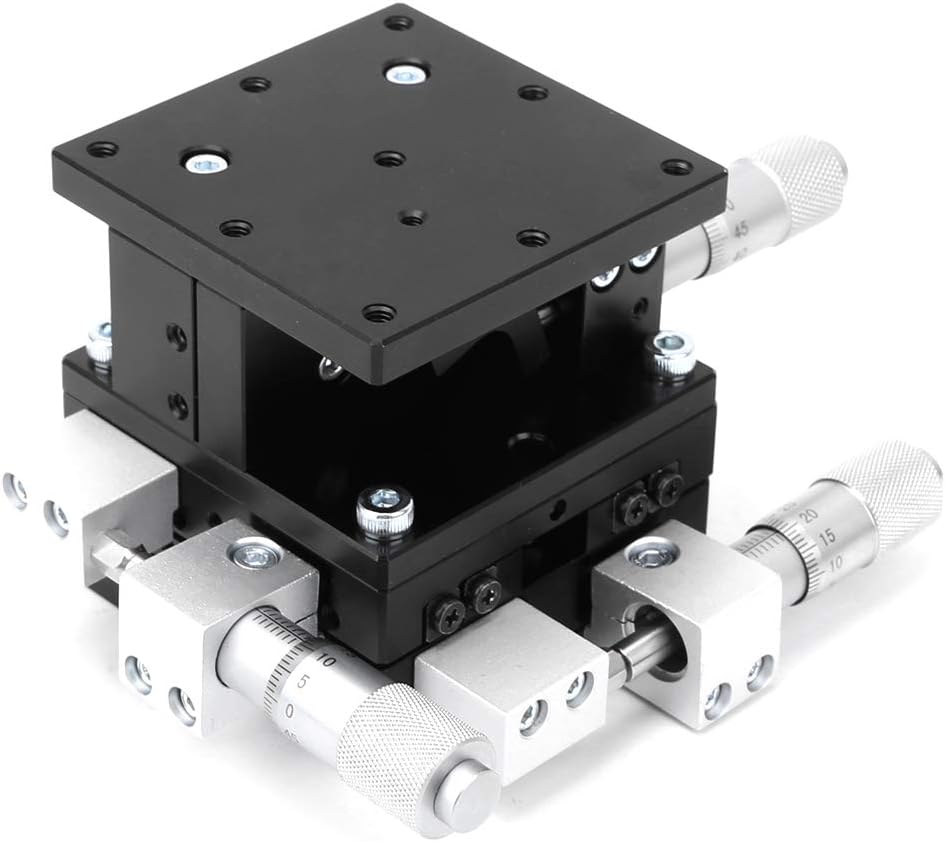

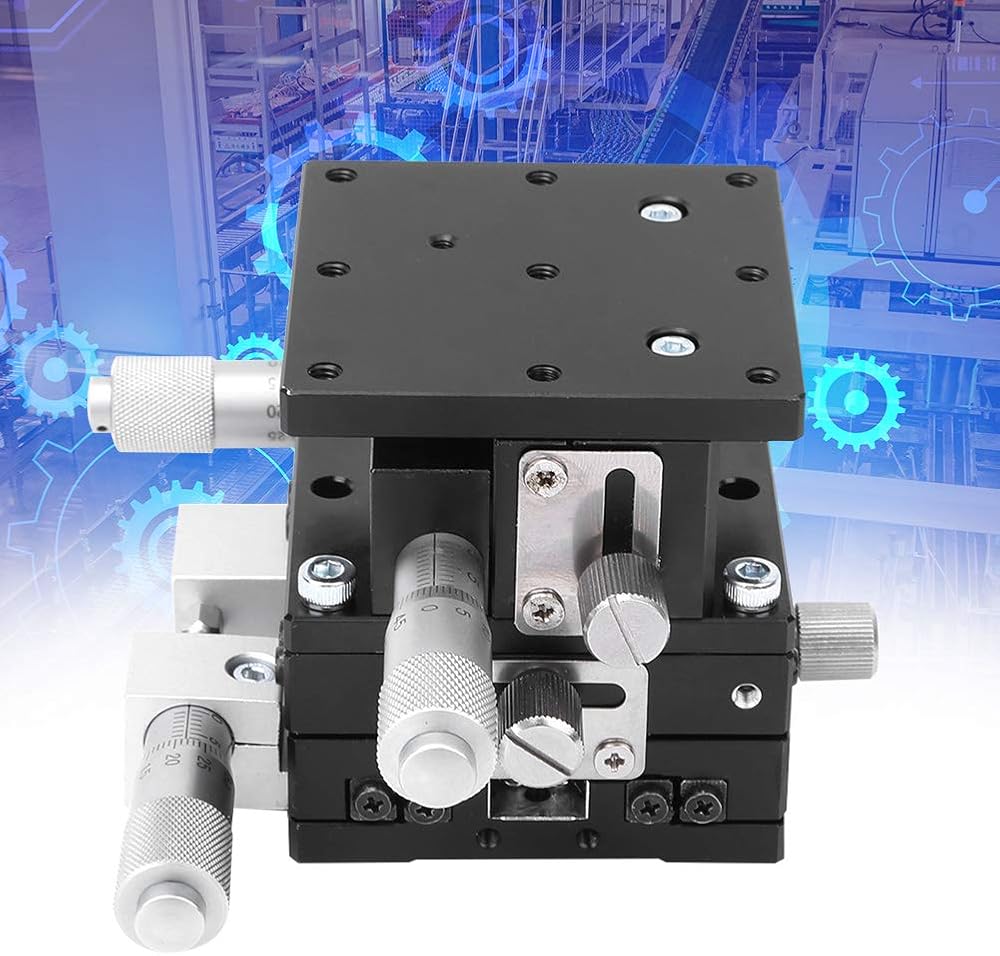

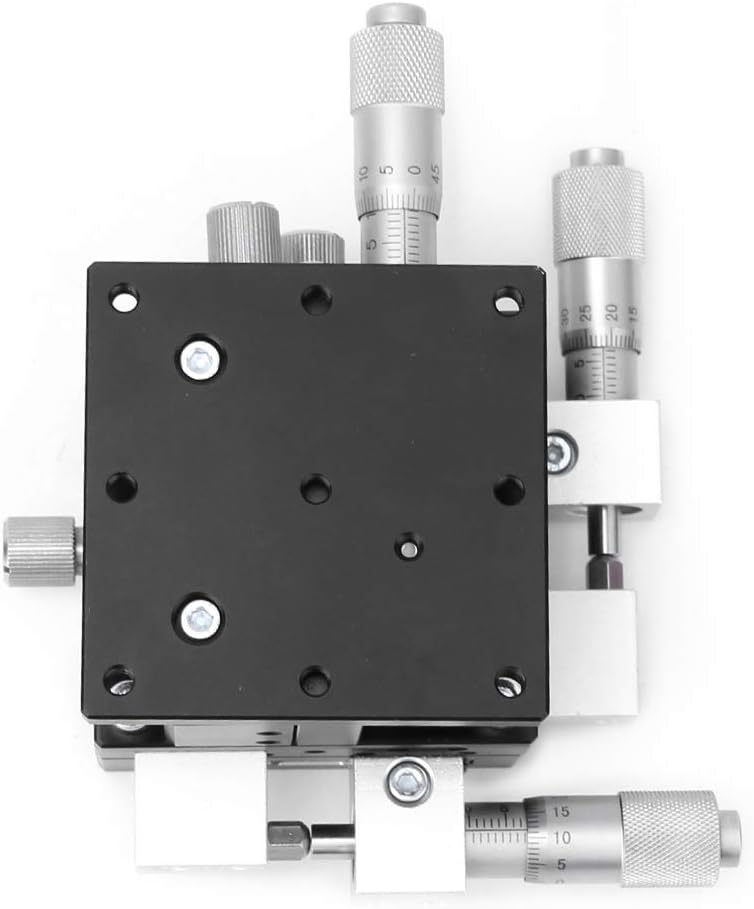

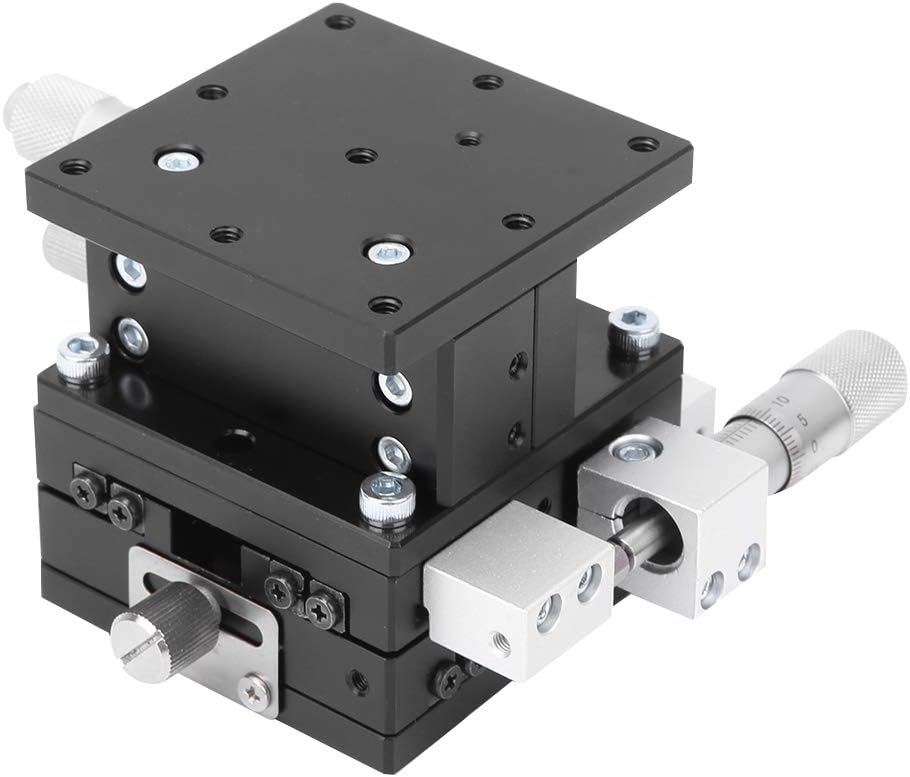

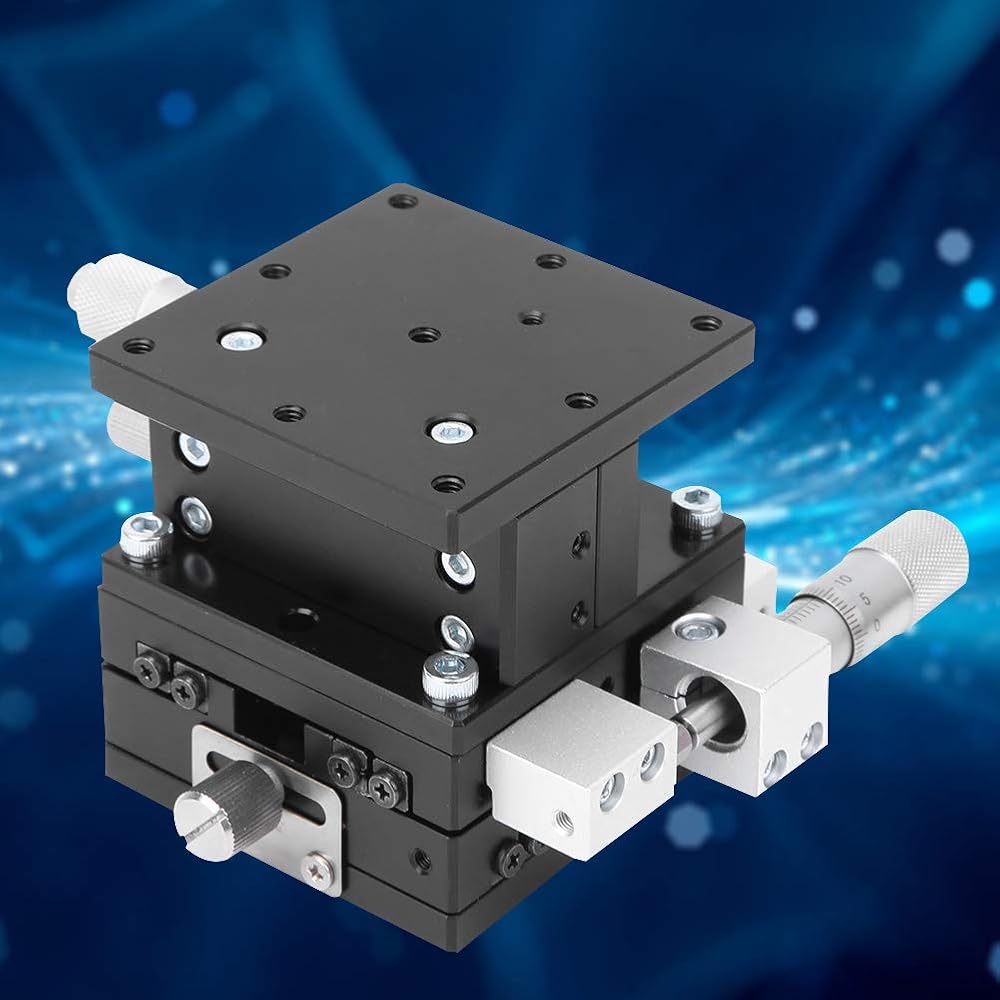

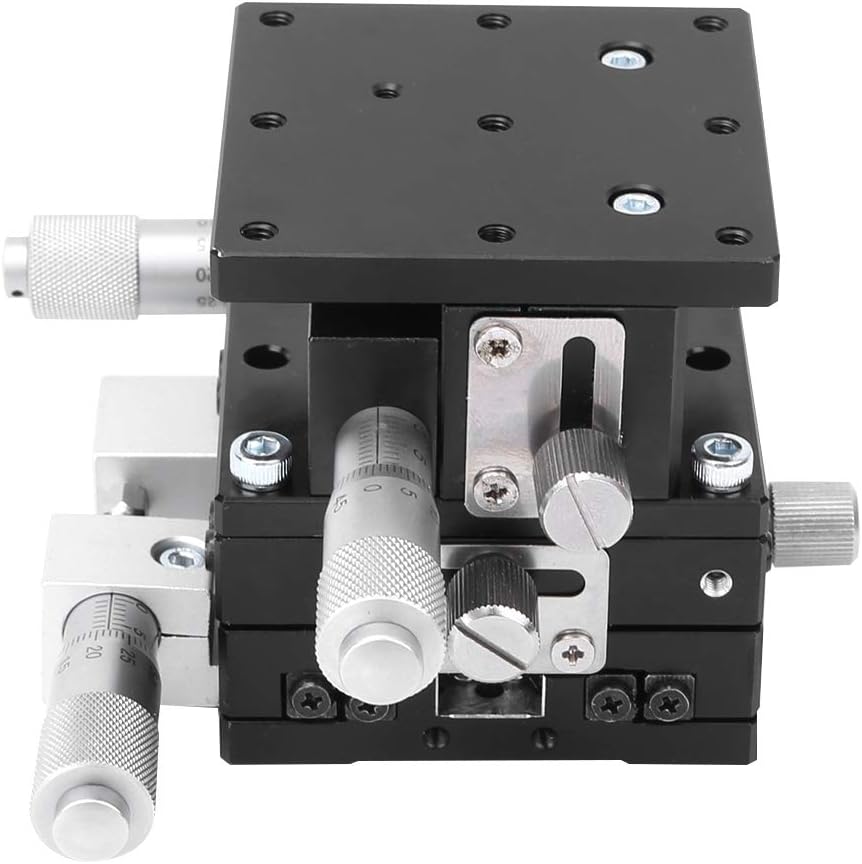

Linear Bearing, Linear Stage Ld60 Lm Xyz 3 Axis Linear Stage Trimming Platform Manual Tuning Slide Table 60 X 60 Mm Linear Sliding Table

KWD 50.500
– 1 +

Special Features

  • It adopts high-strength bearing steel guide rail, which has large bearing capacity, stable working and better wear resistance.
  • XYZ AXIS PRECISION MANUAL FINE ADJUSTMENT PLATFORM This XYZ 3-axis DOF manual linear stage can be adjusted, with internal cross rail, high-precision micrometric driving method with an accuracy of 0.02mm and strong load bearing of 24.5N, which ensures manual and precise adjustment of the registration.
  • MICROMETRIC PLATFORM PARAMETERS The size of this linear trimming bearing adjustment platform is about 60 x 60 mm / 2.4 x 2.4 inches, adopts micrometric drive mode, the direction of movement is XYZ 3 axis DOF ​​xy axis travel: 0.25 6"; Travel Z axis go: 10 mm, the minimum scale is 0.01 mm, and the parallelism is 0.02 mm.
  • PREMIUM MATERIAL: Carbide side head, tighter lock, no rust in complex environments, more durable, . The surface of the guide rail is galvanized and can be used in complex environments, and rust .
  • Carbide side head, tighter lock, will not rust in complex environments, more durable and .

Description

Feature:
1. Widely used in production machinery, test equipment, optical experimental measurement, offset adjustment, precision positioning, quantitative movement, etc.
2. Can be adjusted 3-axis XYZ DOF, internal cross rail, high precision, strong load bearing.
3. plated locking screw, plated fine adjustment knob.
4. Carbide side head, tighter lock, no rust in complex environments, more durable and .
5. It adopts high-strength bearing steel transverse guide rail, which has large bearing capacity, stable work and better wear resistance.

Specification:
Item Type: Linear Stage Trimming Platform
Model No.: LD60-LM
Material: aluminum alloy (black anodized surface)
Table size: approx. 60 x 60 mm / 2.4 x 2.4 inches.
Total approx. 65mm/2.6 inches
Moving rail: cross rail
Driving Mode: Micrometer
Movement direction: XYZ 3 axis DOF
XY axis travel: ±6.5 mm
Z axis travel: 10 mm
Load: 24.5 N (3 kgf)
Minimum Scale: 0.001mm
Accuracy: 0.03mm
Parallelism: 0.02mm

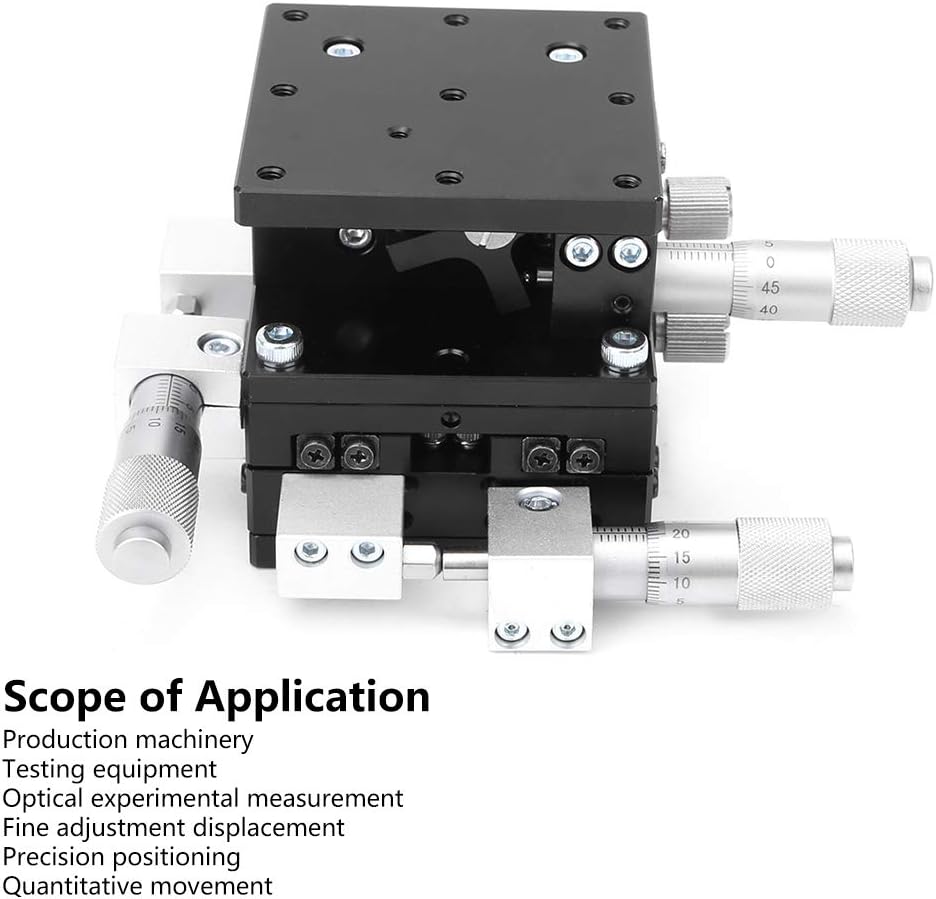

Scope of application: Production machinery, test equipment, optical experimental measurement, adjustment shifting, precision positioning, quantitative movement, etc.

Packing List:
1 x Linear Stage Trimming Platform
