Voltmeter

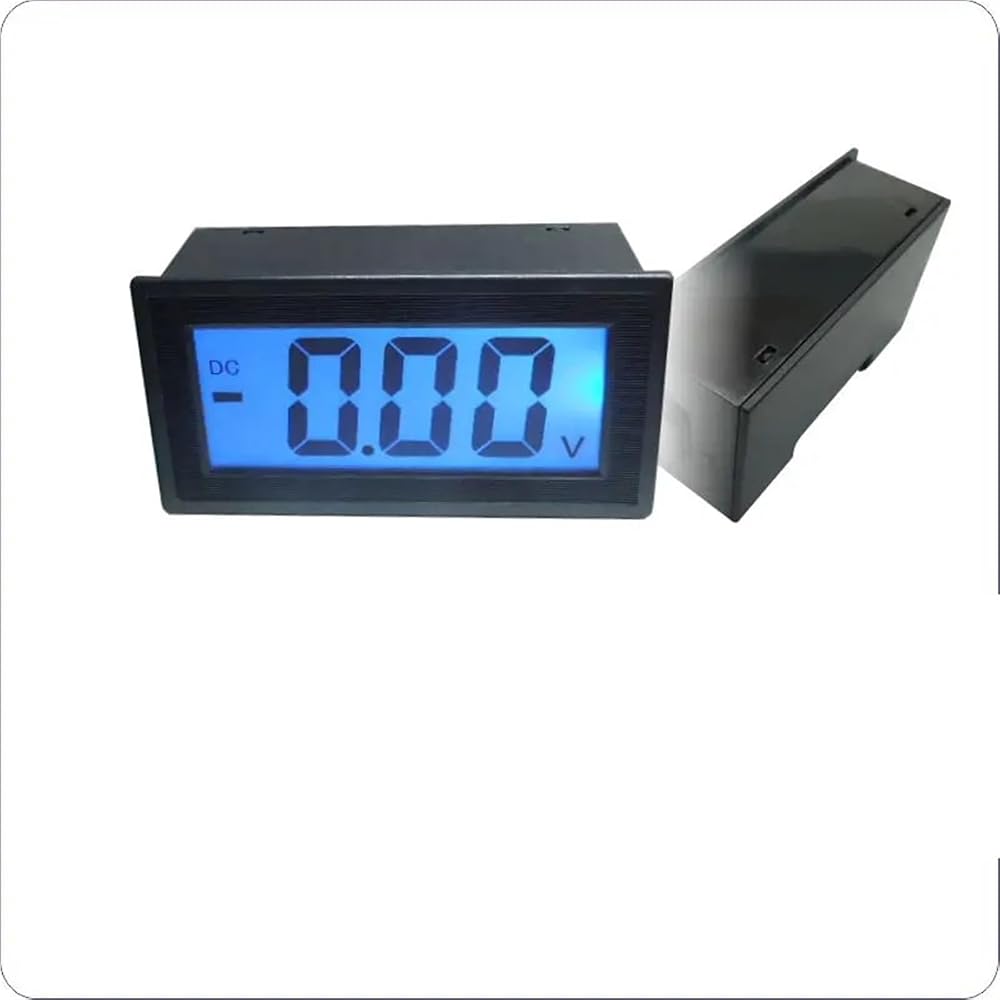

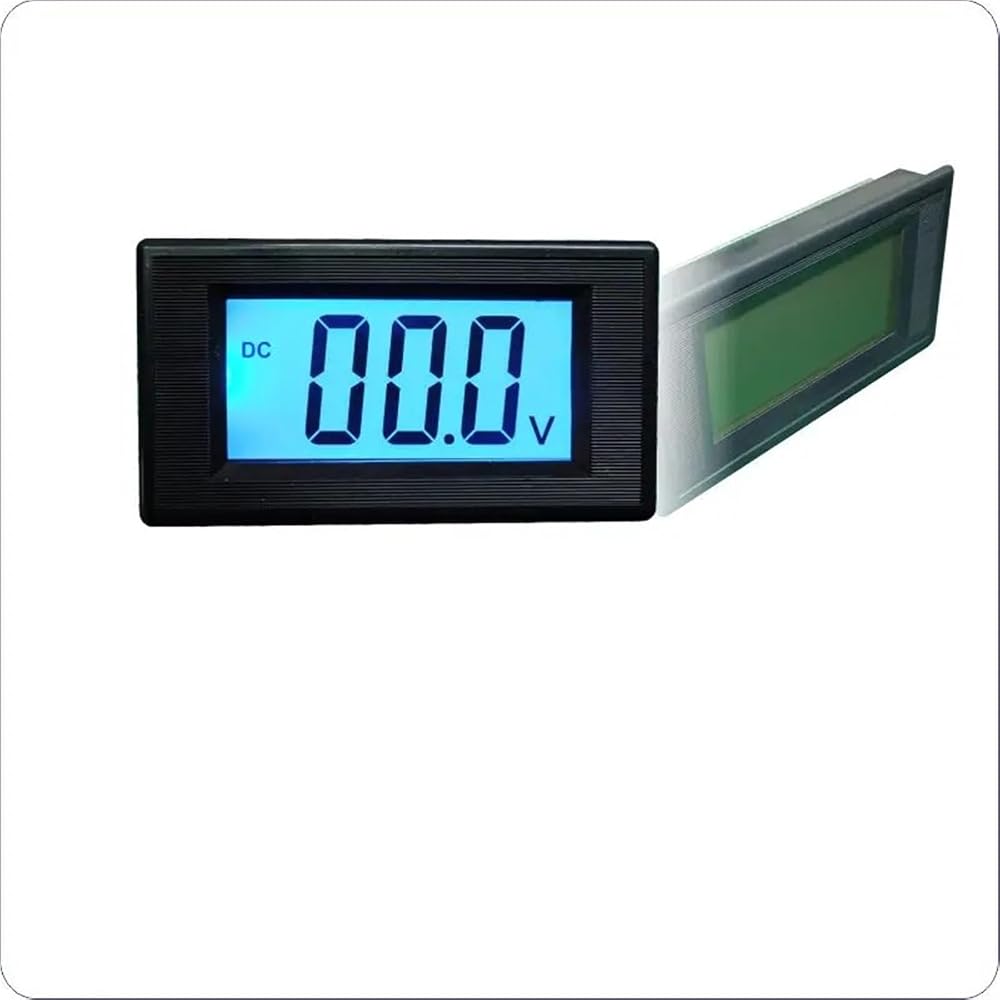

YB5135D Voltmeter Three-wire Digital Voltmeter Digital Voltmeter Voltage Meter Blue Backlit Half-sealed Meter Volt
The difference between Full-closed and Semi-closed:
Semi-closed: from the back "can see" components on the circuit board; viewing area: 51 * 24.5mm; font: 19 * 9mm
Full-closed:from the back "can not see" components on the circuit board; viewing area: 61 * 24.5mm; font: 21 * 11mm
Technical Parameters:
Power supply:DC3.5-30V
Test voltage:DC0-2V/20V/100V/200V/300V/500V
Dimension:79*43*25mm
Mounting hole:76*39mm
Display mode: with blue backlight
Measurement accuracy: 0.5% (± 2 digits)
Measurement rate: 2 times/S
Features:
Thismeter can test positive and negative value.
Power supply reverse protection.
Product stability is good, high precision measurement, anti-interference ability.
The appearance of the standard size, easy installation.
Package Include:
1 piece* Digital Voltage Meter
Connection diagram:
With three wires, can be connected to cars,e-bikes or motorcycles.
Red wire: Power supply Positive terminal
Black wire: Public Negative terminal(Power supply and test negative terminal)
Yellow wire: Testing terminal
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB5135D
DIY Supplies : ELECTRICAL
Dimensions : 79x43x25mm
Operating Temperature : -10~50 degress
Accuracy Class : 0.5% +/- 2 digits
Power Supply :
Display Type : Digital Only
Mounting holes : 76x39mm
Working pressure : 80~106kPa
Display type : Blue backlight
Test voltage : DC2V/20V/100V/200V/300V/500V
Power supply : DC3.5-30V
Feature : Three wires
