Radio Frequency Filters

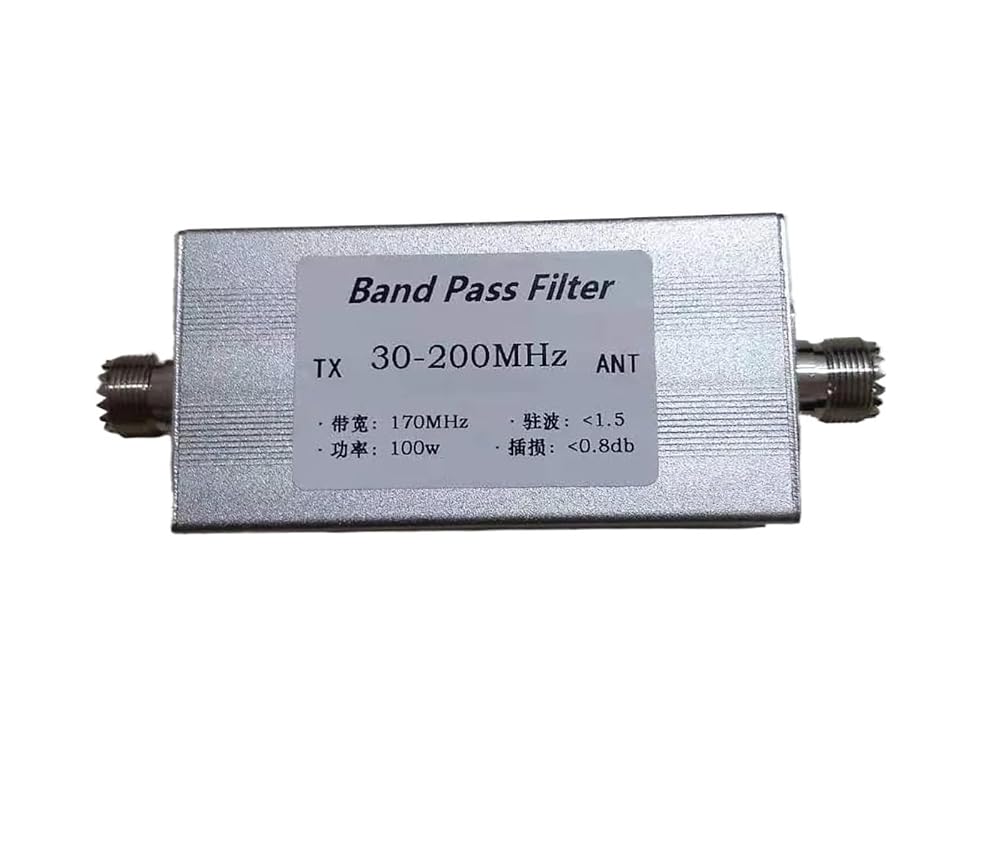

30-200MHz Band Pass Filter (BPF): BPF-30-200
1. For detailed technical parameters, please refer to the following information (2-30MHz or 1.5-30MHz or 7-30MHz can also )
2. Input impedance: 50 ohms; output impedance: 50 ohms.
3. The passable bandwidth is 30-200MHz
4. Insertion loss: less than 0.8db
5. The IN terminal is connected to the radio station, and the ANT terminal is connected to the antenna.
6. Power: 100w
7. Standing wave: less than 1.5

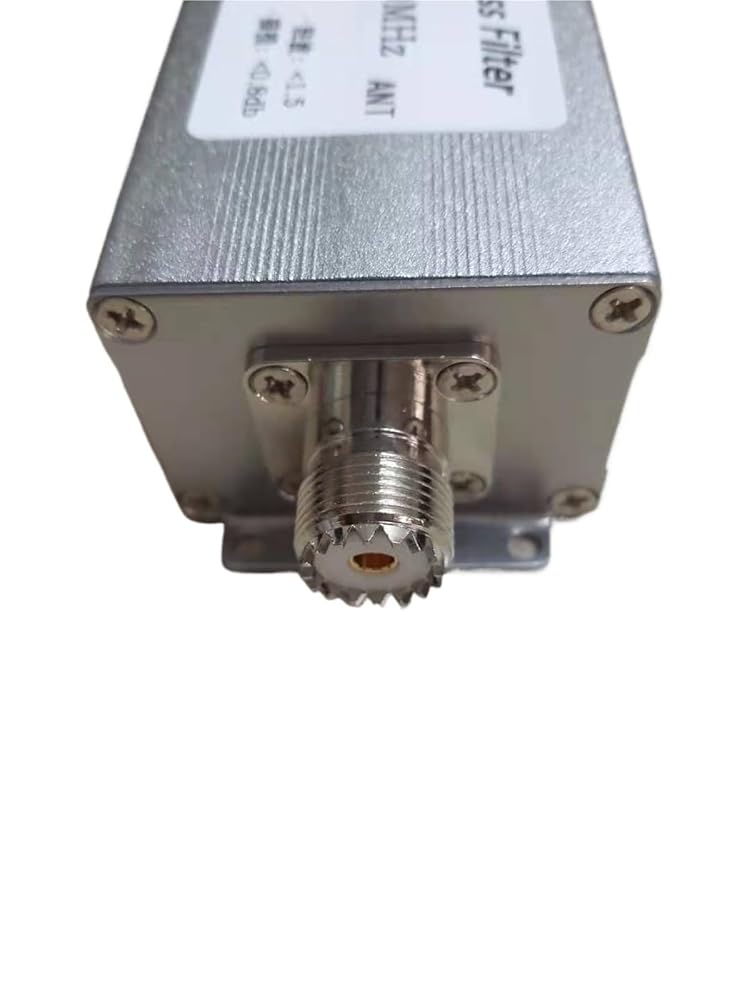

8. Interface: SL16-F (M seat) (N seat can also )
9. External dimension: 140*53*38mm
