Notes:
We can make AC or DC0-10A-1500A(Min 10A,Max 1500A)
Power supply:12VDC,15VDC,24VDC,12V-28VDC
Technical characteristics:
High measurement accuracy
Stable and structure
Strong anti-interference ability
Lightweight and easy to install
Introduction
. Working Principle: Open loop direct measurement.
.Product Usage: Used for measuring , AC, pulse current and other arbitrary waveform current.
.Product Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
.Product Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
.The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
Full channel configuration,Parameter customizable.
Selection
==========
Dimensions : 25mm 38mm 50mm
Operating Temperature : -20~60C
Supply Voltage : 3256803607011316
Accuracy Class : 0.2%,0.5%

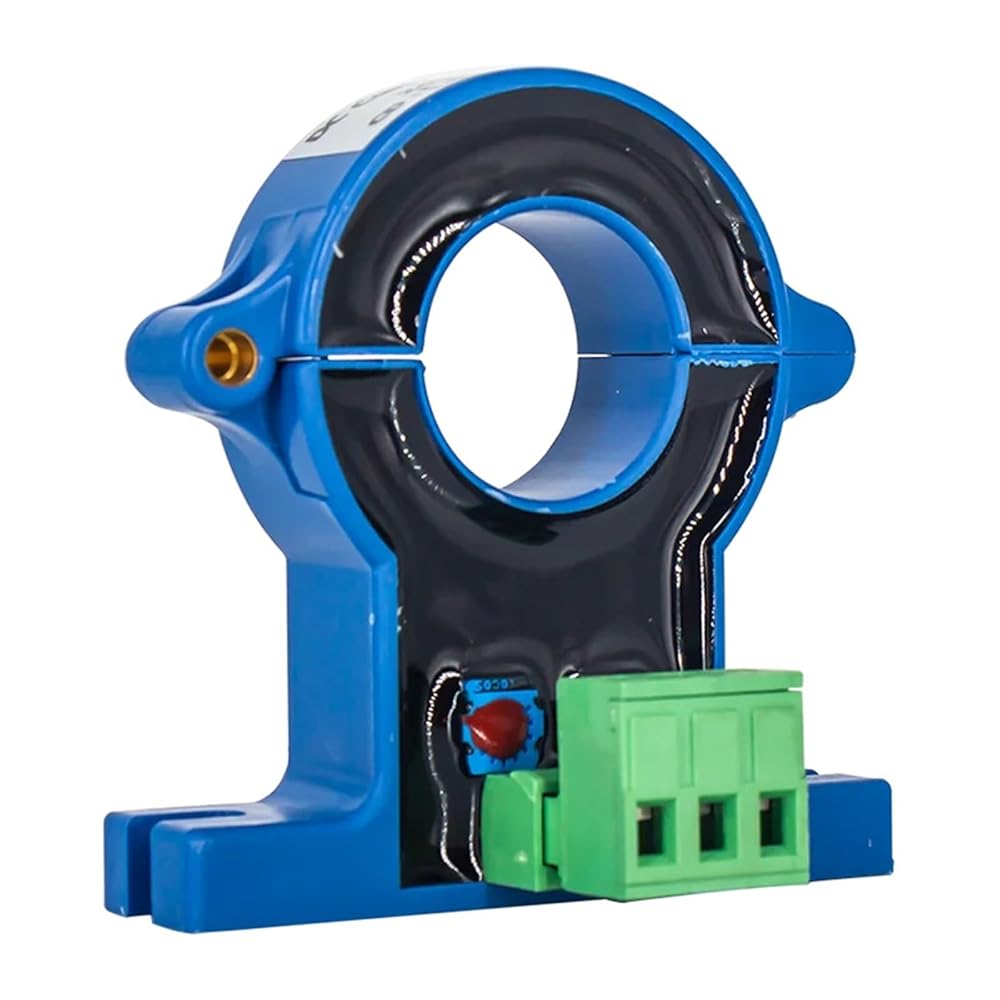

Model Number : JXK-7
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Measuring range : AC/DC0-10A-500A
Output : 4-20mA,0-20mA,0-5V,0-10V
Power supply : ±12V,±15V,24VDC,12V-28VDC
Response time: : AC:20-30ms,:10ms
Installation method : Screw fixation
