Radio Frequency Filters

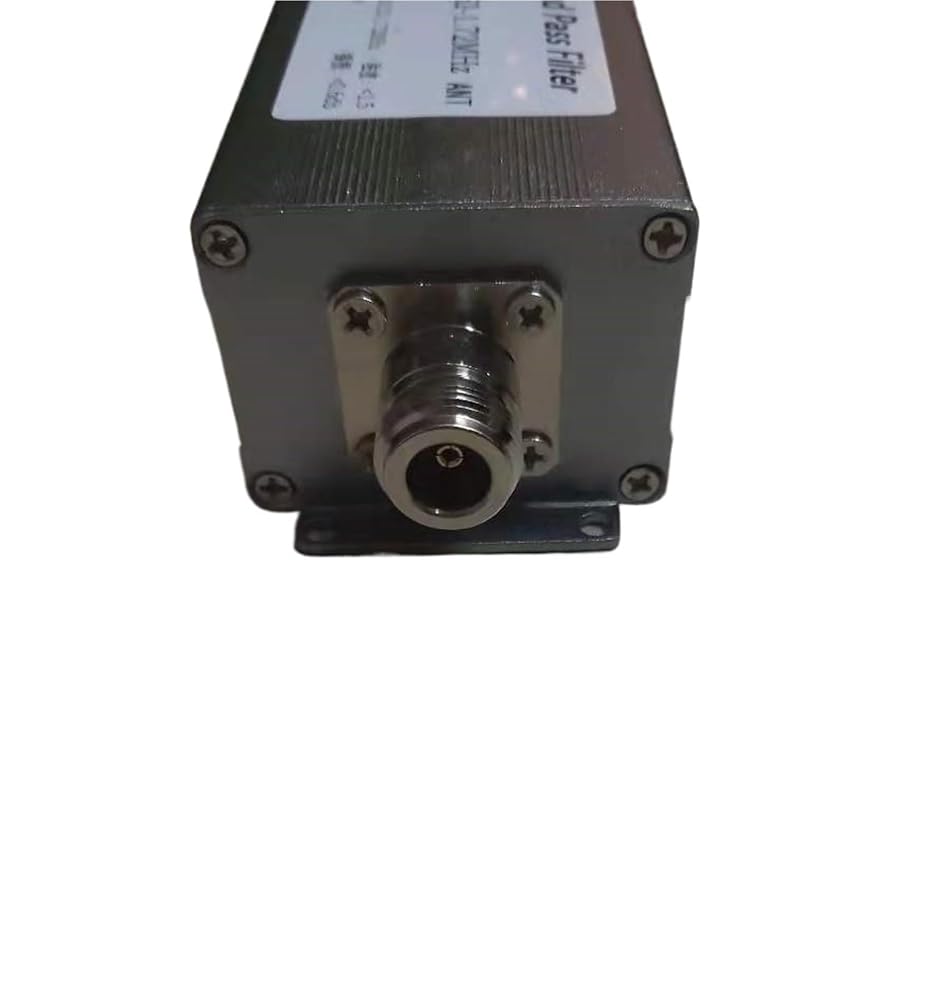

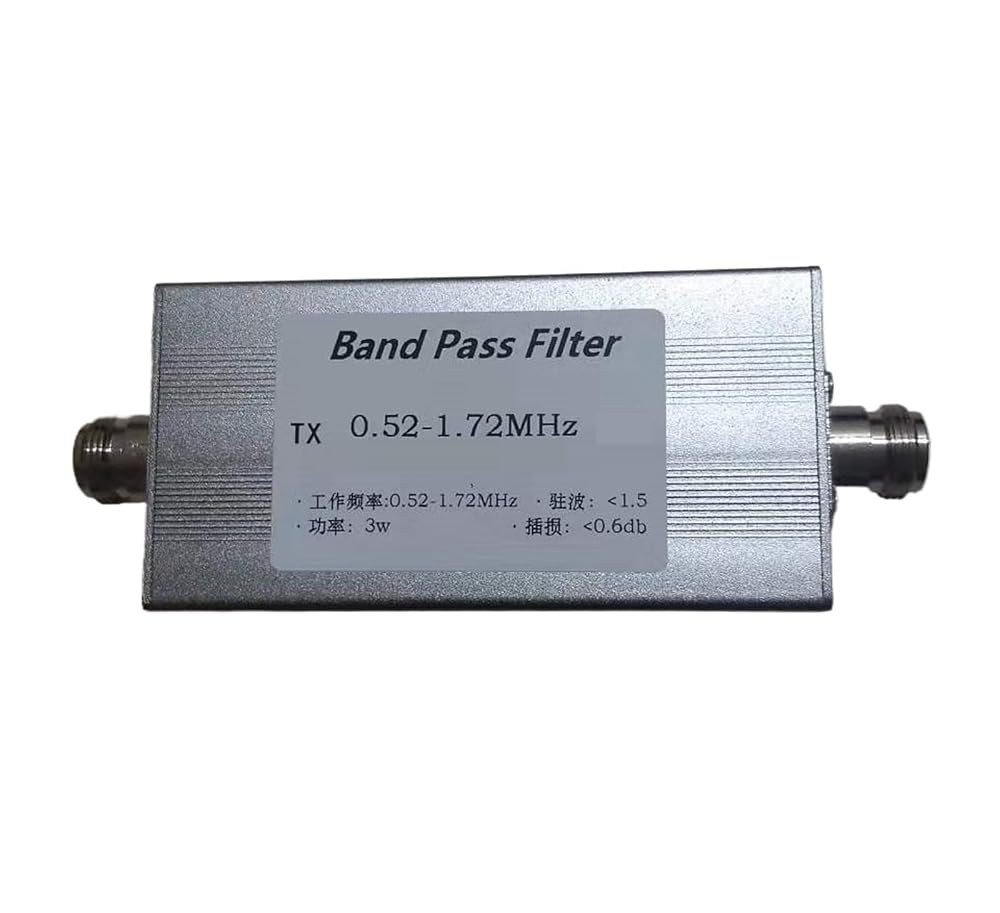

MW Band Pass Filter (BPF): BPF-0.52-1.72M
1. Operating frequency: 0.52-1.72MHz
2. Insertion loss: less than 0.6db
3. The passable bandwidth includes the entire MW band.
4. Input impedance: 50 ohms; output impedance: 50 ohms.
5. TX is connected to the radio, and ANT is connected to the antenna.
6. Power: 3w
7. Standing wave: less than 1.5
8. Interface: L16-F (N seat)
Net weight: 200 grams
Outer size: 140*53*38mm
