Uxcell CF18 كام Fllower تحمل 40 مللي متر قطر مسمار نوع المسار محمل ذو بكرات إبرية محامل KR40 M18x1.5mm الموضوع in Kuwait Uxcell CF18 كام Fllower تحمل 40 مللي متر قطر مسمار نوع المسار محمل ذو بكرات إبرية محامل KR40 M18x1.5mm الموضوع in Kuwait Uxcell CF18 كام Fllower تحمل 40 مللي متر قطر مسمار نوع المسار محمل ذو بكرات إبرية محامل KR40 M18x1.5mm الموضوع in Kuwait

Uxcell CF18 كام Fllower تحمل 40 مللي متر قطر مسمار نوع المسار محمل ذو بكرات إبرية محامل KR40 M18x1.5mm الموضوع

KWD 5.500
– 1 +

مميزات خاصة

  • CF18(KR40). 40mm diameter and 58.2mm in length, the thread size is M18x1.5mm. Standard shape and size make the installation easier.
  • The bearing made of GCr15 steel, and the cage part is mild steel. Premium materials enhanced the performance of corrosion resistance and stability.
  • High load capacity. 1180kgf on Dynamic Load Rating (Cr), 1220kgf Static Load Rating (Cor). The limited speed goes to 8500 rpm.
  • Solid sealed. Preventing the entry of foreign matters like dust, this would extend the life of needle roller bearing.
  • Application. Cam Followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.

وصف

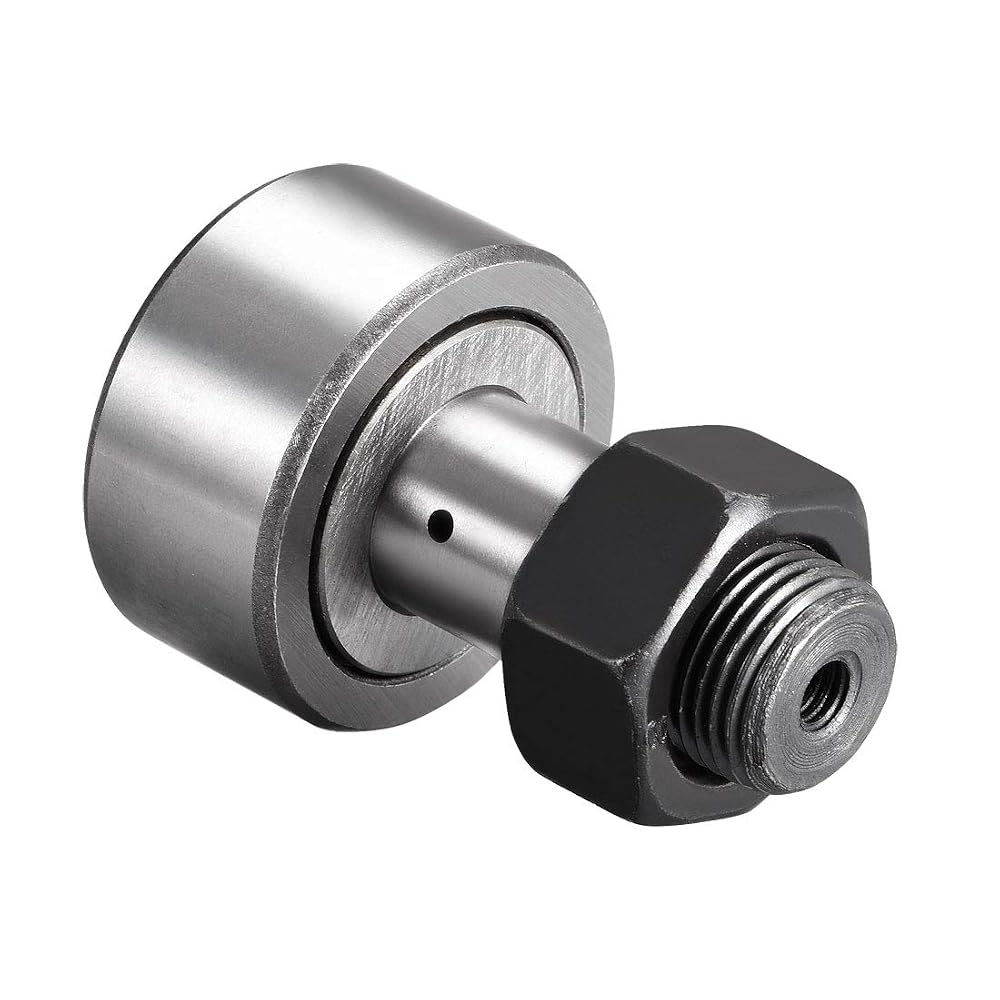

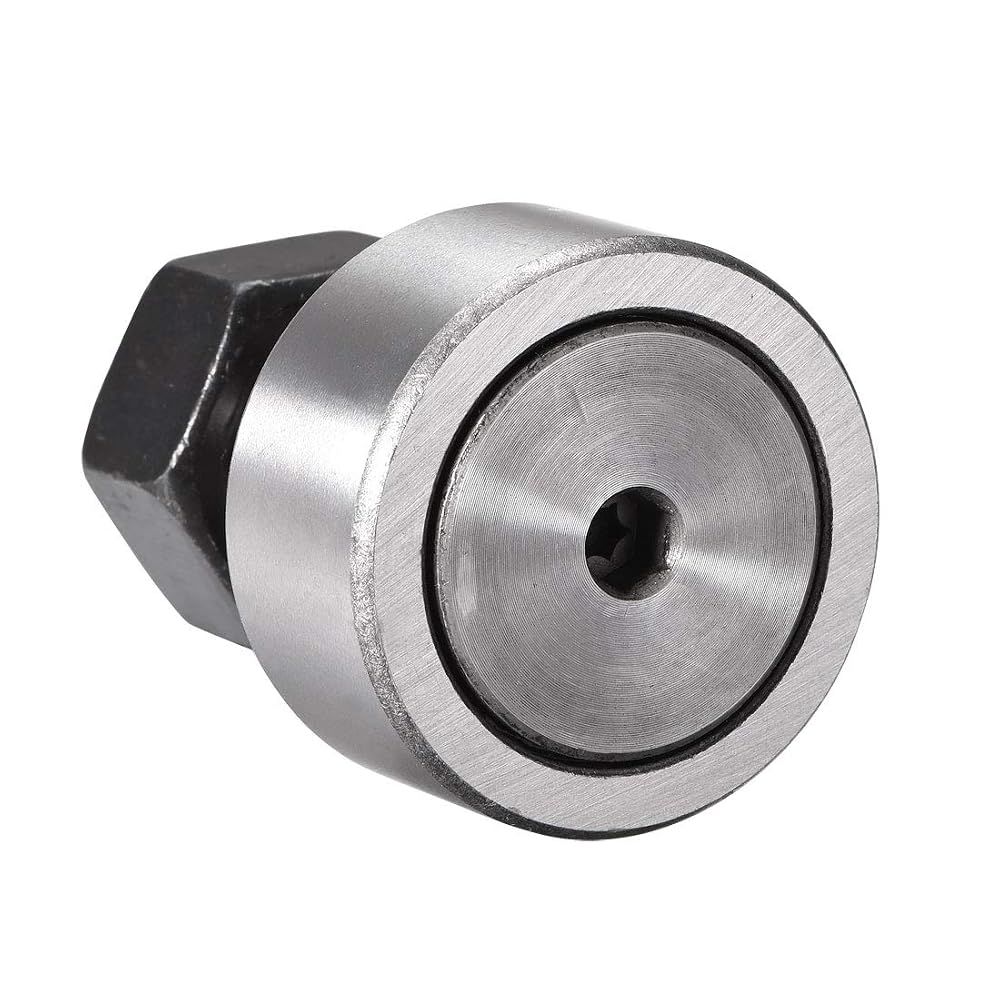

CF18 Cam Fllower Needle Roller Bearing.
Cam Followers Bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.

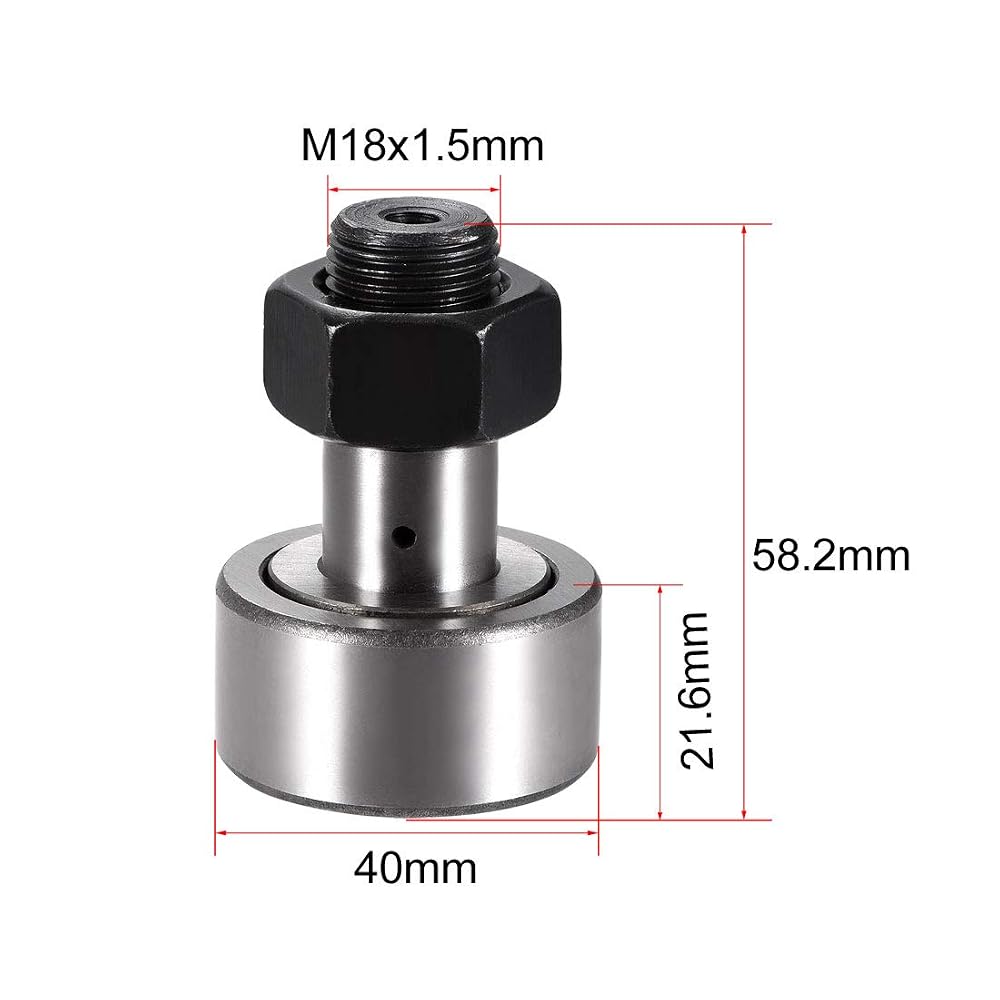

Model: CF18 or KR40
Outside Diameter: 40mm
Screw Thread Size: M18x1.5mm
Overall Length: 58.2mm
Bearing Thickgfess: 21.6mm
Dynamic Load Rating (Cr): 1180kgf
Static Load Rating (Cor): 1220kgf
Limited Speed: 8500 rpm
Bearing Material: GCr15 Steel
Cage Material: Mild Steel
Weight: 289g

Package Content: 1 pcs CF18 Cam Fllower Needle Roller Bearing
